LOVOL TC2A604-010K Tractor Parts Catalogue 13
Foton TC2A604-010K Wheeled Tractor
FT500A.56B.001 Suspension Mechanism Assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT500A.56B.001 |
Suspension mechanism assembly |
1 |
||
1 |
FT300.56A.018b |
Fixed clip combination, upper link |
1 |
|
1.1 |
GB/T 91-2×10-A0P |
Split pin |
1 |
|
1.2 |
GB/T 97.1-6-A0P |
Washer |
1 |
|
1.3 |
FT300.56A.020b |
Base plate welded unit |
1 |
|
1.4 |
FT300.56A.216 |
Fixing clip |
1 |
|
2 |
FT500A.56.011a |
Upper link assembly |
1 |
|
2.1 |
FT500A.56.026 |
Front adjusting link assembly, upper link |
1 |
|
2.2 |
GB/T 6173-M27×2-A3L |
Hexagon thin nut |
1 |
|
2.3 |
FT500A.56.027 |
Adjustment solenoid weldment |
1 |
|
2.4 |
JB/T 7940.1-M6 |
Straight-through type forced filling oil cup |
1 |
|
2.5 |
GB/T 6173-M27×2-LH-A3L |
Hexagon thin nut |
1 |
|
2.6 |
FT500A.56.024 |
Rear adjusting link assembly, upper link |
1 |
|
2.7 |
FT65.56.015 |
Lockpin assembly, upper link |
1 |
|
3 |
FT500A.56.101 |
Connecting pin, upper clevis, lift link |
2 |
|
4 |
FT500A.56.013 |
Lift link assembly |
2 |
|
4.1 |
FT500A.56.107 |
Upper clevis, lift link |
1 |
|
4.2 |
GB/T 6173-M27×2-A3L |
Hexagon thin nut |
1 |
|
4.3 |
FT500A.56.033 |
Solenoid weldment, lift link |
1 |
|
4.4 |
JB/T 7940.1-M6 |
Straight-through type forced filling oil cup |
1 |
|
4.5 |
GB/T 6173-M27×2-LH-A3L |
Hexagon thin nut |
1 |
|
4.6 |
FT500A.56.108 |
Lower clevis, lift link |
1 |
|
5 |
FT500A.56.118 |
Washer |
2 |
|
6 |
GB/T 91-5×40-A0P |
Pin |
2 |
|
7 |
FT300.56A.112 |
Connecting pin, lower clevis, lift link |
2 |
|
8 |
GB/T 97.1-24-A0P |
Flat washer |
2 |
|
9 |
GB/T 91-5×32-A0P |
Split pin |
2 |
115
Foton TC2A604-010K Wheeled Tractor
TC02581200000K Oil Pipe Filter Assembly of Oil Pump
116
Foton TC2A604-010K Wheeled Tractor
TC02581200000K Oil Pipe Filter Assembly of Oil Pump
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1 |
FT300.58.101 |
Hollow bolt |
1 |
|
2 |
JBT982-22 |
Composite sealing washer |
2 |
|
3 |
GBT6170-M6-8-A2L |
Hexagon nut, type 1 |
3 |
|
4 |
GBT93-6-A0P |
Standard spring washer |
3 |
|
5 |
FT300.58.013 |
Oil pipe clamp and rubber gasket gluing |
6 |
|
6 |
GBT5783-M6X30-8.8-A2L |
Hexagon head bolt |
3 |
|
7 |
Q67632 |
Hoop, worm drive hose, type B |
4 |
|
8 |
FT450.58.011 |
Oil suction pipe weldment |
1 |
|
9 |
FT450.58.103 |
Oil suction hose |
1 |
|
10 |
GBT70.1-M8X25-8.8-A2L |
Hexagon socket head cap screw |
4 |
|
11 |
GBT93-8-A0P |
Standard spring washer |
11 |
|
12 |
FT550A.58.040 |
Oil filter assembly |
1 |
|
13 |
FT300.58A.104 |
Oil suction hose |
1 |
|
14 |
TC04581050003 |
Pressure oil pipe assembly |
1 |
|
15 |
GBT70.1-M8X30-8.8-A2L |
Hexagon socket head cap screw |
4 |
|
16 |
GBT5783-M8X30-8.8-A2L |
Hexagon head bolt |
3 |
|
17 |
TC04581030002 |
Pressure oil pipe assembly-1 |
1 |
|
18 |
GBT3452.1-18.0X2.65G |
O-ring sealant used for hydraulic or pneumatic parts |
1 |
|
19 |
TC02581010001K |
Gear pump |
1 |
|
20 |
GBT3452.1-21.2X1.80G |
O-ring sealant used for hydraulic or pneumatic parts |
1 |
|
21 |
FT550A.58.020 |
Oil suction short pipe weldment |
1 |
117
Foton TC2A604-010K Wheeled Tractor

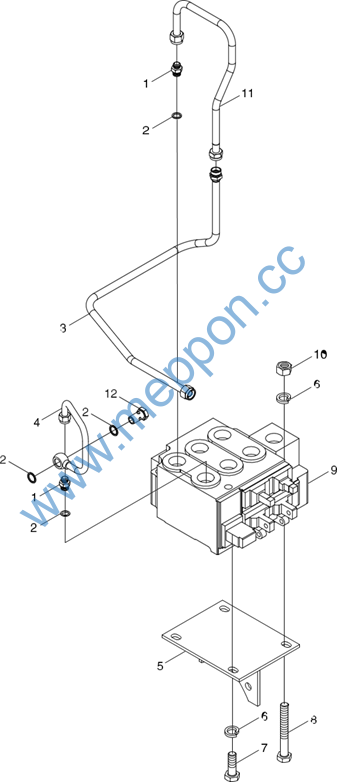

TC04582200000 Multi-way valve pipe and control mechanism assembly – 1
118
Foton TC2A604-010K Wheeled Tractor
TC04582200000 Multi-way valve pipe and control mechanism assembly – 1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC04582200000 |
Hydraulic control and multi-way valve oil pipe assembly |
1 |
||
1 |
FT654.58B.102 |
Straight thread connector, body 1 |
2 |
|
2 |
JBT982-22 |
Compound seal washer |
12 |
|
3 |
TC04582010003 |
Multi-way valve oil inlet pipe assembly-2 |
1 |
|
4 |
TB604.582A.3 |
Multi-way valve oil return pipe assembly |
1 |
|
5 |
TB604.582A.1 |
Multi-way valve bracket weldment |
1 |
|
6 |
GBT93-10-A0P |
Standard spring washer |
4 |
|
7 |
GBT5783-M10X30-8.8-A3L |
Hexagon head bolt |
1 |
|
8 |
GBT5782-M10X70-8.8-A2L |
Hexagon head bolt |
3 |
|
9 |
FT654.58B.020 |
Multi-way valve assembly DF 50F1 |
1 |
|
10 |
GBT6170-M10-8-A3L |
Hexagon nut, style 1 |
3 |
|
11 |
TC04582200001 |
Multi-way valve oil inlet pipe assembly-1 |
1 |
|
12 |
FT654.58.107 |
Hollow bolt-1 |
1 |
119
Foton TC2A604-010K Wheeled Tractor
TC04582200000 Multi-way valve pipe and control mechanism assembly – 2
120
Foton TC2A604-010K Wheeled Tractor
TC04582200000 Multi-way valve pipe and control mechanism assembly – 2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC04582200000 |
Hydraulic control and multi-way valve oil pipe assembly |
1 |
||
1 |
FT654.58.107 |
Hollow bolt-1 |
3 |
|
2 |
JBT982-22 |
Compound seal washer |
9 |
|
3 |
TB604.582A.4a |
Multi-way valve oil outlet pipe assembly-1 |
1 |
|
4 |
GBT3452.1-18.0X2.65G |
O-ring sealant used for hydraulic or pneumatic parts |
1 |
|
5 |
FT354.58A.018b |
Multi-way valve oil outlet pipe assembly-2 |
1 |
|
6 |
GBT93-8-A0P |
Standard spring washer |
2 |
|
7 |
GBT5783-M8X30-8.8-A2L |
Hexagon head bolt |
2 |
|
8 |
TC04582200007 |
Multi-way valve oil outlet pipe assembly-1 |
1 |
|
9 |
FT354.58A.030 |
Quick-adapt connector |
4 |
|
10 |
FT354.58A.104 |
British system oil pipe connector |
4 |
|
11 |
TC04582200009 |
Multi-way valve oil outlet pipe assembly-2 |
1 |
|
12 |
GBT6173-M22X1.5-05-A3L |
4 |
||
13 |
TC04582200011 |
Multi-way valve oil outlet pipe assembly-4 |
1 |
|
14 |
TC04582200003 |
Straight thread connector, body M22-16 |
2 |
|
15 |
TC04582200005 |
Multi-way valve oil outlet pipe assembly-3 |
1 |
|
16 |
GBT3452.1-12.5X2.65G |
O-ring sealant used for hydraulic or pneumatic parts |
4 |
121
Foton TC2A604-010K Wheeled Tractor

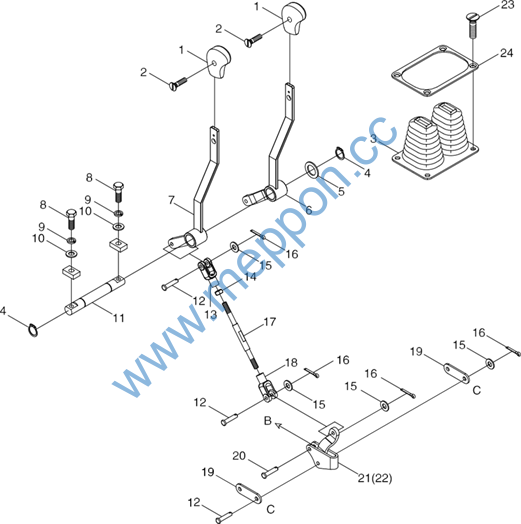

TC04582200000 Multi-way valve pipe and control mechanism assembly -3
122
Foton TC2A604-010K Wheeled Tractor
TC04582200000 Multi-way valve pipe and control mechanism assembly -3
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC04582200000 |
Hydraulic control and multi-way valve oil pipe assembly |
1 |
||
1 |
TB604.582G-01 |
Handle head |
2 |
|
2 |
GBT68-M4X10-4.8-A2L |
Slotted countersunk head screw |
2 |
|
3 |
TB504.552A-02b |
Dustproof sleeve |
1 |
|
4 |
GBT894.1-18 |
Circlip for shaft |
2 |
|
5 |
TB504.552A-03 |
Nylon washer |
1 |
|
6 |
TB504.582H.3a |
Multi-way valve control lever press 1 |
1 |
|
7 |
TB504.582H.4a |
Multi-way valve control lever press 2 |
1 |
|
8 |
GBT5783-M8X35-8.8-A2L |
Hexagon head bolt |
2 |
|
9 |
GBT93-8-A0P |
Standard spring washer |
2 |
|
10 |
GBT97.1-8-A0P |
Plain washer |
2 |
|
11 |
TB504.552A-01 |
Rotary shaft |
1 |
|
12 |
GBT882-B6X28 |
Pin shaft |
8 |
|
13 |
FT804A.58L.133 |
Righthand pull rod fork |
2 |
|
14 |
GBT6170-M8-8-A2L |
Hexagon nut, style 1 |
2 |
|
15 |
GBT97.1-6-A0P |
Plain washer |
10 |
|
16 |
GBT91-2X12-A0P |
Cotter pin |
10 |
|
17 |
TB604.582A-01 |
Threaded rod |
2 |
|
18 |
FT804A.58L.136 |
Lefthand pull rod fork |
2 |
|
19 |
FT654.58.103 |
Connecting plate |
4 |
|
20 |
GBT882-B6X22 |
Pin shaft |
2 |
|
21 |
TB504.582A.1 |
Connecting plate weldment 1 |
1 |
|
22 |
TB504.582A.2 |
Connecting plate weldment 2 |
1 |
|
23 |
GBT68-M6X16-4.8-A2L |
Slotted countersunk head screw |
4 |
|
24 |
TB504.552A-06 |
Dustproof sleeve press plate |
1 |
123
Foton TC2A604-010K Wheeled Tractor
TB300.583A Single-way Hydraulic Outlet Assembly 2
124
