LOVOL TC2A604-010K Tractor Parts Catalogue 14
TB300.583A Single-way Hydraulic Outlet Assembly 2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1 2 |
TB300.583A FT354.58A.104 FT354.58A.030 |
Single-way hydraulic outlet assembly 2 Oil pipe joint (British system) Quick-adapt joint |
1 1 1 |
125
Foton TC2A604-010K Wheeled Tractor

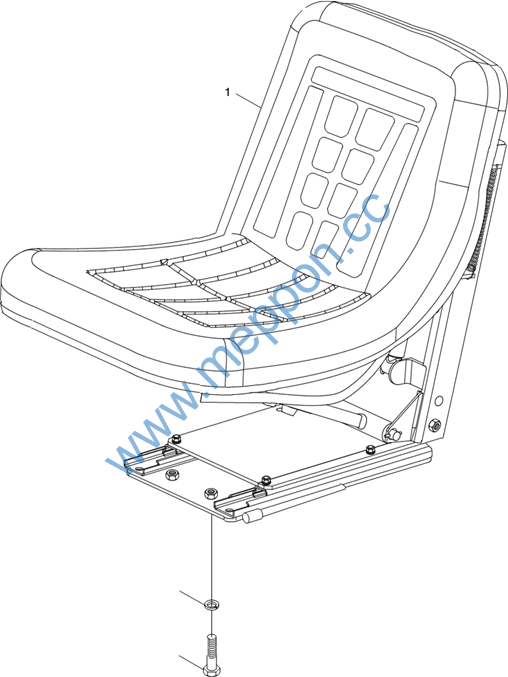

TB400.44G Seat Mounting Assembly
126
Foton TC2A604-010K Wheeled Tractor
TB400.44G Seat Mounting Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1 2 3 |
TB400.44G TB400.44G.1 GB/T 93-10-A0P GB/T 5783-M10×20-8.8-A3L |
Seat mounting assembly Seat assembly Standard spring washer Hex head bolt |
1 1 4 4 |
127
Foton TC2A604-010K Wheeled Tractor

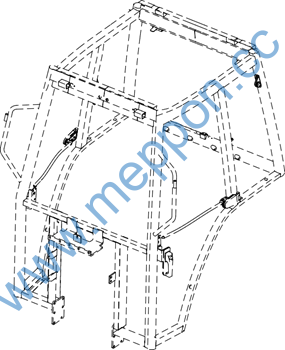

TC02451090000K Driver’s Cab Assembly-1
128
Foton TC2A604-010K Wheeled Tractor
TC02451090000K Driver’s Cab Assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02451090000K |
Driver’s cab assembly |
1 |
||
1 |
TC02451090001K |
Driver’s cab subassembly |
1 |
|
2 |
GBT5783-M12X65-8.8-A2L |
Hexagon head bolt |
4 |
|
3 |
GBT96.1-12-A0P |
Large washer |
4 |
|
4 |
GBT97.1-12-A0P |
Plain washer |
4 |
|
5 |
GBT93-12-A0P |
Standard spring washer |
4 |
|
6 |
GBT6170-M12-8-A3L |
Hexagon nut, style 1 |
4 |
|
7 |
GBT5783-M10X30-8.8-A3L |
Hexagon head bolt |
6 |
|
8 |
GBT97.1-10-A0P |
Plain washer |
10 |
|
9 |
GBT93-10-A0P |
Standard spring washer |
10 |
|
10 |
TB600.45L-69 |
Instrument panel seal strip |
1 |
|
11 |
GBT5783-M6X16-8.8-A2L |
Hexagon head bolt |
6 |
|
12 |
GBT93-6-A0P |
Standard spring washer |
6 |
|
13 |
GBT97.1-6-A0P |
Plain washer |
6 |
|
14 |
TB600.45L-02 |
Instrument panel assembly |
1 |
|
15 |
GBT6170-M8-8-A2L |
Hexagon nut, style 1 |
2 |
|
16 |
GBT97.1-8-A0P |
Plain washer |
2 |
|
17 |
GBT93-8-A0P |
Standard spring washer |
2 |
|
18 |
GBT5783-M8X20-8.8-A2L |
Hexagon head bolt |
2 |
|
19 |
TB400.474H.2 |
Bonnet air spring |
2 |
|
20 |
GBT5783-M10X65-8.8-A2L |
Hexagon head bolt |
4 |
129
Foton TC2A604-010K Wheeled Tractor

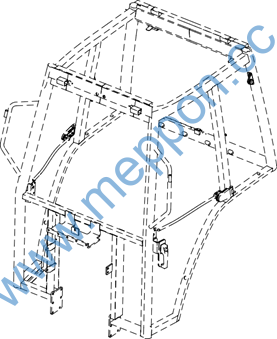

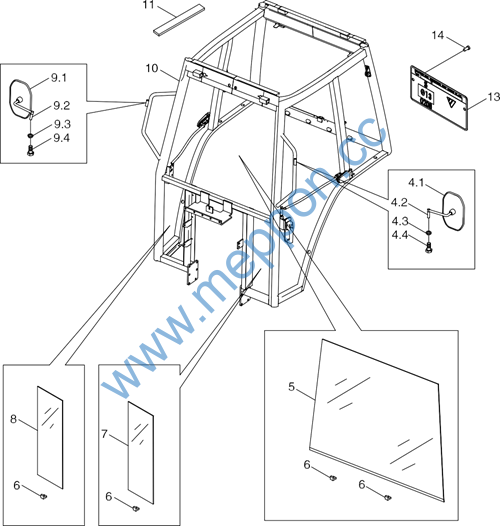

TC02451090000K Driver’s Cab Assembly-2
130
Foton TC2A604-010K Wheeled Tractor
TC02451090000K Driver’s Cab Assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02451090000K |
Driver’s cab assembly |
1 |
||
TC02451090001K |
Driver’s cab subassembly |
1 |
||
1 |
TB600.45L-05a |
Top cover |
1 |
|
2 |
TB600.45N-01a |
Inner top liner |
1 |
|
3 |
TB600.45L-30 |
Inner decoration button |
14 |
|
4 |
TB600.45.4 |
Left rear-view mirror assembly |
1 |
|
4.1 |
TB600.45.4-01 |
Rear-view mirror |
1 |
|
4.2 |
TB600.45.4-02 |
Left rear-view mirror bracket |
1 |
|
4.3 |
GBT93-8-A0P |
Standard spring washer |
1 |
|
4.4 |
GBT5781-M8X20-4.8-A2L |
Hexagon head bolt |
1 |
|
5 |
TB600.45L-23 |
Front windshield glass |
1 |
|
6 |
TB600.45L-31 |
Glass backing block |
4 |
|
7 |
TB600.45L-24 |
Left front lower window glass |
1 |
|
8 |
TB600.45L-25 |
Right front lower window glass |
1 |
|
9 |
TB600.45.5 |
Right rearview mirror assembly |
1 |
|
9.1 |
TB600.45.4-01 |
Rearview mirror |
1 |
|
9.2 |
TB600.45.5-01 |
Right rearview mirror bracket |
1 |
|
9.3 |
GBT93-8-A0P |
Standard spring washer |
1 |
|
9.4 |
GBT5781-M8X20-4.8-A2L |
Hexagon head bolt |
1 |
|
10 |
TB600.45P.1.1 |
Driver’s cab weldment |
1 |
|
11 |
TB600.45L-70 |
Dome rubber pad |
4 |
|
12 |
TB600.45L-29 |
Cabin hook |
2 |
|
13 |
TB600.45M.1-01 |
Driver’s cab mark plate |
1 |
|
14 |
GBT12618-4X16 |
Mushroom head break mandrel blind rivet |
4 |
131
Foton TC2A604-010K Wheeled Tractor

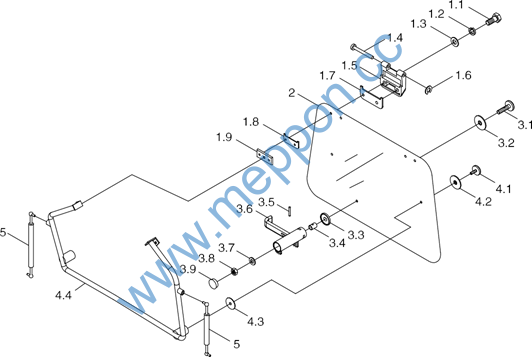

TC02451090000K Driver’s Cab Assembly-3
132
Foton TC2A604-010K Wheeled Tractor
TC02451090000K Driver’s Cab Assembly-3
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02451090000K |
Driver’s cab assembly |
1 |
||
TC02451090001K |
Driver’s cab subassembly |
1 |
||
TB600.45L.4 |
Rear window assembly |
1 |
||
1 |
TB600.45.6.2 |
Rear window hinge |
2 |
|
1.1 |
GBT5781-M6X25-4.8-A2L |
Hex bolt |
2 |
|
1.2 |
GBT93-6-A0P |
Standard spring washer |
2 |
|
1.3 |
GBT97.1-6-A0P |
Flat washer |
2 |
|
1.4 |
TB600.45.6.2-05 |
Rear window hinge shaft |
1 |
|
1.5 |
TB600.45.6.2-01 |
Rear window hinge seat |
1 |
|
1.6 |
TB600.45.6.2-06 |
Clip spring |
1 |
|
1.7 |
TB600.45.6.2-04 |
Rear window hinge outer pad |
1 |
|
1.8 |
TB600.45.6.2-03 |
Rear window hinge inner pad |
1 |
|
1.9 |
TB600.45.6.2-02 |
Rear window hinge cover |
1 |
|
2 |
TB600.45L-22 |
Rear windshield |
1 |
|
3 |
TB600.45.6.1 |
Rear window locking body assembly |
1 |
|
3.1 |
TB600.45.6.1-06 |
M12 bolt rod |
1 |
|
3.2 |
TB600.45.6.1-03 |
Rear window locking inner pad, B flat |
1 |
|
3.3 |
TB600.45.6.1-02 |
Rear window locking outer pad, A convex |
1 |
|
3.4 |
TB600.45.6.1-05 |
Clamping sleeve |
1 |
|
3.5 |
TB600.45.6.1-07 |
Pin shaft |
1 |
|
3.6 |
TB600.45.6.1-01 |
Rear window locking body |
1 |
|
3.7 |
GBT97.1-12-A0P |
Flat washer |
1 |
|
3.8 |
GBT6170-M12-8-A3L |
Type 1 hex nut |
1 |
|
3.9 |
TB600.45.6.1-04 |
Rear cover |
1 |
|
4 |
TB600.45.6.3 |
Rear window handle weldment |
1 |
|
4.1 |
TB600.45.6.3-02 |
M8 bolt rod |
2 |
|
4.2 |
TB600.45.6.3-03 |
Rear window handle inner pad, B flat |
2 |
|
4.3 |
TB600.45.6.3-04 |
Rear window handle outer pad, A convex |
2 |
|
4.4 |
TB600.45.6.3-01 |
Rear window handle weldment |
1 |
|
5 |
TB600.45L-09 |
Rear window gas spring |
2 |
|
6 |
TB600.45L-17 |
Rear windshield glass rubber strip |
1 |
133
Foton TC2A604-010K Wheeled Tractor

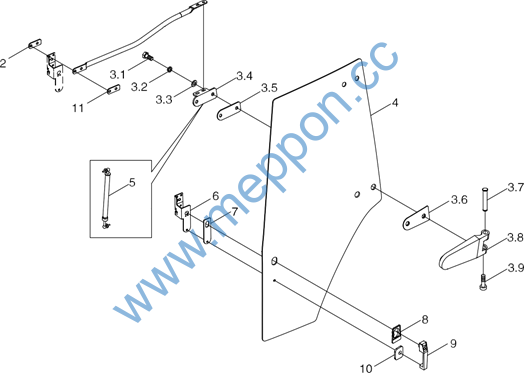

TC02451090000K Driver’s Cab Assembly-4
134
