LOVOL TC2A604-010K Tractor Parts Catalogue 12

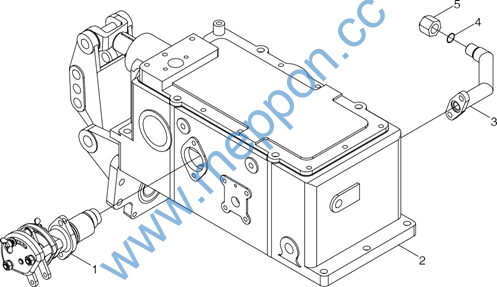

TB504.551A Lifter Assembling Assy-1(extension)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
26 27 28
29 |
GB/T 16674.1-M12×35-10.9-A2L TB300.55-02 GB/T 3452.1-103×2.65G
TB504.551A.1a |
Hexagon flange bolt Washer Rubber O-ring
Lifter assembly |
4 2 1
1 |
105
Foton TC2A604-010K Wheeled Tractor
TB504.551A Lifter Assembling Assy-2
106
Foton TC2A604-010K Wheeled Tractor
TB504.551A Lifter Assembling Assy-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB504.551A |
Lifter assembling assy |
1 |
||
TB504.551A.1a |
Lifter assy |
1 |
||
1 |
TB504.551B.1.1 |
Distributor control mechanism assembly |
1 |
|
2 |
TB504.551A.1-01 |
Lifter shell |
1 |
|
3 |
FT300.55B.120a |
Hydraulic output pipe joint |
1 |
|
4 |
GB/T 3452.1-12.5×2.65G |
O-ring sealant used for hydraulic or pneumatic parts |
1 |
|
5 |
FT300.55B.121a |
Delivery pipe nut |
1 |
107
Foton TC2A604-010K Wheeled Tractor

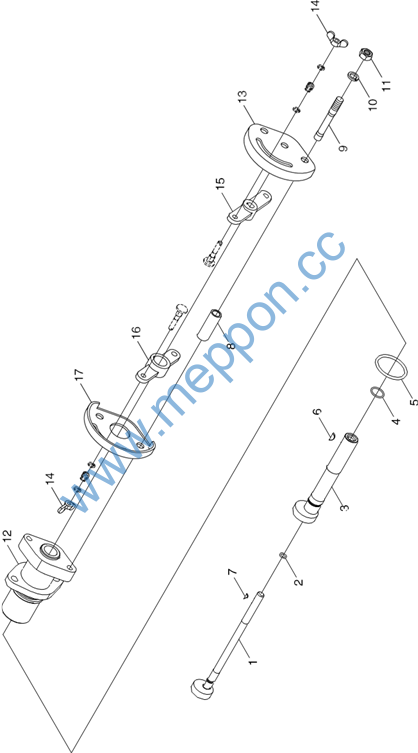

TB504.551A Lifter Assembling Assy-3
108
Foton TC2A604-010K Wheeled Tractor
TB504.551A Lifter Assembling Assy-3
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB504.551A |
Lifter assembling assembly |
1 |
||
TB504.551A.1a |
Lifter assembly |
1 |
||
TB504.551B.1.1 |
Distributor control mechanism assembly |
1 |
||
1 |
TB504.551.1.1.4 |
Eccentric wheel welding assembly, force adjustment |
1 |
|
2 |
GB/T 3452.1-6.90×1.80G |
O-ring sealant used for hydraulic or pneumatic parts |
1 |
|
3 |
TB504.551.1.1.3 |
Eccentric wheel welding assembly, position adjustment |
1 |
|
4 |
GB/T 3452.1-17.0×1.80G |
O-ring sealant used for hydraulic or pneumatic parts |
1 |
|
5 |
GB/T 3452.1-41.2×3.55G |
O-ring sealant used for hydraulic or pneumatic parts |
1 |
|
6 |
GB/T 1099.1-3×5×13 |
Woodruff key |
1 |
|
7 |
GB/T 1099.1-2.5×3.7×10 |
Woodruff key |
1 |
|
8 |
TB504.551.1.1-04 |
Spacer bush |
2 |
|
9 |
GB/T 898-M10×65-8.8-A2L |
Stud |
2 |
|
10 |
GB/T 93-10-A0P |
Standard spring washer |
2 |
|
11 |
GB/T 6170-M10-8-A3L |
Hexagon nut , Style 1 |
2 |
|
12 |
TB504.551.1.1-01 |
Bracket |
1 |
|
13 |
TB504.551B.1.1-01 |
Sector plate, force adjustment |
1 |
|
14 |
GB/T 62-M6-A2L |
Disc nut |
2 |
|
15 |
TB504.551.1.1.2 |
Rocker-arm weldment, force adjustment |
1 |
|
16 |
TB504.551.1.1.1 |
Rocker-arm weldment, position adjustment |
1 |
|
17 |
TB504.551B.1.1-02 |
Sector plate, position adjustment |
1 |
109
Foton TC2A604-010K Wheeled Tractor

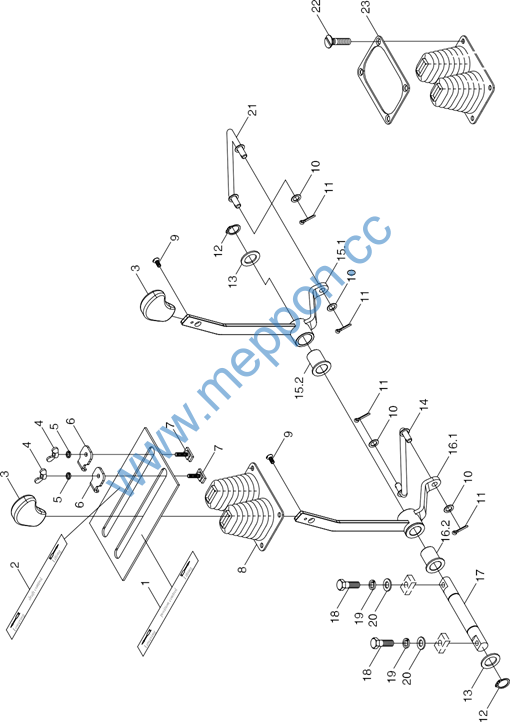

TB504.552C Lifter Control Mechanism Assembly
110
Foton TC2A604-010K Wheeled Tractor
TB504.552C Lifter Control Mechanism Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB504.552C |
Lifter control mechanism assembly |
1 |
||
1 |
TB504.552A-05 |
Mark, position adjustment |
1 |
|
2 |
TB504.552A-04 |
Mark, force adjustment |
1 |
|
3 |
TB504.552-04 |
Handle head |
2 |
|
4 |
GB/T 62-M5-A2L |
Butterfly nut |
2 |
|
5 |
GB/T 93-5-A0P |
Standard spring washer |
2 |
|
6 |
TB504.552-03 |
Position-limit plate |
2 |
|
7 |
TB504.552.5 |
Position-limit bolt weldment |
2 |
|
8 |
TB504.552A-02B |
Dust boot |
1 |
|
9 |
GB/T 68-M4×10-A2L |
Slotted countersunk head screw |
2 |
|
10 |
GB/T 95-8-A0P |
Flat washer |
4 |
|
11 |
GB/T 91-2×16-A0P |
Split pin |
4 |
|
12 |
GB/T 894.1-18 |
Circlip for shaft |
2 |
|
13 |
TB504.552A-03 |
Nylon washer |
1 |
|
14 |
TB504.552A.3A |
Connecting rod weldment |
1 |
|
15 |
TB504.552A.2B |
Left control press-fit, lifter |
1 |
|
15.1 |
TB504.552A.2b.1 |
Left control weldment, lifter |
1 |
|
15.2 |
TB504.552A.1-01 |
Nylon spacer bush |
1 |
|
16 |
TB504.552A.1B |
Right control press-fit, lifter |
1 |
|
16.1 |
TB504.552A.1b.1 |
Right control weldment, lifter |
1 |
|
16.2 |
TB504.552A.1-01 |
Nylon spacer bush |
1 |
|
17 |
TB504.552A-01 |
Revolving shaft |
1 |
|
18 |
GB/T 5783-M8×35-8.8-A2L |
Hex head bolt |
2 |
|
19 |
GB/T 93-8-A0P |
Standard spring washer |
2 |
|
20 |
GB/T 97.1-8-A0P |
Flat washer |
2 |
|
21 |
TB504.552C.3A |
Connecting rod weldment |
1 |
|
22 |
GB/T 68-M6×16-4.8-A2L |
Slotted countersunk head screw |
4 |
|
23 |
TB504.552A-06 |
Pressing plate, dust cover |
1 |
111
Foton TC2A604-010K Wheeled Tractor

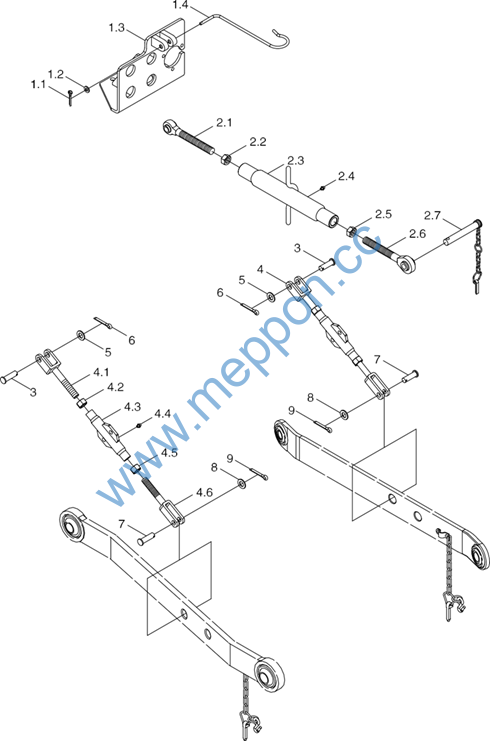

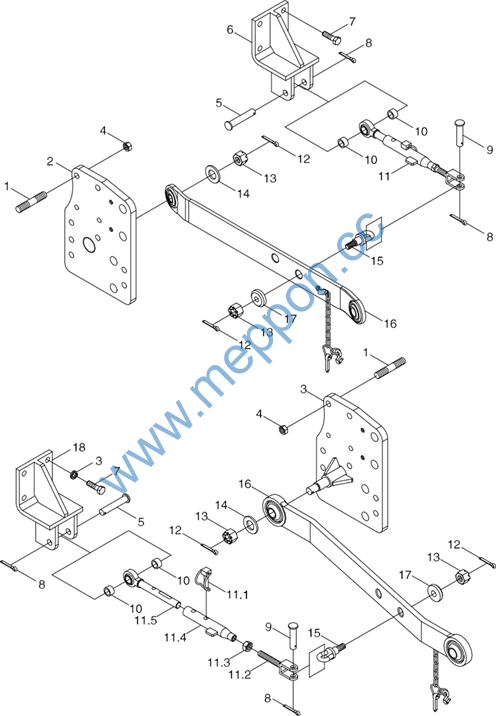

FT500A.56B.001 Suspension Mechanism Assembly-1
112
Foton TC2A604-010K Wheeled Tractor
FT500A.56B.001 Suspension Mechanism Assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT500A.56B.001 |
Suspension mechanism assembly |
1 |
||
1 |
GB/T 898-AM16-M16×1.5×45-10.9-A3L |
Stud |
6 |
|
2 |
FT300.56B.014 |
Support welded unit, right lower link |
1 |
|
3 |
FT300.56B.015 |
Left lower link support welded unit |
1 |
|
4 |
SPL-CO-M16×1.5-10-F3 |
Hex flange nut |
6 |
|
5 |
FT300.56A.102 |
Connecting pin, position-limit link |
2 |
|
6 |
FT300.56A.019 |
Bracket welded unit, right position-limit link |
1 |
|
7 |
GB/T 16674.1-M16×40-10.9-A3L |
Hexagon flange bolt |
10 |
|
8 |
GB/T 91-5×32-A0P |
Split pin |
6 |
|
9 |
GB/T 882-B18×55-A0P |
Axis pin |
2 |
|
10 |
FT300.56A.103 |
Bushing |
4 |
|
11 |
FT300.56A.016a |
Position-limit link assembly |
2 |
|
11.1 |
FT300.56A.023 |
Lockpin combination, position-limit link |
1 |
|
11.2 |
FT300.56A.161 |
Adjusting screw, position-limit link |
1 |
|
11.3 |
GB/T 6170-M22-A3L |
Nut |
1 |
|
11.4 |
FT300.56A.022a |
Telescopic pipe welded unit |
1 |
|
11.5 |
FT300.56A.021a |
Telescopic link ball assembly |
1 |
|
12 |
GB/T 91-4×36-A0P |
Pin |
4 |
|
13 |
GB/T 6178-M20-8-A9L |
Nut |
4 |
|
14 |
GB/T 97.1-20-A0P |
Washer |
2 |
|
15 |
FT300.56A.110a |
Rear connecting pin, position-limit link |
2 |
|
16 |
FT500A.56.012 |
Lower link assembly |
2 |
|
17 |
FT300.56A.111a |
Circular plate |
2 |
|
18 |
FT300.56A.017 |
Left position-limit link bracket welded unit |
1 |
