LOVOL TC2A604-010K Tractor Parts Catalogue 09
Foton TC2A604-010K Wheeled Tractor
FT404.32F.001 Front Drive Wheel Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT404.32F.001 |
Front drive wheel assembly |
1 |
||
1 |
TB704.32B.2 |
Inner tube/tyre assembly 8.3-20 |
1 |
|
1.1 |
GB/T 2979-8.3-20-6PR-R |
General section bias tyre of tractor drive wheel |
1 |
|
1.2 |
GB/T 2979-8.3-20-R |
Inner tube of tractor drive wheel |
1 |
|
2 |
FT404.32F.011 |
Rim welding |
1 |
75
Foton TC2A604-010K Wheeled Tractor

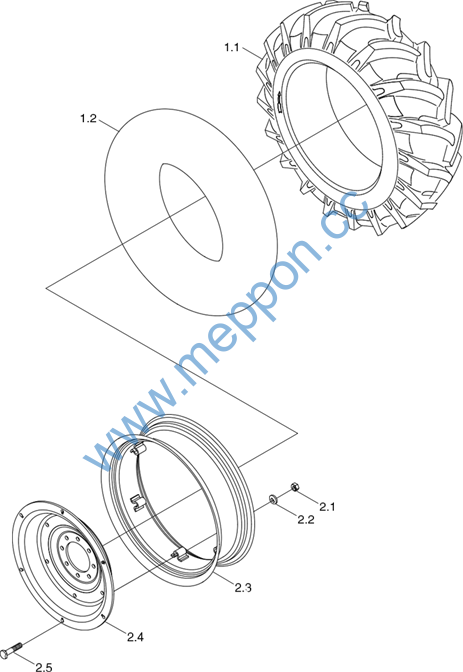

FT550.34F.001 Rear Driving Wheel Assembly
76
Foton TC2A604-010K Wheeled Tractor
FT550.34F.001 Rear Driving Wheel Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT550.34F.001 |
Rear driving wheel assembly |
1 |
||
1 |
TB604.34A.1.2 |
Tire and tube assembly 14.9-28 |
1 |
|
1.1 |
GB/T 2979-14.9-28-6PR-R |
Diagonal tire with conventional section, tractor driving wheel |
1 |
|
1.2 |
GB/T 2979-14.9-28-R |
Tube, tractor driving wheel |
1 |
|
2 |
FT550.34F.011 |
Rim disc assembly |
1 |
|
2.1 |
GB/T 6171-M16×1.5-10-A3L |
Nut |
6 |
|
2.2 |
FT654.32.104 |
Washer |
6 |
|
2.3 |
FT550.34F.012 |
Rim weldment |
1 |
|
2.4 |
FT550.34.105b |
Spoke |
1 |
|
2.5 |
FT650.34.107 |
Rim bolt |
6 |
77
Foton TC2A604-010K Wheeled Tractor

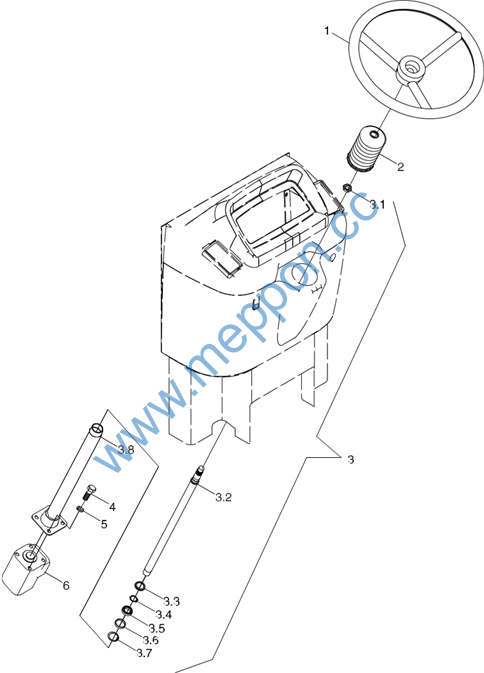

TC04401030000 Steering Gear and Steering Column Assembly
78
Foton TC2A604-010K Wheeled Tractor
TC04401030000 Steering Gear and Steering Column Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC04401030000 |
Steering gear and steering column assembly |
1 |
||
1 |
FT400.40.016 |
Steering wheel assembly |
1 |
|
2 |
TB504.401-01 |
Steering lever protection sleeve |
1 |
|
3 |
FT354.40C.016a |
Steering column assembly |
1 |
|
3.1 |
GB/T 6173-M16×1.5-05-A3L |
Hexagon thin nut |
1 |
|
3.2 |
FT354.40C.130a |
Steering lever |
1 |
|
3.3 |
FT650.40.172 |
Bearing circlip |
1 |
|
3.4 |
GB/T 894.1-20 |
Circlip for shaft |
1 |
|
3.5 |
GB/T 276-61804-2LS |
Deep grooved ball bearing |
1 |
|
3.6 |
FT650.40.173 |
Bearing circlip 2 |
1 |
|
3.7 |
GB/T 893.1-32 |
Circlip for hole |
1 |
|
3.8 |
FT354.40C.030 |
Steering sleeve weldment |
1 |
|
4 |
GB/T 5783-M10×30-8.8-A3L |
Hexagon head bolt |
4 |
|
5 |
GB/T 93-10-A0P |
Standard spring washer |
4 |
|
6 |
TC04400010009 |
Hydraulic steering gear assembly |
1 |
79
Foton TC2A604-010K Wheeled Tractor

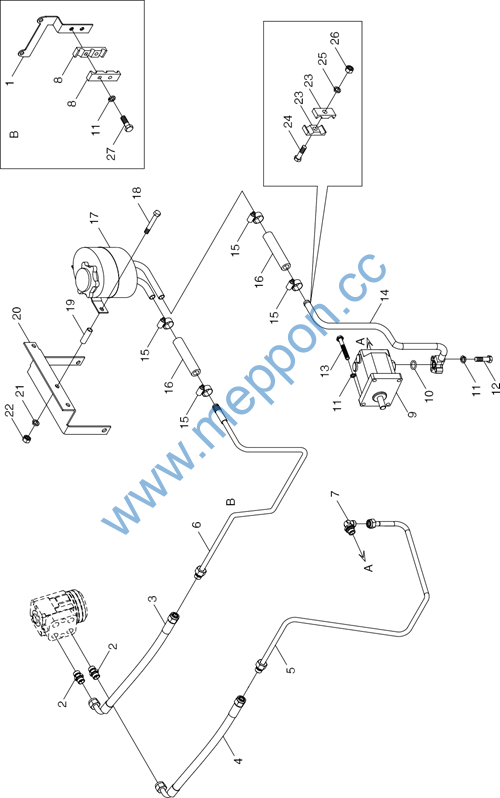

TC02402360000K Full hydraulic steering assembly-1
80
Foton TC2A604-010K Wheeled Tractor
TC02402360000K Full hydraulic steering assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02402360000K |
Full hydraulic steering assembly |
1 |
||
1 |
TB554.402A-02 |
Pipe clip bracket |
1 |
|
2 |
GE20D18.24.93.5 |
Straight thread coonector 20-18 |
4 |
|
3 |
TB554.402A.8 |
Steering gear oil return pipe assembly |
1 |
|
4 |
TB554.402A.7 |
Steering gear oil inlet pipe assembly |
1 |
|
5 |
TC04402030008 |
Oil pump outlet pipe weldment |
1 |
|
6 |
TB554.402A.3 |
Oil return pipe assembly |
1 |
|
7 |
TC04400020003 |
Adjustable joint M18-12 assembling |
1 |
|
8 |
TB704.402-05 |
Three-hole pipe clip 12-12-16 |
2 |
|
9 |
TC02402350001K |
Constant flow overflow pump |
1 |
|
10 |
GBT3452.1-17.0X2.65G |
O-ring sealant used for hydraulic or pneumatic parts |
1 |
|
11 |
GBT93-8-A0P |
Standard spring washer |
9 |
|
12 |
GBT5783-M8X30-8.8-A2L |
Hexagon head bolt |
3 |
|
13 |
GBT5782-M8X65-8.8-A2L |
Hexagon head bolt |
4 |
|
14 |
TB554.40C.1a |
Oil pump oil suction steel pipe weldment |
1 |
|
15 |
Q67627 |
B-type worm drive hose hoop |
4 |
|
16 |
FT800A.40K.101 |
Oil inlet hose |
2 |
|
17 |
TB554.40Q.5 |
Steering oil tank and breather assembly |
1 |
|
18 |
GBT5783-M10X50-8.8-A2L |
Hexagon head bolt |
2 |
|
19 |
TB554.40C-02 |
Spacing sleeve |
2 |
|
20 |
TB554.40Q-02 |
Oil tank bracket |
1 |
|
21 |
GBT93-10-A0P |
Standard spring washer |
2 |
|
22 |
GBT6170-M10-8-A3L |
Hexagon nut, style 1 |
2 |
|
23 |
FT750.40.108 |
Double-hole pipe clip |
2 |
|
24 |
GBT5783-M12X45-8.8-A3L |
Hexagon head bolt |
1 |
|
25 |
GBT93-12-A0P |
Standard spring washer |
1 |
|
26 |
GBT6170-M12-8-A3L |
Hexagon nut, style 1 |
1 |
|
27 |
GBT5783-M8X40-8.8-A2L |
Hexagon head bolt |
2 |
81
Foton TC2A604-010K Wheeled Tractor

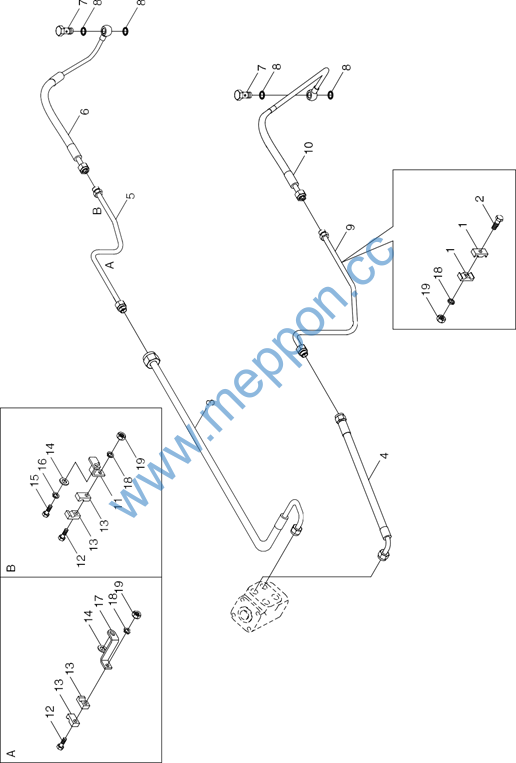

TC02402360000K Full hydraulic steering assembly-2
82
Foton TC2A604-010K Wheeled Tractor
TC02402360000K Full hydraulic steering assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02402360000K |
Full hydraulic steering assembly |
1 |
||
1 |
TG1204.402E-03 |
Double-hole pipe clip |
2 |
|
2 |
GBT5783-M8X35-8.8-A2L |
Hexagon head bolt |
1 |
|
3 |
TC04402150002 |
Oil delivery rubber pipe assembly 6 |
1 |
|
4 |
TC04402150001 |
Oil delivery rubber pipe assembly 9 |
1 |
|
5 |
TC04402030010 |
Left steering steel pipe assembly |
1 |
|
6 |
TC04402060014 |
Left steering oil delivery pipe assembly |
1 |
|
7 |
FT650.40.112 |
Hollow bolt |
2 |
|
8 |
JBT982-16 |
Compound seal washer |
4 |
|
9 |
TC04402130001 |
Right steering steel pipe assembly |
1 |
|
10 |
TC04402060015 |
Right steering oil delivery pipe assembly |
1 |
|
11 |
TC04402030013 |
Oil pipe bracket 3 |
||
12 |
GBT5782-M8X40-8.8-A2L |
Hexagon head bolt |
2 |
|
13 |
TG1654.402-07 |
Single-hole pipe clip |
4 |
|
14 |
GBT97.1-10-A0P |
Plain washer |
2 |
|
15 |
GBT5783-M10X20-8.8-A3L |
Hexagon head bolt |
1 |
|
16 |
GBT93-10-A0P |
Standard spring washer |
1 |
|
17 |
TC04402030012 |
Oil pipe bracket 1 |
1 |
|
18 |
GBT93-8-A0P |
Standard spring washer |
3 |
|
19 |
GBT6170-M8-8-A2L |
Hexagon nut, style 1 |
3 |
83
Foton TC2A604-010K Wheeled Tractor

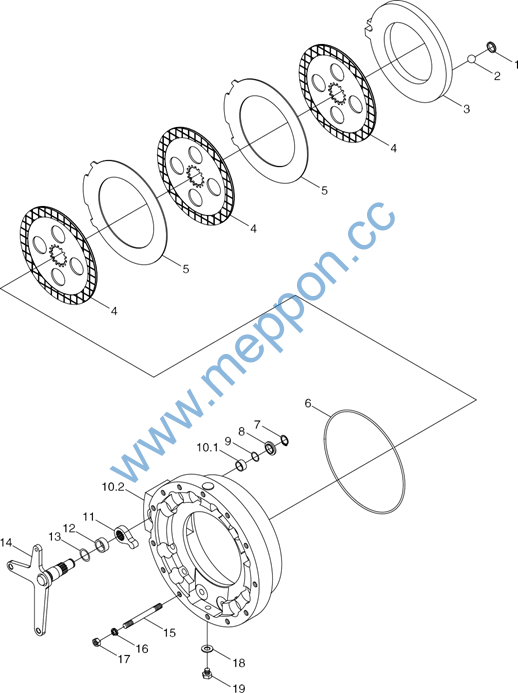

TB604.431 Left Brake Assembly
