LOVOL TC2A604-010K Tractor Parts Catalogue 10
Foton TC2A604-010K Wheeled Tractor
TB604.431 Left Brake Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB604.431 |
Left brake assembly |
1 |
||
1 |
FT300.43.102 |
Plug piece |
6 |
|
2 |
GB/T 308-18.000-G100-b |
Steel ball |
6 |
|
3 |
TB550.431-01 |
Left brake platen |
1 |
|
4 |
TB550.431.3 |
Brake friction disc assembly |
3 |
|
5 |
FT300.43.105 |
Spacing plate |
2 |
|
6 |
FT300.43.101 |
O-ring |
1 |
|
7 |
GB/T 894.1-18 |
Circlip for shaft |
1 |
|
8 |
FT300.43.109a |
Washer |
1 |
|
9 |
GB/T 3452.1-18.0×2.65G |
O-ring |
1 |
|
10 |
TB550.431.1 |
Left brake housing assembly |
1 |
|
10.1 |
TB550.431.1-02 |
Crankshaft lining |
1 |
|
10.2 |
TB550.431.1-01 |
Left brake housing |
1 |
|
11 |
TB550.431-02 |
Shift block |
1 |
|
12 |
FT300.43.107 |
Spacing sleeve |
1 |
|
13 |
GB/T 3452.1-20.0×2.65G |
O-ring |
1 |
|
14 |
TB604.431.1 |
Left crank unit |
1 |
|
15 |
GB/T 898-AM12-M12×1.25×80-10.9-A2L |
Stud |
13 |
|
16 |
GB/T 93-12 |
Washer |
13 |
|
17 |
GB/T 6171-M12×1.25-10-A3L |
Nut |
13 |
|
18 |
FT300.43.153 |
Final transmission oil drainage port washer |
1 |
|
19 |
FT300.43.154 |
Screw plug |
1 |
85
Foton TC2A604-010K Wheeled Tractor

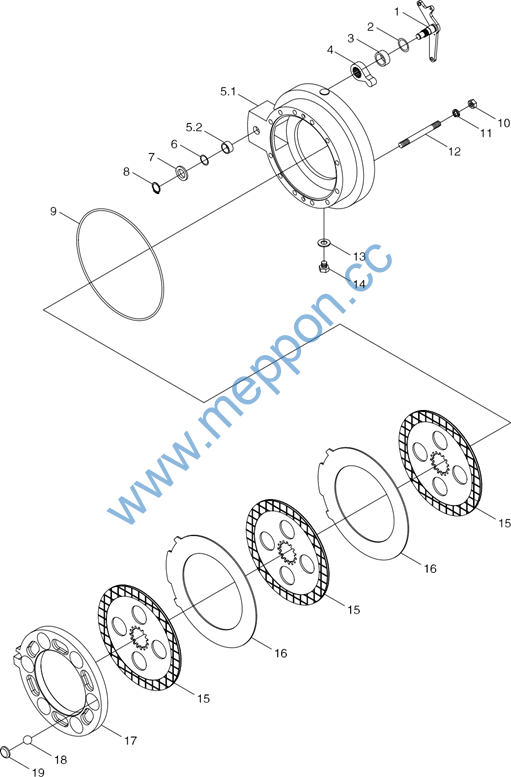

TB604.432 Right Brake Assembly
86
Foton TC2A604-010K Wheeled Tractor
TB604.432 Right Brake Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB604.432 |
Right brake assembly |
1 |
||
1 |
TB604.432.1 |
Right crank unit |
1 |
|
2 |
GB/T 3452.1-20.0×2.65G |
O-ring |
1 |
|
3 |
FT300.43.107 |
Spacing sleeve |
1 |
|
4 |
TB550.431-02 |
Shift block |
1 |
|
5 |
TB550.432.1 |
Right brake housing assembly |
1 |
|
5.1 |
TB550.432.1-01 |
Right brake housing |
1 |
|
5.2 |
TB550.431.1-02 |
Crank shaft lining |
1 |
|
6 |
GB/T 3452.1-18.0×2.65G |
O-ring |
1 |
|
7 |
FT300.43.109a |
Washer |
1 |
|
8 |
GB/T 894.1-18 |
Circlip for shaft |
1 |
|
9 |
FT300.43.101 |
O-ring |
1 |
|
10 |
GB/T 6171-M12×1.25-10-A3L |
Nut |
13 |
|
11 |
GB/T 93-12 |
Washer |
13 |
|
12 |
GB/T 899-AM12-M12×1.25×80-10.9-A2L |
Stud |
13 |
|
13 |
FT300.43.153 |
Final transmission oil drainage port washer |
1 |
|
14 |
FT300.43.154 |
Screw plug |
1 |
|
15 |
TB550.431.3 |
Brake friction disc assembly |
3 |
|
16 |
FT300.43.105 |
Spacing plate |
2 |
|
17 |
TB550.432-01 |
Right brake platen |
1 |
|
18 |
GB/T 308-18.000-G100-b |
Steel ball |
6 |
|
19 |
FT300.43.102 |
Plug piece |
6 |
87
Foton TC2A604-010K Wheeled Tractor

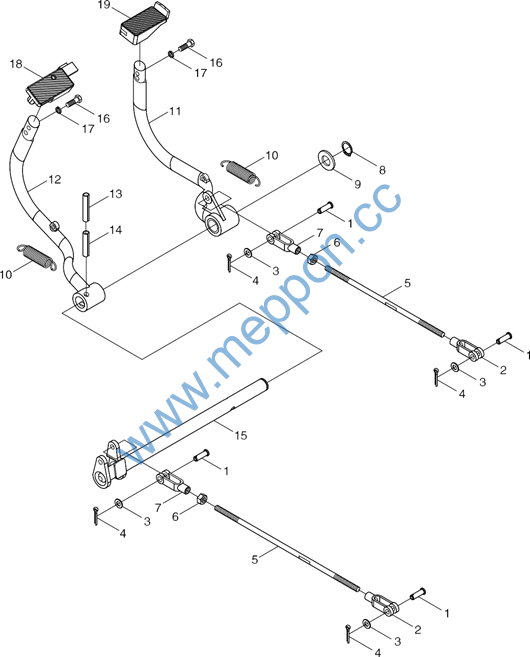

TB604.433 Braking System Control Mechanism Assembly-1
88
Foton TC2A604-010K Wheeled Tractor
TB604.433 Braking System Control Mechanism Assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB604.433 |
Braking system control mechanism assembly |
1 |
||
1 |
GB/T 882-B10×28-A0P |
Shaft pin |
4 |
|
2 |
TA700.431A-01 |
Right-hand long hole connecting fork |
2 |
|
3 |
GB/T 97.1-10-A0P |
Flat washer |
4 |
|
4 |
GB/T 91-3.2×16-A0P |
Split pin |
4 |
|
5 |
TB604.433A-03 |
Pull rod |
2 |
|
6 |
GB/T 6170-M10-LH-A3L |
Type 1 hex nut |
2 |
|
7 |
FT300.43.110 |
Pull rod rear fork |
2 |
|
8 |
GB/T 894.1-25 |
Circlip for shaft |
1 |
|
9 |
GB/T 97.1-24-A0P |
Flat washer |
1 |
|
10 |
FT300.43.130 |
Pedal retraction spring |
2 |
|
11 |
TB504.433.3 |
Right brake pedal body unit |
1 |
|
12 |
TB504.433.10 |
Left brake pedal body weldment |
1 |
|
13 |
GB/T 879.1-6×40 |
Spring column pin |
1 |
|
14 |
GB/T 879.1-10×40 |
Spring column pin |
1 |
|
15 |
FT300.43.020a |
Pedal shaft unit |
1 |
|
16 |
GB/T 93-6-A0P |
Standard spring washer |
4 |
|
17 |
GB/T 5873-M6×16-8.8-A2L |
Bolt |
4 |
|
18 |
TB504.433.1 |
Left brake pedal unit |
1 |
|
19 |
TB504.433-08 |
Right brake pedal |
1 |
89
Foton TC2A604-010K Wheeled Tractor

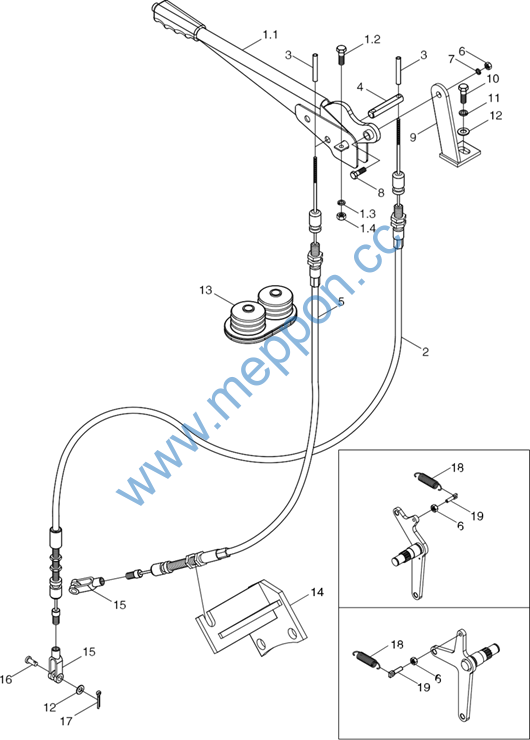

TB604.433 Braking System Control Mechanism Assembly-2
90
Foton TC2A604-010K Wheeled Tractor
TB604.433 Braking System Control Mechanism Assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB604.433 |
Braker control mechanism assembly |
1 |
||
1 |
TA820.213D.3 |
Hand brake handle assembly |
1 |
|
1.1 |
TA820.213D.3.1 |
Hand brake handle |
1 |
|
1.2 |
GB/T 5783-M8×30-A2L |
Hex bolt |
2 |
|
1.3 |
GB/T 93-8-A0P |
Standard spring washer |
2 |
|
1.4 |
GB/T 6170-M8-A2L |
Type 1 hex nut |
2 |
|
2 |
TB604.433.3 |
Left brake pull wire installation assembly |
1 |
|
3 |
TB504.433-06 |
Support sleeve |
2 |
|
4 |
TB504.433-05 |
Shaft pin |
1 |
|
5 |
TB604.433.4 |
Right brake pull wire installation assembly |
1 |
|
6 |
GB/T 6170-M8-A2L |
Nut |
3 |
|
7 |
GB/T 93-8-A0P |
Washer |
1 |
|
8 |
GB/T 5783-M8×35-A2L |
Bolt |
1 |
|
9 |
TA820.213D.1 |
Ratchet trestle weldment |
1 |
|
10 |
GB/T 5783-M10×25-8.8-A3L |
Bolt |
1 |
|
11 |
GB/T 93-10-A0P |
Washer |
1 |
|
12 |
GB/T 97.1-10-A0P |
Flat washer |
3 |
|
13 |
TB504.433-04 |
Dustproof sleeve |
1 |
|
14 |
TB604.433.5 |
Pull wire bracket weldment |
1 |
|
15 |
TA700.431A-01 |
Right-hand long hole connecting fork |
2 |
|
16 |
GB/T 882-B10×28-A0P |
Shaft pin |
2 |
|
17 |
GB/T 91-3.2×16-A0P |
Cotter pin |
2 |
|
18 |
TB604.433-02 |
Brake crank retraction spring |
2 |
|
19 |
TB604.433-03 |
Spring lock pin |
2 |
91
Foton TC2A604-010K Wheeled Tractor

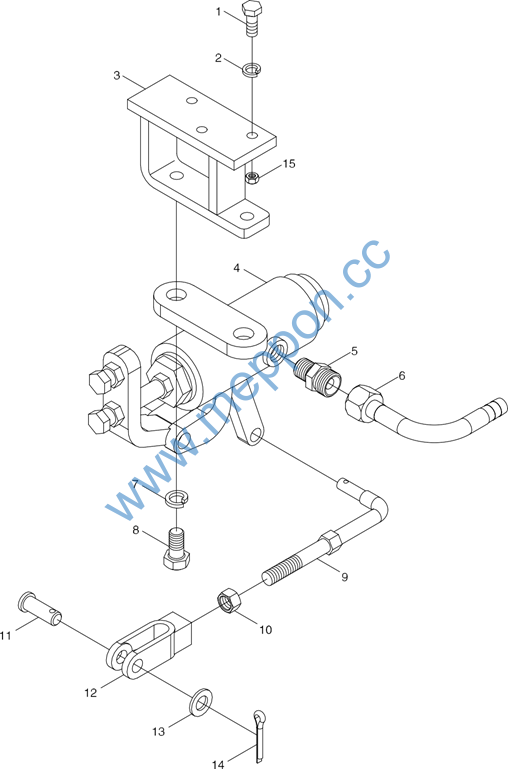

TB450.801A Pneumatic brake valve mounting assembly
92
Foton TC2A604-010K Wheeled Tractor
TB450.801A Pneumatic brake valve mounting assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB450.801A |
Pneumatic brake valve mounting assembly |
1 |
||
1 |
GB/T 5783-M8×20-A3L |
Bolt |
3 |
|
2 |
GB/T 93-8-A0P |
Washer |
3 |
|
3 |
TB450.801A.1 |
Fixing frame weldment |
1 |
|
4 |
FT300.80.011 |
Air brake valve assembly |
1 |
|
5 |
FT300.80.104 |
Exhaust pipe joint |
1 |
|
6 |
FT300.80.013 |
Oil transfer pipe assembly |
1 |
|
7 |
GB/T 93-10-A0P |
Washer |
2 |
|
8 |
GB/T 5783-M10×30-A3L |
Bolt |
2 |
|
9 |
FT300.80.014 |
Adjusting tie rod assembly |
1 |
|
10 |
GB/T 6170-M10-A3L |
Nut |
2 |
|
11 |
GB/T 882-B10×28-A0P |
Shaft pin |
1 |
|
12 |
FT300.80.105 |
Adjusting fork |
1 |
|
13 |
GB/T 848-10-A0P |
Washer |
2 |
|
14 |
GB/T 91-3.2×16-AOP |
Cotter pin |
1 |
|
15 |
GB/T 6170-M8-A3L |
Nut |
3 |
93
Foton TC2A604-010K Wheeled Tractor

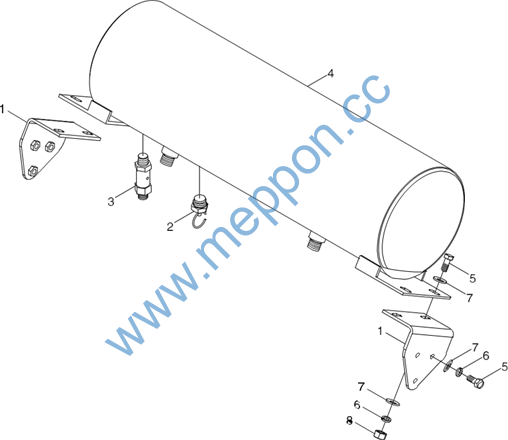

TB450.802A Gas holder installation assembly
