No.

Part code and specification

Part name

Quantity

Remark

TC02311020000

Front driving axle assembly

1

TC02311020001

Front driving axle subassembly

1

1

TC02311020007

Steering cylinder assembly

1

1.1

GB/T 91-3.2×40-AOP

Split pin

2

1.2

TC02311010075

Hexagon slotted nut

2

1.3

TC02311020011

Right steering link

1

1.4

GB/T 6173-M22×15-05-A3L

Hexagon thin nut

2

1.5

TC02311010077

Connecting ball head

2

1.6

TC02311010084

Steering cylinder

1

1.7

TC02311020008

Left steering link

1

2

TC02311010085

Cylinder bracket

2

3

GB/T 93-12-A0P

Standard spring washer

24

4

GB/T 5783-M12×35-10.9-A3L

Hexagon head bolt

4

5

GB/T 75-M8×35-14H-A2L

Slotted set screws with long dog point

2

6

GB/T 93-8-A0P

Standard spring washer

10

7

GB/T 6170-M8-8-A2L

Hexagon nut, style 1

2

8

GB/T 5783-M8×16-8.8-A2L

Hexagon head bolt

8

9

TC02311010015

Shield

2

No.

Part code and specification

Part name

Quantity

Remark

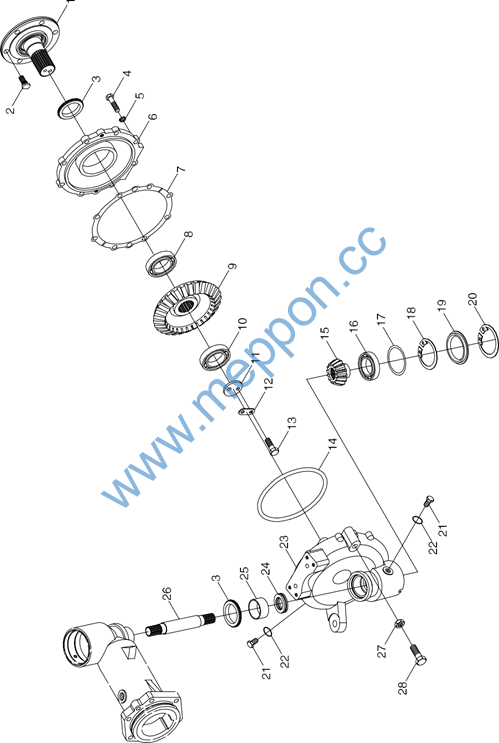

TC02311020000

Front driving axle ssembly

1

TC02311020001

Front driving axle subssembly

1

TC02311020012

Left final transmission assembly

1

TC02311020013

Right final transmission assembly

1

1

TC02311020014

Front driving shaft

1

2

TC02311020015

Knurled bolt

6

3

TC02311010032

Floating oil seal

2

4

GB/T 5783-M10×40-10.9-A3L

Hexagon head bolt

8

5

GB/T 93-10-A0P

Standard spring washer

8

6

TC02311010050

End large cover

1

7

TC02311010060

Adjusting gasket Ⅰ

On demand

8

GB/T 276-6410

Deep grooved ball bearing

1

9

TC02311010052

End large gear

1

10

GB/T 276-6310

Deep grooved ball bearing

1

11

TC02311010055

Gasket

1

12

TC02311010054

Lock piece

1

13

GB/T 5783-M8×35-8.8-A2L

Hexagon head bolt

2

14

GB/T 3452.1-243×5.30G

O-ring sealant used for hydraulic or pneumatic parts

1

15

TC02311010053

End small gear

1

16

GB/T 276-6308

Deep grooved ball bearing

1

17

TC02311010059

Adjusting gasket Ⅱ

On demand

18

GB/T 893.1-90

Circlip for hole

1

19

TC02311010058

Seal cover

1

20

GB/T 893.1-102

Circlip for hole

1

21

TD904.311K.1-13

Screw plug

2

22

GB/T 3452.1-21.2×2.65G

O-ring sealant used for hydraulic or pneumatic parts

2

23

TC02311010047

Left final transmission housing

1

TC02311010048

Right final transmission housing

1

24

GB/T 301-51107

Thrust ball bearing

1

25

TC02311010057

Bushing

1

26

TC02311010056

End spline shaft

1

27

GB/T 6172.1-M16-04-A3L

Hexagon thin nut

1

28

GB/T 5783-M16×40-10.9-A3L

Hexagon head bolt

1

No.

Part code and specification

Part name

Quantity

Remark

TC02311020000

Front driving axle assembly

1

TC02311020001

Front driving axle subassembly

1

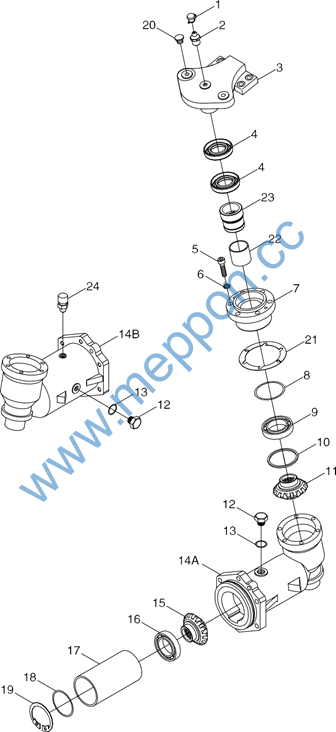

TC02311020002

Left side transmission assembly

1

TC02311020003

Right side transmission assembly

1

1

TD800.311C.1-01

Oil cup dustproof cap

1

2

JB/T 7940.1-M10×1

Straight hydraulic grease nozzle

1

3

TC02311010041

Connecting cover

1

4

GB/T 9877.1-FB65×85×10D

Rubber covered rotary shaft lip seal

2

5

GB/T 70.1-M8×25-8.8

Hexagon socket head cap screw

6

6

GB/T 93-8-A0P

Standard spring washer

6

7

TC02311010044

Oil seal end cover

1

8

GB/T 3452.1-92.5×5.30G

O-ring sealant used for hydraulic or pneumatic parts

1

9

GB/T 276-6211

Deep grooved ball bearing

1

10

TC02311010039

Bearing gasket

1

11

TC02311020018

Driven gear

1

12

TD904.311K.1-13

Screw plug

1

13

GB/T 3452.1-21.2×2.65G

O-ring sealant used for hydraulic or pneumatic parts

1

14A

TC02311020006

Right half axle housing

1

14B

TC02311020004

Left half axle housing

1

15

TC02311020017

Driving gear

1

16

GB/T 276-6309

Deep grooved ball bearing

1

17

TC02311020005

Sleeve

1

18

TC02311010073

Adjusting gasket

On demand

19

GB/T 893.1-100

Circlip for hole

1

20

TC02311010074

Plug

2

21

TC02311010040

Adjusting gasket

On demand

22

TC02311010043

Sliding bearing

1

23

TC02311010042

Bushing

1

24

TD904.311K.1.6

Vent plug

1

No.

Part code and specification

Part name

Quantity

Remark

TC02311020000

Front driving axle assembly

1

TC02311020001

Front driving axle subssembly

1

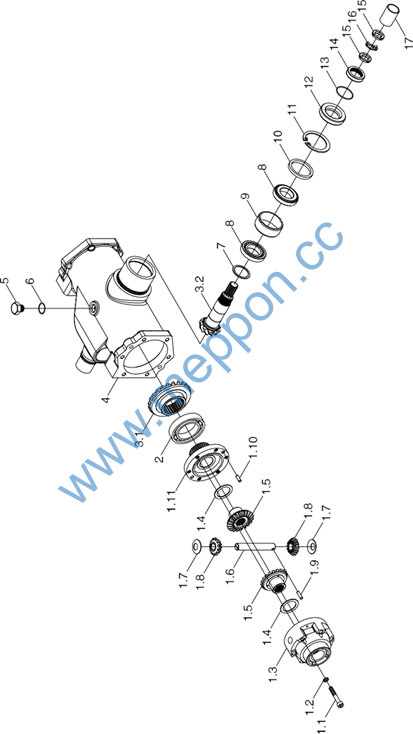

TC02311010002

Main reducer assembly

1

1

TC02311010018

Differential assembly

1

1.1

GB/T 70.1-M10×70-8.8

Hexagon socket head cap screw

6

1.2

GB/T 93-10

Standard spring washer

6

1.3

TC02311010027

Left housing of differential

1

1.4

TC02311010030

Half axle gear gasket

2

1.5

TC02311010035

Half axle gear

2

1.6

TC02311010033

Planetary gear shaft

1

1.7

TC02311010031

Planetary gear gasket

2

1.8

TC02311010034

Planetary gear

2

1.9

GB/T 119.1-8h8×45-A0P

Column pin

1

1.10

GB/T 119.1-8h8×20-A0P

Column pin

2

1.11

TC02311010028

Right housing of differential

1

2

GB/T 276-6216

Deep grooved ball bearing

2

3

TC02311010026

Main driven bevel gear unit

1

3.1

TC02311010029

Central transmission big bevel gear

1

3.2

TC02311010020

Driving bevel gear shaft

1

4

TC02311010019

Main reducer housing

1

5

TD904.311K.1-13

Screw plug

1

6

GB/T 3452.1-21.2×2.65G

O-ring sealant used for hydraulic or pneumatic parts

1

7

TC02311010083

Driving bevel gear shaft adjsuting gasket

On demand

8

GB/T 297-32208

Tapered roller bearing

2

9

TC02311010022

Spacing sleeve

1

10

TC02311010023

Adjusting ring

1

11

GB/T 893.1-80

Circlip for hole

1

12

GB/T 9877.1-FB55×80×8D

Rubber covered rotary shaft lip seal

1

13

GB/T 3452.1-41.2×3.55G

O-ring sealant used for hydraulic or pneumatic parts

1

14

TC02311010025

Oil seal seat

1

15

GB/T 810-M36×1.5

Small round nut

2

16

GB/T 858-36

Thrust washer of round nut

1

17

TC02311010024

Spline protection sleeve

1

No.

Part code and specification

Part name

Quantity

Remark

1

2

3

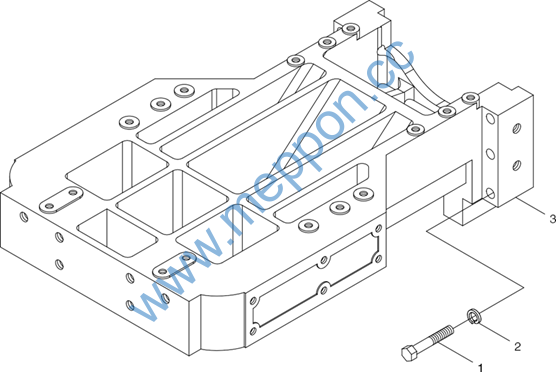

TB554.312

GB/T 5782-M16×110-10.9-A2L GB/T93-16-A0P

TB554.312-01

Front bracket assembly Hex bolt

Standard spring washer Front bracket

1

6

6

1
