LOVOL TC2A604-007K Tractor Parts Catalogue 18
Foton TC2A604-007K Wheeled Tractor
TA600.62 Safety Belt Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1 |
TA600.62 TA600.62 |
Safety Belt Assembly Safety Belt |
1 2 |
165
Foton TC2A604-007K Wheeled Tractor

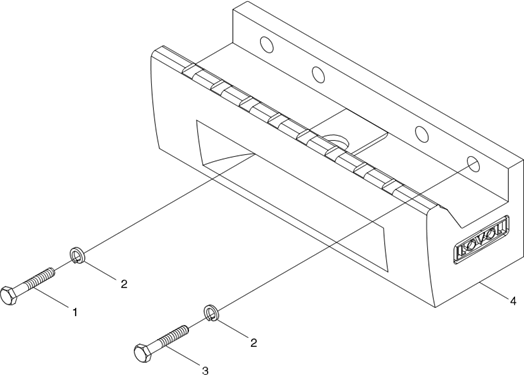

FT300.74A.001 Front Ballast Frame Assembly
166
Foton TC2A604-007K Wheeled Tractor
FT300.74A.001 Front Ballast Frame Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1 2 3 4 |
FT300.74A.001 GB/T 5783-M16×70-8.8-A3L GB/T 93-16-AOP GB/T 5783-M16×50-8.8-A3L FT300.74A.101a |
Front ballast frame assembly Bolt Washer Bolt Ballast frame |
1 2 6 4 1 |
167
Foton TC2A604-007K Wheeled Tractor

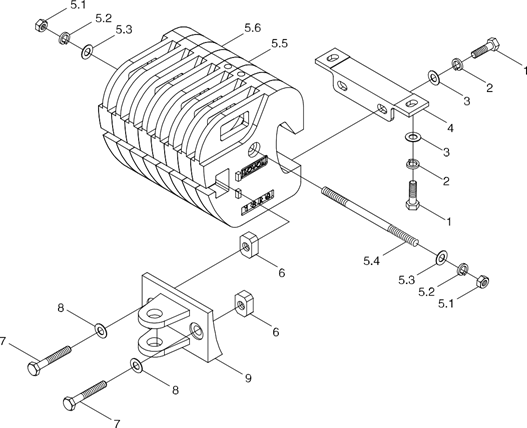

FT404.74A.002 Front Ballast Assembly(005)
168
Foton TC2A604-007K Wheeled Tractor
FT404.74A.002 Front Ballast Assembly(005)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT404.74A.002 |
Front ballast assembly |
1 |
||
1 |
GBT5783-M16X35-8.8-A3L |
Hex bolt |
4 |
|
2 |
GBT93-16-A0P |
Standard spring washer |
4 |
|
3 |
GBT97.1-16-A0P |
Flat washer |
4 |
|
4 |
FT300.74A.107 |
Fixing rack |
1 |
|
5 |
FT404.74A.010 |
Small front ballast assembly |
1 |
|
5.1 |
GBT6170-M16-8-A3L |
Style 1, hex nut |
2 |
|
5.2 |
GBT93-16-A0P |
Standard spring washer |
2 |
|
5.3 |
GBT97.1-16-A3L |
Flat washer |
2 |
|
5.4 |
FT404.74A.108 |
Connecting bolt |
1 |
|
5.5 |
FT300.74A.105 |
Counterweight |
2 |
|
5.6 |
FT300.74A.106 |
Counterweight |
6 |
|
6 |
FT650.74.108 |
Towing nut |
2 |
|
7 |
GBT5785-M20X1.5X80-8.8-A3L |
Hex bolt |
2 |
|
8 |
GBT97.1-20-A0P |
Flat washer |
2 |
|
9 |
FT300.74A.110 |
Towing lug |
1 |
169
Foton TC2A604-007K Wheeled Tractor
FT600.91.001 Rear Ballast Assembly(007)
170
Foton TC2A604-007K Wheeled Tractor
FT600.91.001 Rear Ballast Assembly(007)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT600.91.001 |
Rear Ballast Assembly |
1 |
||
1 |
GBT5783-M16X40-8.8-A3L |
Hex bolt |
6 |
|
2 |
GBT6170-M16-8-A3L |
Style 1, hex nut |
6 |
|
3 |
FT650.34.104 |
Washer |
12 |
|
4 |
FT650.34.101 |
Rear Ballast |
4 |
|
5 |
FT650.34.103 |
Rear Ballast Screw 2 |
6 |
|
6 |
FT650.34.102 |
Rear Ballast Screw 1 |
6 |
|
7 |
GBT97.1-16-A0P |
Flat washer |
6 |
|
8 |
GBT95-18-A0P |
Flat washer |
6 |
171
Foton TC2A604-007K Wheeled Tractor
TC02481210000K Harness Installation Assembly, Engine
172
Foton TC2A604-007K Wheeled Tractor
TC02481210000K Harness Installation Assembly, Engine
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02481210000K |
Harness installation assembly, engine |
1 |
||
1 |
FT300.48.073a |
Oil pressure alarm |
1 |
|
2 |
TS10481010002 |
Rotating speed sensor |
1 |
|
3 |
TC02481210001K |
Engine harness assembly |
1 |
|
4 |
FT304.48L.203 |
Harness fastener |
3 |
|
5 |
Q67405400 |
Plastic fastening belt |
2 |
|
6 |
FT65.48.072 |
Water temperature sensor |
1 |
|
7 |
Q67405100 |
Plastic fastening belt |
4 |
173
Foton TC2A604-007K Wheeled Tractor
TC02482150000K Harness Installation Assembly, Body
174
