LOVOL TC2A604-007K Tractor Parts Catalogue 17
Foton TC2A604-007K Wheeled Tractor
TC02471040000K Bonnet Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02471040000K |
Bonnet assembly |
1 |
||
1 |
TB400B.471-18 |
Backing block |
24 |
|
2 |
TB400B.471-15 |
Hinge chain upper seat |
2 |
|
3 |
TB400B.471-16 |
Hinge chain lower seat |
1 |
|
4 |
TB400B.471-14 |
Bonnet seal strip |
1 |
|
5 |
TB400B.471.4 |
Bonnet welding assembly |
1 |
|
6 |
TC02471040001K |
Front grid |
1 |
|
7 |
TB400B.471-17 |
Front lower buffer strip |
1 |
|
8 |
TB400B.471-02 |
Left front grid |
1 |
|
9 |
TB400B.471-03 |
Right front grid |
1 |
|
10 |
TB400B.471-04 |
Left rear decorative parts |
1 |
|
11 |
TB400B.471-05 |
Right rear decorative parts |
1 |
|
12 |
TB400B.471-06 |
Left front lower grid |
1 |
|
13 |
TB400B.471-07 |
Right front lower grid |
1 |
|
14 |
TB400B.471-08 |
Left middle lower grid |
1 |
|
15 |
TB400B.471-09 |
Right middle lower grid |
1 |
|
16 |
TB400B.471-10 |
Left rear lower grid |
1 |
|
17 |
TB400B.471-11 |
Right rear lower grid |
1 |
155
Foton TC2A604-007K Wheeled Tractor

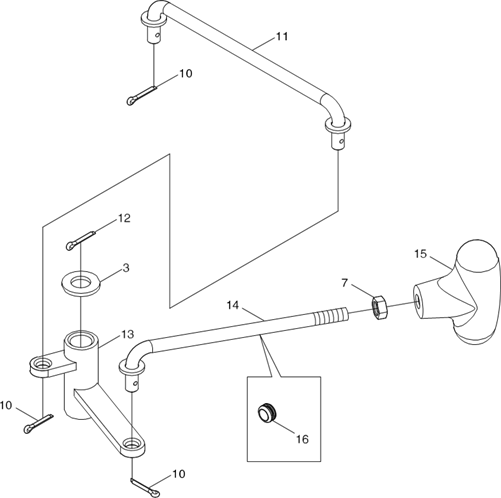

TB400B.473 Bonnet Lock Mechanism Assembly
156
Foton TC2A604-007K Wheeled Tractor
TB400B.473 Bonnet Lock Mechanism Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB400B.473 |
Bonnet lock mechanism assembly |
1 |
||
1 |
GB/T 6170-M8-8-A2L |
Type 1 hex nut |
3 |
|
2 |
GB/T 93-8-A0P |
Standard spring washer |
3 |
|
3 |
GB/T 97.1-8-A0P |
Flat washer |
3 |
|
4 |
GB/T 5783-M6×20-8.8-A2L |
Hex bolt |
4 |
|
5 |
GB/T 6170-M6-8-A2L |
Type 1 hex nut |
5 |
|
6 |
GB/T 93-6-A0P |
Standard spring washer |
4 |
|
7 |
GB/T 97.1-6-A0P |
Flat washer |
2 |
|
8 |
TG1204.474.4 |
Bonnet lock assembly |
1 |
|
9 |
TB400B.473-01 |
Bonnet lock plate |
1 |
|
10 |
GB/T 91-1.6×16-A0P |
Cotter pin |
3 |
|
11 |
TB400B.473.2 |
Pull rod weldment |
1 |
|
12 |
GB/T 91-2.5×25-A0P |
Cotter pin |
1 |
|
13 |
TB400B.473.3 |
Rocker arm weldment |
1 |
|
14 |
TB400B.473.4 |
Pull rod weldment (2) |
1 |
|
15 |
FT800A.47.056 |
Handle assembly |
1 |
|
16 |
TB450.473-02 |
Rubber ring |
1 |
157
Foton TC2A604-007K Wheeled Tractor

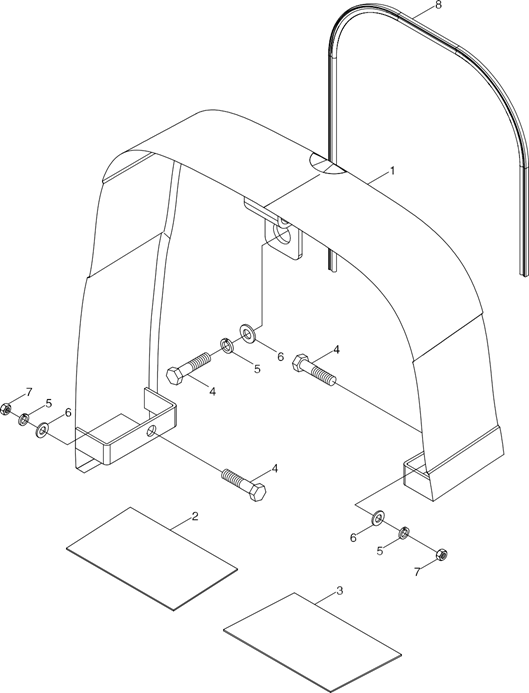

TB550.477D Bonnet Lengthened Plate Assembly
158
Foton TC2A604-007K Wheeled Tractor
TB550.477D Bonnet Lengthened Plate Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB550.477D |
Bonnet lengthened plate assembly |
1 |
||
1 |
TB550.477D.1 |
Bonnet lengthened plate weldment |
1 |
|
2 |
TB550.477D-01 |
Left decoration strip |
1 |
|
3 |
TB550.477D-02 |
Right decoration strip |
1 |
|
4 |
GB/T 5781-M8×30-A2L |
Bolt |
3 |
|
5 |
GB/T 93-8-A0P |
Washer |
3 |
|
6 |
GB/T 97.1-8-A0P |
Washer |
3 |
|
7 |
GB/T 6170-M8-A2L |
Nut |
2 |
|
8 |
TB550.477D-03 |
Bonnet seal strip |
1 |
159
Foton TC2A604-007K Wheeled Tractor
TB400.49 Tool Kit Assembly(003)
160
Foton TC2A604-007K Wheeled Tractor
TB400.49 Tool Kit Assembly(003)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB400.49 |
Tool kit assembly |
1 |
||
1 |
TB400.49.1 |
Tool kit supply assembly |
1 |
|
1.1 |
TB400.49.1.1 |
Tool kit welding and riveting assembly |
1 |
|
1.2 |
TC03490010005 |
Fixing plate weldment |
1 |
|
2 |
GBT5783-M12X20-8.8-A3L |
Hexagon head bolt |
2 |
|
3 |
GBT93-12-A0P |
Standard spring washer |
4 |
|
4 |
GBT97.1-12-A0P |
Plain washer |
2 |
|
5 |
GBT5783-M12X25-8.8-A3L |
Hexagon head bolt |
2 |
|
6 |
TB400.49-01 |
Transit installation plate |
1 |
161
Foton TC2A604-007K Wheeled Tractor
TB400.50X Fuel Tank Assembly
162
Foton TC2A604-007K Wheeled Tractor
TB400.50X Fuel Tank Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB400.50X |
Fuel tank assembly |
1 |
||
1 |
TA650.502.3 |
Oil tank cover assembly |
1 |
|
2 |
FT300.50.015 |
Filter screen assembly |
1 |
|
3 |
TB550.50Q.1 |
Oil tank weldment |
1 |
|
4 |
FT300.50.112 |
Rubber backing block |
2 |
|
5 |
JB/T 982-16 |
Compound seal washer |
1 |
|
6 |
FT65.50.226 |
Oil drainage screw plug |
1 |
|
7 |
FT65.50.033 |
Sediment bowl assembly |
1 |
|
8 |
JB/T 982-14 |
Compound seal washer |
2 |
|
9 |
FT65.50.106 |
Hollow bolt |
1 |
|
10 |
TB400.50X.2 |
Oil tank lock cable weldment |
2 |
|
11 |
FT404.50.114 |
Main oil tank lock cable rubber gasket |
2 |
|
12 |
FT300.50.110 |
Front rubber gasket |
2 |
|
13 |
FT300.50.111 |
Rear rubber gasket |
2 |
|
14 |
TB400.50X.1 |
Oil tank bracket weldment |
2 |
|
15 |
GB/T 5783-M8×20-A2L |
Hex bolt |
4 |
|
16 |
GB/T 93.1-8-A0P |
Washer |
4 |
|
17 |
GB/T 6170-M8-A2L |
Washer |
4 |
|
18 |
GB/T 93-10-A0P |
Standard spring washer |
2 |
|
19 |
GB/T 6170-M10-A3L |
Type 1 hex nut |
4 |
163
Foton TC2A604-007K Wheeled Tractor
TA600.62 Safety Belt Assembly
164
