LOVOL TC2A604-007K Tractor Parts Catalogue 14
Foton TC2A604-007K Wheeled Tractor
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC04582200000 |
|
1 |
||
1 |
FT654.58B.102 |
Straight thread connector, body 1 |
2 |
|
2 |
JBT982-22 |
Compound seal washer |
12 |
|
3 |
TC04582010003 |
Multi-way valve oil inlet pipe assembly-2 |
1 |
|
4 |
TB604.582A.3 |
Multi-way valve oil return pipe assembly |
1 |
|
5 |
TB604.582A.1 |
Multi-way valve bracket weldment |
1 |
|
6 |
GBT93-10-A0P |
Standard spring washer |
4 |
|
7 |
GBT5783-M10X30-8.8-A3L |
Hexagon head bolt |
1 |
|
8 |
GBT5782-M10X70-8.8-A2L |
Hexagon head bolt |
3 |
|
9 |
FT654.58B.020 |
Multi-way valve assembly DF 50F1 |
1 |
|
10 |
GBT6170-M10-8-A3L |
Hexagon nut, style 1 |
3 |
|
11 |
TC04582200001 |
Multi-way valve oil inlet pipe assembly-1 |
1 |
|
12 |
FT654.58.107 |
Hollow bolt-1 |
1 |
125
Foton TC2A604-007K Wheeled Tractor
126
Foton TC2A604-007K Wheeled Tractor
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC04582200000 |
|
1 |
||
1 |
FT654.58.107 |
Hollow bolt-1 |
3 |
|
2 |
JBT982-22 |
Compound seal washer |
9 |
|
3 |
TB604.582A.4a |
Multi-way valve oil outlet pipe assembly-1 |
1 |
|
4 |
GBT3452.1-18.0X2.65G |
|
1 |
|
5 |
FT354.58A.018b |
Multi-way valve oil outlet pipe assembly-2 |
1 |
|
6 |
GBT93-8-A0P |
Standard spring washer |
2 |
|
7 |
GBT5783-M8X30-8.8-A2L |
Hexagon head bolt |
2 |
|
8 |
TC04582200007 |
Multi-way valve oil outlet pipe assembly-1 |
1 |
|
9 |
FT354.58A.030 |
Quick-adapt connector |
4 |
|
10 |
FT354.58A.104 |
British system oil pipe connector |
4 |
|
11 |
TC04582200009 |
Multi-way valve oil outlet pipe assembly-2 |
1 |
|
12 |
GBT6173-M22X1.5-05-A3L |
4 |
||
13 |
TC04582200011 |
Multi-way valve oil outlet pipe assembly-4 |
1 |
|
14 |
TC04582200003 |
Straight thread connector, body M22-16 |
2 |
|
15 |
TC04582200005 |
Multi-way valve oil outlet pipe assembly-3 |
1 |
|
16 |
GBT3452.1-12.5X2.65G |
|
4 |
127
Foton TC2A604-007K Wheeled Tractor

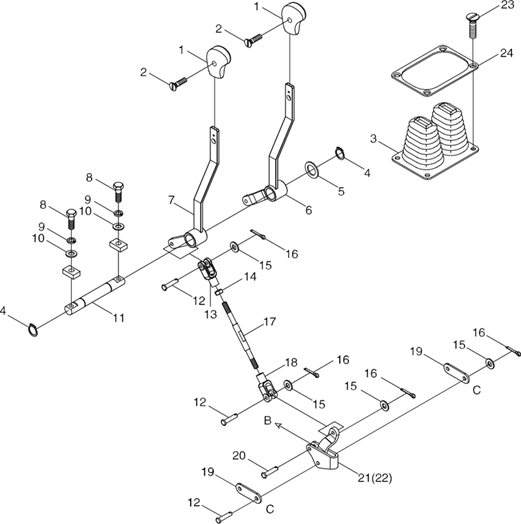

TC04582200000 Multi-way valve pipe and control mechanism assembly -3
128
Foton TC2A604-007K Wheeled Tractor
TC04582200000 Multi-way valve pipe and control mechanism assembly -3
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC04582200000 |
|
1 |
||
1 |
TB604.582G-01 |
Handle head |
2 |
|
2 |
GBT68-M4X10-4.8-A2L |
Slotted countersunk head screw |
2 |
|
3 |
TB504.552A-02b |
Dustproof sleeve |
1 |
|
4 |
GBT894.1-18 |
Circlip for shaft |
2 |
|
5 |
TB504.552A-03 |
Nylon washer |
1 |
|
6 |
TB504.582H.3a |
Multi-way valve control lever press 1 |
1 |
|
7 |
TB504.582H.4a |
Multi-way valve control lever press 2 |
1 |
|
8 |
GBT5783-M8X35-8.8-A2L |
Hexagon head bolt |
2 |
|
9 |
GBT93-8-A0P |
Standard spring washer |
2 |
|
10 |
GBT97.1-8-A0P |
Plain washer |
2 |
|
11 |
TB504.552A-01 |
Rotary shaft |
1 |
|
12 |
GBT882-B6X28 |
Pin shaft |
8 |
|
13 |
FT804A.58L.133 |
Righthand pull rod fork |
2 |
|
14 |
GBT6170-M8-8-A2L |
Hexagon nut, style 1 |
2 |
|
15 |
GBT97.1-6-A0P |
Plain washer |
10 |
|
16 |
GBT91-2X12-A0P |
Cotter pin |
10 |
|
17 |
TB604.582A-01 |
Threaded rod |
2 |
|
18 |
FT804A.58L.136 |
Lefthand pull rod fork |
2 |
|
19 |
FT654.58.103 |
Connecting plate |
4 |
|
20 |
GBT882-B6X22 |
Pin shaft |
2 |
|
21 |
TB504.582A.1 |
Connecting plate weldment 1 |
1 |
|
22 |
TB504.582A.2 |
Connecting plate weldment 2 |
1 |
|
23 |
GBT68-M6X16-4.8-A2L |
Slotted countersunk head screw |
4 |
|
24 |
TB504.552A-06 |
Dustproof sleeve press plate |
1 |
129
Foton TC2A604-007K Wheeled Tractor
TB300.583A Single-way Hydraulic Outlet Assembly 2(003)
130
Foton TC2A604-007K Wheeled Tractor
TB300.583A Single-way Hydraulic Outlet Assembly 2(003)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1 2 |
TB300.583A FT354.58A.104 FT354.58A.030 |
Single-way hydraulic outlet assembly 2 Oil pipe joint (British system) Quick-adapt joint |
1 1 1 |
131
Foton TC2A604-007K Wheeled Tractor

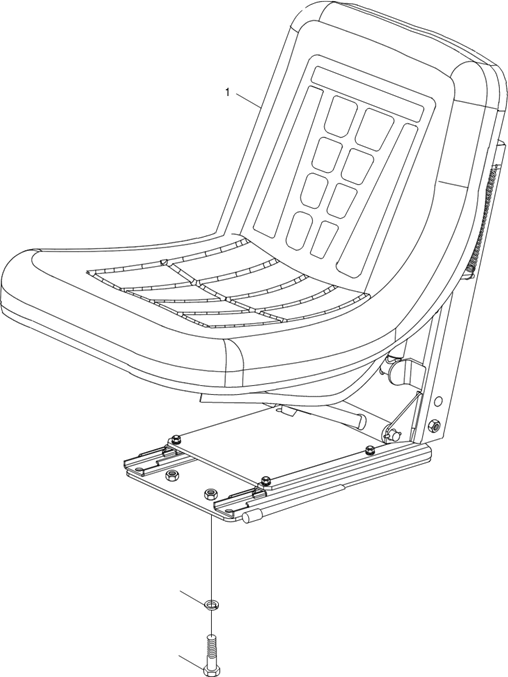

TB400.44G Seat Mounting Assembly
132
Foton TC2A604-007K Wheeled Tractor
TB400.44G Seat Mounting Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1 2 3 |
TB400.44G TB400.44G.1 GB/T 93-10-A0P GB/T 5783-M10×20-8.8-A3L |
Seat mounting assembly Seat assembly Standard spring washer Hex head bolt |
1 1 4 4 |
133
Foton TC2A604-007K Wheeled Tractor
TC02451090000K Driver’s Cab Assembly-1
