LOVOL TC2A604-007K Tractor Parts Catalogue 13
Foton TC2A604-007K Wheeled Tractor
TB504.551A Lifter Assembling Assembly-4(013)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB504.551A |
Lifter assembling assembly |
1 |
||
TB504.551A.1a |
Lifter assembly |
1 |
||
1 |
TB504.551.1.1.4 |
Eccentric wheel welding assembly, force adjustment |
1 |
|
2 |
GBT3452.1-6.90X1.80G |
O-ring sealant used for hydraulic or pneumatic parts |
1 |
|
3 |
TB504.551.1.1.3 |
|
1 |
|
4 |
GBT3452.1-17.0X1.80G |
O-ring sealant used for hydraulic or pneumatic parts |
1 |
|
5 |
GBT3452.1-41.2X3.55G |
O-ring sealant used for hydraulic or pneumatic parts |
1 |
|
6 |
GBT1099.1-3X5X13 |
Woodruff key |
1 |
|
7 |
GBT1099.1-2.5X3.7X10 |
Woodruff key |
1 |
|
8 |
TB504.551.1.1-04 |
Spacer bush |
2 |
|
9 |
GBT898-M10X65-8.8-A2L |
Stud |
2 |
|
10 |
GBT93-10-A0P |
Standard spring washer |
2 |
|
11 |
GBT6170-M10-8-A3L |
Hexagon nut , Style 1 |
2 |
|
12 |
TB504.551.1.1-01 |
Bracket |
1 |
|
13 |
TB504.551B.1.1-01 |
Sector plate, force adjustment |
1 |
|
14 |
GBT62-M6-A2L |
Disc nut |
2 |
|
15 |
TB504.551.1.1.2 |
Rocker-arm weldment, force adjustment |
1 |
|
16 |
TB504.551.1.1.1 |
Rocker-arm weldment, position adjustment |
1 |
|
17 |
TB504.551B.1.1-02 |
Sector plate, position adjustment |
1 |
|
18 |
TB504.551B.1.1 |
Distributor control mechanism assembly |
1 |
115
Foton TC2A604-007K Wheeled Tractor
TB504.552C Lifter Control Mechanism Assembly
116
Foton TC2A604-007K Wheeled Tractor
TB504.552C Lifter Control Mechanism Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB504.552C |
Lifter control mechanism assembly |
1 |
||
1 |
TB504.552A-05 |
Mark, position adjustment |
1 |
|
2 |
TB504.552A-04 |
Mark, force adjustment |
1 |
|
3 |
TB504.552-04 |
Handle head |
2 |
|
4 |
GB/T 62-M5-A2L |
Butterfly nut |
2 |
|
5 |
GB/T 93-5-A0P |
Standard spring washer |
2 |
|
6 |
TB504.552-03 |
Position-limit plate |
2 |
|
7 |
TB504.552.5 |
Position-limit bolt weldment |
2 |
|
8 |
TB504.552A-02B |
Dust boot |
1 |
|
9 |
GB/T 68-M4×10-A2L |
Slotted countersunk head screw |
2 |
|
10 |
GB/T 95-8-A0P |
Flat washer |
4 |
|
11 |
GB/T 91-2×16-A0P |
Split pin |
4 |
|
12 |
GB/T 894.1-18 |
Circlip for shaft |
2 |
|
13 |
TB504.552A-03 |
Nylon washer |
1 |
|
14 |
TB504.552A.3A |
Connecting rod weldment |
1 |
|
15 |
TB504.552A.2B |
Left control press-fit, lifter |
1 |
|
15.1 |
TB504.552A.2b.1 |
Left control weldment, lifter |
1 |
|
15.2 |
TB504.552A.1-01 |
Nylon spacer bush |
1 |
|
16 |
TB504.552A.1B |
Right control press-fit, lifter |
1 |
|
16.1 |
TB504.552A.1b.1 |
Right control weldment, lifter |
1 |
|
16.2 |
TB504.552A.1-01 |
Nylon spacer bush |
1 |
|
17 |
TB504.552A-01 |
Revolving shaft |
1 |
|
18 |
GB/T 5783-M8×35-8.8-A2L |
Hex head bolt |
2 |
|
19 |
|
Standard spring washer |
2 |
|
20 |
GB/T 97.1-8-A0P |
Flat washer |
2 |
|
21 |
TB504.552C.3A |
Connecting rod weldment |
1 |
|
22 |
GB/T 68-M6×16-4.8-A2L |
Slotted countersunk head screw |
4 |
|
23 |
TB504.552A-06 |
Pressing plate, dust cover |
1 |
117
Foton TC2A604-007K Wheeled Tractor
FT500A.56B.001 Suspension Mechanism Assembly-1
118
Foton TC2A604-007K Wheeled Tractor
FT500A.56B.001 Suspension Mechanism Assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT500A.56B.001 |
Suspension mechanism assembly |
1 |
||
1 |
|
Stud |
6 |
|
2 |
FT300.56B.014 |
Support welded unit, right lower link |
1 |
|
3 |
FT300.56B.015 |
Left lower link support welded unit |
1 |
|
4 |
SPL-CO-M16×1.5-10-F3 |
Hex flange nut |
6 |
|
5 |
FT300.56A.102 |
Connecting pin, position-limit link |
2 |
|
6 |
FT300.56A.019 |
Bracket welded unit, right position-limit link |
1 |
|
7 |
GB/T 16674.1-M16×40-10.9-A3L |
Hexagon flange bolt |
10 |
|
8 |
GB/T 91-5×32-A0P |
Split pin |
6 |
|
9 |
GB/T 882-B18×55-A0P |
Axis pin |
2 |
|
10 |
FT300.56A.103 |
Bushing |
4 |
|
11 |
FT300.56A.016a |
Position-limit link assembly |
2 |
|
11.1 |
FT300.56A.023 |
Lockpin combination, position-limit link |
1 |
|
11.2 |
FT300.56A.161 |
Adjusting screw, position-limit link |
1 |
|
11.3 |
GB/T 6170-M22-A3L |
Nut |
1 |
|
11.4 |
FT300.56A.022a |
Telescopic pipe welded unit |
1 |
|
11.5 |
FT300.56A.021a |
Telescopic link ball assembly |
1 |
|
12 |
GB/T 91-4×36-A0P |
Pin |
4 |
|
13 |
GB/T 6178-M20-8-A9L |
Nut |
4 |
|
14 |
GB/T 97.1-20-A0P |
Washer |
2 |
|
15 |
FT300.56A.110a |
Rear connecting pin, position-limit link |
2 |
|
16 |
FT500A.56.012 |
Lower link assembly |
2 |
|
17 |
FT300.56A.111a |
Circular plate |
2 |
|
18 |
FT300.56A.017 |
Left position-limit link bracket welded unit |
1 |
119
Foton TC2A604-007K Wheeled Tractor

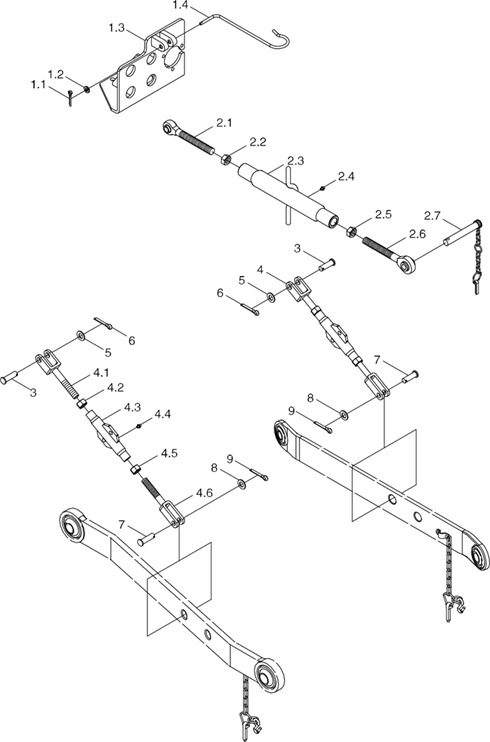

FT500A.56B.001 Suspension Mechanism Assembly-2
120
Foton TC2A604-007K Wheeled Tractor
FT500A.56B.001 Suspension Mechanism Assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT500A.56B.001 |
Suspension mechanism assembly |
1 |
||
1 |
FT300.56A.018b |
Fixed clip combination, upper link |
1 |
|
1.1 |
GB/T 91-2×10-A0P |
Split pin |
1 |
|
1.2 |
GB/T 97.1-6-A0P |
Washer |
1 |
|
1.3 |
FT300.56A.020b |
Base plate welded unit |
1 |
|
1.4 |
FT300.56A.216 |
Fixing clip |
1 |
|
2 |
FT500A.56.011a |
Upper link assembly |
1 |
|
2.1 |
FT500A.56.026 |
Front adjusting link assembly, upper link |
1 |
|
2.2 |
GB/T 6173-M27×2-A3L |
Hexagon thin nut |
1 |
|
2.3 |
FT500A.56.027 |
Adjustment solenoid weldment |
1 |
|
2.4 |
JB/T 7940.1-M6 |
Straight-through type forced filling oil cup |
1 |
|
2.5 |
GB/T 6173-M27×2-LH-A3L |
Hexagon thin nut |
1 |
|
2.6 |
FT500A.56.024 |
Rear adjusting link assembly, upper link |
1 |
|
2.7 |
FT65.56.015 |
Lockpin assembly, upper link |
1 |
|
3 |
FT500A.56.101 |
Connecting pin, upper clevis, lift link |
2 |
|
4 |
FT500A.56.013 |
Lift link assembly |
2 |
|
4.1 |
FT500A.56.107 |
Upper clevis, lift link |
1 |
|
4.2 |
GB/T 6173-M27×2-A3L |
Hexagon thin nut |
1 |
|
4.3 |
FT500A.56.033 |
Solenoid weldment, lift link |
1 |
|
4.4 |
JB/T 7940.1-M6 |
Straight-through type forced filling oil cup |
1 |
|
4.5 |
GB/T 6173-M27×2-LH-A3L |
Hexagon thin nut |
1 |
|
4.6 |
FT500A.56.108 |
Lower clevis, lift link |
1 |
|
5 |
FT500A.56.118 |
Washer |
2 |
|
6 |
GB/T 91-5×40-A0P |
Pin |
2 |
|
7 |
FT300.56A.112 |
Connecting pin, lower clevis, lift link |
2 |
|
8 |
GB/T 97.1-24-A0P |
Flat washer |
2 |
|
9 |
GB/T 91-5×32-A0P |
Split pin |
2 |
121
Foton TC2A604-007K Wheeled Tractor

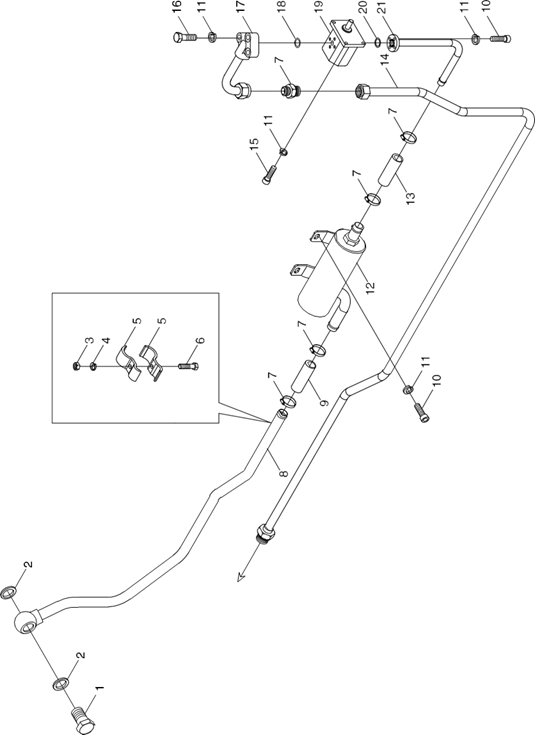

TC02581200000K Oil Pipe Filter Assembly of Oil Pump
122
Foton TC2A604-007K Wheeled Tractor
TC02581200000K Oil Pipe Filter Assembly of Oil Pump
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1 |
FT300.58.101 |
Hollow bolt |
1 |
|
2 |
JBT982-22 |
Composite sealing washer |
2 |
|
3 |
GBT6170-M6-8-A2L |
Hexagon nut, type 1 |
3 |
|
4 |
GBT93-6-A0P |
Standard spring washer |
3 |
|
5 |
FT300.58.013 |
Oil pipe clamp and rubber gasket gluing |
6 |
|
6 |
GBT5783-M6X30-8.8-A2L |
Hexagon head bolt |
3 |
|
7 |
Q67632 |
Hoop, worm drive hose, type B |
4 |
|
8 |
FT450.58.011 |
Oil suction pipe weldment |
1 |
|
9 |
FT450.58.103 |
Oil suction hose |
1 |
|
10 |
GBT70.1-M8X25-8.8-A2L |
Hexagon socket head cap screw |
4 |
|
11 |
GBT93-8-A0P |
Standard spring washer |
11 |
|
12 |
FT550A.58.040 |
Oil filter assembly |
1 |
|
13 |
FT300.58A.104 |
Oil suction hose |
1 |
|
14 |
TC04581050003 |
Pressure oil pipe assembly |
1 |
|
15 |
GBT70.1-M8X30-8.8-A2L |
Hexagon socket head cap screw |
4 |
|
16 |
GBT5783-M8X30-8.8-A2L |
Hexagon head bolt |
3 |
|
17 |
TC04581030002 |
Pressure oil pipe assembly-1 |
1 |
|
18 |
GBT3452.1-18.0X2.65G |
|
1 |
|
19 |
TC02581010001K |
Gear pump |
1 |
|
20 |
GBT3452.1-21.2X1.80G |
|
1 |
|
21 |
FT550A.58.020 |
Oil suction short pipe weldment |
1 |
123
