LOVOL TC2A604-007K Tractor Parts Catalogue 12
Foton TC2A604-007K Wheeled Tractor
TB504.551A Lifter Assembling Assembly-2(013)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB504.551A |
Lifter assembling assembly |
1 |
||
TB504.551A.1a |
Lifter assembly |
1 |
||
1 |
FT500B.55.101A |
Lifter housing |
1 |
|
2 |
YT300A.55.116 |
Drop speed adjusting lever |
1 |
|
3 |
GBT3452.1-11.2X2.65G |
|
2 |
|
4 |
E300.55.140A |
|
1 |
|
5 |
GBT879.1-4X20 |
Spring-type straight pin |
1 |
|
6 |
GBT91-4X20-A0P |
Split pin |
1 |
|
7 |
FT500B.55.120 |
Gasket |
1 |
|
8 |
FT500B.55.121 |
Lock piece |
1 |
|
9 |
FT500B.55.125 |
Cylindrical bolt |
2 |
|
10 |
GBT6170-M16-10-A3L |
Hexagon nut, style 1 |
2 |
|
11 |
FT500B.55.118 |
Lock piece |
1 |
|
12 |
GB898-88 |
Stud AM16X40 |
2 |
|
13 |
GB1235-76 |
O-ring 24X2.5 |
2 |
|
14 |
TS300B.55.110 |
Spring hook |
1 |
|
15 |
GB3452.1-92 |
O-ring 22.4X1.8 |
2 |
|
16 |
FT500B.55.197 |
Plug |
2 |
|
17 |
FT500B.55.102 |
Oil inlet connecting plate gasket |
1 |
|
18 |
GB3452.1-92 |
O-ring 15X1.8 |
2 |
|
19 |
FT500B.55.103 |
Oil inlet pipe |
1 |
|
20 |
FT500B.55.108A |
Oil inlet connecting plate |
1 |
|
21 |
GBT93-10-A0P |
Standard spring washer |
11 |
|
22 |
GBT5781-M10X30-4.8-A3L |
Hexagon head bolt |
4 |
|
23 |
FT500B.55.115A |
Lifting shaft bush B |
2 |
|
24 |
FT500A.55B.016 |
Lifting arm assembly |
2 |
|
25 |
FT500B.55.127 |
Lifting arm platen |
2 |
|
26 |
GBT5781-M10X20-A3L |
Hexagon head bolt |
2 |
|
27 |
GB1235-76 |
O-ring 60X5.7 |
2 |
|
28 |
300.55.134 |
Cylinder safety valve body |
1 |
|
29 |
300.55.133 |
Cylinder safety valve spring |
1 |
|
30 |
300.55.131-132 |
Adjusting gasket |
1 |
105
Foton TC2A604-007K Wheeled Tractor
TB504.551A Lifter Assembling Assembly-2(013)(extension)
106
Foton TC2A604-007K Wheeled Tractor
TB504.551A Lifter Assembling Assembly-2(013)(extension)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
31 |
300.55.130 |
Plug |
1 |
|
32 |
GB3452.1-92 |
O-ring 15X2.65 |
1 |
|
33 |
GBT5783-M10X25-8.8-A3L |
Hexagon head bolt |
4 |
|
34 |
25.55.146L |
Push rod sleeve |
1 |
|
35 |
25.55.145L |
Draft adjusting seal sleeve |
1 |
|
36 |
GB1235-76-11X1.9 |
|
1 |
|
37 |
GB3452.1-92 |
O-ring 16X1.8 |
1 |
|
38 |
25.55.158 |
Spring rod |
1 |
|
39 |
25.55.159 |
Spring seat |
1 |
|
40 |
25.55.157 |
Draft adjusting spring |
1 |
|
41 |
25.55.160 |
Spring platen |
1 |
|
42 |
GBT97.1-20-A0P |
Plain washer |
1 |
|
43 |
FT500A.55.128 |
Upper hanging point rocker bracket |
1 |
|
44 |
450.55.167 |
Rocker connecting pin |
1 |
|
45 |
GBT91-5X36-A0P |
Split pin |
2 |
|
46 |
FT500A.55B.182 |
Front connecting pin of rocker |
1 |
|
47 |
25.56.030 |
Lock pin and lock pin ring assembly |
1 |
|
48 |
FT500A.55.106 |
Upper connecting pin of rocker |
1 |
|
49 |
FT500B.55.130A |
Rocker of upper connecting point |
1 |
|
50 |
GBT97.1-22-A0P |
Plain washer |
1 |
|
51 |
25.55.162 |
Dustproof shield |
1 |
|
52 |
YT300A.55.121 |
Upper pull rod connector |
1 |
|
53 |
25.55.161 |
Nut |
1 |
|
54 |
FT500A.55.103 |
Upper cover paper gasket |
1 |
|
55 |
FT500A.55.104B |
Upper cover of lifter |
1 |
|
56 |
GBT5781-M8X35-A2L |
Hexagon head bolt |
4 |
|
57 |
GBT93-8-A0P |
Washer 8 |
11 |
|
58 |
GBT5781-M8X20-A2L |
Bolt M8X20 |
7 |
|
59 |
FT500A.55.110 |
Lifting shaft |
1 |
|
60 |
FT500B.55.122A |
Shaft bush |
1 |
|
61 |
FT800.55.173 |
Lock piece |
1 |
|
62 |
FT800.55.172 |
Retainer plate |
1 |
107
Foton TC2A604-007K Wheeled Tractor
TB504.551A Lifter Assembling Assembly-2(013)(extension)
108
Foton TC2A604-007K Wheeled Tractor
TB504.551A Lifter Assembling Assembly-2(013)(extension)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
63 |
FT500B.55.113A |
Inner lifting arm |
1 |
|
64 |
FT500B.55.114A |
Piston rod |
1 |
|
65 |
GBT5783-M10X20-A3L |
Hexagon head bolt |
2 |
|
66 |
KM550.55.105-1 |
Shaft bush |
1 |
|
67 |
KM550.55.109 |
Cam |
1 |
|
68 |
FT500B.55.104B |
|
1 |
|
69 |
GBT5783-M10X35-A3L |
Hexagon head bolt |
1 |
|
70 |
FT500A.55.123 |
Oil delivery pipe nut |
1 |
|
71 |
GBT3452.1-12.5X2.65G |
O-ring sealant used for hydraulic or pneumatic parts |
1 |
|
72 |
FT500B.55.140 |
Hydraulic oil output pipe joint |
1 |
|
73 |
GB1235-76 |
O-ring 16X2.4 |
2 |
|
74 |
FT500B.55.105 |
Oil outlet pipe |
1 |
|
75 |
GB5786-86 |
Bolt M22X1.5X20 |
1 |
|
76 |
JBT982-22 |
Compound seal washer |
1 |
|
77 |
GB1235-76-13X1.9 |
O-ring 13X1.9 |
2 |
|
78 |
FT500B.55.126 |
Shut-off valve adjusting lever |
1 |
|
79 |
BY350.55.163 |
Adjusting valve screw handle |
1 |
|
80 |
YT300A.55.122 |
Shut-off valve retainer plate |
1 |
|
81 |
GBT93-6-A0P |
Standard spring washer |
2 |
|
82 |
GBT5781-M6X16-A2L |
Hexagon head bolt |
2 |
|
83 |
GB119-86-B3X40 |
Pin |
1 |
|
84 |
GB119-86-C4X14 |
Pin |
1 |
|
85 |
FT500B.55.171 |
Pin shaft |
1 |
109
Foton TC2A604-007K Wheeled Tractor

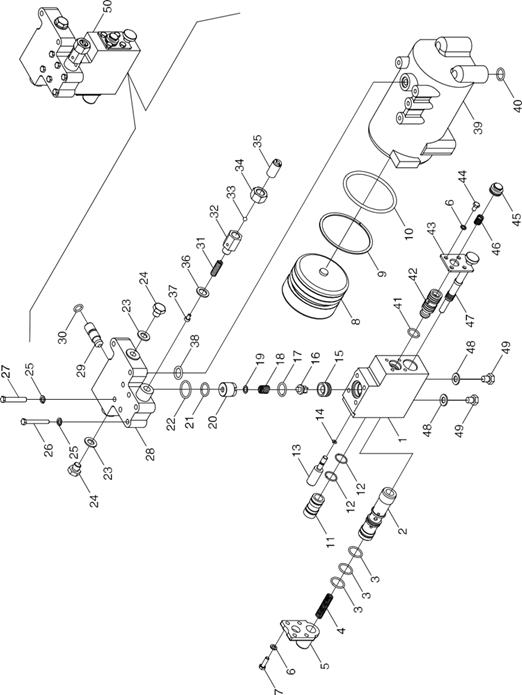

TB504.551A Lifter Assembling Assembly-3(013)
110
Foton TC2A604-007K Wheeled Tractor
TB504.551A Lifter Assembling Assembly-3(013)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB504.551A |
Lifter assembling assembly |
1 |
||
TB504.551A.1a |
Lifter assembly |
1 |
||
1 |
KM550.55.120E |
Distributor housing |
1 |
|
2 |
TS300.55.217 |
Main control valve sleeve |
1 |
|
3 |
GBT1235-26X2.4 |
O-ring |
3 |
|
4 |
25.55.181 |
Main control valve spring |
1 |
|
5 |
KR130.55.183 |
Front cover of valve |
1 |
|
6 |
GBT93-6-A0P |
Standard spring washer |
8 |
|
7 |
GBT5783-M6X20-A2L |
Hexagon head bolt |
4 |
|
8 |
KM550.55.023 |
Piston assembly |
1 |
|
9 |
520.55.143 |
Circlip |
1 |
|
10 |
GBT3452.1-90X5.3 |
O-ring |
1 |
|
11 |
KR130.55.105 |
Seal sleeve |
1 |
|
12 |
GBT3452.1-19X1.8 |
O-ring |
2 |
|
13 |
TS300B.55.187 |
Adjusting valve |
1 |
|
14 |
GBT1235-8X1.9 |
O-ring |
1 |
|
15 |
T30.57.143B |
One-way valve seat |
1 |
|
16 |
T30.57.142B |
One-way valve body |
1 |
|
17 |
GBT3452.1-19X2.65G |
|
1 |
|
18 |
T30.57.144B |
One-way valve spring |
1 |
|
19 |
T30.57.164 |
One-way valve body pad |
1 |
|
20 |
YT300A.55.124 |
One-way valve sleeve |
1 |
|
21 |
GBT1235-24X2.4 |
O-ring |
1 |
|
22 |
GBT3452.1-25.7X2.65 |
|
1 |
|
23 |
JBT982-12 |
Compound seal washer |
1 |
|
24 |
JBT1000-M12X1.5 |
External hexagon screw plug |
1 |
|
25 |
GBT93-8-A0P |
Standard spring washer |
1 |
|
26 |
GBT5782-M8X50-10.9-A2L |
Hexagon head bolt |
1 |
|
27 |
GBT5782-M8X45-8.8-A2L |
Hexagon head bolt |
1 |
|
28 |
WT550.55.107 |
Distributor bracket |
1 |
|
29 |
FT500B.55.246 |
Shut-off valve |
1 |
|
30 |
GBT3452.1-11.8X2.65G |
|
1 |
111
Foton TC2A604-007K Wheeled Tractor
TB504.551A Lifter Assembling Assembly-3(013) (extension)
112
Foton TC2A604-007K Wheeled Tractor
TB504.551A Lifter Assembling Assembly-3(013) (extension)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
31 |
12.55.218 |
Safety valve spring |
1 |
|
32 |
TS300B.55.209 |
Safety valve body |
1 |
|
33 |
GBT308-6-G100-b |
Steel ball |
1 |
|
34 |
GBT6173-M16X1.5-A3L |
Hexagon thin nut |
1 |
|
35 |
TS300B.55.251 |
Pressure regulating stud |
1 |
|
36 |
TS300B.55.210 |
Aluminum gasket |
1 |
|
37 |
TS300B.55.211 |
Safety valve spring seat |
1 |
|
38 |
GBT3452.1-13.2X2.65G |
|
1 |
|
39 |
FT500B.55.106 |
Cylinder body |
1 |
|
40 |
GBT3452.1–17X2.65G |
O-ring |
1 |
|
41 |
GBT1235-22X2.4 |
O-ring |
1 |
|
42 |
KR130.55.103 |
Oil return valve body |
1 |
|
43 |
BY320.55.180 |
Retainer plate |
1 |
|
44 |
GBT5783-M6X12-8.8-A2L |
Hexagon head bolt |
1 |
|
45 |
25.55.176 |
Rear plug of oil return valve |
1 |
|
46 |
25.55.184 |
Oil return valve spring |
1 |
|
47 |
TS300.55.172 |
Main control valve |
1 |
|
48 |
JBT982-10 |
Compound seal washer |
1 |
|
49 |
JBT1000-M10X1 |
Hexagon screw plug |
1 |
|
50 |
FT500B.55.013E |
Distributor and bracket assembly |
1 |
113
Foton TC2A604-007K Wheeled Tractor
