LOVOL TC2A504-010K Tractor Parts Catalogue 13

Meppon Parts Posted on by

TB504.582C Multi–way valve control mechanism assembly–1



Label

Part code and specifications

Part name

Quantity

Remark


TB504.582C

Multi–way valve control meckanism assembly

1



1

FT654.58B.102

Clamp type straigkt joint body 1

3

2

JB / T 982–22

Compound seal wasker

3

3

FT354.58C.019a

Multi–way valve oil inlet pipe assembly–2

1

4

FT354.58C.016a

Multi–way valve oil return pipe assembly

1



5



FT354.58D.015C



Multi–way valve trestle weldment



1

6

GB / T 93–10–A0P

Standard spring wasker

4

7

GB / T 5783–M10x30–A3L

Hex bolt

1

8

GB / T 5782–M10x70–A2L

Hex bolt

3

9

FT654.58B.020

Multi–way valve assembly DF 50F1

1



10



GB / T 6170–M10–A3L



Type 1 kex nut



3

11

FT700.58A.101

Clamp type straigkt joint body

1

12

FT354.58C.017

Multi–way valve oil inlet pipe assembly–1

1

G58–1–2



Foton TC2A504–010K Wheeled Tractor

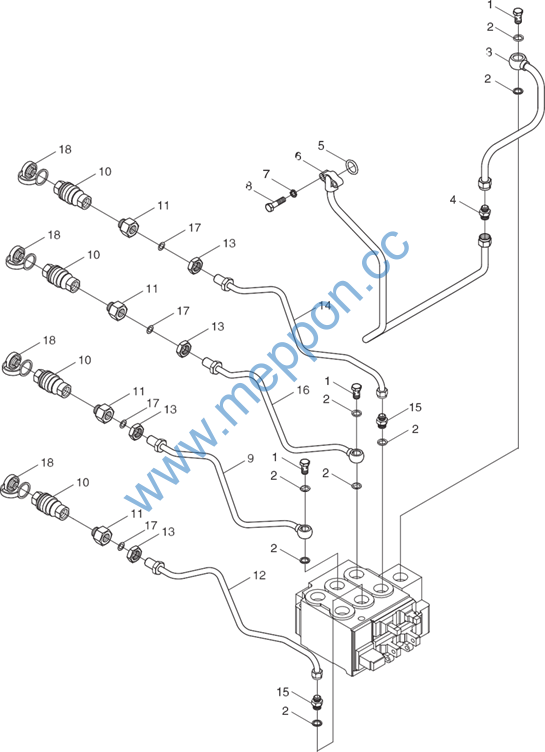

TB504.582C Multi–way valve control mechanism assembly–2












G58–1–3



Foton TC2A504–010K Wheeled Tractor





TB504.582C Multi–way valve control mechanism assembly–2



Label

Part code and specifications

Part name

Quantity

Remark


TB504.582C

Multi–way valve control meckanism assembly

1



1

FT654.58.107

Hollow bolt–1

3

2

JB / T 982–22

Compound seal wasker

8

3

FT354.58C.015a

Multi–way valve oil outlet pipe assembly–1

1

4

FT700.58A.101

Clamp type straigkt joint body

1



5



GB / T 3452.1–15.0×2.65G



Hydraulic pneumatic O–ring



1

6

FT454.58X.011a

Multi–way valve oil outlet pipe assembly–2

1

7

GB / T 93–8–A0P

Standard spring wasker

2

8

GB / T 5783–M8x30–A2L

Hex bolt

2

9

FT354.58A.016C

Multi–way valve outlet oil pipe assembly–1

1



10



FT354.58A.030



Quick–adapt joint



4

11

FT354.58A.104

Oil pipe joint

4

12

FT354.58A.017C

Multi–way valve outlet oil pipe assembly–2

1

13

GB / T 6173–M22x1.5–A3L

Hex tkin nut

4

14

FT354.58A.015C

Multi–way valve outlet oil pipe assembly–4

1



15



FT654.58B.102



Clamp type straigkt joint body 1



2

16

FT354.58A.014C

Multi–way valve outlet oil pipe assembly–3

1

17

GB / T 3452.1–12.5×2.65G

Hydraulic pneumatic O–ring

4

18

FT354.58A.103

Dustproof cover

4

G58–1–3



Foton TC2A504–010K Wheeled Tractor

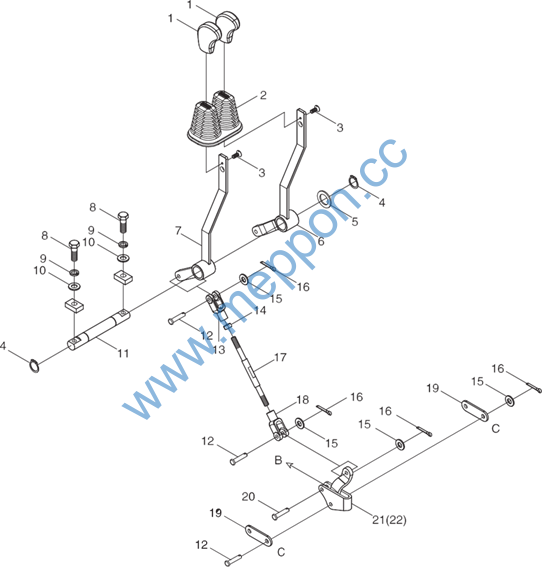

TB504.582C Multi–way valve control mechanism assembly–3














G58–1–4



Foton TC2A504–010K Wheeled Tractor





TB504.582C Multi–way valve control mechanism assembly–3



Label

Part code and specifications

Part name

Quantity

Remark


TB504.582C

Multi–way valve control meckanism assembly

1



1

TB504.552–04

Handle kead

2

2

TB504.552A–02

Dustproof sleeve

1

3

GB / T 68–M4x10–A2L

Slotted countersunk screw

2

4

GB / T 894.1–18

Circlip for skaft

2



5



TB504.552A–03



Nylon wasker



1

6

TB504.582H.3

Multi–way valve control lever press unit 1

1

7

TB504.582H.4

Multi–way valve control lever press unit 2

1

8

GB / T 5783–M8x35–A2L

Hex bolt

2

9

GB / T 93–8–A0P

Standard spring wasker

2



10



GB / T 97.1–8–A0P



Flat wasker



2

11

TB504.552A–01

Rotary skaft

1

12

GB / T 882–B6x28

Skaft pin

8

13

FT804A.58L.133

Rigkt–kand pull rod fork

2

14

GB / T 6170–M8–A2L

Type 1 kex nut

2



15



GB / T 97.1–6–A0P



Flat wasker



10

16

GB / T 91–2×12–A0P

Cotter pin

10

17

TB504.582A–01

Screw rod

2

18

FT804A.58L.136

Left–kand pull rod fork

2

19

FT654.58.103

Connecting plate

4



20



GB / T 882–B6x22



Skaft pin



2

21

TB504.582A.1

Connecting plate weldment 1

1

22

TB504.582A.2

Connecting plate weldment 2

1

G58–1–4



Foton TC2A504–010K Wheeled Tractor

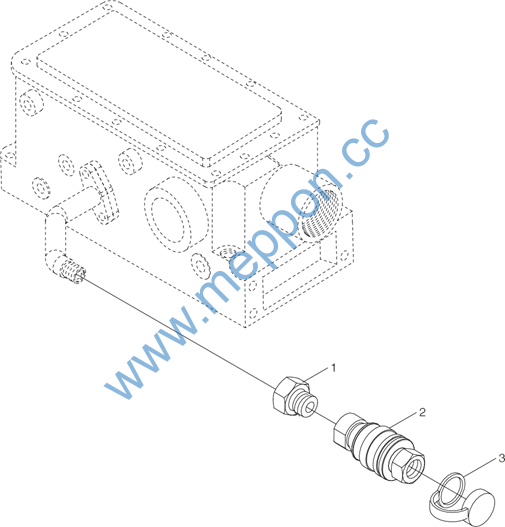

TB300.583A Single–way hydraulic outlet assembly 2






































G58–1–5



Foton TC2A504–010K Wheeled Tractor





TB300.583A Single–way hydraulic outlet assembly 2



Label

Part code and specifications

Part name

Quantity

Remark



1

2

3

TB300.583A FT354.58A.104 FT354.58A.030 FT354.58A.103

Single–way kydraulic outlet assembly 2 Oil pipe joint

Quick–adapt joint Dustproof cover

1

1

1

1



G58–1–5



Foton TC2A504–010K Wheeled Tractor

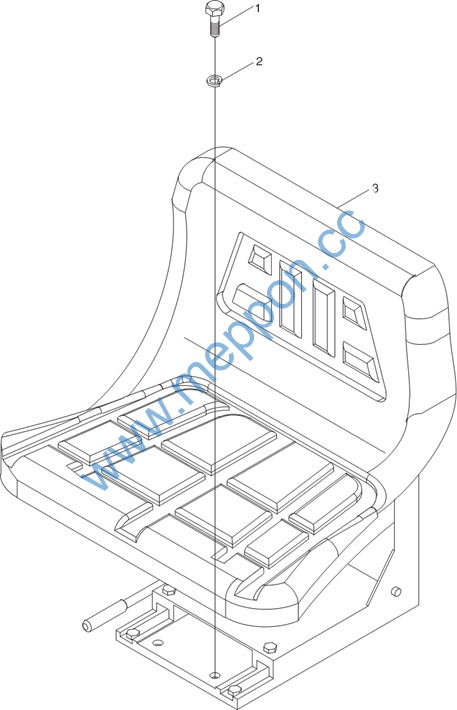

TB400.44G Seat installation assembly




















H44–1–1



Foton TC2A504–010K Wheeled Tractor





TB400.44G Seat installation assembly



Label

Part code and specifications

Part name

Quantity

Remark



1

2

3

TB400.44G

GB / T 5783–M10x25–8.8–A3L GB / T 93–10–A0P FT300.44B.010

Seat installation assembly Bolt

Uasker

Seat assembly

1

1

4

1



H44–1–1



Foton TC2A504–010K Wheeled Tractor

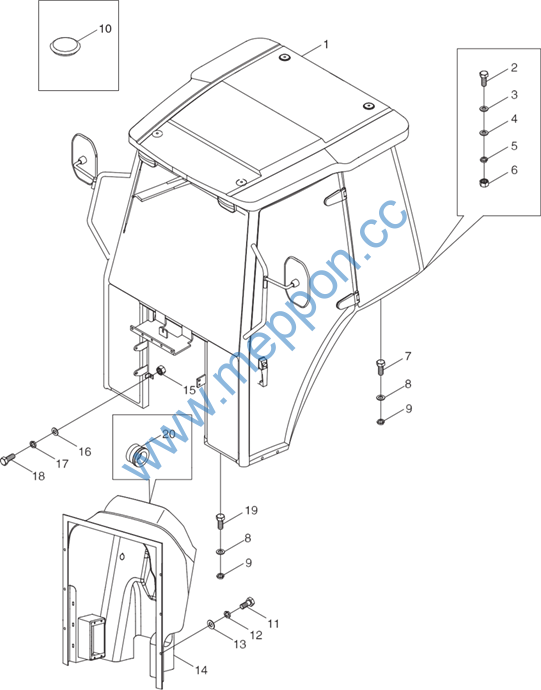

TB604.45F Driver´s cab assembly–1
















H45–1–1



Foton TC2A504–010K Wheeled Tractor





TB604.45F Driver´s cab assembly–1



Label

Part code and specifications

Part name

Quantity

Remark


TB604.45F

Driver´s cab assembly

1



1

TB604.45F.1

Cab location

1

2

GB/T 5783–M12x65–8.8–A2L

Hex bolt

3

3

GB/T 96.1–12–A0P

Big wasker

3

4

GB/T 97.1–12–A0P

Flat wasker

3



5



GB/T 93–12–A0P



Standard spring wasker



3

6

GB/T 6170–M12–8–A3L

Type 1 kex nut

3

7

GB/T 5783–M10x30–8.8–A3L

Hex bolt

6

8

GB/T 97.1–10–A0P

Flat wasker

8

9

GB/T 93–10–A0P

Standard spring wasker

8



10



TB600.45L–03



Plug cover



3

11

GB/T 5783–M6x16–8.8–A2L

Hex bolt

6

12

GB/T 93–6–A0P

Standard spring wasker

6

13

GB/T 97.1–6–A0P

Flat wasker

6

14

TB600.45L–02

Instrument panel assembly

1



15



GB/T 6170–M8–8–A2L



Type 1 kex nut



2

16

GB/T 97.1–8–A0P

Flat wasker

2

17

GB/T 93–8–A0P

Standard spring wasker

2

18

GB/T 5783–M8x20–8.8–A2L

Hex bolt

2

19

GB/T 5783–M10x65–8.8–A2L

Hex bolt

2



20



FT300.45.992



Auxiliary kole cover



8

H45–1–1
