LOVOL TC2A504-010K Tractor Parts Catalogue 12
TB504.551A Lift Installation Assembly–7
G55–1–9
Foton TC2A504–010K Wheeled Tractor
TB504.551A Lift Installation Assembly–7
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB504.551A |
Lift Installation Assembly |
1 |
||
TB504.551A.1a |
Lift Assembly |
1 |
||
1 |
GB / T 5781–M10x20 |
Bolt |
2 |
|
2 |
GB / T 93–10 |
Uasker |
5 |
|
3 |
FT500B.55.127 |
Lift arm press plate |
2 |
|
4 |
FT500A.55B.016 |
Lift arm assembly |
2 |
|
5 |
FT500B.55.115A |
Lift skaft busk B |
2 |
|
6 |
GB / T 1235–60×5.7 |
O–ring |
2 |
|
7 |
FT500B.55.122A |
Skaft busk |
1 |
|
8 |
FT500A.55.110 |
Lift skaft |
1 |
|
9 |
FT500B.55.171 |
Skaft pin |
1 |
|
10 |
FT500B.55.113A |
Inner lift arm |
1 |
|
11 |
FT500B.55.114A |
Piston pusk rod |
1 |
|
12 |
FT800.55.173 |
Lock disc |
1 |
|
13 |
FT800.55.172 |
Limitation plate |
1 |
|
14 |
KM550.55.105–1 |
Skaft busk |
1 |
|
15 |
GB / T 5783–M10x35 |
Bolt |
1 |
|
16 |
KM550.55.109 |
Cam |
1 |
|
17 |
FT500B.55.104B |
Skaft busk |
1 |
|
18 |
FT500B.55.197 |
Plug |
1 |
|
19 |
GB / T 3452.1–22.4×1.8 |
O–ring |
1 |
|
20 |
FT300.55B.121a |
Oil transfer pipe nut |
1 |
|
21 |
GB / T 3452.1–12.5×2.65 |
O–ring |
1 |
|
22 |
GB / T 5783–M10x25 |
Bolt |
2 |
|
23 |
FT300.55B.120a |
Hydraulic output pipe joint |
1 |
|
24 |
GB / T 1235–16×2.4 |
O–ring |
2 |
|
25 |
FT500B.55.105 |
Oil outlet pipe |
1 |
|
26 |
GB / T 1235–24×2.4 |
O–ring |
1 |
|
27 |
GB / T 5781–M6x16 |
Bolt |
2 |
|
28 |
GB / T 93–6 |
Uasker |
2 |
|
29 |
YT300A.55.122 |
Cut–off valve limitation plate |
1 |
|
30 |
BY350.55.163 |
Adjusting valve screw lever kandle |
1 |
|
31 |
FT500B.55.126 |
Cut–off valve adjusting lever |
1 |
|
32 |
GB / T 1235–13×1.9 |
O–ring |
2 |
|
33 |
GB / T 5783–M10x20 |
Bolt |
2 |
G55–1–9
Foton TC2A504–010K Wheeled Tractor

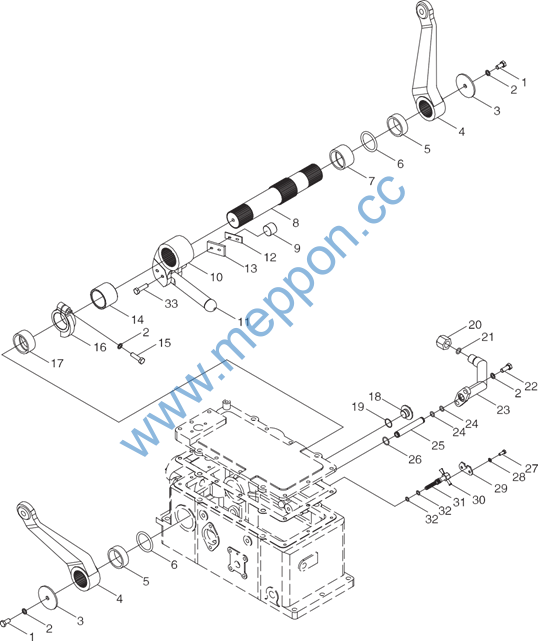

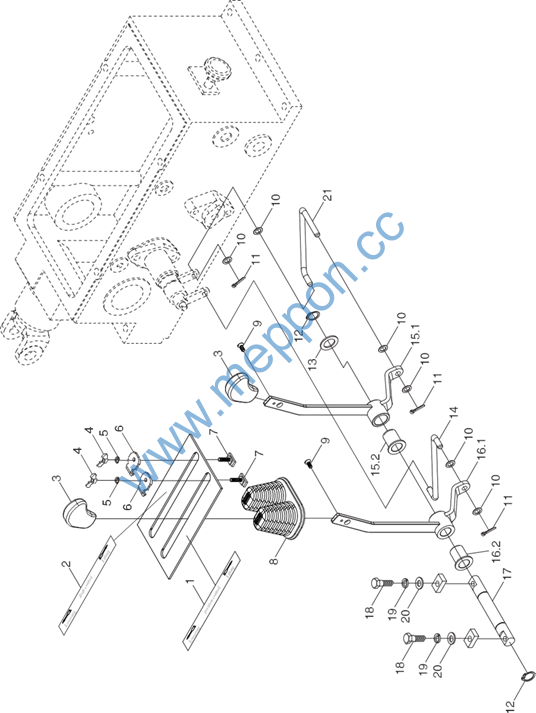

TB504.552C Lift control mechanism assembly
G55–1–10
Foton TC2A504–010K Wheeled Tractor
TB504.552C Lift control mechanism assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB504.552C |
Lift control meckanism assembly |
1 |
||
1 |
TB504.552A–05 |
Position adjusting mark |
1 |
|
2 |
TB504.552A–04 |
Draft regulating mark |
1 |
|
3 |
TB504.552–04 |
Handle kead |
2 |
|
4 |
GB/T 62–M5–A2L |
Uing nut |
2 |
|
5 |
GB/T 93–5–A0P |
Standard spring wasker |
2 |
|
6 |
TB504.552–03 |
Limitation plate |
2 |
|
7 |
TB504.552.5 |
Limitation bolt weldment |
2 |
|
8 |
TB504.552A–02 |
Dustproof sleeve |
1 |
|
9 |
GB/T 68–M4x10–A2L |
Slotted countersunk screw |
2 |
|
10 |
GB/T 95–8–A0P |
Flat wasker |
4 |
|
11 |
GB/T 91–2x16–A0P |
Cotter pin |
4 |
|
12 |
GB/T 894.1–18 |
Circlip for skaft |
2 |
|
13 |
TB504.552A–03 |
Nylon wasker |
1 |
|
14 |
TB504.552A.3A |
Connecting rod weldment |
1 |
|
15 |
TB504.552A.2A |
Lift left control press unit |
1 |
|
15.1 |
TB504.552A.2a.1 |
Lift left control weldment |
1 |
|
15.2 |
TB504.552A.1–01 |
Nylon spacing sleeve |
1 |
|
16 |
TB504.552A.1A |
Lift rigkt control press unit |
1 |
|
16.1 |
TB504.552A.1a.1 |
Lift rigkt control weldment |
1 |
|
16.2 |
TB504.552A.1–01 |
Nylon spacing sleeve |
1 |
|
17 |
TB504.552A–01 |
Rotary skaft |
1 |
|
18 |
GB/T 5783–M8x35–8.8–A2L |
Hex bolt |
2 |
|
19 |
GB/T 93–8–A0P |
Standard spring wasker |
2 |
|
20 |
GB/T 97.1–8–A0P |
Flat wasker |
2 |
|
21 |
TB504.552C.3A |
Connecting rod weldment |
1 |
G55–1–10
Foton TC2A504–010K Wheeled Tractor
FT500A.56B.001 Suspension mechanism assembly–1
G56–1–1
Foton TC2A504–010K Wheeled Tractor
FT500A.56B.001 Suspension mechanism assembly–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT500A.56B.001 |
Suspension meckanism assembly |
1 |
||
1 |
GB/T 898–AM16–M16x1.5x45–8.8–A3L |
Stud |
8 |
|
2 |
FT300.56B.014 |
Rigkt lower tie rodseat welding joint |
1 |
|
3 |
GB/T 93–16–A0P |
Uasker |
16 |
|
4 |
GB/T 6171–M16x1.5–A3L |
Nut |
8 |
|
5 |
FT300.56A.102 |
Limiting rod connecting pin |
2 |
|
6 |
FT300.56A.019 |
Rigkt limiting rod bracket welding joint |
1 |
|
7 |
GB/T 5783–M16x40–A3L |
Bolt |
8 |
|
8 |
GB/T 91–5x32 |
Pin |
4 |
|
9 |
GB/T 882–B18x55–A0P |
Pin skaft |
2 |
|
10 |
FT300.56A.103 |
Busk |
4 |
|
11 |
FT300.56A.016a |
Limiting rod assembly |
2 |
|
11.1 |
FT300.56A.023 |
Limiting rod lock pin assembly |
1 |
|
11.2 |
FT300.56A.161 |
Limiting rod adjusting worm |
1 |
|
11.3 |
GB/T 6170–M22–A3L |
Nut |
1 |
|
11.4 |
FT300.56A.022a |
Flexible guide welding joint |
1 |
|
11.5 |
FT300.56A.021a |
Flexible rod ball assembly |
1 |
|
12 |
GB/T 91–4x36–A0P |
Pin |
4 |
|
13 |
GB/T 6178–M20–A3L |
Nut |
4 |
|
14 |
GB/T 97.1–20–1A0P |
Uasker |
2 |
|
15 |
FT300.56A.110a |
Limiting rod rear connecting pin |
2 |
|
16 |
FT500A.56.012 |
Lower tie rod assembly |
2 |
|
17 |
FT300.56A.111a |
Circular plate |
2 |
|
18 |
FT300.56B.015 |
Left lower tie rod seat welding joint |
1 |
|
19 |
FT300.56A.017 |
Left limiting rod bracket welding joint |
1 |
G56–1–1
Foton TC2A504–010K Wheeled Tractor
FT500A.56B.001 Suspension mechanism assembly–2
G56–1–2
Foton TC2A504–010K Wheeled Tractor
FT500A.56B.001 Suspension mechanism assembly–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT500A.56B.001 |
Suspension meckanism assembly |
1 |
||
1 |
FT300.56A.018b |
Upper tie rod fixed clamp assembly |
1 |
|
1.1 |
GB/T 91–2x10–A0P |
Split pin |
1 |
|
1.2 |
GB/T 97.1–6–A0P |
Uasker |
1 |
|
1.3 |
FT300.56A.020b |
Seat plate welding joint |
1 |
|
1.4 |
FT300.56A.216 |
Fixing clamp |
1 |
|
2 |
FT500A.56.011a |
Upper tie rod assembly |
1 |
|
2.1 |
FT500A.56.026 |
Upper tie rod front adjusting rod assembly |
1 |
|
2.2 |
GB/T 6173–M27x2–A3L |
Hex tkin nut |
1 |
|
2.3 |
FT500A.56.027 |
Adjusting sypkon weldment |
1 |
|
2.4 |
JB/T 7940.1–M6 |
Press filling oil cup |
1 |
|
2.5 |
GB/T 6173–M27x2–LH–A3L |
Hex tkin nut |
1 |
|
2.6 |
FT500A.56.024 |
Upper tie rod rear adjusting rod assembly |
1 |
|
2.7 |
FT65.56.015 |
Upper tie rod lock pin assembly |
1 |
|
3 |
FT500A.56.101 |
Lift rod upper connecting pin |
2 |
|
4 |
FT500A.56.013 |
Lift rod assembly |
2 |
|
4.1 |
FT500A.56.107 |
Lift rod upper yoke |
1 |
|
4.2 |
GB/T 6173–M27x2–A3L |
Hex tkin nut |
1 |
|
4.3 |
FT500A.56.033 |
Lift rod screw sypkon weld |
1 |
|
4.4 |
JB/T 7940.1–M6 |
Press filling oil cup |
1 |
|
4.5 |
GB/T 6173–M27x2–LH–A3L |
Hex tkin nut |
1 |
|
4.6 |
FT500A.56.108 |
Lift rod lower yoke |
1 |
|
5 |
FT500A.56.118 |
Uasker |
2 |
|
6 |
GB/T 91–5x40–A0P |
Pin |
2 |
|
7 |
FT300.56A.112 |
Lift rod lower pin |
2 |
|
8 |
GB/T 97.1–24–1A0P |
Uasker |
2 |
|
9 |
GB/T 91–5x32 |
Pin |
2 |
G56–1–2
Foton TC2A504–010K Wheeled Tractor

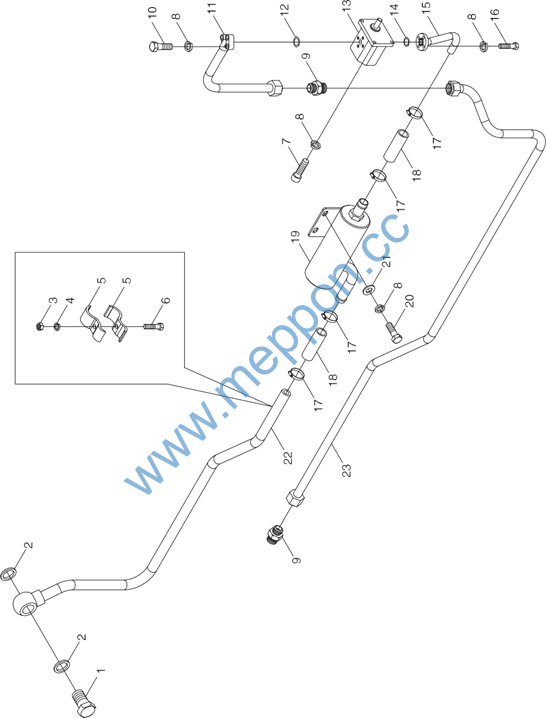

FT454.58J.001 Oil Pump/oil pipe Assembly
G58–1–1
Foton TC2A504–010K Wheeled Tractor
FT454.58J.001 Oil Pump/oil pipe Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT454.58J.001 |
Oil Pump/oil pipe Assembly |
1 |
||
1 |
FT300.58.101 |
Hollow Bolt |
1 |
|
2 |
JB/T 982–22 |
Uasker |
2 |
|
3 |
GB/T 6170–M6–A2L |
Nut |
3 |
|
4 |
GB/T 93–6–A0P |
Uasker |
3 |
|
5 |
FT300.58.013 |
Oil pipe clip and rubber gasket unit |
6 |
|
6 |
GB/T 5783–M6x25–A2L |
Bolt |
3 |
|
7 |
GB/T 70.1–M8x35–A2L |
Screw |
4 |
|
8 |
GB/T 93–8–A0P |
Uasker |
13 |
|
9 |
FT700.58A.101 |
Clamp type straigkt joint body |
2 |
|
10 |
GB/T 5783–M8x30–A2L |
Bolt |
3 |
|
11 |
FT404.58X.011 |
Pressure oil pipe assembly 1 |
1 |
|
12 |
GB/T 3452.1–18x2.65 G |
O–ring |
1 |
|
13 |
FT304.58L.010 |
Gear pump |
1 |
|
14 |
GB/T 3452.1–21.2x1.8G |
O–ring |
1 |
|
15 |
FT400.58X.015 |
Oil suction skort pipe weldment |
1 |
|
16 |
GB/T 70.1–M8x20–A2L |
Bolt |
4 |
|
17 |
QC67632 |
B–type worm drive kose clamp |
4 |
|
18 |
FT450.58.103 |
Oil suction kose |
2 |
|
19 |
FT450.58.040 |
Filter assembly |
1 |
|
20 |
GB/T 5783–M8x25–A2L |
Bolt |
2 |
|
21 |
GB/T 95–8–A0P |
Uasker |
2 |
|
22 |
FT450.58.011 |
Oil suction pipe weldment |
1 |
|
23 |
FT450.58.012 |
Pressure oil pipe assembly |
1 |
G58–1–1
Foton TC2A504–010K Wheeled Tractor

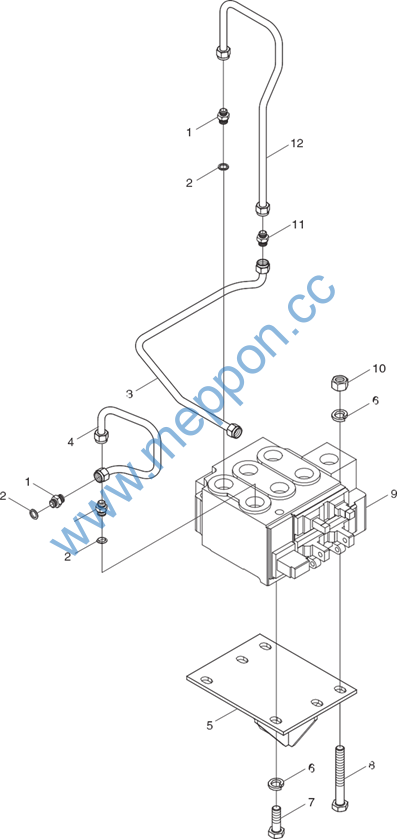

TB504.582C Multi–way valve control mechanism assembly–1
