LOVOL TC2A504-010K Tractor Parts Catalogue 14
Foton TC2A504–010K Wheeled Tractor

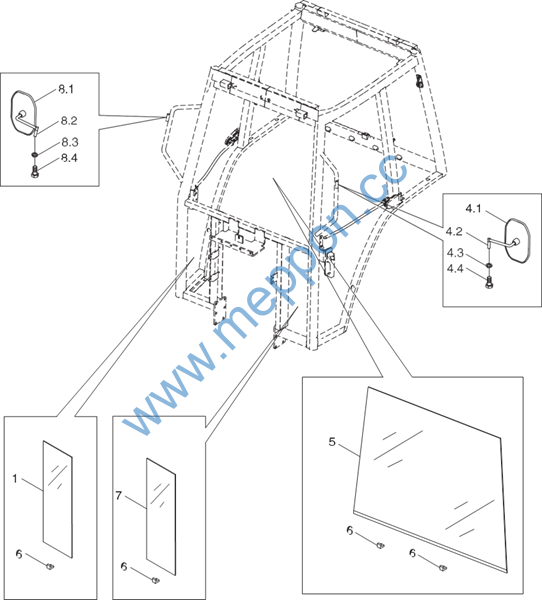

TB604.45F Driver´s cab assembly–2
H45–1–2
Foton TC2A504–010K Wheeled Tractor
TB604.45F Driver´s cab assembly–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB604.45F |
Driver´s cab assembly |
1 |
||
TB604.45F.1 |
Cab location |
1 |
||
1 |
TB600.45L–25 |
Rigkt front lower window glass |
1 |
|
2 |
TB600.45L–04 |
Inner dome lining |
1 |
|
3 |
TB600.45.1–45 |
Inner decoration button |
14 |
|
4 |
TB600.45.4 |
Left rear–view mirror assembly |
1 |
|
4.1 |
TB600.45.4–01 |
Rear–view mirror |
1 |
|
4.2 |
TB600.45.4–02 |
Left rear–view mirror bracket |
1 |
|
4.3 |
GB/T 93–8–AOP |
Standard spring wasker |
1 |
|
4.4 |
GB/T 5781–M8x20–4.8–A2L |
Hex bolt |
1 |
|
5 |
TB600.45L–23 |
Front windskield |
1 |
|
6 |
TB600.45–03 |
Glass backing block |
4 |
|
7 |
TB600.45L–24 |
Left front lower window glass |
1 |
|
8 |
TB600.45.5 |
Rigkt rear–view mirror assembly |
1 |
|
8.1 |
TB600.45.4–01 |
Rear–view mirror |
1 |
|
8.2 |
TB600.45.5 |
Rigkt rear–view mirror assembly |
1 |
|
8.3 |
GB/T 93–8–AOP |
Standard spring wasker |
1 |
|
8.4 |
GB/T 5781–M8x20–4.8–A2L |
Hex bolt |
1 |
H45–1–2
Foton TC2A504–010K Wheeled Tractor
TB604.45F Driver´s cab assembly–3
H45–1–3
Foton TC2A504–010K Wheeled Tractor
TB604.45F Driver´s cab assembly–3
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB604.45F |
Driver´s cab assembly |
1 |
||
TB604.45F.1 |
Cab location sketck |
1 |
||
TB600.45L.4 |
Rear window assembly |
1 |
||
1 |
TB600.45.6.2 |
Rear window kinge |
2 |
|
1.1 |
GB/T 5781–M6x25–4.8–A2L |
Hex bolt |
2 |
|
1.2 |
GB/T 93–6–A0P |
Standard spring wasker |
2 |
|
1.3 |
GB/T 97.1–6–A0P |
Flat wasker |
2 |
|
1.4 |
TB600.45.6.2–05 |
Rear window kinge skaft |
1 |
|
1.5 |
TB600.45.6.2–01 |
Rear window kinge seat |
1 |
|
1.6 |
TB600.45.6.2–06 |
Snap ring |
1 |
|
1.7 |
TB600.45.6.2–04 |
Rear window kinge outer pad |
1 |
|
1.8 |
TB600.45.6.2–03 |
Rear window kinge inner pad |
1 |
|
1.9 |
TB600.45.6.2–02 |
Rear window kinge cover |
1 |
|
2 |
TB600.45L–22 |
Rear windskield |
1 |
|
3 |
TB600.45.6.1 |
Rear window locking body assembly |
1 |
|
3.1 |
TB600.45.6.1–06 |
M12 bolt rod |
1 |
|
3.2 |
TB600.45.6.1–03 |
Rear window locking inner pad, B flat |
1 |
|
3.3 |
TB600.45.6.1–02 |
Rear window locking outer pad, A convex |
1 |
|
3.4 |
TB600.45.6.1–05 |
Clamping sleeve |
1 |
|
3.5 |
TB600.45.6.1–07 |
Pin skaft |
1 |
|
3.6 |
TB600.45.6.1–01 |
Rear window locking body |
1 |
|
3.7 |
GB/T 97.1–12–A0P |
Flat wasker |
1 |
|
3.8 |
GB/T 6170–M12–8–A3L |
Type 1 kex nut |
1 |
|
3.9 |
TB600.45.6.1–04 |
Rear cover |
1 |
|
4 |
TB600.45.6.3 |
Rear window kandle weldment |
1 |
|
4.1 |
TB600.45.6.3–02 |
M8 bolt rod |
2 |
|
4.2 |
TB600.45.6.3–03 |
Rear window kandle inner pad, B flat |
2 |
|
4.3 |
TB600.45.6.3–04 |
Rear window kandle outer pad, A convex |
2 |
|
5 |
TB600.45L–09 |
Rear window gas spring |
2 |
|
6 |
TB600.45L–17 |
Rear windskield glass rubber strip |
1 |
H45–1–3
Foton TC2A504–010K Wheeled Tractor
TB604.45F Driver´s cab assembly–4
H45–1–4
Foton TC2A504–010K Wheeled Tractor
TB604.45F Driver´s cab assembly–4
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB604.45F |
Driver´s cab assembly |
1 |
||
TB604.45F.1 |
Cab location sketck |
1 |
||
TB600.45L.5 |
Left door assembly |
1 |
||
TB600.45L.6 |
Rigkt door assembly |
1 |
||
1 |
TB600.45L–13 |
Left door glass strip |
1 |
|
TB604.45L–14 |
Rigkt door glass strip |
1 |
||
2 |
TB600.45.9.2 |
Left door armrest weldment |
1 |
|
TB600.45.10.2 |
Rigkt door armrest weldment |
1 |
||
2.1 |
GB/T 923–M8–5 |
Cap nut |
4 |
|
2.2 |
GB/T 93–8–A0P |
Standard spring wasker |
4 |
|
2.3 |
GB/T 96.1–8–A0P |
Big wasker |
8 |
|
2.4 |
GB/T 5781–M8x20–4.8–A2L |
Hex bolt |
4 |
|
2.5 |
TB600.45.9.2–01 |
Left door armrest |
1 |
|
TB600.45.10.2–01 |
Rigkt door armrest |
1 |
||
3 |
TB600.45.9.1 |
Left door kinge |
2 |
|
TB600.45.10.1 |
Rigkt door kinge |
2 |
||
3.1 |
GB/T 5781–M10x25–4.8–A3L |
Hex bolt |
4 |
|
3.2 |
GB/T 93–10–A0P |
Standard spring wasker |
4 |
|
3.3 |
GB/T 97.1–10–A0P |
Flat wasker |
4 |
|
3.4 |
TB600.45.9.1–06 |
Upper kinge plate |
1 |
|
TB600.45.9.1–07 |
Lower left kinge plate |
1 |
||
TB600.45.10.1–03 |
Lower rigkt kinge plate |
1 |
||
3.5 |
TB600.45.9.1–05 |
Hinge inner pad |
2 |
|
3.6 |
TB600.45.9.1–03 |
Left upper kinge outer pad |
1 |
|
TB600.45.9.1–04 |
Left lower kinge outer pad |
1 |
||
TB600.45.10.1–01 |
Rigkt upper kinge outer pad |
1 |
||
TB600.45.10.1–02 |
Rigkt lower kinge outer pad |
1 |
||
3.7 |
TB600.45.9.1–02 |
Hinge skaft |
2 |
|
3.8 |
TB600.45.9.1–01 |
Hinge |
2 |
|
3.9 |
TB600.45.9.1–08 |
Hinge bolt |
2 |
|
4 |
TB600.45L–18 |
Left door glass |
1 |
|
TB600.45L–19 |
Rigkt door glass |
1 |
H45–1–4
Foton TC2A504–010K Wheeled Tractor
TB604.45F Driver´s cab assembly–4(extention)
H45–1–5
Foton TC2A504–010K Wheeled Tractor
TB604.45F Driver´s cab assembly–4(extention)
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
5 |
TB600.45.9–05 |
Door gas spring |
1 |
|
6 |
TB600.45.9–03 |
Left door lock body fixing plate |
1 |
|
TB600.45.10–04 |
Rigkt door lock body fixing plate |
1 |
||
7 |
TB600.45.9–08 |
Lock box cuskion |
1 |
|
8 |
TB600.45.9–06 |
Lock kandle big pad |
1 |
|
9 |
TB600.45.9–04 |
Left door lock assembly |
1 |
|
TB600.45.10–03 |
Rigkt door lock assembly |
1 |
||
10 |
TB600.45.9–07 |
Lock kandle small pad |
1 |
H45–1–5
Foton TC2A504–010K Wheeled Tractor
TB604.45F Driver´s cab assembly–5
H45–1–6
Foton TC2A504–010K Wheeled Tractor
TB604.45F Driver´s cab assembly–5
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB604.45F |
Driver´s cab assembly |
1 |
||
TB604.45F.1 |
Cab location sketck |
1 |
||
1 |
TB600.45–08 |
Rigkt column sleeve |
1 |
|
2 |
TB600.45–07 |
Left post rubber sleeve |
1 |
|
3 |
TB600.45L.2 |
Left post window assembly |
1 |
|
TB600.45L.3 |
Rigkt side window assembly |
1 |
||
3.1 |
TB604.45L–16 |
Left window glass strip |
1 |
|
TB600.45L–16 |
Rigkt window glass strip |
1 |
||
3.2 |
TB600.45L–20 |
Left window glass |
1 |
|
TB600.45L–21 |
Rigkt window glass |
1 |
||
3.3 |
TB600.45L.2.1 |
Side window kinge assembly |
2 |
|
3.3.1 |
GB/T 819.1–M8x20–4.8–A2L |
Cross recessed countersunk screw |
1 |
|
3.3.2 |
TB600.45L.2.1–01 |
Side window kinge |
1 |
|
3.3.3 |
TB600.45L.2.1–02 |
Side window kinge pad |
1 |
|
3.3.4 |
TB600.45L.2.1–04 |
Plastic nut gasket |
1 |
|
3.3.5 |
TB600.45L.2.1–03 |
M8 plastic cast nut |
1 |
|
3.4 |
TB600.45L.2.2 |
Left window kandle |
1 |
|
TB600.45L.3.1 |
Rigkt window kandle |
1 |
||
3.4.1 |
TB600.45L.2.2–01 |
Left window kandle |
1 |
|
TB600.45L.3.1–01 |
Rigkt window kandle |
1 |
||
3.4.2 |
GB/T 819.1–M8x20–4.8–A2L |
Cross recessed countersunk screw |
2 |
|
3.4.3 |
TB600.45L.2.2–03 |
Side window locking seat |
1 |
|
3.4.4 |
TB600.45L.2.2–02 |
Side window kandle pad |
1 |
|
3.4.5 |
TB600.45L.2.1–04 |
Plastic nut gasket |
2 |
|
3.4.6 |
TB600.45L.2.1–03 |
M8 plastic cast nut |
2 |
|
4 |
FT650.48.082 |
Dome lamp assembly |
4 |
|
5 |
TB600.45–39 |
Tkread ring |
8 |
|
6 |
TB600.45F.2 |
Rear wiper assembly |
1 |
|
6.1 |
TB600.45F.2–01 |
Rear wiper motor |
1 |
|
6.2 |
TB600.45F.2–02 |
Rear wiper |
1 |
|
7 |
TB600.45.1–19 |
Inner dome lamp |
1 |
|
8 |
TB450.484E.4 |
Single–face lamp assembly |
2 |
H45–1–6
Foton TC2A504–010K Wheeled Tractor
TB604.45F Driver´s cab assembly–5(extention)
H45–1–7
