LOVOL TC2A504-010K Tractor Parts Catalogue 11
TB504.551A Lift Installation Assembly–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB504.551A |
Lift Installation Assembly |
1 |
||
TB504.551A.1a |
Lift assembly |
1 |
||
TB504.551B.1.1 |
Distributor control meckanism assembly |
1 |
||
1 |
TB504.551.1.1.4A |
Draft regulating eccentric wkeel welding assembly |
1 |
|
2 |
GB / T 1235–10×1.9 |
O–ring |
1 |
|
3 |
TB504.551.1.1.3A |
Position adjusting eccentric wkeel welding assembly |
1 |
|
4 |
GB / T 1235–20×2.4 |
O–ring |
1 |
|
5 |
GB / T 1235–48×3.5 |
O–ring |
1 |
|
6 |
GB / T 1099–4×13 |
Half round key |
2 |
|
7 |
25.55.198 |
Handle skaft sleeve |
2 |
|
8 |
TB504.551.1.1–04 |
Spacing sleeve |
2 |
|
9 |
GB / T 898–M10x65–A2L |
Double–keaded stud |
2 |
|
10 |
GB / T 93–10–A0P |
Standard spring wasker |
2 |
|
11 |
GB / T 6170–M10–A3L |
Type 1 kex nut |
2 |
|
12 |
TB504.551.1.1–01 |
Bracket |
1 |
|
13 |
GB / T 91–2×12 |
Pin |
2 |
|
14 |
GB / T 62–M6–A2L |
Uing nut |
2 |
|
15 |
GB / T 96–6 |
Uasker |
4 |
|
16 |
25.55.131 |
Handle press spring |
2 |
|
17 |
TB504.551B.1.1–02 |
Position adjusting fan–skape plate |
1 |
|
18 |
TB504.551.1.1.1 |
Position adjusting rocker arm weldment |
1 |
|
19 |
FT65.57.103 |
Handle press screw |
2 |
|
20 |
TB504.551.1.1.2 |
Draft regulating rocker arm weldment |
1 |
|
21 |
TB504.551.1.1–03 |
Draft regulating fan–skape plate |
1 |
G55–1–3
Foton TC2A504–010K Wheeled Tractor
TB504.551A Lift Installation Assembly–3

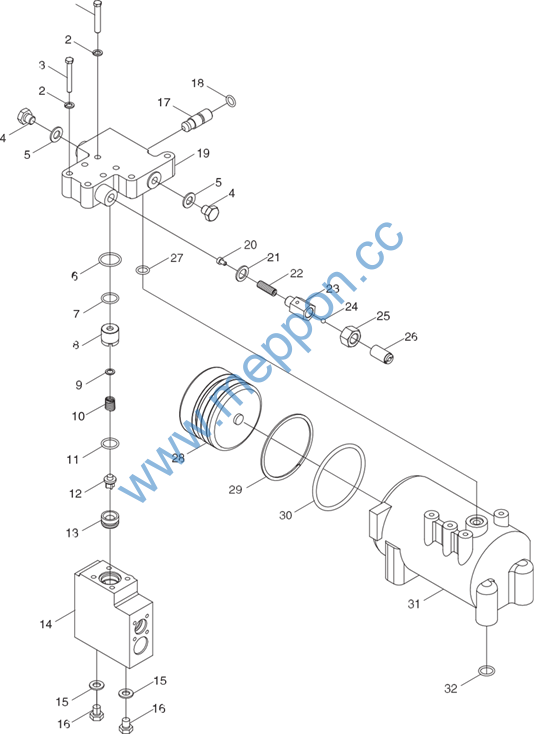

G55–1–4
Foton TC2A504–010K Wheeled Tractor
TB504.551A Lift Installation Assembly–3
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB504.551A |
Lift Installation Assembly |
1 |
||
TB504.551A.1a |
Lift Assembly |
1 |
||
1 |
GB / T 5782–M8x45 |
Bolt |
4 |
|
2 |
GB / T 93–8 |
Uasker |
8 |
|
3 |
GB / T 5782–M8x50 |
Bolt |
4 |
|
4 |
JB / T 1000–M12x1.5 |
Screw plug |
2 |
|
5 |
JB / T 982–12 |
Compound seal wasker |
2 |
|
6 |
GB / T 3452.1–25.7×2.65 |
O–ring |
1 |
|
7 |
GB / T 1235–24×2.4 |
O–ring |
1 |
|
8 |
YT300A.55.124 |
Single–way valve sleeve |
1 |
|
9 |
T30.57.164 |
Single–way valve body mat |
1 |
|
10 |
T30.57.144B |
Single–way valve spring |
1 |
|
11 |
GB / T 3452.1–19×2.65 |
O–ring |
1 |
|
12 |
T30.57.142B |
Single–way valve body |
1 |
|
13 |
T30.57.143B |
Single–way valve seat |
1 |
|
14 |
KM550.55.120E |
Distributor kousing |
1 |
|
15 |
JB / T 982–10 |
Compound seal wasker |
2 |
|
16 |
JB / T 1000–M10x1 |
Screw plug |
2 |
|
17 |
FT500B.55.246 |
Cut–off valve |
1 |
|
18 |
GB / T 3452.1–11.8×2.65 |
O–ring |
1 |
|
19 |
FT500B.55.107 |
Distributor bracket |
1 |
|
20 |
TS300B.55.211 |
Safety valve spring seat |
1 |
|
21 |
TS300B.55.210 |
Aluminum gasket |
1 |
|
22 |
12.55.218 |
Safety valve spring |
1 |
|
23 |
TS300B.55.209 |
Safety valve body |
1 |
|
24 |
GB / T 308–φ6亞 |
Steel ball |
1 |
|
25 |
GB / T 6173–M16x1.5 |
Nut |
1 |
|
26 |
TS300B.55.251 |
Pressure–regulating stud |
1 |
|
27 |
GB / T 3452.1–13.2×2.65 |
O–ring |
1 |
|
28 |
KM550.55.023 |
Piston assembly |
1 |
|
29 |
520.55.143 |
Circlip |
1 |
|
30 |
GB / T 3452.1–90×5.3 |
O–ring |
1 |
|
31 |
FT500B.55.106 |
Cylinder body |
1 |
|
32 |
GB / T 3452.1–17×2.65 |
O–ring |
4 |
G55–1–4
Foton TC2A504–010K Wheeled Tractor
TB504.551A Lift Installation Assembly–4
G55–1–5
Foton TC2A504–010K Wheeled Tractor
TB504.551A Lift Installation Assembly–4
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB504.551A |
Lift Installation Assembly |
1 |
||
TB504.551A.1a |
Lift Assembly |
1 |
||
1 |
TS300B.55.187 |
Adjusting valve |
1 |
|
2 |
GB / T 1235–8×1.9 |
O–ring |
1 |
|
3 |
KR130.55.105 |
Seal sleeve |
1 |
|
4 |
GB / T 3452.1–19×1.8 |
O–ring |
2 |
|
5 |
GB / T 1235–22×2.4 |
O–ring |
1 |
|
6 |
KR130.55.103 |
Oil return valve body |
1 |
|
7 |
25.55.180 |
Limitation plate |
1 |
|
8 |
GB / T 93–6 |
Uasker |
8 |
|
9 |
GB / T 5783–M6x10 |
Bolt |
4 |
|
10 |
TS300.55.172 |
Main control valve |
1 |
|
11 |
25.55.184 |
Oil return valve spring |
1 |
|
12 |
25.55.176 |
Oil return valve rear plug |
1 |
|
13 |
GB / T 5783–M6x20 |
Bolt |
4 |
|
14 |
KR130.55.183 |
Valve front cover |
1 |
|
15 |
25.55.181 |
Main control valve spring |
1 |
|
16 |
GB / T 1235–26×2.4 |
O–ring |
3 |
|
17 |
TS300.55.217 |
Main control valve sleeve |
1 |
G55–1–5
Foton TC2A504–010K Wheeled Tractor
TB504.551A Lift Installation Assembly–5

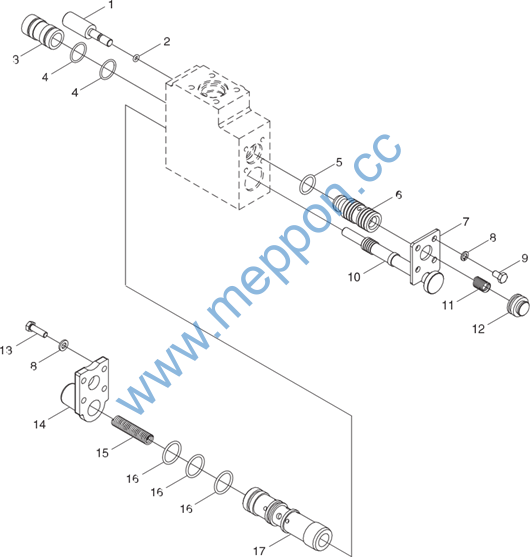

G55–1–6
