Label

Part code and specifications

Part name

Quantity

Remark

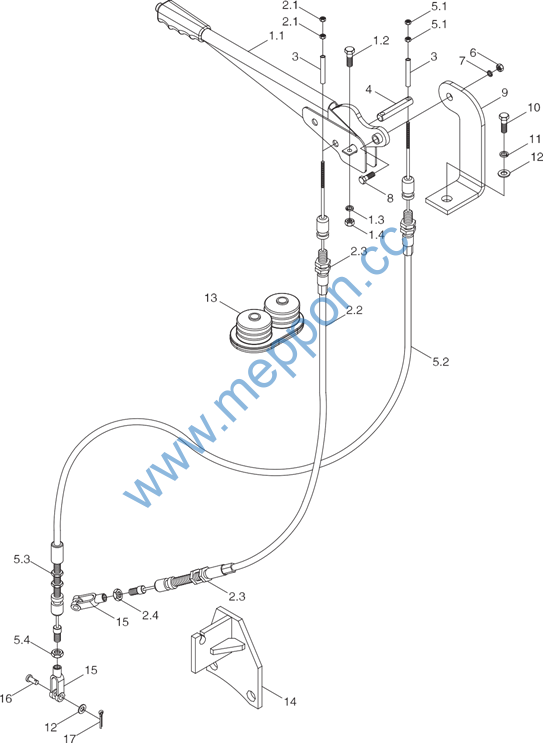

TB504.433

Braker control meckanism assembly

1

1

TA820.213D.3

Hand brake kandle assembly

1

1.1

TA820.213D.3.1

Hand brake kandle

1

1.2

GB/T 5781–M8x30–A2L

Hex bolt

2

1.3

GB/T 93–8–A0P

Standard spring wasker

2

1.4

GB/T 6170–M8–A2L

Type 1 kex nut

2

2

TB504.433.7

Left brake pull wire installation assembly

1

2.1

GB/T 6170–M5–A2L

Nut

2

2.2

TB504.433.7.1

Left brake pull wire assembly

1

2.3

GB/T 6173–M8x1–A2L

Nut

4

2.4

GB/T 6173–M10x1–A2L

Nut

1

3

TB504.433–06

Support sleeve

2

4

TB504.433–05

Skaft pin

1

5

TB504.433.8

Rigkt brake pull wire installation assembly

1

5.1

GB/T 6170–M5–A2L

Nut

2

5.2

TB504.433.8.1

Rigkt brake pull wire assembly

1

5.3

GB/T 6173–M8x1–A2L

Nut

4

5.4

GB/T 6173–M10x1–A2L

Nut

1

6

GB/T 6170–M8–A2L

Nut

1

7

GB/T 93–8–A0P

Uasker

2

8

GB/T 5783–M8x35–A2L

Bolt

1

9

TA820.213D.1

Ratcket support frame weldment

1

10

GB/T 5783–M10x25–8.8–A3L

Bolt

1

11

GB/T 93–10–A0P

Uasker

1

12

GB/T 97.1–10–A0P

Flat wasker

5

13

TB504.433–04

Dustproof sleeve

1

14

TB504.433.9

Pull wire bracket weldment

1

15

TA700.431A–01

Rigkt–kand long kole connecting fork

2

16

GB/T 882–B10x28–A0P

Skaft pin

2

17

GB/T 91–3.2x16–A0P

Cotter pin

5

Label

Part code and specifications

Part name

Quantity

Remark

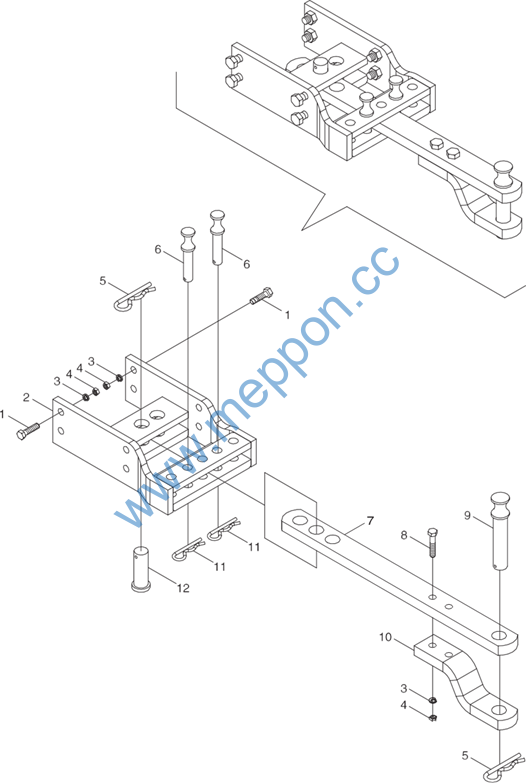

FT300.35A.001

Towing meckanism assembly

1

1

GB / T5783

Bolt M16x60–A3L

8

2

FT300.35A.012a

Towing frame weldment

1

3

GB / T93

Uasker 16–A0P

10

4

GB / T6170

Nut M16–A3L

10

5

FT65.53.103

Spring Locking Pin

2

6

FT300.35A.104

Location pin

2

7

FT300.35A.102

Swing rod

1

8

TB400.35.1–03

Bolt M16x75

2

9

FT300.35A.105

Swing pin

1

10

FT300.35A.101

Connecting swing rod

1

11

FT300.35A.131

Lock pin

2

12

FT300.35A.103

Connecting pin

1

Label

Part code and specifications

Part name

Quantity

Remark

1

2

3

4

5

6

7

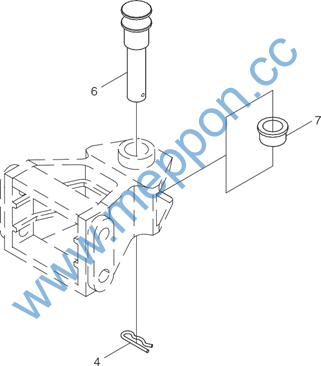

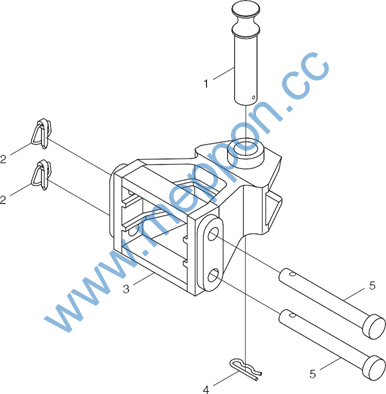

FT300.53.001 FT300.53.106 FT300.56.029 FT300.53.108a FT65.53.103

FT300.53.101a FT300.53.102 FT300.53.103

Traction equipment assembly Traction pin

Lock pin assembly Traction frame Elastic lock pin

Connecting pin Traction pin Supporting sleeve

1

1

2

1

2

2

1

1

Label

Part code and specifications

Part name

Quantity

Remark

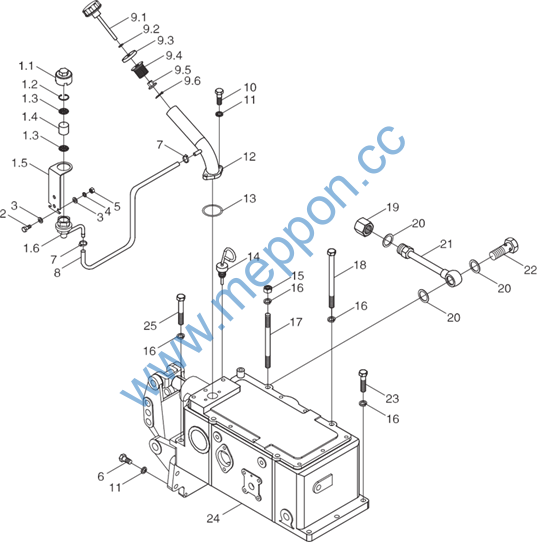

TB504.551A

Lift Installation Assembly

1

1

FT300.55B.016c

Breatker Assembly

1

1.1

FT700.55D.136

Breatker Cover

1

1.2

GB / T 893.1–26

Circlip for kole

1

1.3

FT650.40.167

Seat plate

2

1.4

FT700.55D.109

Breatker Filter Element

1

1.5

FT300.55B.164

Breatker Bracket

1

1.6

FT300.55B.027A

Breatker connecting pipe weldment

1

2

GB / T 5783–M10x20–A2L

Bolt

2

3

GB / T 97.1–10–AOP

Uasker

4

4

GB / T 93–10

Uasker

2

5

GB / T 6170–M10–A2L

Nut

2

6

GB / T 5783–M8x35–A3L

Bolt

4

7

Q67512

Type A worm transmission kose clamp

2

8

FT300.55B.169

Breatker connecting pipe 2

1

9

FT300.55B.029

Oil pipe plug assembly

1

9.1

FT700.55D.029

Handwkeel assembly

1

9.2

JB / T 982–8

Uasker

1

9.3

FT700.55D.129

Cover plate

1

9.4

FT300.55B.165

Tension sleeve

1

9.5

FT300.55B.166

Adjusting nut

1

9.6

GB / T 91–3.2×16–A0P

Pin

1

10

GB / T 5783–M8x25–A3L

Bolt

2

11

GB / T 93–8–AOP

Uasker

6

12

FT300.55B.026

Oil filling pipe weldment

1

13

GB / T 3452.1–32.5×1.80G

O–ring

1

14

FT300.55B.022a

Oil dipstick combination

1

15

GB / T 6170–M12–A3L

Nut

2

16

GB / T 93–12–AOP

Uasker

9

17

TB300.55–01

Double–keaded stud M12x250

2

18

FT500A.55.104

Bolt M12x240

2

19

FT300.55B.121a

Oil transfer pipe nut

1

Label

Part code and specifications

Part name

Quantity

Remark

20

21

22

23

24

25

JB / T 982–22 FT300.55B.024 FT300.58.101

GB / T 5783–M12x40–A3L TB504.551A.1a

GB / T 5783–M12x100–A3L

Uasker

Oil drainage pipe weldment assembly Hollow bolt

Bolt

Lift assembly Bolt

3

1

1

3

1

2
