LOVOL TC2A454-027K Tractor Parts Catalogue 13
TC04582020000 Multi-way Valve Control Mechanism assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC04582020000 |
Multi-way valve control mechanism assembly |
1 |
||
1 |
TC04582010005 |
Multi-way valve oil inlet pipe assembly-1 |
1 |
|
2 |
TC04582010025 |
Straight thread connector M22-20 assembly |
2 |
|
3 |
JB/T 982-22 |
Compound seal washer |
1 |
|
4 |
TC04582010026 |
Adjustable joint M22-20 assembly |
1 |
|
5 |
TC04582010018 |
Multi-way valve oil outlet pipe assembly-1 |
1 |
|
6 |
GB/T 3452.1-18.0×2.65G |
O-ring sealant used for hydraulic or pneumatic parts |
1 |
|
7 |
TC04582010003 |
Multi-way valve oil inlet pipe assembly-2 |
1 |
|
8 |
FT354.58A.018b |
Multi-way valve oil outlet pipe assembly-2 |
1 |
|
9 |
GB/T 5783-M8×30-8.8-A2L |
Hexagon head bolt |
2 |
|
10 |
GB/T 93-8-A0P |
Standard spring washer |
2 |
|
11 |
FT654.58B.102 |
Straight thread connector 1, body |
1 |
|
12 |
TC04582010001 |
Multi-way valve oil return pipe assembly |
1 |
|
13 |
GB/T 95-10-A0P |
Plain washer |
4 |
|
14 |
GB/T 93-10-A0P |
Standard spring washer |
4 |
|
15 |
GB/T 5782-M10×70-8.8-A2L |
Hexagon head bolt |
3 |
|
16 |
GB/T 5783-M10×20-8.8-A3L |
Hexagon head bolt |
1 |
|
17 |
FT354.58D.015c |
Multi-way valve bracket weldment |
1 |
|
18 |
GB/T 6170-M10-8-A3L |
Hexagon nut, style 1 |
3 |
115

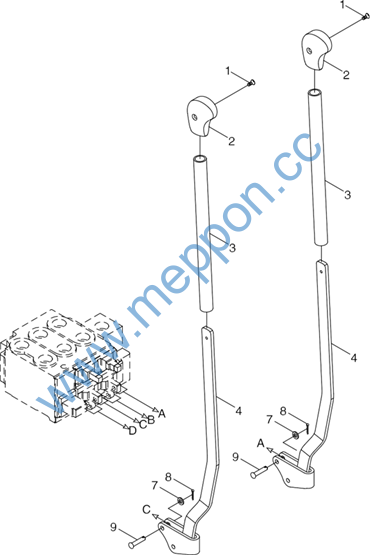

Foton TC2A454-027K Wheeled Tractor
TC04582020000 Multi-way Valve Control Mechanism assembly-3
116
Foton TC2A454-027K Wheeled Tractor
TC04582020000 Multi-way Valve Control Mechanism assembly-3
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC04582020000 |
Multi-way valve control mechanism assembly |
1 |
||
1 |
GB/T 68-M4×10-4.8-A2L |
Slotted countersunk head screw |
2 |
|
2 |
TB604.582G-01 |
Handle head |
2 |
|
3 |
FT354.58D.105 |
Soft PVC pipe |
2 |
|
4 |
FT354.58C.014 |
Control lever weldment |
2 |
|
5 |
GB/T 882-B6×28 |
Pin shaft |
4 |
|
6 |
FT654.58.103 |
Connecting plate |
4 |
|
7 |
GB/T 97.1-6-A0P |
Plain washer |
6 |
|
8 |
GB/T 91-2×12-A0P |
Split pin |
6 |
|
9 |
GB/T 882-B6×22 |
Pin shaft |
2 |
117
Foton TC2A454-027K Wheeled Tractor

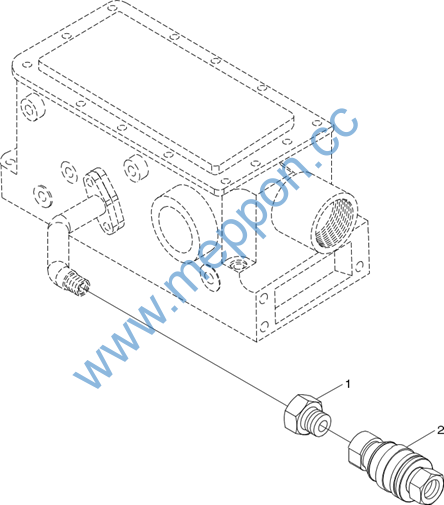

TB300.583A Single-way Hydraulic Outlet Assembly 2
118
Foton TC2A454-027K Wheeled Tractor
TB300.583A Single-way Hydraulic Outlet Assembly 2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB300.583A |
Single-way hydraulic outlet assembly 2 |
1 |
||
1 |
FT354.58A.104 |
Oil pipe joint (British system) |
1 |
|
2 |
FT354.58A.030 |
Quick-adapt joint |
1 |

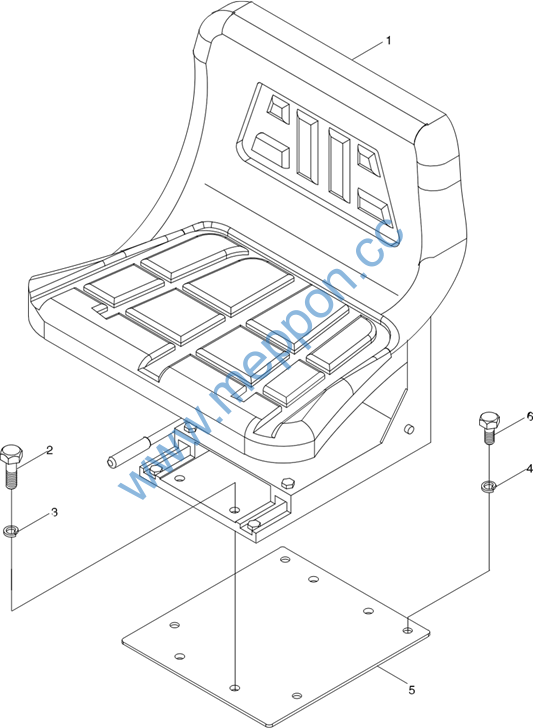

119
Foton TC2A454-027K Wheeled Tractor
FT300.44B.001 Seat Installation Assembly
120
Foton TC2A454-027K Wheeled Tractor
FT300.44B.001 Seat Installation Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT300.44B.001 |
Seat installation assembly |
1 |
||
1 |
FT300.44B.010 |
Seat assembly |
1 |
|
2 |
GB/T 5783-M10×25-A3L |
Bolt |
4 |
|
3 |
GB/T 93-10-A0P |
Washer |
4 |
|
4 |
GB/T 93-8-A0P |
Washer |
4 |
|
5 |
FT300.44B.011 |
Seat cover plate weldment |
1 |
|
6 |
GB/T 5783-M8×20-A2L |
Bolt |
4 |

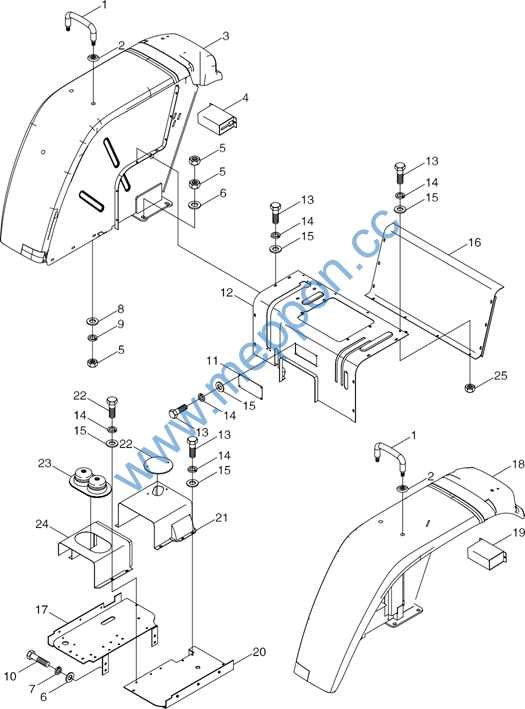

121
Foton TC2A454-027K Wheeled Tractor
TC02452210000K Floor Assembly
122
Foton TC2A454-027K Wheeled Tractor
TC02452210000K Floor Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02452210000K |
Floor assembly |
1 |
||
1 |
FT250.47.163 |
Handrail |
2 |
|
2 |
TE250.45E.5 |
Handrail washer unit |
4 |
|
3 |
TB500.452G.1 |
Right fender weldment |
1 |
|
4 |
TB450.45A.2 |
Right rear lamp baffle weldment |
1 |
|
5 |
GBT6170-M12-8-A3L |
Type 1 hex nut |
4 |
|
6 |
GBT97.1-10-A0P |
Flat washer |
8 |
|
7 |
GBT93-10-A0P |
Standard spring washer |
8 |
|
8 |
GBT96.1-12-A0P |
Big washer |
4 |
|
9 |
GBT93-12-A0P |
Standard spring washer |
4 |
|
10 |
GBT5783-M10X25-8.8-A3L |
Hex bolt |
8 |
|
11 |
TB550.452H-24 |
Rear floor cover |
1 |
|
12 |
FT300.47C.054b |
Seat plate weldment |
1 |
|
13 |
GBT5783-M6X16-8.8-A2L |
Hex bolt |
40 |
|
14 |
GBT93-6-A0P |
Standard spring washer |
40 |
|
15 |
GBT97.1-6-A0P |
Flat washer |
40 |
|
16 |
FT300.47.055 |
Rear baffle weldment |
1 |
|
17 |
TB450.452A.2 |
Right floor welding assembly |
1 |
|
18 |
FT404.47.033 |
Left fender welding assembly |
1 |
|
19 |
TB450.45A.1 |
Left rear lamp baffle weldment |
1 |
|
20 |
TB450.452A.1 |
Left floor welding assembly |
1 |
|
21 |
FT400.45.039 |
U-shape front plate weldment |
1 |
|
22 |
TB550.452H-25 |
U-shape plate cover |
1 |
|
23 |
FT300.47.361 |
Control lever dustproof cover |
1 |
|
24 |
FT300.47.310 |
U-shape rear plate |
1 |
|
25 |
GBT6170-M6-8-A2L |
Type 1 hex nut |
3 |

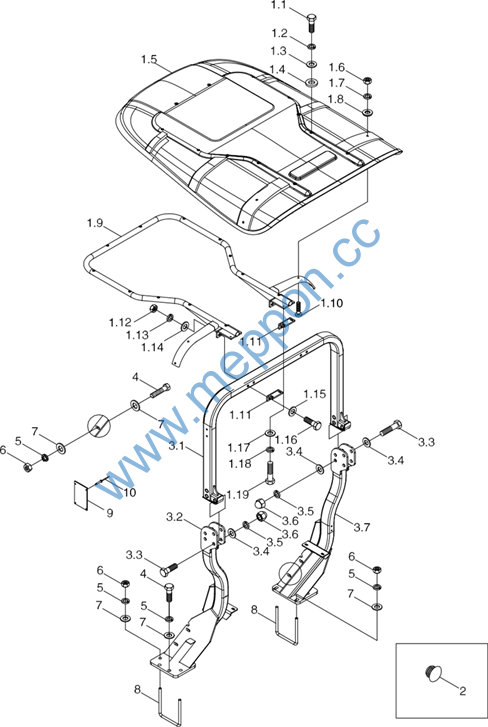

123
Foton TC2A454-027K Wheeled Tractor
FT400.46.001 Safety Frame Assembly
124
