LOVOL TC2A454-027K Tractor Parts Catalogue 12

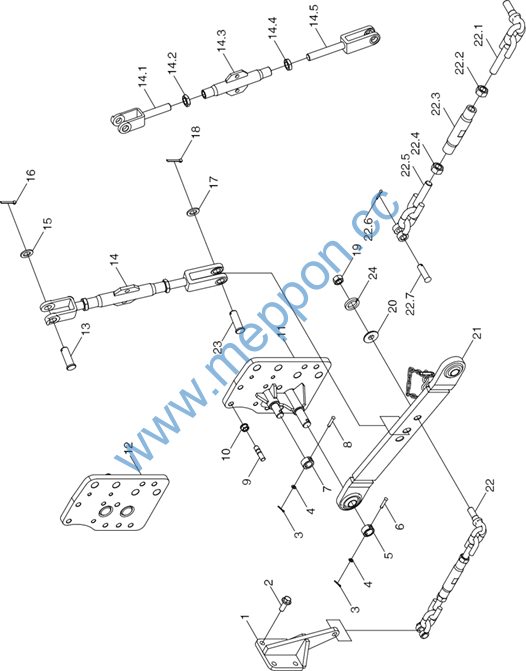

TC02561080000K Hitch Mechanism Assembly-1(001)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02561080000K |
Hitch mechanism assembly |
1 |
||
1 |
TB500.56E.3 |
Limitation chain bracket weldment |
2 |
|
2 |
GBT16674.1-M16X40-10.9-A3L |
Hexagon flange bolt |
8 |
|
3 |
GBT91-3.2X20-A0P |
Split pin |
4 |
|
4 |
GBT97.1-8-A0P |
Plain washer |
4 |
|
5 |
TB704.56A-02 |
Shaft bush 2 |
2 |
|
6 |
GBT882-B8X40-A0P |
Pin shaft |
2 |
|
7 |
TB704.56A-01 |
Shaft bush 1 |
2 |
|
8 |
GBT882-B8X50-A0P |
Pin shaft |
2 |
|
9 |
GBT898-AM16-M16X1.5X45-10.9-A3L |
Stud |
8 |
|
10 |
SPL-CO-M16X1.5-10-F3 |
Hexagon flange nut |
8 |
|
11 |
TB704.56A.9 |
Lower pull rod brackte weldment 2 |
1 |
|
12 |
TB704.56A.7 |
Lower pull rod brackte weldment 1 |
1 |
|
13 |
FT500A.56.101 |
Upper connecting pin of lifting lever |
2 |
|
14 |
TB500.56E.4 |
Lifting lever assembly |
2 |
|
14.1 |
FT500A.56.107 |
Upper connecting fork of lifting lever |
1 |
|
14.2 |
GBT6173-M27X2-05-A3L |
Hexagon thin nut |
1 |
|
14.3 |
FT500A.56.033 |
Lifting lever screw pipe weldment |
1 |
|
14.4 |
GBT6173-M27X2-LH-05-A3L |
Hexagon thin nut |
1 |
|
14.5 |
TB704.56A.4-01 |
Lower connecting fork |
1 |
|
15 |
FT500A.56.118 |
Washer |
2 |
|
16 |
GBT91-5X40-A0P |
Split pin |
2 |
|
17 |
FT65.56.152 |
Washer |
2 |
|
18 |
GBT91-6.3X45-A0P |
Split pin |
2 |
|
19 |
GBT6170-M20-8-A3L |
Hexagon nut, style 1 |
2 |
|
20 |
FT300.56A.111a |
Rount plate |
2 |
|
21 |
TB500.56E.2 |
Lower pull rod weldment |
2 |
|
22 |
TB500.56E.1 |
Limitation chain assembly |
2 |
|
22.1 |
TB400.56B.1.1 |
Rear limitation chain welding assembly |
1 |
|
22.2 |
GBT6170-M20-8-A3L |
Hexagon nut, style 1 |
1 |
|
22.3 |
TB400.56B.1.2 |
Front limitation chain welding assembly |
1 |
|
22.3 |
TD800.56G.1-01 |
Adjusting screw pipe |
1 |
105
Foton TC2A454-027K Wheeled Tractor
TC02561080000K Hitch Mechanism Assembly-1(001) (extension)
106
Foton TC2A454-027K Wheeled Tractor
TC02561080000K Hitch Mechanism Assembly-1(001) (extension)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
22.5 |
GBT6170-M20-LH-8-A9L |
Hexagon nut, style 1 |
1 |
|
22.6 |
GBT91-4X22-A0P |
Split pin |
1 |
|
22.7 |
GBT882-B16X55 |
Pin shaft |
1 |
|
23 |
FT65.56.151 |
Lower connecting pin of lifting lever |
2 |
|
24 |
GBT93-20-A0P |
Standard spring washer |
2 |
107
Foton TC2A454-027K Wheeled Tractor

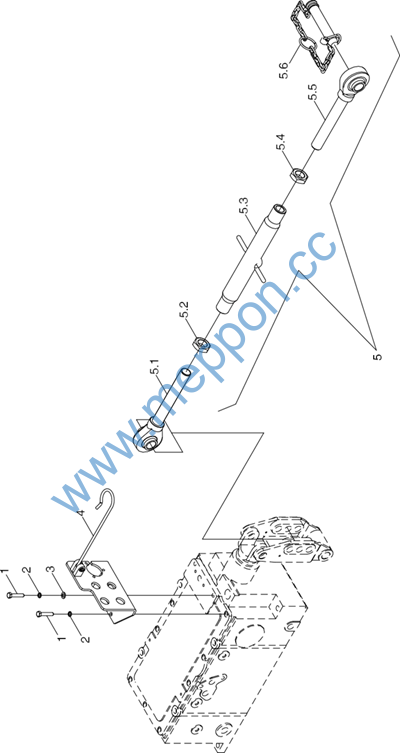

TC02561080000K Hitch Mechanism Assembly-2(001)
108
Foton TC2A454-027K Wheeled Tractor
TC02561080000K Hitch Mechanism Assembly-2(001)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02561080000K |
Hitch mechanism assembly |
1 |
||
1 |
GBT5783-M8X40-8.8-A2L |
Hexagon head bolt |
2 |
|
2 |
GBT93-8-A0P |
Standard spring washer |
2 |
|
3 |
GBT97.1-8-A0P |
Plain washer |
1 |
|
4 |
FT300.56A.018b |
Upper pull rod fixing clip subassembly |
1 |
|
5 |
FT500A.56.011a |
Upper pull rod assembly |
1 |
|
5.1 |
FT500A.56.026 |
Front adjusting lever assembly of upper pull rod |
1 |
|
5.2 |
GBT6173-M27X2-05-A3L |
Hexagon thin nut |
1 |
|
5.3 |
FT500A.56.027 |
Adjusting screw pipe weldment |
1 |
|
5.4 |
GBT6173-M27X2-LH-05-A3L |
Hexgon thin nut |
1 |
|
5.5 |
FT500A.56.024 |
Rear adjusting lever assembly of upper pull rod |
1 |
|
5.6 |
FT65.56.015 |
Upper pull rod lock pin assembly |
1 |
109
Foton TC2A454-027K Wheeled Tractor

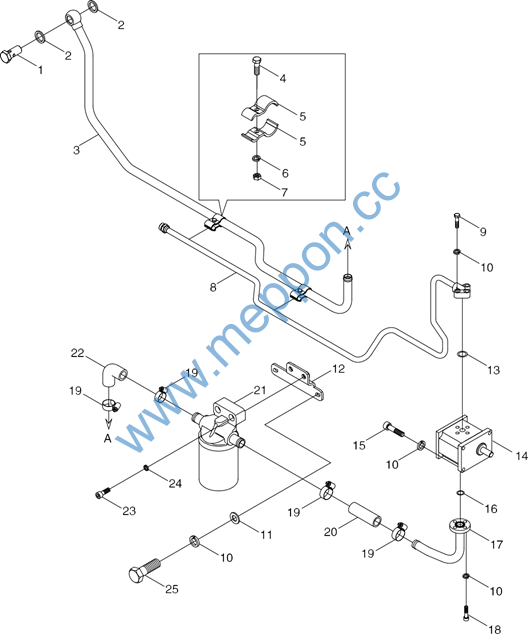

TC02581140000K Oil Pump/Pine/Filter Assembly
110
Foton TC2A454-027K Wheeled Tractor
TC02581140000K Oil Pump/Pine/Filter Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02581140000K |
Oil pump/pine/filter assembly |
|||
1 |
FT300.58.101 |
Hollow Bolt |
1 |
|
2 |
JBT982-22 |
Combined sealing washer |
2 |
|
3 |
TB454.581A.1 |
Oil suction pipe weldment |
1 |
|
4 |
GBT5783-M6X30-8.8-A2L |
Hexagon bolt |
2 |
|
5 |
FT300.58.013 |
Oil pipe clip and rubber gasket combination |
4 |
|
6 |
GBT93-6-A0P |
Standard spring washer |
2 |
|
7 |
GBT6170-M6-8-A2L |
Hex nut, type 1 |
2 |
|
8 |
TC02581140002K |
Oil outlet pipe weldment of hydraulic pump |
1 |
|
9 |
GBT5783-M8X35-8.8-A2L |
Hexagon bolt |
3 |
|
10 |
GBT93-8-A0P |
Standard spring washer |
13 |
|
11 |
GBT95-8-A0P |
Flat washer |
2 |
|
12 |
TB504.581D.5 |
Oil filter bracket |
1 |
|
13 |
GBT3452.1-18.0X2.65G |
Hydraulic pneumatic O shape rubber sealing ring |
1 |
|
14 |
TC02581140001K |
Gear pump |
1 |
|
15 |
GBT70.1-M8X30-8.8-A2L |
Inner hexagon cylinder head screw |
4 |
|
16 |
GBT3452.1-21.2X1.80G |
Hydraulic pneumatic O shape rubber sealing ring |
1 |
|
17 |
TB504.581D.1 |
Oil suction pipe weldment |
1 |
|
18 |
GBT70.1-M8X25-8.8 |
Inner hexagon cylinder head screw |
4 |
|
19 |
Q67632 |
B-type worm drive hose clamp |
4 |
|
20 |
FT300.58A.104 |
Oil suction hose |
1 |
|
21 |
TB504.581D.4 |
Hanging oil filter |
1 |
|
22 |
TB504.581D-01 |
Oil suction hose |
1 |
|
23 |
GBT70.1-M10X40-8.8 |
Inner hexagon cylinder head screw |
2 |
|
24 |
GBT93-10-A0P |
Standard spring washer |
2 |
|
25 |
GBT5783-M8X20-8.8-A2L |
Hexagon bolt |
2 |
111
Foton TC2A454-027K Wheeled Tractor

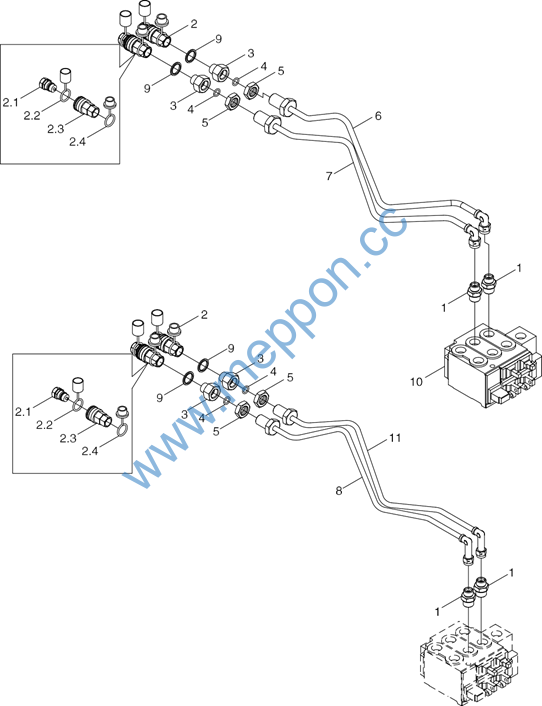

TC04582020000 Multi-way Valve Control Mechanism Assembly-1
112
Foton TC2A454-027K Wheeled Tractor
TC04582020000 Multi-way Valve Control Mechanism Assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC04582020000 |
Multi-way valve control mechanism assembly |
1 |
||
1 |
TC04582010024 |
Straight thread connector M22-16 assembly |
4 |
|
2 |
FT354.58A.030 |
Quick-adapt connector |
4 |
|
2.1 |
FT354.58A.032 |
Male connector |
1 |
|
2.2 |
FT354.58A.302 |
Male connector dustproof cover |
1 |
|
2.3 |
FT354.58A.031 |
Female connector |
1 |
|
2.4 |
FT354.58A.103 |
Dustproof cover |
1 |
|
3 |
FT354.58A.104 |
Oil pipe connector |
4 |
|
4 |
GB/T 3452.1-12.5×2.65G |
O-ring sealant used for hydraulic or pneumatic parts |
4 |
|
5 |
GB/T 6173-M22×1.5-05-A3L |
Hexagon thin nut |
4 |
|
6 |
TC04582010007 |
Multi-way valve outlet oil pipe assembly-3 |
1 |
|
7 |
TC04582010011 |
Multi-way valve outlet oil pipe assembly-1 |
1 |
|
8 |
TC04582010013 |
Multi-way valve outlet oil pipe assembly-2 |
1 |
|
9 |
JB/T 982-22 |
Compound seal washer |
4 |
|
10 |
TC04582010023 |
Multi-way valve assembly DF 50F1 |
1 |
|
11 |
TC04582010009 |
Multi-way valve outlet oil pipe assembly-4 |
1 |
113
Foton TC2A454-027K Wheeled Tractor

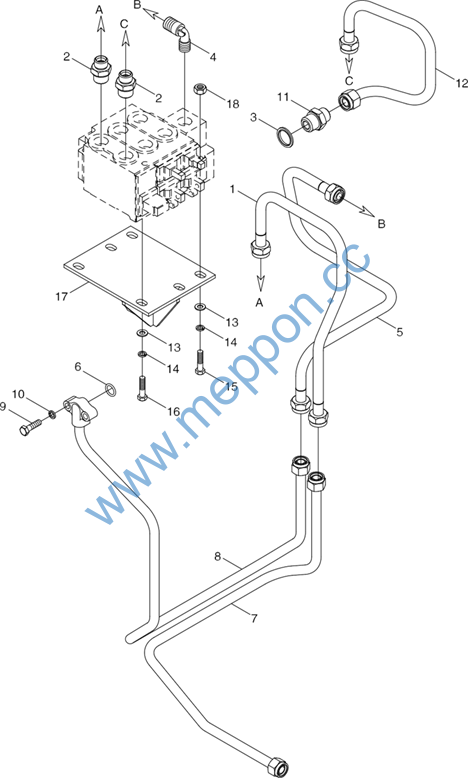

TC04582020000 Multi-way Valve Control Mechanism assembly-2
