LOVOL TC2A454-027K Tractor Parts Catalogue 11
FT300.35A.001 Towing Mechanism Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT300.35A.001 |
Towing mechanism assembly |
1 |
||
1 |
GB/T5783 |
Bolt M16×60-A3L |
8 |
|
2 |
FT300.35A.012a |
Towing frame weldment |
1 |
|
3 |
GB/T93 |
Washer 16-A0P |
10 |
|
4 |
GB/T6170 |
Nut M16-A3L |
10 |
|
5 |
FT65.53.103 |
Spring Locking Pin |
2 |
|
6 |
FT300.35A.104 |
Location pin |
2 |
|
7 |
FT300.35A.102 |
Swing rod |
1 |
|
8 |
TB400.35.1-03 |
Bolt M16×75 |
2 |
|
9 |
FT300.35A.105 |
Swing pin |
1 |
|
10 |
FT300.35A.101 |
Connecting swing rod |
1 |
|
11 |
FT300.35A.131 |
Lock pin |
2 |
|
12 |
FT300.35A.103 |
Connecting pin |
1 |
95
Foton TC2A454-027K Wheeled Tractor

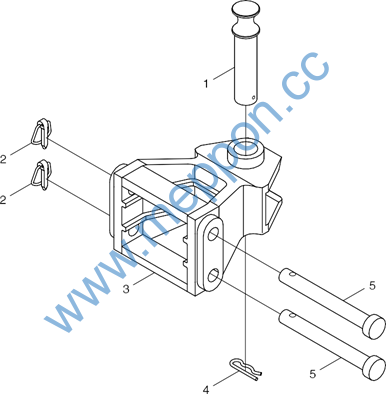

FT300.53.001 Traction equipment assembly
96
Foton TC2A454-027K Wheeled Tractor

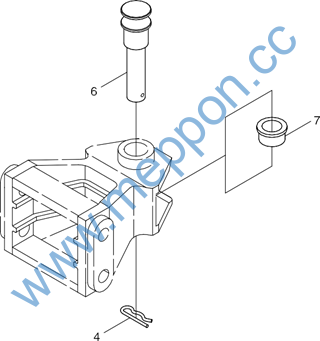

FT300.53.001 Traction equipment assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT300.53.001 |
Traction equipment assembly |
1 |
||
1 |
FT300.53.106 |
Traction pin |
1 |
|
2 |
FT300.56.029 |
Lock pin assembly |
2 |
|
3 |
FT300.53.108a |
Traction frame |
1 |
|
4 |
FT65.53.103 |
Elastic lock pin |
2 |
|
5 |
FT300.53.101a |
Connecting pin |
2 |
|
6 |
FT300.53.102 |
Traction pin |
1 |
|
7 |
FT300.53.103 |
Supporting sleeve |
1 |
97
Foton TC2A454-027K Wheeled Tractor

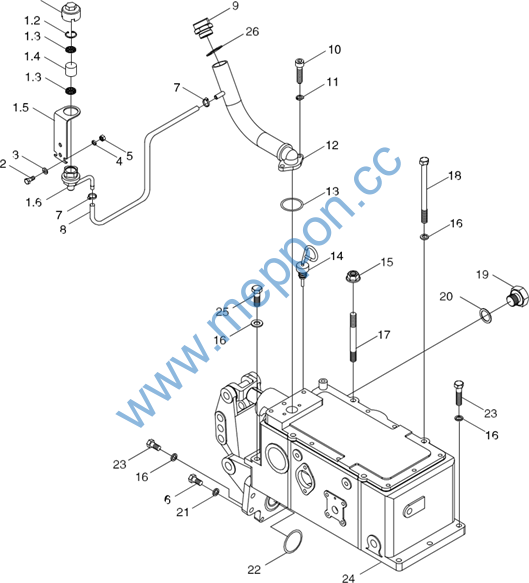

TC04550120000 Lifting device assembly-1
98
Foton TC2A454-027K Wheeled Tractor
TC04550120000 Lifting device assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC04550120000 |
Lifting device assembly |
1 |
||
1 |
FT300.55B.016c |
Breather assembly |
1 |
|
1.1 |
FT700.55D.136 |
Breather cover |
1 |
|
1.2 |
GB/T 893.1-26 |
Circlip for hole |
1 |
|
1.3 |
FT650.40.167 |
Socket plate |
2 |
|
1.4 |
FT700.55D.109 |
Breather filter cartridge |
1 |
|
1.5 |
FT300.55B.164 |
Breather bracket |
1 |
|
1.6 |
FT300.55B.027a |
Breather connecting pipe weldment |
1 |
|
2 |
GB/T 5783-M10×20-8.8-A3L |
Hexagon head bolt |
2 |
|
3 |
GB/T 97.1-10-A0P |
Plain washer |
2 |
|
4 |
GB/T 93-10-A0P |
Standard spring washer |
2 |
|
5 |
GB/T 6170-M10-8-A3L |
Hexagon nut, style 1 |
2 |
|
6 |
GB/T 5783-M8×30-10.9-A2L |
Hexagon head bolt |
2 |
|
7 |
Q67512 |
A-type worm drive hose clamp |
2 |
|
8 |
FT300.55B.169 |
Breather connecting rubber pipe 2 |
1 |
|
9 |
TA700.55A.7-01a |
Oil filling screw plug |
1 |
|
10 |
GB/T 70.1-M8×25-8.8-A2L |
Hexagon socket head cap screw |
2 |
|
11 |
GB/T 93-8-A0P |
Standard spring washer |
2 |
|
12 |
FT300.55B.026a |
Oil filling pipe weldment |
1 |
|
13 |
GB/T 3452.1-32.5×1.80G |
O-ring sealant used for hydraulic or pneumatic parts |
1 |
|
14 |
FT300.55B.022a |
Oil dipstick subassembly |
1 |
|
15 |
SPL-CO-M12-10-F3 |
Hexagon flange nut |
2 |
|
16 |
TB404.312B-01 |
Washer |
7 |
|
17 |
TB300.55-01 |
Double-headed stud M12×250 |
2 |
|
18 |
FT300.55B.136 |
Bolt M12×235 |
4 |
|
19 |
TB704.55A-02 |
Screw plug |
1 |
|
20 |
JB/T 982-22 |
Compound seal washer |
1 |
|
21 |
TB300.55-02 |
Washer |
2 |
|
22 |
GB/T 3452.1–103×2.65G |
O-ring seal |
1 |
|
23 |
GB/T 5783-M12×40-10.9-A3L |
Hexagon head bolt |
3 |
|
24 |
TB504.551G.1 |
Lifter assembly |
1 |
|
25 |
GB/T 5783-M12×100-10.9-A3L |
Hexagon head bolt |
2 |
|
26 |
JB/T 982-33 |
Compound seal washer |
1 |
99
Foton TC2A454-027K Wheeled Tractor
TC04550120000 Lifting device assembly-2
100
Foton TC2A454-027K Wheeled Tractor
TC04550120000 Lifting device assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC04550120000 |
Lifting device assembly |
1 |
||
1 |
GB/T 882-B8×50-A0P |
Pin shaft |
2 |
|
2 |
TB704.56A-01 |
Shaft bush 1 |
2 |
|
3 |
GB/T 97.1-8-A0P |
Plain washer |
2 |
|
4 |
TC04550100001 |
Cylinder oil inlet rubber pipe assembly |
2 |
|
5 |
TB704.55A.2a |
Lifting cylinder assembly |
2 |
|
6 |
TC04550100002 |
24° cone connector – straight thread elbow |
2 |
|
7 |
GB/T 16674.1-M12×35-10.9-A2L |
Hexagon flange bolt |
4 |
|
8 |
TC04550100003 |
24° cone connector – straight thread tee |
1 |
|
9 |
GB/T 91-2×20-A0P |
Split pin |
2 |
|
10 |
GB/T 68-M4×10-4.8-A2L |
Slotted countersunk head screw |
1 |
|
11 |
TB504.552-04 |
Handle head |
1 |
101
Foton TC2A454-027K Wheeled Tractor
TC04550120000 Lifting device assembly-3
102
Foton TC2A454-027K Wheeled Tractor
TC04550120000 Lifting device assembly-3
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC04550120000 |
Lifting device assembly |
1 |
||
FT300.55B.023 |
Control lever postioning assembly |
1 |
||
1 |
FT65.57.014 |
Adjusting lever head assembly |
2 |
|
2 |
FT300.55B.133 |
Positioning bending plate |
2 |
|
3 |
GB/T 818-M5×16-4.8-A2L |
Cross recessed pan head screw |
4 |
|
4 |
GB/T 93-5-A0P |
Standard spring washer |
4 |
|
5 |
FT300.55B.131 |
Washer |
4 |
|
6 |
FT300.55B.132 |
Positioning nut |
2 |
|
7 |
GB/T 91-1.6×12-A0P |
Split pin |
2 |
|
8 |
FT300.55B.135 |
Draft adjusting plate |
1 |
|
9 |
FT300.55B.134 |
Position adjusting plate |
1 |
103
Foton TC2A454-027K Wheeled Tractor
TC02561080000K Hitch Mechanism Assembly-1(001)
104
