LOVOL TC2A454-027K Tractor Parts Catalogue 10
TC02400120000K Fully Hydraulic Steering Assembly-3
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02400120000K |
Fully hydraulic steering assembly |
1 |
||
TC04400110003 |
Steering gear and housing assembly |
1 |
||
TB604.401D.1 |
Steering column assembly |
1 |
||
1 |
GBT6173-M16X1.5-A3L |
Hex thin nut |
1 |
|
2 |
TB604.401D.1.1 |
Steering bushing weldment |
1 |
|
3 |
FT650.40.172 |
Bearing retainer |
1 |
|
4 |
GBT894.1-20 |
Circlip for shaft |
1 |
|
5 |
GBT276-61804-2LS |
Deep groove ball bearing |
1 |
|
6 |
FT650.40.173 |
Bearing retainer 2 |
1 |
|
7 |
GBT893.1-32 |
Circlip for hole |
1 |
|
8 |
FT354.40C.130A |
Steering rod |
1 |
85
Foton TC2A454-027K Wheeled Tractor

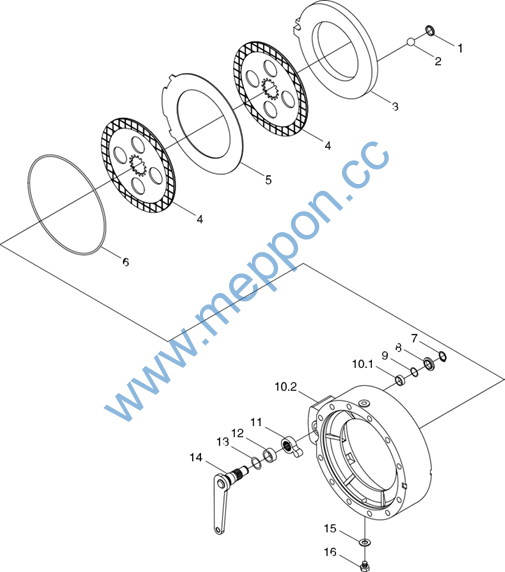

TC02430010000K Brake Assembly-1
86
Foton TC2A454-027K Wheeled Tractor
TC02430010000K Brake Assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02430010000K |
Brake assembly |
1 |
||
1 |
FT300.43.102 |
Bowl plug |
6 |
|
2 |
GB/T 308-18.000-G100-b |
Steel ball |
6 |
|
3 |
FT300.43.103 |
Left brake platen |
1 |
|
4 |
FT300.43.011 |
Brake friction disk assembly |
2 |
|
5 |
FT300.43.105 |
Baffle |
1 |
|
6 |
FT300.43.101 |
O-Ring |
1 |
|
7 |
GB/T 894.1-18 |
Shaft elastic snap ring |
1 |
|
8 |
FT300.43.109a |
Washer |
1 |
|
9 |
GB/T 3452.1-18.0×2.65 |
O-Ring |
1 |
|
10 |
FT300.43.012 |
Left brake housing assembly |
1 |
|
10.1 |
FT300.43.114 |
Crank shaft bush |
1 |
|
10.2 |
FT300.43.121 |
Left brake housing |
1 |
|
11 |
FT300.43.106 |
Dial block |
1 |
|
12 |
FT300.43.107 |
Distance sleeve |
1 |
|
13 |
GB/T 3452.1-20.0×2.65 |
O-Ring |
1 |
|
14 |
FT300.43.014 |
Left crank assembly |
1 |
|
15 |
JB/T 982-12 |
Compound seal washer |
1 |
|
16 |
FT300.43.154 |
Screw plug |
1 |
87
Foton TC2A454-027K Wheeled Tractor

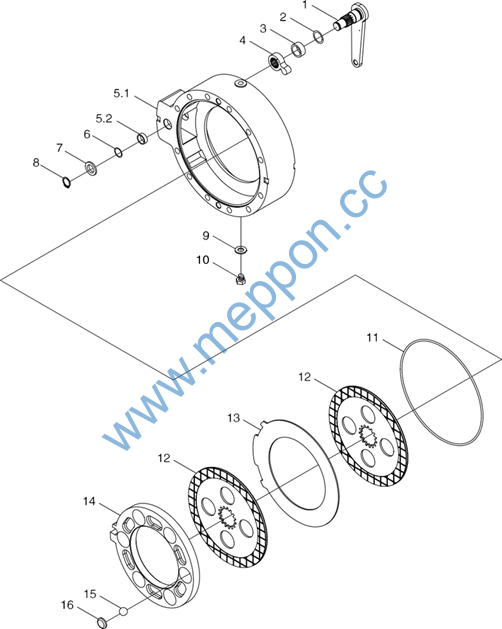

TC02430010000K Brake Assembly-2
88
Foton TC2A454-027K Wheeled Tractor
TC02430010000K Brake Assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02430010000K |
Brake assembly |
1 |
||
1 |
FT300.43.022 |
Right crank assembly |
1 |
|
2 |
GB/T 3452.1-20.0×2.65 |
O-Ring |
1 |
|
3 |
FT300.43.107 |
Distance sleeve |
1 |
|
4 |
FT300.43.106 |
Dial block |
1 |
|
5 |
FT300.43.013 |
Right brake housing assembly |
1 |
|
5.1 |
FT300.43.122 |
Right brake housing |
1 |
|
5.2 |
FT300.43.114 |
Crank shaft bush |
1 |
|
6 |
GB/T 3452.1-18.0×2.65 |
O-Ring |
1 |
|
7 |
FT300.43.109a |
Washer |
1 |
|
8 |
GB/T 894.1-18 |
Shaft elastic snap ring 18 |
1 |
|
9 |
JB/T 982-12 |
Compound seal washer |
1 |
|
10 |
FT300.43.154 |
Screw plug |
1 |
|
11 |
FT300.43.101 |
O-Ring |
1 |
|
12 |
FT300.43.011 |
Brake friction disk assembly |
2 |
|
13 |
FT300.43.105 |
Baffle |
1 |
|
14 |
FT300.43.104 |
Right brake platen |
1 |
|
15 |
GB/T 308-18.000-G100-b |
Steel ball |
6 |
|
16 |
FT300.43.102 |
Bowl plug |
6 |
89
Foton TC2A454-027K Wheeled Tractor

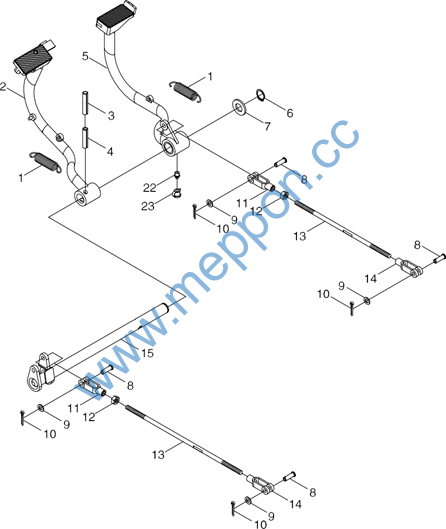

TC02430010000K Brake Assembly-3
90
Foton TC2A454-027K Wheeled Tractor
TC02430010000K Brake Assembly-3
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02430010000K |
Brake assembly |
1 |
||
1 |
FT300.43.130 |
Pedal return spring |
2 |
|
2 |
FT300.43.015a |
Left brake pedal assembly |
1 |
|
3 |
GB/T 879.1-6×40 |
Elastic straight pin |
1 |
|
4 |
GB/T 879.1-10×40 |
Elastic straight pin |
1 |
|
5 |
FT300.43.016 |
Right brake pedal assembly |
1 |
|
6 |
GB/T 894.1-25 |
Shaft elastic snap ring |
1 |
|
7 |
GB/T 97.1-24-A0P |
Flat washer |
1 |
|
8 |
GB/T 882-B10×28-A0P |
Pin shaft |
4 |
|
9 |
GB/T 97.1-10-A0P |
Flat washer |
4 |
|
10 |
GB/T 91-3.2×16-A0P |
Split pin |
4 |
|
11 |
FT300.43.108 |
Tie rod front fork |
2 |
|
12 |
GB/T 6170-M10-A3L |
Hexagon nut, style I |
2 |
|
13 |
FT300.43.120 |
Tie rod |
2 |
|
14 |
FT300.43.110 |
Tie rod rear fork |
2 |
|
15 |
TC02430010001K |
Pedal shaft assembly |
1 |
|
16 |
GB/T 6173-M12×1.5-A3L |
Hexagonal thin nut |
2 |
|
17 |
FT300.43.160 |
Large washer |
2 |
|
18 |
GB/T 955-14 |
Waveform elastic washer |
1 |
|
19 |
FT300.43.159 |
Hand brake friction plate |
2 |
|
20 |
FT300.43.025a |
Brake locking plate assembly |
1 |
|
21 |
FT300.43.158 |
Connecting bolt |
1 |
|
22 |
JB/ T7940.1-M8×1 |
Oil cup |
1 |
|
23 |
TD800.311C.1-01 |
Oil cup dustproof cap |
1 |
91
Foton TC2A454-027K Wheeled Tractor

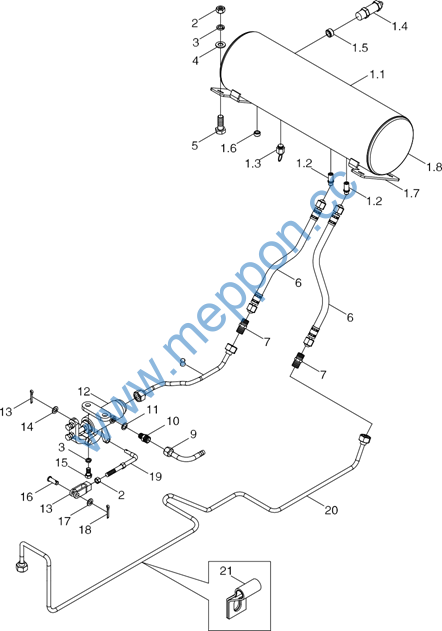

FT400.80M.001 Air brake device assembly
92
Foton TC2A454-027K Wheeled Tractor
FT400.80M.001 Air brake device assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT400.80M.001 |
Air brake device assembly |
1 |
||
1 |
FT300.80C.012 |
Air reservoir assembly |
1 |
|
1.1 |
FT300.80C.120 |
Air reservoir body |
1 |
|
1.2 |
FT300.80.106 |
Intake and exhaust connectors |
2 |
|
1.3 |
FT300.80.033 |
Drain valve assy |
1 |
|
1.4 |
FT300.80.034 |
Safety valve assembly |
1 |
|
1.5 |
FT300.80.203 |
Connector base (2) |
2 |
|
1.6 |
FT300.80.132 |
Connector base (1) |
1 |
|
1.7 |
FT300.80C.205 |
Bracket |
2 |
|
1.8 |
FT300.80.119 |
Air reservoir end cover |
2 |
|
2 |
GB/T 6170-M10-8-A3L |
Hexagon nut, Style 1 |
5 |
|
3 |
GB/T 93-10-A0P |
Standard spring washer |
6 |
|
4 |
GB/T 97.1-10-A0P |
Flat washer |
8 |
|
5 |
GB/T 5783-M10×30-8.8-A3L |
Hex head bolt |
4 |
|
6 |
FT300.80.037 |
Air brake hose cluster |
2 |
|
7 |
FT300.80.103 |
Straight connector |
1 |
|
8 |
FT300.80.016 |
Air outlet pipe assembly |
1 |
|
9 |
FT300.80.013 |
Air delivery pipe assembly |
1 |
|
10 |
FT300.80.104 |
Exhaust pipe assembly |
1 |
|
11 |
JB/T 982-14 |
Combined seal gasket |
1 |
|
12 |
FT300.80.011 |
Air brake valve assembly |
1 |
|
13 |
FT300.80.105 |
Adjusting fork |
1 |
|
14 |
GB/T 97.1-8-A0P |
Flat washer |
2 |
|
15 |
GB/T 5783-M10×25-8.8-A3L |
Hex head bolt |
2 |
|
16 |
GB/T 882-B10×28-A0P |
Axis pin |
1 |
|
17 |
GB/T 848-10-A0P |
Small gasket |
1 |
|
18 |
GB/T 91-3.2×16-A3L |
Split pin |
2 |
|
19 |
FT300.80.014 |
Adjusting pull-rod cluster |
1 |
|
20 |
FT400.80X.015 |
Air compressor outlet pipe assembly |
1 |
|
21 |
FT300.80.101a |
Pipe clamp |
1 |
93
Foton TC2A454-027K Wheeled Tractor

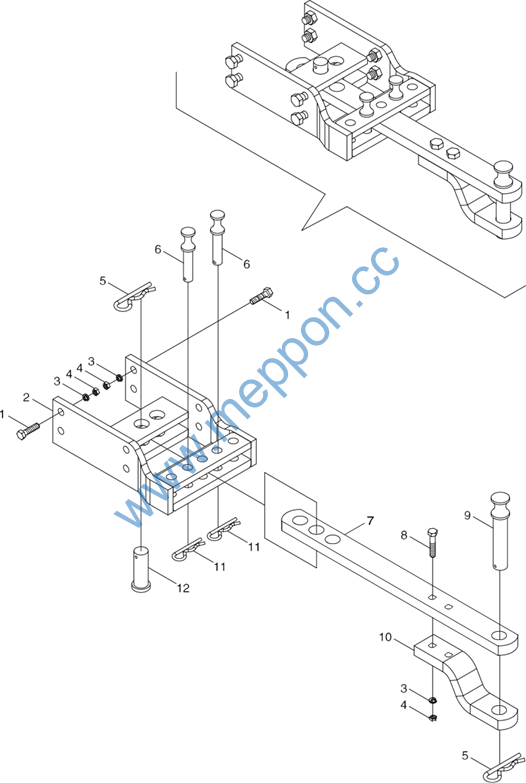

FT300.35A.001 Towing Mechanism Assembly
