LOVOL TC2A454-027K Tractor Parts Catalogue 09
TB554.312B Bracket Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB554.312B |
Bracket assembly |
1 |
||
1 |
GB/T 5782-M16×110-10.9-A2L |
Hexagon head bolt |
6 |
|
2 |
GB/T93-16-A0P |
Standard spring washer |
6 |
|
3 |
TB554.312B-01 |
Bracket |
1 |
75
Foton TC2A454-027K Wheeled Tractor
FT404.32F.001 Front Drive Wheel Assembly
76
Foton TC2A454-027K Wheeled Tractor
FT404.32F.001 Front Drive Wheel Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |

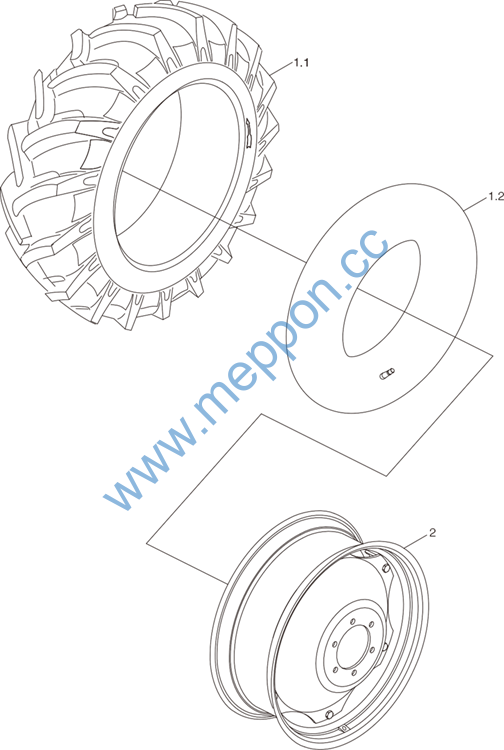

FT404.32F.001 |
Front drive wheel assembly |
1 |
||
1 |
TB704.32B.2 |
Inner tube/tyre assembly 8.3-20 |
1 |
|
1.1 |
GB/T 2979-8.3-20-6PR-R |
General section bias tyre of tractor drive wheel |
1 |
|
1.2 |
GB/T 2979-8.3-20-R |
Inner tube of tractor drive wheel |
1 |
|
2 |
FT404.32F.011 |
Rim welding |
1 |
77
Foton TC2A454-027K Wheeled Tractor
FT400.34F.001 Rear Driving Wheel Assembly
78
Foton TC2A454-027K Wheeled Tractor
FT400.34F.001 Rear Driving Wheel Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT400.34F.001 |
Rear driving wheel assembly |
1 |
||
1 |
TB504.34.2 |
Tire and tube assembly 12.4-28 |
1 |
|

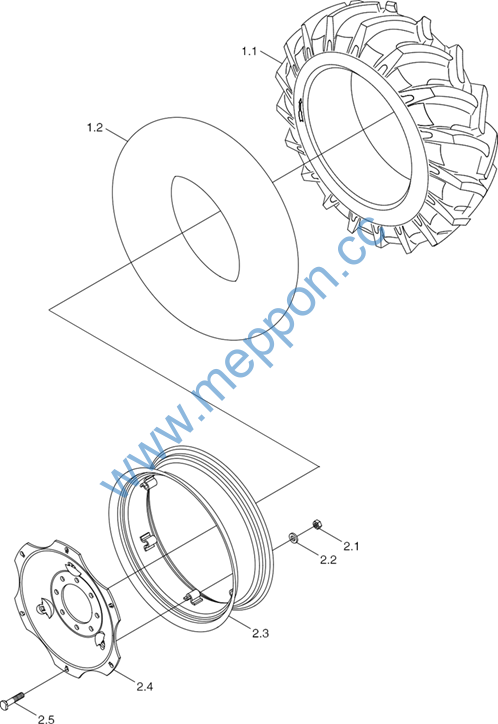

1.1 |
GB/T 2979-12.4-28-8PR-R |
Diagonal tire with conventional section, tractor driving wheel |
1 |
|
1.2 |
GB/T 2979-12.4-28-R |
Tube, tractor driving wheel |
1 |
|
2 |
FT400.34F.011 |
Rim assembly |
1 |
|
2.1 |
GB/T 6171-M16×1.5-8-A3L |
Hexagon nut, Style 1 |
6 |
|
2.2 |
FT300.34.106 |
Washer |
6 |
|
2.3 |
FT400.34F.012 |
Rim weldment |
1 |
|
2.4 |
FT400.34.103b |
Spoke |
1 |
|
2.5 |
FT300.34.102 |
Rim bolt |
6 |
79
Foton TC2A454-027K Wheeled Tractor
TC02400120000K Fully Hydraulic Steering Assembly-1
80
Foton TC2A454-027K Wheeled Tractor
TC02400120000K Fully Hydraulic Steering Assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |

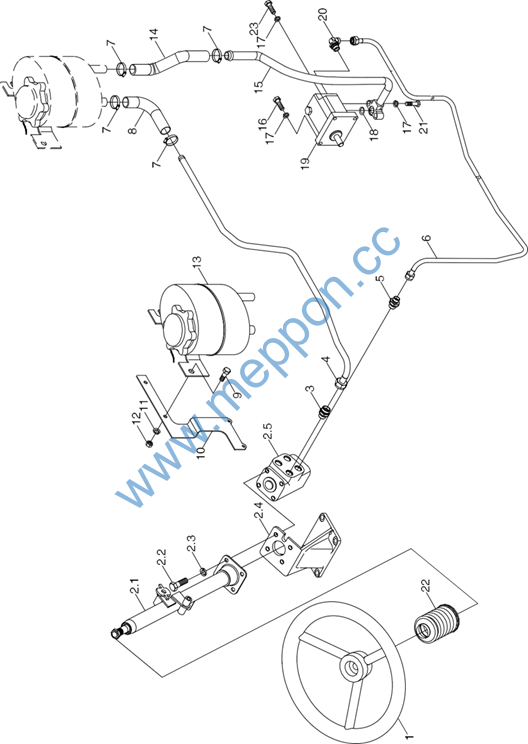

TC02400120000K |
Fully hydraulic steering assembly |
1 |
||
1 |
FT400.40.016 |
Steering wheel assembly |
1 |
|
2 |
TC04400110003 |
Steering gear and housing assembly |
1 |
|

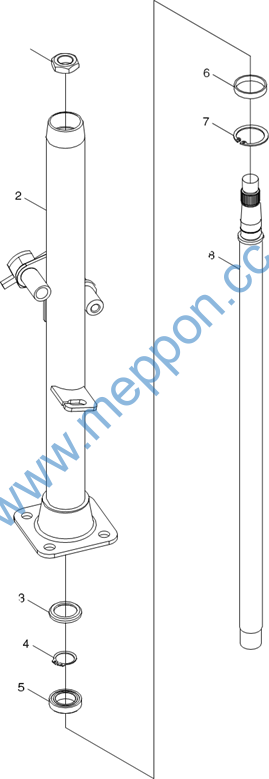

2.1 |
TB604.401D.1 |
Steering column assembly |
1 |
|
2.2 |
GBT5783-M10X30-8.8-A3L |
Hex agon bolt |
4 |
|
2.3 |
GBT93-10-A0P |
Standard spring washer |
8 |
|
2.4 |
FT354.40C.111 |
Steering gear bracket |
1 |
|
2.5 |
TC04400010009 |
Hydraulic steering gear assembly |
1 |
|
3 |
TC04400010011 |
End straight joint assembling M20-16 |
1 |
|
4 |
TC04400110005 |
Oil pipe weldment of oil return exit |
1 |
|
5 |
GE20D18.24.93.5 |
End straight joint 20-18 |
2 |
|
6 |
TC04400110001 |
Oil outlet pipe weldment of oil pump |
1 |
|
7 |
Q67627 |
Worm driven hose hoop, type B |
4 |
|
8 |
FT354.40C.107 |
Oil return hose |
1 |
|
9 |
GBT5783-M10X25-8.8-A3L |
Hex agon bolt |
2 |
|
10 |
TB450.40X-01 |
Steering tank bracket |
1 |
|
11 |
GBT93-10-A0P |
Washer |
2 |
|
12 |
GBT6170-M10-8-A3L |
Hexagon nut , Style 1 |
2 |
|
13 |
FT354.40C.011 |
Steering tank and respirator assembly |
1 |
|
14 |
FT400.40X.104 |
Oil suction hose |
1 |
|
15 |
FT450.40Y.011 |
Oil suction pipe weldment of oil pump |
1 |
|
16 |
GBT5782-M8X45-8.8-A2L |
Hex agon bolt |
2 |
|
17 |
GBT93-8-A0P |
Washer |
4 |
|
18 |
GBT3452.1-17.0X2.65G |
Hydraulic and pneumatic O-ring |
1 |
|
19 |
TC04400120001 |
Constant overflow pump |
1 |
|
20 |
TC04400020003 |
Direction adjustable joint assembly M18-12 |
2 |
|
21 |
GBT5783-M8X30-8.8-A2L |
Hex agon bolt |
3 |
|
22 |
TB504.401-01 |
Steering rod protection sleeve |
1 |
|
23 |
GBT5782-M8X65-8.8-A2L |
Hex agon bolt |
2 |
81
Foton TC2A454-027K Wheeled Tractor
TC02400120000K Fully Hydraulic Steering Assembly-2
82
Foton TC2A454-027K Wheeled Tractor
TC02400120000K Fully Hydraulic Steering Assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |

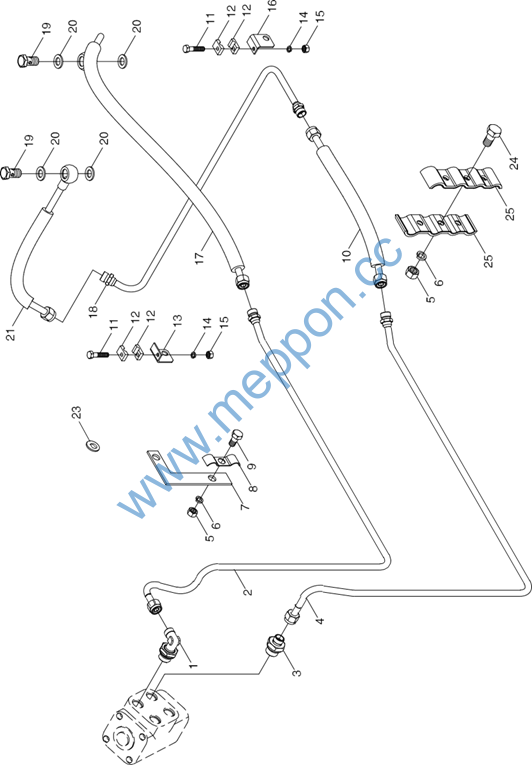

TC02400120000K |
Fully hydraulic steering assembly |
1 |
||
1 |
TC04400010016 |
Direction adjustable joint assemblyM20-10 |
1 |
|
2 |
TC04400040003 |
Left oil pipe weldment |
1 |
|
3 |
GV04703010028 |
End straight joint assembly M20-16 |
1 |
|
4 |
TC04400040005 |
Right oil pipe weldment |
1 |
|
5 |
GBT6170-M6-8-A2L |
Hex nut, type 1 |
5 |
|
6 |
GBT93-6-A0P |
Standard spring washer |
5 |
|
7 |
FT304.40L.122 |
Oil pipe bracket |
1 |
|
8 |
FT304.40L.121 |
Double hole pipe clip |
1 |
|
9 |
GBT5783-M6X25-8.8-A2L |
Hexagon bolt |
2 |
|
10 |
TC04400030001 |
High pressure right hose assembly |
1 |
|
11 |
GBT5783-M8X35-8.8-A2L |
Hexagon bolt |
2 |
|
12 |
TB454.40X-01 |
Single hole pipe clip |
4 |
|
13 |
TB454.40X-03 |
Left oil pipe bracket |
1 |
|
14 |
GBT93-8-A0P |
Standard spring washer |
2 |
|
15 |
GBT6170-M8-8-A2L |
Hex nut, type 1 |
2 |
|
16 |
TB454.40X-02 |
Rgiht oil pipe bracket |
1 |
|
17 |
TC04400040001 |
High pressure right oil pipe assembly |
1 |
|
18 |
TC04400100001 |
Left oil steel pipe weldment of cylinder |
1 |
|
19 |
FT650.40.112 |
Hollow bolt |
2 |
|
20 |
JBT982-16 |
Compound sealing washer |
4 |
|
21 |
TC04400030002 |
High pressure left oil pipe assembly |
1 |
|
22 |
TB450.40Q-01 |
Double hole pipe clip |
2 |
|
23 |
GBT97.1-16-A0P |
Flat washer |
1 |
|
24 |
GBT5783-M6X20-8.8-A2L |
Hexagon bolt |
3 |
|
25 |
TB454.40D-01 |
Four hole pipe clamp |
2 |
83
Foton TC2A454-027K Wheeled Tractor
TC02400120000K Fully Hydraulic Steering Assembly-3
