TC02311020000-4 31.4-前驱动桥总成 FRONT DRIVING AXLE ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TC02311020014

前驱动轴

FRONT DRIVING SHAFT

1

2014-04_

10

GBT276-6310

轴承

BEARING

1

2014-04_

11

TC02311010055

垫片

WASHER

1

2014-04_

13

GBT5783-M8X35-8.8-A2L

六角头螺栓

BOLT

2

2014-04_

15

TC02311010053

端部小齿轮

END PINION

1

2014-04_

16

GBT276-6308

深沟球轴承

BEARING

1

2014-04_

17

TC02311010059

调整垫Ⅱ

ADJUSTABLE WASHER

999

2014-04_

18

GBT893.1-90

挡圈90

RETAINER RING

1

2014-04_

2

TC02311020015

滚花螺栓

BOLT

6

2014-04_

20

GBT893.1-102

孔用弹性挡圈

SNAP RING

1

2014-04_

22

GBT3452.1-21.2X2.65G

液压气动用O形橡胶密封圈

O-SEAL RING

2

2014-04_

24

GBT301-51107

轴承

BEARING

1

2014-04_

26

TC02311010056

端部花键轴

END SPLINE SHAFT

1

2014-04_

27

GBT6172.1-M16-04-A3L

六角薄螺母

NUT

1

2014-04_

28

GBT5783-M16X40-10.9-A3L

六角头螺栓

BOLT

1

2014-04_

3

TC02311010032

浮动油封

FLOATING OIL SEAL

2

2014-04_

4

GBT5783-M10X40-10.9-A3L

六角头螺栓

BOLT

8

2014-04_

5

GBT93-10-A0P

标准型弹簧垫圈

WASHER

8

2014-04_

6

TC02311010050

端部大盖

BIG END COVER

1

2014-04_

7

TC02311010060

调整垫Ⅰ

ADJUSTABLE WASHER

999

2014-04_

8

GBT276-6410

深沟球轴承

BEARING

1

2014-04_

9

TC02311010052

端部大齿轮

BIG END GEAR

1

2014-04_








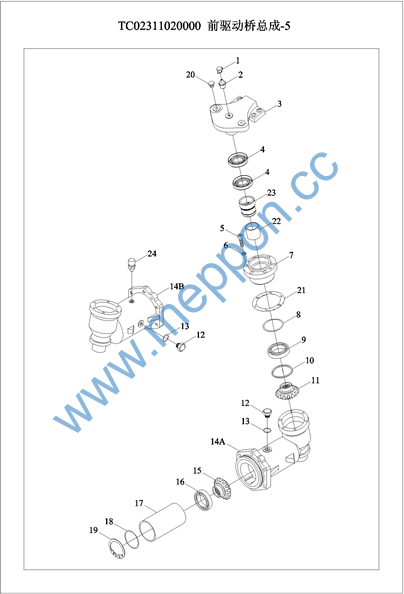

TC02311020000-5 31.5-前驱动桥总成 FRONT DRIVING AXLE ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TD800.311C.1-01

油杯防尘帽

DUSTPROOF CAP OF OIL CUP

1

2014-04_

1

TD800.311C.1-01

油杯防尘帽

DUSTPROOF CAP OF OIL CUP

1

2014-04_

11

TC02311020018

从动齿轮

DRIVEN GEAR

1

2014-04_

13

GBT3452.1-21.2X2.65G

液压气动用O形橡胶密封圈

O-SEAL RING

1

2014-04_

15

TC02311020017

主动齿轮

DRIVING GEAR

1

2014-04_

16

GBT276-6309

深沟球轴承

BEARING

1

2014-04_

18

TC02311010073

调整垫片

ADJUSTING WASHER

999

2014-04_

19

GBT893.1-100

孔用弹性挡圈

SNAP RING

1

2014-04_

2

JB/T 7940.1-M10X1

油杯

OIL CUP

1

2014-04_

21

TC02311010040

调整垫

ADJUSTING GASKET

999

2014-04_

24

TD904.311K.1.6

通气塞

VENT PLUG

1

2014-04_

3

TC02311010041

连接盖

CONNECTING COVER

1

2014-04_

5

GBT70.1-M8X25-8.8

内六角圆柱头螺钉

SCREW

6

2014-04_

6

GBT93-8-A0P

垫圈

WASHER

6

2014-04_

9

GBT276-6211

深沟球轴承

BEARING

1

2014-04_








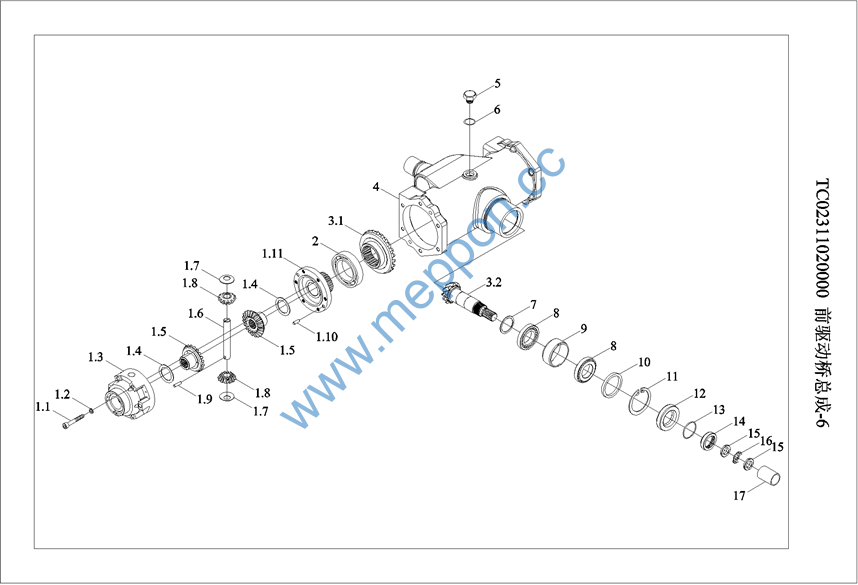

TC02311020000-6 31.6-前驱动桥总成 FRONT DRIVING AXLE ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TC02311010018

差速器总成

DIFFERENTIAL ASSEMBLY

1

2014-04_

1.1

GBT70.1-M10X70-8.8

内六角圆柱头螺钉

SCREW

6

2014-04_

1.10

GBT119.1-8h8X20-A0P

圆柱销

PIN

2

2014-04_

1.11

TC02311010028

差速器右壳

DIFFERENTIAL RIGHT HOUSING

1

2014-04_

1.2

GBT93-10

垫圈10

WASHER 10

6

2014-04_

1.3

TC02311010027

差速器左壳

DIFFERENTIAL LEFT HOUSING

1

2014-04_

1.4

TC02311010030

半轴齿轮垫片

HALF SHAFT GEAR WASHER

2

2014-04_

1.5

TC02311010035

半轴齿轮

HALF SHAFT GEAR

2

2014-04_

11

GBT893.1-80

孔用挡圈

RETAINER RING FOR HOLE

1

2014-04_

12

GBT9877.1-FB55X80X8D

油封

OIL SEAL

1

2014-04_

13

GBT3452.1-41.2X3.55G

液压气动用O形橡胶密封圈

O-SEAL RING

1

2014-04_

2

GBT276-6216

深沟球轴承

BEARING

2

2014-04_

3.1

TC02311010029

中央传动大螺伞齿轮

CENTRAL TRANSMISSION BIG SPIRAL BEVEL

1

2014-04_

3.2

TC02311010020

主动螺伞齿轮轴

GEAR

1

2014-04_

6

GBT3452.1-21.2X2.65G

液压气动用O形橡胶密封圈

DRIVING SPIRAL BEVEL GEAR SHAFT

1

2014-04_


O-SEAL RING



8

GBT297-32208

圆锥滚子轴承



2

2014-04_


BEARING










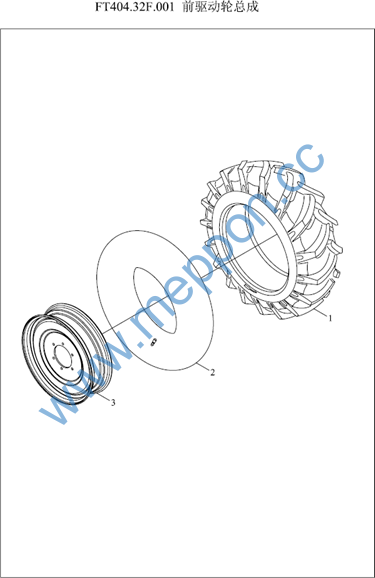

FT404.32F.001 32-前驱动轮总成 32-FRONT DRIVING WHEEL ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

2

3

GBT2979-8.3-20-6PR-PR GBT2979-8.3-20-R FT404.32F.011

拖拉机驱动轮水田专用斜交结构外胎拖拉机驱动轮内胎

轮辋焊合

DRIVING WHEEL OUTER TUBE DRIVING WHEEL INNER TUBE WHEEL RIM WELD

1

1

1





2013-02_

2011-11_








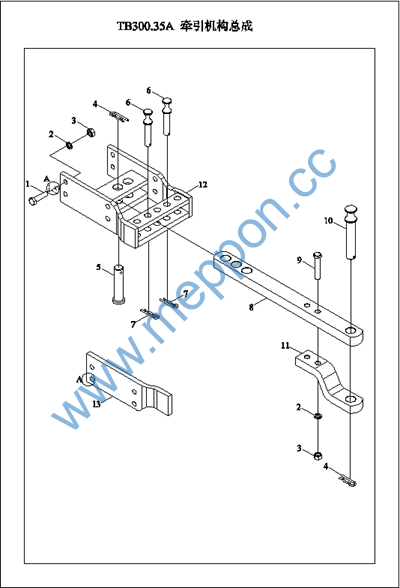

TB300.35A 35-牵引机构总成 35-TOWING MECHANISM ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

0

TB300.35A-01HAA

牵引机构总成

TRACTION MECHANISM ASS

1

2011-04_

1

GBT5783-M16X60-8.8-A3L

六角头螺栓

BOLT

8

2012-05_

10

TB300.35A-04

摆销

SWING PIN

1

2012-05_

11

TB300.35A-02

连接摆杆

CONNECTING SWING ROD

1

2012-05_

12

TB300.35A.1

牵引架焊合

TRACTION FRAME

1

2012-05_

13

TB300.35A.1-02

左侧板

LEFT SIDE BOARD

1

2012-05_

2

GBT93-16-A0P

弹簧垫圈

SPRING WASHER

10

2012-05_

3

GBT6170-M16-8-A3L

1型六角螺母

NUT

10

2012-05_

4

FT65.53.103

弹性锁销

SPRING LOCK PIN

2

2012-05_

5

TB300.35A-05

连接销

CONNECTING PIN

1

2012-05_

6

TB300.35A-03

定位销

THIMBLE

2

2012-05_

7

FT300.35A.131

锁销

PIN

2

2012-05_

8

TB300.35A-01

摆杆

UPPER PART U-HOOK

1

2012-05_

9

GBT5782-M16X90-8.8-A2L

六角头螺栓

BOLT

2

2012-05_








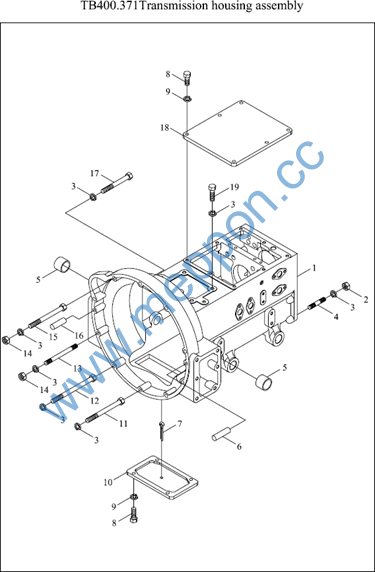

TB400.371 37.1-变速箱壳体总成 37.1-GEARBOX HOUSING ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TB400.371-01

变速箱壳体

GEAR BOX

1

2006-06_

10

TB400.371-02

下堵盖

LOWER PLUG COVER

1

2006-06_

11

GBT6170-M12-A3L

螺母

NUT

6

2012-07_

12

GBT5782-M12×110-A2L

螺栓

BOLT

2

2012-07_

13

GBT119.1-12m6X22-A0P

圆柱销

PIN

1

2012-07_

14

TB550.371-02

螺栓M12X125

BOLT

1

2012-07_

15

GBT5782-M12X100-A2L

六角头螺栓

BOLT

3

2012-07_

16

GBT5783-M12×35-A3L

螺栓

BOLT

4

2012-07_

16

GBT5783-M12×35-A3L

螺栓

BOLT

4

2012-07_

17

TB400.371E-03

下堵盖

LOWER PLUG COVER

1

2012-07_

18

TB400.371-03

变速箱盖

GEARBOX COVER

1

2006-06_

19

GBT5783-M12X35-A3L

螺栓

BOLT

4

2012-07_

19

GBT5783-M12X35-A3L

螺栓

BOLT

4

2012-07_

2

GBT6171-M12×1.5-A3L

螺母

NUT

10

2012-07_

3

GBT93-12

垫圈

WASHER

24

2012-07_

4

GBT899-AM12-M12X1.5X35-8.8-A3L

双头螺柱

8.8-A3L STUD

10

2012-07_

5

FT300.37.159

分离叉轴衬套

RELEASE FORK SHAFT BUSH

2

2012-07_

6

GBT119.1-12m6X30-A1

圆柱销

PIN

5

2012-07_

6

GBT119.1-12m6X30-A1

圆柱销

PIN

5

2012-07_

7

GBT91-5X32-A0P

开口销

PIN

1

2012-07_

8

GBT91-5×32-A0P

开口销

PIN

1

2012-07_

9

GBT93-10

垫圈10

WASHER 10

12

2012-07_








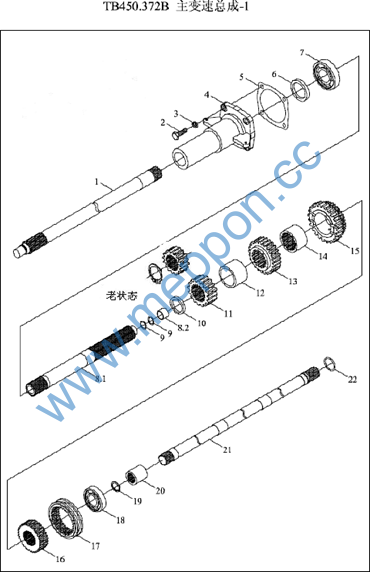

TB450.372B-1 37.2.1-主变速总成-1 MAIN TRANSMISSION ASSEMBLY-1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT400.37B.201

副离合器轴

AUXILIARY CLUTCH SHAFT

1

2011-11_

10

GBT894.1-40

挡圈40

WASHER 40

1

2011-11_

10

TB550.372-18

Ⅰ档齿轮隔套

I GEAR SPACER

1

2004-01_

11

FT300.37B.126

Ⅰ档主动齿轮

I DRIVING GEAR

1

2004-01_

11

FT300.37B.126a

Ⅰ档主动齿轮

I DRIVING GEAR

1

2008-08_

12

FT300.37B.127a

Ⅰ-Ⅱ档齿轮隔套

I-II GEAR SPACER

1

2007-04_

12

FT300.37B.127

Ⅰ-Ⅱ档齿轮隔套

I-II GEAR SPACER

1

2004-01_

12

TB550.372-19

Ⅰ-Ⅱ档齿轮隔套

I-II GEAR SPACER

1

2004-01_

13

FT300.37.128

Ⅱ档主动齿轮

Ⅱ DRIVING GEAR

1

2011-11_

14

FT300.37.130

Ⅲ档齿轮衬套

III GEAR BUSH

1

2011-11_

15

FT300.37.131a

Ⅲ档主动齿轮

Ⅲ DRIVING GEAR

1

2011-11_

16

FT300.37.132

Ⅲ-Ⅳ档啮合齿座

Ⅲ-Ⅳ ENGAGING GEAR SEAT

1

2011-11_

17

FT300.37.134a

Ⅲ-Ⅳ档啮合套

Ⅲ-Ⅳ SHIFT COLLAR

1

2011-11_

18

GBT276-6007

轴承6007

BEARING

1

2011-11_

19

GBT893.1-21

孔用弹性挡圈

SNAP RING

1

2011-11_

2

GBT5783-M8X25-A2L

螺栓

BOLT

4

2011-11_

20

FT300.37.136

连接套

CONNECTING SLEEVE

1

2011-11_

21

FT300.37E.137

动力输出连接轴

PTO CONNECTING SHAFT

1

2011-11_

21

FT300.37E.137

动力输出连接轴

PTO CONNECTING SHAFT

1

2011-11_

22

GBT895.2-24

轴用钢丝挡圈

SNAP RING

1

2011-11_

3

GBT93-8

垫圈8

WASHER 8

4

2011-11_

4

FT300.37B.124

Ⅰ轴轴承盖

SHAFT I BEARING COVER

1

2011-11_

5

FT300.37B.125

Ⅰ轴轴承盖纸垫

SHAFT I BEARING COVER PAPER GASKET

1

2011-11_

6

GBT9877.1-FB40X62X8D

内包骨架旋转轴唇形密封

O RING

1

2011-11_

7

GBT276-6208

深沟球轴承

BEARING

1

2011-11_
