LOVOL TC2A454-019K Tractor Parts Catalogue 08

Meppon Parts Posted on by

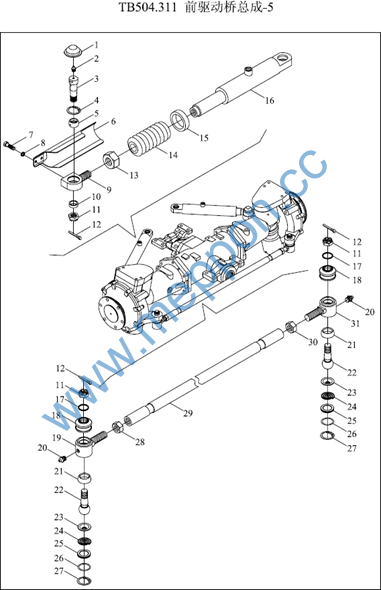

TB504.311-5 31.1.5-前驱动桥总成-5 FRONT DRIVING AXLE ASSEMBLY-5



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

.1

FT304.31F.036

左油缸球头总成

LEFT CYLINDER JOINT ASSEMBLY

1

2011-11_

.1

FT304.31F.036

左油缸球头总成

LEFT CYLINDER JOINT ASSEMBLY

1

2011-11_

.2

FT304.31F.037

右油缸球头总成

RIGHT OIL CYLINDER JOINT ASSEMBLY

1

2011-11_

.3

FT304.31F.033

右转向球头总成

STEERING BALL HEAD ASSY、 RIGHT

1

2011-11_

.4

FT304.31F.032

左转向球头总成

STEERING BALL HEAD ASSY、 LEFT

1

2011-11_

1

FT304.31F.160

防尘帽

DUSTPROOF CAP

2

2011-11_

10

FT304.31F.167

隔套

SPACER BUSH

2

2011-11_

11

FT304.31F.168

六角开槽螺母

HEXAGON SLOTTED NUT

4

2011-11_

12

GBT91

开口销 3.2×25

COTTER PIN 3.2    25

4



13

GBT6173-M20X1.5

六角薄螺母

NUT

2

2011-11_

14

FT304.31F.027

防尘皮套

DUSTPROOF LEATHER SLEEVE

2

2011-11_

15

Q50MZ3040-50

管箍

PIPE HOOP

2

2011-11_

16

FT304.31F.019a

液压缸

HYDRAULIC CYLINDER

2

2011-11_

17

FT304.31F.184

卡簧

CIRCLIP

2

2011-11_

18

FT304.31F.026A

防尘皮

DUSTPROOF POCKET

2

2010-07_

19

FT304.31F.174A

左球头销座

LEFT BALL PIN SEAT

1

2011-11_

2

JBT7940.1-M6X1

油杯

OIL CUP

2

2011-11_

2

JBT7940.1-M6X1

油杯

OIL CUP

2

2011-11_

20

JBT7940.1-M6X1

油杯

OIL CUP

2

2011-11_

20

JBT7940.1-M6X1

油杯

OIL CUP

2

2011-11_

21

804.31.151

球头销座

BALL HEAD PIN SEAT

2

2011-11_

22

FT304.31F.177A

球头销

BALL PIN

2

2010-07_

23

8004.31.153

球头销盖

BALL PIN COVER

2

2011-11_

24

8004.31.154

弹簧

SPRING

2

2011-11_

25

FT304.31F.187

压盖

PRESSURE COVER

2

2011-11_








TB504.311-5 31.1.5-前驱动桥总成-5(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

26

GBT3452.1-33.5X1.8G

O型圈

O-RING

1

2011-11_

27

GBT893.1-37

孔用弹性挡圈

SNAP RING

2

2011-11_

28

GBT6171-M20X1.5-LH

1型六角螺母

NUT

1



29

FT304.31F.175

拉杆

PULL ROD

1

2011-11_

3

FT304.31F.165a

固定销

FIXING PIN

2

2011-11_

30

GBT6171-M20X1.5

1型六角螺母

NUT

1

2011-11_

31

FT304.31F.176A

右球头销座

RIGHT BALL PIN SEAT

1



4

GBT893.1-35

挡圈

RETAINER RING

2

2011-11_

5

GBT9163-GE20ES

向心关节轴承

BEARING

2

2011-11_

6

FT304.31F.185

左护板

LEFT GUARD PLATE

1

2011-11_

6.1

FT304.31F.186

右护板

RIGHT GUARD PLATE

1



7

GBT5783-M8X16

螺栓

BOLT

4

2011-11_

8

GBT93-8

垫圈8

WASHER 8

4

2011-11_

9

FT304.31F.195

左活塞杆耳环

EAR RING OF LEFT PISTON ROD

1

2011-11_

9.1

FT304.31F.196

右活塞杆耳环

RIGHT PISTON ROD EAR RING

1

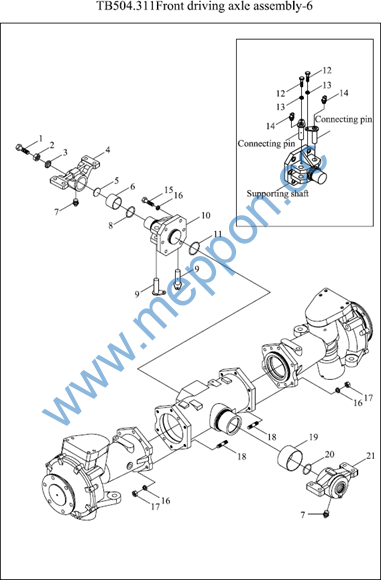

TB504.311-6 31.1.6-前驱动桥总成-6 FRONT DRIVING AXLE ASSEMBLY-6



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

0

FT304.31F.011

前驱动桥分总成

FRONT DRIVING AXLE SUB-ASSEMBLY

1

2011-11_

1

GBT5783-M16X40-8.8-A3L

六角头螺栓

BOLT

1

2011-11_

10

FT304.31F.147

支撑轴

SHAFT

1

2011-11_

11

GBT3452.1-58X3.55G

液压气动用O形橡胶密封圈

O-SEAL RING

1

2011-11_

12

GBT5783-M8X20-Zn.D

螺栓

BOLT

2



13

GBT93-8

垫圈8

WASHER 8

2

2011-11_

14

GBT7940.2-M8X1

油杯

OIL CUP

2

2011-11_

15

GBT5783-M12X40-10.9

六角头螺栓全螺纹

BOLT

6



16

GBT93-12

垫圈

WASHER

18

2011-11_

17

GBT6170-M12

螺母

NUT

12

2011-11_

18

GBT900-AM12X40-8.8-Zn.D

螺柱

STUD

12

2011-11_

19

FT304.31F.156

滑动轴承

SLIDING BEARING

1

2011-11_

2

GBT6170-M16

螺母

NUT

1

2011-11_

20

GBT3452.1-45X3.55G

液压气动用O形橡胶密封圈

O-SEAL RING

1

2011-11_

21

FT304.31F.155

后支撑轴座

REAR SUPPORTING SHAFT SEAT

1

2011-11_

3

FT304.31F.025

密封垫

SEAL GASKET

1

2011-11_

4

FT304.31F.149

前支撑轴座

FRONT SUPPORT SHAFT SEAT

1

2011-11_

5

FT304.31F.150

垫片

WASHER

1

2011-11_

6

FT304.31F.148

滑动轴承

SLIDING BEARING

1

2011-11_

7

GBT7940.1-M8X1

油杯

OIL CUP

2

2011-11_

8

GBT3452.1-47.5X3.55G

液压气动用O形橡胶密封圈

O-SEAL RING

1

2011-11_

9

FT304.31F.024

连接销

CONNECTING PIN

2

2011-11_

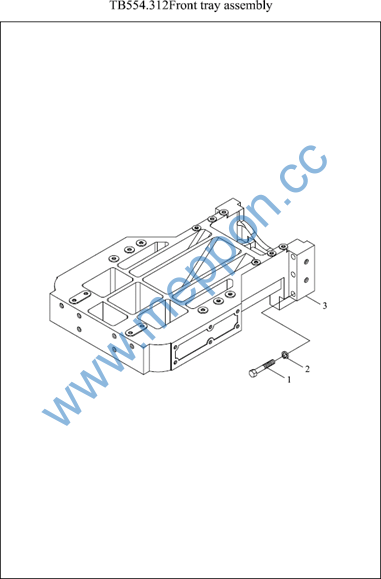

TB554.312 31.2-前托架总成 31.2-FRONT BRACKET ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

2

3

GBT5782-M16X110-10.9-A2L GBT93-16-A0P

TB554.312-01

六角头螺栓弹簧垫圈 前托架

BOLT

SPRING WASHER FRONT BRACKET

6

6

1

2011-11_

2011-11_

2011-11_

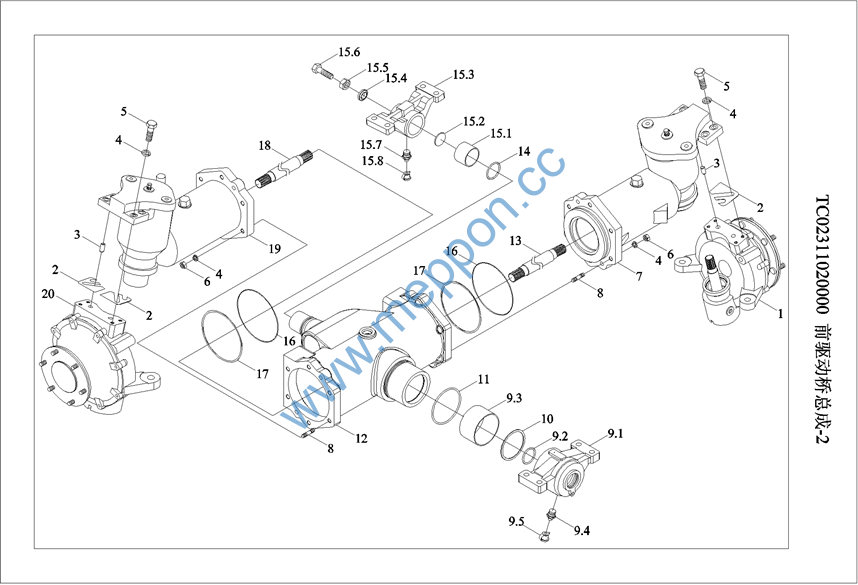

TC02311020000-2 31.2-前驱动桥总成 FRONT DRIVING AXLE ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

11

GBT3452.1-97.5X3.55G

液压气动用O形橡胶密封圈

O-SEAL RING

1

2014-04_

15.2

TC02311010067

垫片

WASHER

1

2014-04_

15.5

GBT6170-M16-8-A3L

1型六角螺母

NUT

1

2014-04_

15.6

GBT5783-M16X50-8.8-A3L

六角头螺栓

BOLT

1

2014-04_

17

TC02311010081

调整垫片

ADJUSTING WASHER

999

2014-04_

2

TC02311010012

调整垫

ADJUSTING GASKET

999

2014-04_

3

GBT119.1-12m6X22-A0P

圆柱销

PIN

1

2014-04_

4

GBT93-12-A0P

弹簧垫圈

SPRING WASHER

24

2014-04_

5

GBT5783-M12X40-10.9-A3L

六角头螺栓

BOLT

8

2014-04_

6

GBT6170-M12-10-A3L

1型六角螺母

NUT

12

2014-04_

8

GBT899-GM12-M12X40-10.9-A3L

双头螺柱

8.8-A3L STUD

12

2014-04_

9.2

GBT3452.1-45X3.55G

液压气动用O形橡胶密封圈

O-SEAL RING

1

2014-04_

9.4

JB/T 7940.1-M10X1

油杯

OIL CUP

1

2014-04_

9.5

TD800.311C.1-01

油杯防尘帽

DUSTPROOF CAP OF OIL CUP

1

2014-04_

9.5

TD800.311C.1-01

油杯防尘帽

DUSTPROOF CAP OF OIL CUP

1

2014-04_

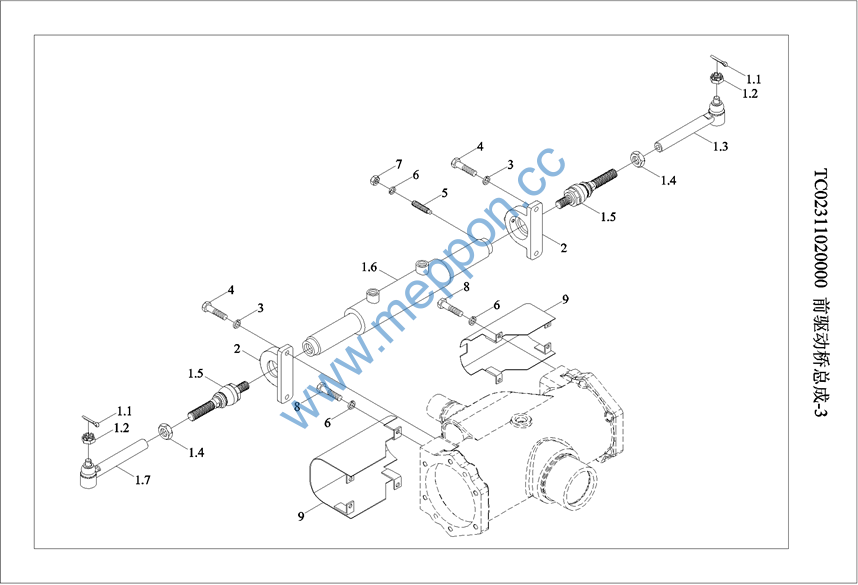

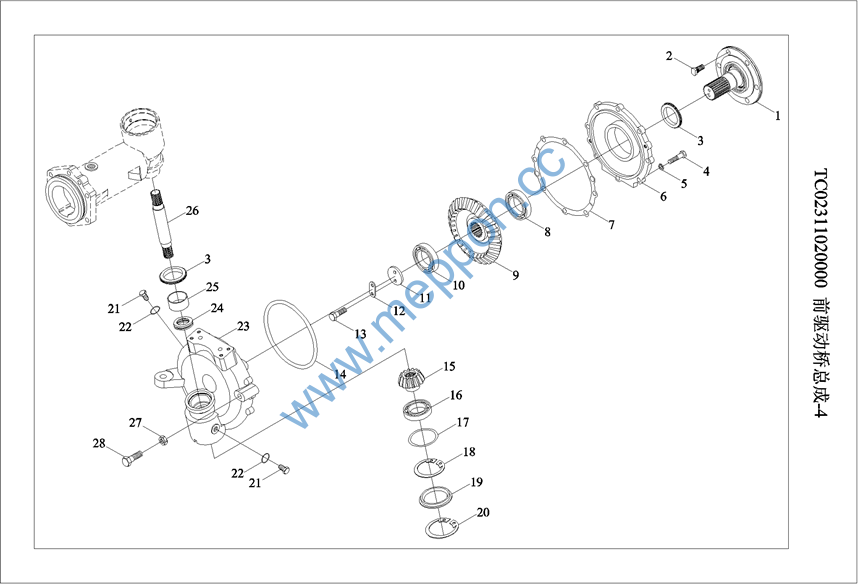

TC02311020000-3 31.3-前驱动桥总成 FRONT DRIVING AXLE ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1.1

GBT91-3.2X40-A0P

开口销

PIN

2

2014-04_

1.2

TC02311010075

六角开槽螺母

HEXAGON SLOTTED NUT

2

2014-04_

1.4

GBT6173-M22X1.5-05-A3L

六角薄螺母

NUT

2



3

GBT93-12-A0P

弹簧垫圈

SPRING WASHER

24

2014-04_

4

GBT5783-M12X35-10.9-A3L

六角头螺栓

BOLT

4

2014-04_

6

GBT93-8-A0P

垫圈

WASHER

10

2014-04_

7

GBT6170-M8-8-A2L

Ⅰ型六角螺母

I-TYPE HEXAGON NUT

2

2014-04_

8

GBT5783-M8X16-8.8-A2L

六角头螺栓

BOLT

8

2014-04_
