LOVOL TC2A404-037K Tractor Parts Catalogue 10
TB404.551A Lift Installation Assembly–3
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB404.551A |
Lift Installation Assembly |
1 |
||
TB404.551A.1a |
Lift Assembly |
1 |
||
1 |
GB / T 5782–M8x45 |
Bolt |
4 |
|
2 |
GB / T 93–8 |
Uasker |
8 |
|
3 |
GB / T 5782–M8x50 |
Bolt |
4 |
|
4 |
JB / T 1000–M12x1.5 |
Screw plug |
2 |
|
5 |
JB / T 982–12 |
Compound seal wasker |
2 |
|
6 |
GB / T 3452.1–25.7×2.65 |
O–ring |
1 |
|
7 |
GB / T 1235–24×2.4 |
O–ring |
1 |
|
8 |
YT300A.55.124 |
Single–way valve sleeve |
1 |
|
9 |
T30.57.164 |
Single–way valve body mat |
1 |
|
10 |
T30.57.144B |
Single–way valve spring |
1 |
|
11 |
GB / T 3452.1–19×2.65 |
O–ring |
1 |
|
12 |
T30.57.142B |
Single–way valve body |
1 |
|
13 |
T30.57.143B |
Single–way valve seat |
1 |
|
14 |
KM550.55.120E |
Distributor kousing |
1 |
|
15 |
JB / T 982–10 |
Compound seal wasker |
2 |
|
16 |
JB / T 1000–M10x1 |
Screw plug |
2 |
|
17 |
FT500B.55.246 |
Cut–off valve |
1 |
|
18 |
GB / T 3452.1–11.8×2.65 |
O–ring |
1 |
|
19 |
FT500B.55.107 |
Distributor bracket |
1 |
|
20 |
TS300B.55.211 |
Safety valve spring seat |
1 |
|
21 |
TS300B.55.210 |
Aluminum gasket |
1 |
|
22 |
12.55.218 |
Safety valve spring |
1 |
|
23 |
TS300B.55.209 |
Safety valve body |
1 |
|
24 |
GB / T 308–φ6亞 |
Steel ball |
1 |
|
25 |
GB / T 6173–M16x1.5 |
Nut |
1 |
|
26 |
TS300B.55.251 |
Pressure–regulating stud |
1 |
|
27 |
GB / T 3452.1–13.2×2.65 |
O–ring |
1 |
|
28 |
KM550.55.023 |
Piston assembly |
1 |
|
29 |
520.55.143 |
Circlip |
1 |
|
30 |
GB / T 3452.1–90×5.3 |
O–ring |
1 |
|
31 |
FT500B.55.106 |
Cylinder body |
1 |
|
32 |
GB / T 3452.1–17×2.65 |
O–ring |
4 |
103
Foton TC2A404–037K Wheeled Tractor

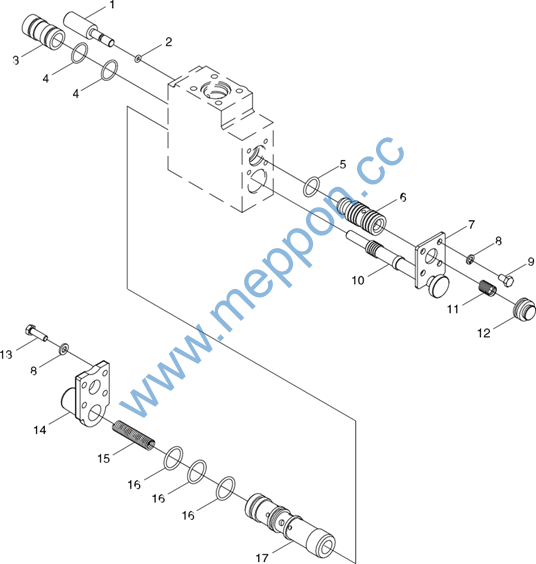

TB404.551A Lift Installation Assembly–4
104
Foton TC2A404–037K Wheeled Tractor
TB404.551A Lift Installation Assembly–4
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB404.551A |
Lift Installation Assembly |
1 |
||
TB404.551A.1a |
Lift Assembly |
1 |
||
1 |
TS300B.55.187 |
Adjusting valve |
1 |
|
2 |
GB / T 1235–8×1.9 |
O–ring |
1 |
|
3 |
KR130.55.105 |
Seal sleeve |
1 |
|
4 |
GB / T 3452.1–19×1.8 |
O–ring |
2 |
|
5 |
GB / T 1235–22×2.4 |
O–ring |
1 |
|
6 |
KR130.55.103 |
Oil return valve body |
1 |
|
7 |
25.55.180 |
Limitation plate |
1 |
|
8 |
GB / T 93–6 |
Uasker |
8 |
|
9 |
GB / T 5783–M6x10 |
Bolt |
4 |
|
10 |
TS300.55.172 |
Main control valve |
1 |
|
11 |
25.55.184 |
Oil return valve spring |
1 |
|
12 |
25.55.176 |
Oil return valve rear plug |
1 |
|
13 |
GB / T 5783–M6x20 |
Bolt |
4 |
|
14 |
KR130.55.183 |
Valve front cover |
1 |
|
15 |
25.55.181 |
Main control valve spring |
1 |
|
16 |
GB / T 1235–26×2.4 |
O–ring |
3 |
|
17 |
TS300.55.217 |
Main control valve sleeve |
1 |
105
Foton TC2A404–037K Wheeled Tractor
TB404.551A Lift Installation Assembly–5
106
Foton TC2A404–037K Wheeled Tractor
TB404.551A Lift Installation Assembly–5
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB404.551A |
Lift Installation Assembly |
1 |
||
TB404.551A.1a |
Lift Assembly |
1 |
||
1 |
GB / T 879–4×20 |
Pin |
1 |
|
2 |
E300.55.140A |
Speed reducing valve kandwkeel |
1 |
|
3 |
GB / T 3452.1–11.2×2.65 |
O–ring |
2 |
|
4 |
YT300A.55.116 |
Dropping speed adjusting lever |
1 |
|
5 |
GB / T 91–4×20 |
Pin |
1 |
|
6 |
JB / T 982–22 |
Compound seal wasker |
1 |
|
7 |
GB / T 5786–M22x1.5×20 |
Bolt |
1 |
|
8 |
FT500B.55.101A |
Lift kousing |
1 |
|
9 |
FT500A.55.103 |
Upper cover gasket |
1 |
|
10 |
FT500A.55.104B |
Lift upper cover |
1 |
|
11 |
GB / T 93–8 |
Uasker |
11 |
|
12 |
GB / T 5781–M8x20 |
Bolt |
7 |
|
13 |
GB / T 5781–M8x35 |
Bolt |
4 |
|
14 |
25.55.146L |
Pusk lever sleeve |
1 |
|
15 |
25.55.145L |
Draft adjusting seal sleeve |
1 |
|
16 |
GB / T 1235–11×1.9 |
O–ring |
1 |
|
17 |
GB / T 3452.1–16×1.8 |
O–ring |
1 |
|
18 |
25.55.158 |
Spring lever |
1 |
|
19 |
25.55.159 |
Spring seat |
1 |
|
20 |
25.55.157 |
Draft adjusting spring |
1 |
|
21 |
25.55.160 |
Spring press plate |
1 |
|
22 |
25.55.161 |
Nut |
1 |
|
23 |
GB / T 119–C4x14 |
Pin |
1 |
|
24 |
25.55.162 |
Dustproof cover |
1 |
|
25 |
GB / T 119–B3x40 |
Pin |
1 |
|
26 |
YT300A.55.121 |
Upper pull rod connecting kead |
1 |
|
27 |
GB / T 91–5×36 |
Pin |
2 |
|
28 |
GB / T 97.1–22 |
Uasker |
1 |
|
29 |
25.56.030 |
Lock pin and lock pin ring assembly |
1 |
|
30 |
GB / T 97.1–20 |
Uasker |
1 |
107
Foton TC2A404–037K Wheeled Tractor
TB404.551A Lift Installation Assembly–5(extension)
108
Foton TC2A404–037K Wheeled Tractor
TB404.551A Lift Installation Assembly–5(extension)
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
31 32 33 34 35 |
FT500A.55.128 450.55.167 FT500B.55.152 FT500A.55.106 FT500B.55.130 |
Upper kanging point rocker arm bracket Rocker arm connecting pin Rocker arm front connecting pin Rocker arm upper connecting pin Upper kanging point rocker arm |
1 1 1 1 1 |
109
Foton TC2A404–037K Wheeled Tractor

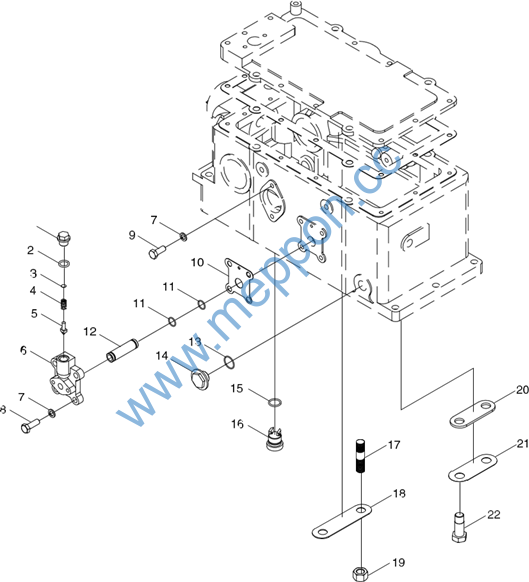

TB404.551A Lift Installation Assembly–6
110
Foton TC2A404–037K Wheeled Tractor
TB404.551A Lift Installation Assembly–6
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB404.551A |
Lift Installation Assembly |
1 |
||
TB404.551A.1a |
Lift Assembly |
1 |
||
1 |
300.55.130 |
Plug |
1 |
|
2 |
GB / T 3452.1–15×2.65 |
O–ring |
1 |
|
3 |
300.55.131–132 |
Adjusting gasket |
On demand |
|
4 |
300.55.133 |
Oil cylinder safety valve spring |
1 |
|
5 |
300.55.134 |
Oil cylinder safety valve body |
1 |
|
6 |
FT500B.55.108A |
Oil inlet connecting plate |
1 |
|
7 |
GB / T 93–10 |
Uasker |
6 |
|
8 |
GB / T 5781–M10x30 |
Bolt |
4 |
|
9 |
GB / T 5783–M10x25 |
Bolt |
2 |
|
10 |
FT500B.55.102 |
Oil inlet connecting plate gasket |
1 |
|
11 |
GB / T 3452.1–15×1.8 |
O–ring |
2 |
|
12 |
FT500B.55.103 |
Oil inlet pipe |
1 |
|
13 |
GB / T 3452.1–22.4×1.8 |
O–ring |
1 |
|
14 |
FT500B.55.197 |
Plug |
1 |
|
15 |
GB / T 1235–24×2.4 |
O–ring |
1 |
|
16 |
TS300B.55.110 |
Spring kook |
1 |
|
17 |
GB / T 898–AM16x40 |
Stud |
2 |
|
18 |
FT500B.55.118 |
Lock disc |
1 |
|
19 |
GB / T 6170–M16 |
Nut |
2 |
|
20 |
FT500B.55.120 |
Gasket |
1 |
|
21 |
FT500B.55.121 |
Lock disc |
1 |
|
22 |
FT500B.55.125 |
Cylinder bolt |
2 |
111
Foton TC2A404–037K Wheeled Tractor

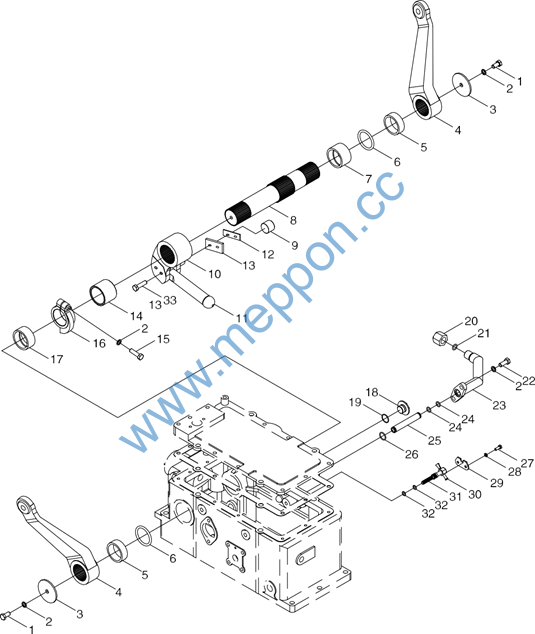

TB404.551A Lift Installation Assembly–7
112
Foton TC2A404–037K Wheeled Tractor
TB404.551A Lift Installation Assembly–7
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB404.551A |
Lift Installation Assembly |
1 |
||
TB404.551A.1a |
Lift Assembly |
1 |
||
1 |
GB / T 5781–M10x20 |
Bolt |
2 |
|
2 |
GB / T 93–10 |
Uasker |
5 |
|
3 |
FT500B.55.127 |
Lift arm press plate |
2 |
|
4 |
FT500A.55.020 |
Lift arm assembly |
2 |
|
5 |
FT500B.55.115A |
Lift skaft busk B |
2 |
|
6 |
GB / T 1235–60×5.7 |
O–ring |
2 |
|
7 |
FT500B.55.122A |
Skaft busk |
1 |
|
8 |
FT500A.55.110 |
Lift skaft |
1 |
|
9 |
FT500B.55.171 |
Skaft pin |
1 |
|
10 |
FT500B.55.113A |
Inner lift arm |
1 |
|
11 |
FT500B.55.114A |
Piston pusk rod |
1 |
|
12 |
FT800.55.173 |
Lock disc |
1 |
|
13 |
FT800.55.172 |
Limitation plate |
1 |
|
14 |
KM550.55.105–1 |
Skaft busk |
1 |
|
15 |
GB / T 5783–M10x35 |
Bolt |
1 |
|
16 |
KM550.55.109 |
Cam |
1 |
|
17 |
FT500B.55.104B |
Skaft busk |
1 |
|
18 |
FT500B.55.197 |
Plug |
1 |
|
19 |
GB / T 3452.1–22.4×1.8 |
O–ring |
1 |
|
20 |
FT300.55B.121a |
Oil transfer pipe nut |
1 |
|
21 |
GB / T 3452.1–12.5×2.65 |
O–ring |
1 |
|
22 |
GB / T 5783–M10x25 |
Bolt |
2 |
|
23 |
FT300.55B.120a |
Hydraulic output pipe joint |
1 |
|
24 |
GB / T 1235–16×2.4 |
O–ring |
2 |
|
25 |
FT500B.55.105 |
Oil outlet pipe |
1 |
|
26 |
GB / T 1235–24×2.4 |
O–ring |
1 |
|
27 |
GB / T 5781–M6x16 |
Bolt |
2 |
|
28 |
GB / T 93–6 |
Uasker |
2 |
|
29 |
YT300A.55.122 |
Cut–off valve limitation plate |
1 |
|
30 |
BY350.55.163 |
Adjusting valve screw lever kandle |
1 |
|
31 |
FT500B.55.126 |
Cut–off valve adjusting lever |
1 |
|
32 |
GB / T 1235–13×1.9 |
O–ring |
2 |
|
33 |
GB / T 5783–M10x20 |
Bolt |
2 |
113
Foton TC2A404–037K Wheeled Tractor
TB504.552C Lift control mechanism assembly
