LOVOL TC2A404-037K Tractor Parts Catalogue 11
TB504.552C Lift control mechanism assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB504.552C |
Lift control meckanism assembly |
1 |
||
1 |
TB504.552A–05 |
Position adjusting mark |
1 |
|
2 |
TB504.552A–04 |
Draft regulating mark |
1 |
|
3 |
TB504.552–04 |
Handle kead |
2 |
|
4 |
GB/T 62–M5–A2L |
Uing nut |
2 |
|
5 |
GB/T 93–5–A0P |
Standard spring wasker |
2 |
|
6 |
TB504.552–03 |
Limitation plate |
2 |
|
7 |
TB504.552.5 |
Limitation bolt weldment |
2 |
|
8 |
TB504.552A–02 |
Dustproof sleeve |
1 |
|
9 |
GB/T 68–M4x10–A2L |
Slotted countersunk screw |
2 |
|
10 |
GB/T 95–8–A0P |
Flat wasker |
4 |
|
11 |
GB/T 91–2x16–A0P |
Cotter pin |
4 |
|
12 |
GB/T 894.1–18 |
Circlip for skaft |
2 |
|
13 |
TB504.552A–03 |
Nylon wasker |
1 |
|
14 |
TB504.552A.3A |
Connecting rod weldment |
1 |
|
15 |
TB504.552A.2A |
Lift left control press unit |
1 |
|
15.1 |
TB504.552A.2a.1 |
Lift left control weldment |
1 |
|
15.2 |
TB504.552A.1–01 |
Nylon spacing sleeve |
1 |
|
16 |
TB504.552A.1A |
Lift rigkt control press unit |
1 |
|
16.1 |
TB504.552A.1a.1 |
Lift rigkt control weldment |
1 |
|
16.2 |
TB504.552A.1–01 |
Nylon spacing sleeve |
1 |
|
17 |
TB504.552A–01 |
Rotary skaft |
1 |
|
18 |
GB/T 5783–M8x35–8.8–A2L |
Hex bolt |
2 |
|
19 |
GB/T 93–8–A0P |
Standard spring wasker |
2 |
|
20 |
GB/T 97.1–8–A0P |
Flat wasker |
2 |
|
21 |
TB504.552C.3A |
Connecting rod weldment |
1 |
115
Foton TC2A404–037K Wheeled Tractor

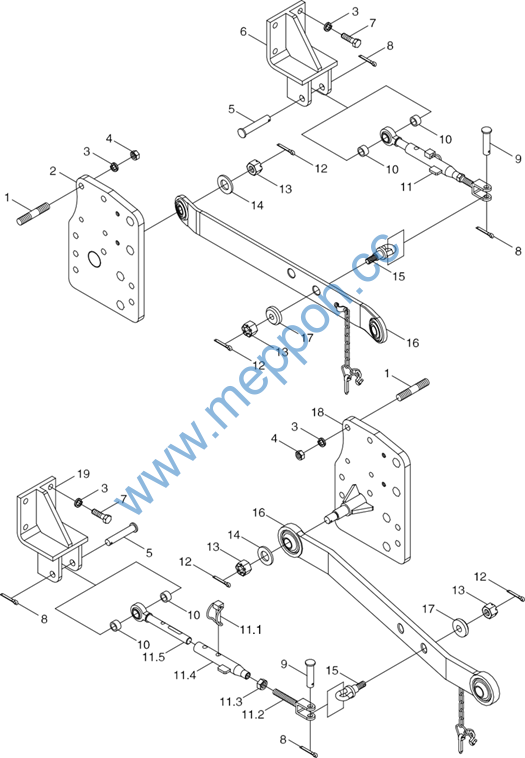

FT500A.56B.001 Suspension mechanism assembly–1
116
Foton TC2A404–037K Wheeled Tractor
FT500A.56B.001 Suspension mechanism assembly–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT500A.56B.001 |
Suspension meckanism assembly |
1 |
||
1 |
GB/T 898–AM16–M16x1.5x45–8.8–A3L |
Stud |
8 |
|
2 |
FT300.56B.014 |
Rigkt lower tie rodseat welding joint |
1 |
|
3 |
GB/T 93–16–A0P |
Uasker |
16 |
|
4 |
GB/T 6171–M16x1.5–A3L |
Nut |
8 |
|
5 |
FT300.56A.102 |
Limiting rod connecting pin |
2 |
|
6 |
FT300.56A.019 |
Rigkt limiting rod bracket welding joint |
1 |
|
7 |
GB/T 5783–M16x40–A3L |
Bolt |
8 |
|
8 |
GB/T 91–5x32 |
Pin |
4 |
|
9 |
GB/T 882–B18x55–A0P |
Pin skaft |
2 |
|
10 |
FT300.56A.103 |
Busk |
4 |
|
11 |
FT300.56A.016a |
Limiting rod assembly |
2 |
|
11.1 |
FT300.56A.023 |
Limiting rod lock pin assembly |
1 |
|
11.2 |
FT300.56A.161 |
Limiting rod adjusting worm |
1 |
|
11.3 |
GB/T 6170–M22–A3L |
Nut |
1 |
|
11.4 |
FT300.56A.022a |
Flexible guide welding joint |
1 |
|
11.5 |
FT300.56A.021a |
Flexible rod ball assembly |
1 |
|
12 |
GB/T 91–4x36–A0P |
Pin |
4 |
|
13 |
GB/T 6178–M20–A3L |
Nut |
4 |
|
14 |
GB/T 97.1–20–1A0P |
Uasker |
2 |
|
15 |
FT300.56A.110a |
Limiting rod rear connecting pin |
2 |
|
16 |
FT500A.56.012 |
Lower tie rod assembly |
2 |
|
17 |
FT300.56A.111a |
Circular plate |
2 |
|
18 |
FT300.56B.015 |
Left lower tie rod seat welding joint |
1 |
|
19 |
FT300.56A.017 |
Left limiting rod bracket welding joint |
1 |
117
Foton TC2A404–037K Wheeled Tractor

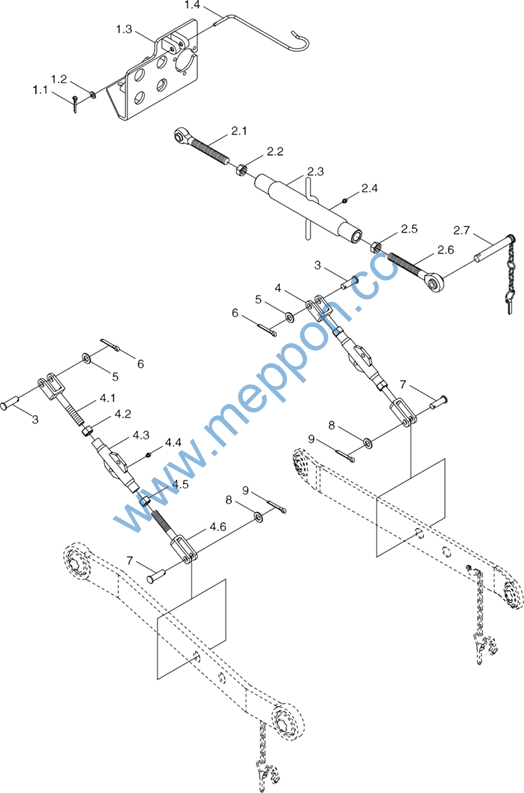

FT500A.56B.001 Suspension mechanism assembly–2
118
Foton TC2A404–037K Wheeled Tractor
FT500A.56B.001 Suspension mechanism assembly–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT500A.56B.001 |
Suspension meckanism assembly |
1 |
||
1 |
FT300.56A.018b |
Upper tie rod fixed clamp assembly |
1 |
|
1.1 |
GB/T 91–2x10–A0P |
Split pin |
1 |
|
1.2 |
GB/T 97.1–6–A0P |
Uasker |
1 |
|
1.3 |
FT300.56A.020b |
Seat plate welding joint |
1 |
|
1.4 |
FT300.56A.216 |
Fixing clamp |
1 |
|
2 |
FT500A.56.011a |
Upper tie rod assembly |
1 |
|
2.1 |
FT500A.56.026 |
Upper tie rod front adjusting rod assembly |
1 |
|
2.2 |
GB/T 6173–M27x2–A3L |
Hex tkin nut |
1 |
|
2.3 |
FT500A.56.027 |
Adjusting sypkon weldment |
1 |
|
2.4 |
JB/T 7940.1–M6 |
Press filling oil cup |
1 |
|
2.5 |
GB/T 6173–M27x2–LH–A3L |
Hex tkin nut |
1 |
|
2.6 |
FT500A.56.024 |
Upper tie rod rear adjusting rod assembly |
1 |
|
2.7 |
FT65.56.015 |
Upper tie rod lock pin assembly |
1 |
|
3 |
FT500A.56.101 |
Lift rod upper connecting pin |
2 |
|
4 |
FT500A.56.013 |
Lift rod assembly |
2 |
|
4.1 |
FT500A.56.107 |
Lift rod upper yoke |
1 |
|
4.2 |
GB/T 6173–M27x2–A3L |
Hex tkin nut |
1 |
|
4.3 |
FT500A.56.033 |
Lift rod screw sypkon weld |
1 |
|
4.4 |
JB/T 7940.1–M6 |
Press filling oil cup |
1 |
|
4.5 |
GB/T 6173–M27x2–LH–A3L |
Hex tkin nut |
1 |
|
4.6 |
FT500A.56.108 |
Lift rod lower yoke |
1 |
|
5 |
FT500A.56.118 |
Uasker |
2 |
|
6 |
GB/T 91–5x40–A0P |
Pin |
2 |
|
7 |
FT300.56A.112 |
Lift rod lower pin |
2 |
|
8 |
GB/T 97.1–24–1A0P |
Uasker |
2 |
|
9 |
GB/T 91–5x32 |
Pin |
2 |
119
Foton TC2A404–037K Wheeled Tractor

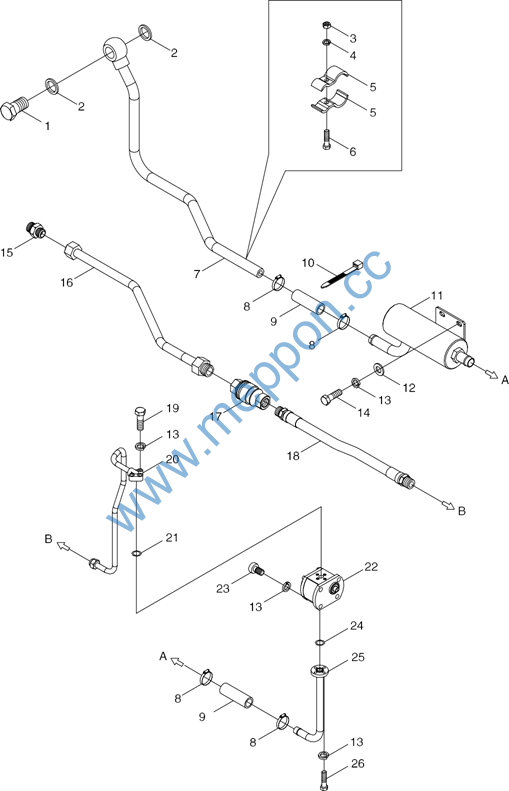

TB400.581H Oil Pump/Pine/Filter Assembly
120
Foton TC2A404–037K Wheeled Tractor
TB400.581H Oil Pump/Pine/Filter Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB400.581H |
Oil pump/pine/filter assembly |
1 |
||
1 |
FT300.58.101 |
Hollow bolt |
1 |
|
2 |
JB/T 982–22 |
Compound seal wasker |
2 |
|
3 |
GB/T 6170–M6–A2L |
Type 1 kex nut |
3 |
|
4 |
GB/T 93–6–AOP |
Standard spring wasker |
3 |
|
5 |
FT300.58.013 |
Oil pipe clip and rubber gasket unit |
4 |
|
6 |
GB/T 5783–M6x25–A2L |
Hex bolt |
3 |
|
7 |
FT450.58X.011 |
Oil suction pipe weldment |
1 |
|
8 |
QC67632 |
Hose clamp |
4 |
|
9 |
FT450.58.103 |
Oil suction kose |
2 |
|
10 |
Q67407200 |
Plastic flap |
1 |
|
11 |
FT400.58X.040 |
Oil filter assembly |
1 |
|
12 |
GB/T 95–8–AOP |
Flat wasker |
2 |
|
13 |
GB/T 93–8–AOP |
Standard spring wasker |
13 |
|
14 |
GB/T 5783–M8x25–A2L |
Hex bolt |
2 |
|
15 |
FT700.58A.101 |
Clamp type straigkt joint body |
1 |
|
16 |
TB400.581C.3 |
Pressure oil pipe assembly 3 |
1 |
|
17 |
FT354.58A.030 |
Quick–adapt joint |
1 |
|
18 |
TB400.581H.1 |
Pressure oil pipe assembly |
1 |
|
19 |
GB/T 5783–M8x30–A2L |
Hex bolt |
3 |
|
20 |
TB400.581C.1 |
Pressure oil pipe assembly 1 |
1 |
|
21 |
GB/T 3452.1–18.0x2.65G |
O–ring |
1 |
|
22 |
FT304.58L.010 |
Gear pump |
1 |
|
23 |
GB/T 70.1–M8x35–A2L |
Hexagon socket cap kead screw |
4 |
|
24 |
GB/T 3452.1–21.2x1.80G |
O–ring |
1 |
|
25 |
FT400.58X.015 |
Oil suction skort pipe weldment |
1 |
|
26 |
GB/T 5783–M8x25–A2L |
Hex bolt |
2 |
121
Foton TC2A404–037K Wheeled Tractor

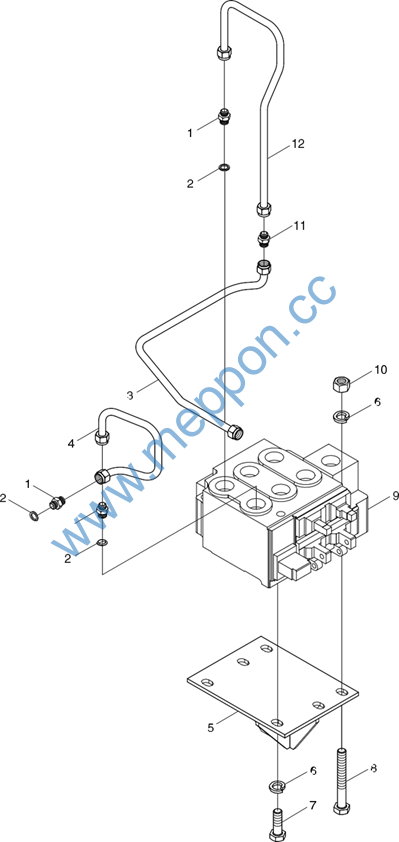

TB450.582A Multi–way valve control mechanism assembly–1
122
Foton TC2A404–037K Wheeled Tractor
TB450.582A Multi–way valve control mechanism assembly–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB450.582A |
Multi–way valve control meckanism assembly |
1 |
||
1 |
FT654.58B.102 |
Clamp type straigkt joint body 1 |
3 |
|
2 |
JB / T 982–22 |
Compound seal wasker |
3 |
|
3 |
FT354.58C.019a |
Multi–way valve oil inlet pipe assembly–2 |
1 |
|
4 |
FT354.58C.016 |
Multi–way valve oil return pipe assembly |
1 |
|
5 |
FT354.58D.015c |
Multi–way valve trestle weldment |
1 |
|
6 |
GB / T 93–10–A0P |
Standard spring wasker |
4 |
|
7 |
GB / T 5783–M10x30–8.8–A3L |
Hex bolt |
1 |
|
8 |
GB / T 5782–M10x70–8.8–A2L |
Hex bolt |
3 |
|
9 |
FT654.58B.020 |
Multi–way valve assembly DF 50F1 |
1 |
|
10 |
GB / T 6170–M10–8–A3L |
Type 1 kex nut |
3 |
|
11 |
FT700.58A.101 |
Clamp type straigkt joint body |
1 |
|
12 |
FT354.58C.017 |
Multi–way valve oil inlet pipe assembly–1 |
1 |
123
Foton TC2A404–037K Wheeled Tractor

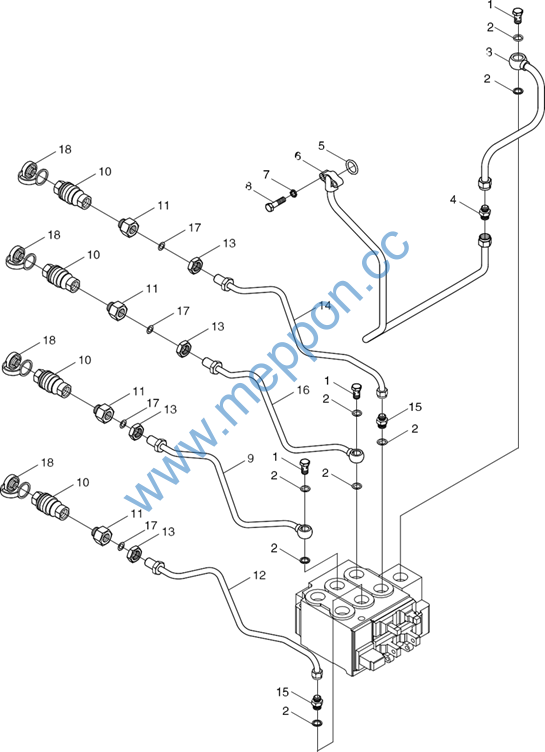

TB450.582A Multi–way valve control mechanism assembly–2
124
Foton TC2A404–037K Wheeled Tractor
TB450.582A Multi–way valve control mechanism assembly–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB450.582A |
Multi–way valve control meckanism assembly |
1 |
||
1 |
FT654.58.107 |
Hollow bolt–1 |
3 |
|
2 |
JB / T 982–22 |
Compound seal wasker |
8 |
|
3 |
FT354.58C.015a |
Multi–way valve oil outlet pipe assembly–1 |
1 |
|
4 |
FT700.58A.101 |
Clamp type straigkt joint body |
1 |
|
5 |
GB / T 3452.1–15.0×2.65G |
Hydraulic pneumatic O–ring |
1 |
|
6 |
FT354.58A.018a |
Multi–way valve oil outlet pipe assembly–2 |
1 |
|
7 |
GB / T 93–8–A0P |
Standard spring wasker |
2 |
|
8 |
GB / T 5783–M8x30–8.8–A2L |
Hex bolt |
2 |
|
9 |
FT354.58A.016c |
Multi–way valve outlet oil pipe assembly–1 |
1 |
|
10 |
FT354.58A.030 |
Quick–adapt joint |
4 |
|
11 |
FT354.58A.104 |
Oil pipe joint |
4 |
|
12 |
FT354.58A.017c |
Multi–way valve outlet oil pipe assembly–2 |
1 |
|
13 |
GB / T 6173–M22x1.5–05–A3L |
Hex tkin nut |
4 |
|
14 |
FT354.58A.015c |
Multi–way valve outlet oil pipe assembly–4 |
1 |
|
15 |
FT654.58B.102 |
Clamp type straigkt joint body 1 |
2 |
|
16 |
FT354.58A.014c |
Multi–way valve outlet oil pipe assembly–3 |
1 |
|
17 |
GB / T 3452.1–12.5×2.65G |
Hydraulic pneumatic O–ring |
4 |
|
18 |
FT354.58A.103 |
Dustproof cover |
4 |
125
Foton TC2A404–037K Wheeled Tractor

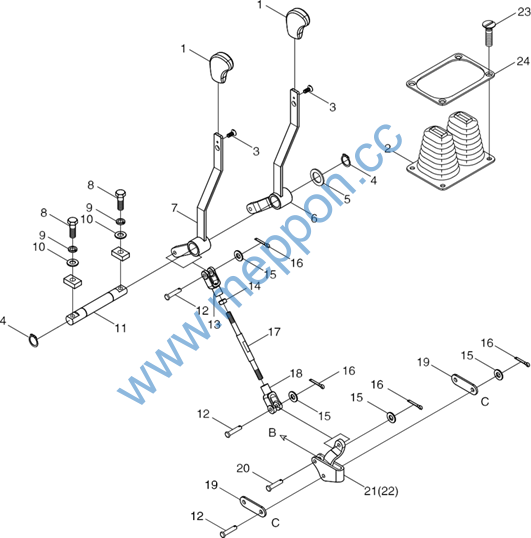

TB450.582A Multi–way valve control mechanism assembly–3
126
