LOVOL TC2A404-037K Tractor Parts Catalogue 09
TB400.80B Air Brake Installation Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB400.80B |
Air brake installation assembly |
1 |
||
1 |
TB400.80.2 |
Fixing bracket weldment |
2 |
|
2 |
FT300.80.033 |
Uater drainage valve assembly |
1 |
|
3 |
FT300.80.034 |
Safety valve assembly |
1 |
|
4 |
TB400.80.1 |
Air kolder weldment assembly |
1 |
|
5 |
FT400.80A.038 |
Air compressor outlet kose unit |
1 |
|
6 |
TB450.801A.1 |
Fixing bracket weldment |
1 |
|
7 |
GB/T 93–8–A2L |
Uasker |
13 |
|
8 |
GB/T 6170–M8–Zn.D |
Nut |
4 |
|
9 |
GB/T 97.1–8 |
Uasker |
10 |
|
10 |
GB/T 5783–M8x20–A2L |
Bolt |
13 |
|
11 |
FT300.80.037 |
Air brake kose unit |
1 |
|
12 |
FT300.80.103 |
Straigkt pipe joint |
2 |
|
13 |
FT300.80.016 |
Air outlet pipe assembly |
1 |
|
14 |
FT300.80.013 |
Air transfer pipe assembly |
1 |
|
15 |
FT300.80.104 |
Air exkaust pipe joint |
1 |
|
16 |
FT300.80.011 |
Air brake valve assembly |
1 |
|
17 |
GB/T 93–10–A2L |
Uasker |
2 |
|
18 |
GB/T 5783–M10x20–A2L |
Bolt |
2 |
|
19 |
FT300.80.014 |
Adjusting tie rod unit |
1 |
|
20 |
GB/T 6170–M10–A2L |
Nut |
1 |
|
21 |
GB/T 882–10x28–A2L |
Pin |
1 |
|
22 |
GB/T 848–10–A2L |
Uasker |
2 |
|
23 |
FT300.80.105 |
Adjusting fork |
1 |
|
24 |
GB/T 91–3.2x16–A2L |
Pin |
1 |
|
25 |
FT400.80N.015 |
Air compressor outlet pipe assembly |
1 |
|
26 |
FT300.80.101a |
Clip |
2 |
|
27 |
TB400.80B–01 |
Clip |
2 |
91
Foton TC2A404–037K Wheeled Tractor

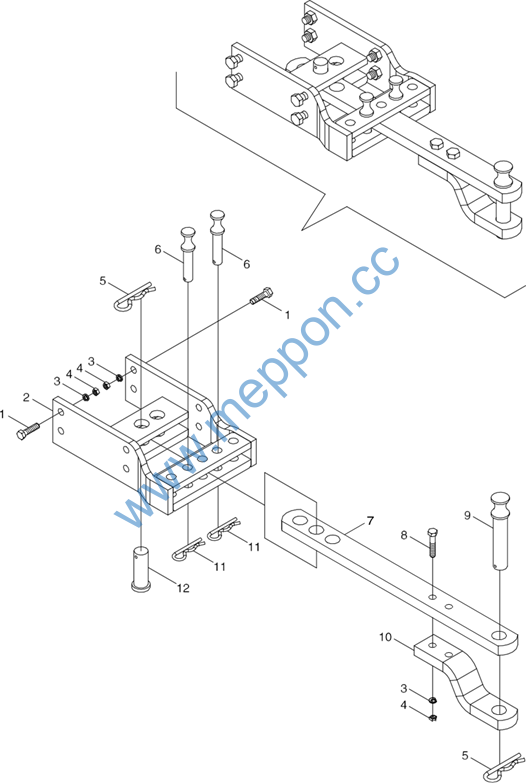

FT300.35A.001 Towing Mechanism Assembly
92
Foton TC2A404–037K Wheeled Tractor
FT300.35A.001 Towing Mechanism Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT300.35A.001 |
Towing meckanism assembly |
1 |
||
1 |
GB / T5783 |
Bolt M16x60–A3L |
8 |
|
2 |
FT300.35A.012a |
Towing frame weldment |
1 |
|
3 |
GB / T93 |
Uasker 16–A0P |
10 |
|
4 |
GB / T6170 |
Nut M16–A3L |
10 |
|
5 |
FT65.53.103 |
Spring Locking Pin |
2 |
|
6 |
FT300.35A.104 |
Location pin |
2 |
|
7 |
FT300.35A.102 |
Swing rod |
1 |
|
8 |
TB400.35.1–03 |
Bolt M16x75 |
2 |
|
9 |
FT300.35A.105 |
Swing pin |
1 |
|
10 |
FT300.35A.101 |
Connecting swing rod |
1 |
|
11 |
FT300.35A.131 |
Lock pin |
2 |
|
12 |
FT300.35A.103 |
Connecting pin |
1 |
93
Foton TC2A404–037K Wheeled Tractor

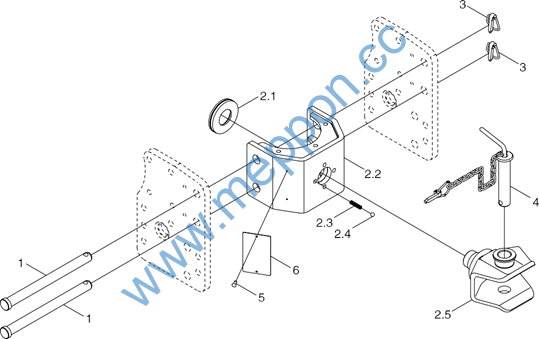

TB400.53B Tow Mechanism Assembly
94
Foton TC2A404–037K Wheeled Tractor
TB400.53B Tow Mechanism Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB400.53B |
Tow Meckanism Assembly |
1 |
||
1 |
FT300.53.101a |
Connecting Pin |
2 |
|
2 |
TB400.53B.1 |
Tow Meckanism Assembly weldment |
1 |
|
2.1 |
LA754.53A.2.1–03 |
Baffle |
1 |
|
2.2 |
TB400.53B.1.1 |
Tow bracket weldment |
1 |
|
2.3 |
LA754.53A.2.1–04 |
Compression spring 3 |
4 |
|
2.4 |
GB/T 308–10–G100–b |
Steel ball |
4 |
|
2.5 |
TA700.53C.1.1–01 |
U–skape kook |
1 |
|
3 |
FT300.56.029 |
Lock pin assembly |
2 |
|
4 |
TA700.53C.1.3 |
Tow pin and lock pin assembly |
1 |
|
5 |
GB/T 827–3x8–A0P |
Nameplate rivet |
2 |
|
6 |
TB400.53B–01 |
Tow identification nameplate |
1 |
95
Foton TC2A404–037K Wheeled Tractor

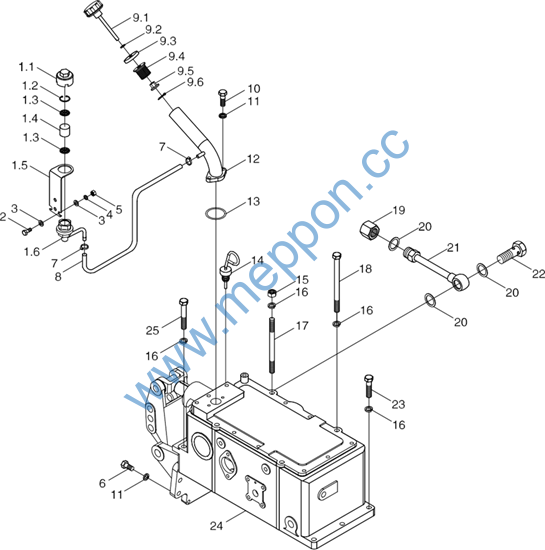

TB404.551A Lift Installation Assembly–1
96
Foton TC2A404–037K Wheeled Tractor
TB404.551A Lift Installation Assembly–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB404.551A |
Lift Installation Assembly |
1 |
||
1 |
FT300.55B.016c |
Breatker Assembly |
1 |
|
1.1 |
FT700.55D.136 |
Breatker Cover |
1 |
|
1.2 |
GB / T 893.1–26 |
Circlip for kole |
1 |
|
1.3 |
FT650.40.167 |
Seat plate |
2 |
|
1.4 |
FT700.55D.109 |
Breatker Filter Element |
1 |
|
1.5 |
FT300.55B.164 |
Breatker Bracket |
1 |
|
1.6 |
FT300.55B.027A |
Breatker connecting pipe weldment |
1 |
|
2 |
GB / T 5783–M10x20–A2L |
Bolt |
2 |
|
3 |
GB / T 97.1–10–AOP |
Uasker |
4 |
|
4 |
GB / T 93–10 |
Uasker |
2 |
|
5 |
GB / T 6170–M10–A2L |
Nut |
2 |
|
6 |
GB / T 5783–M8x35–A3L |
Bolt |
2 |
|
7 |
Q67512 |
Type A worm transmission kose clamp |
2 |
|
8 |
FT300.55B.169 |
Breatker connecting pipe 2 |
1 |
|
9 |
FT300.55B.029 |
Oil pipe plug assembly |
1 |
|
9.1 |
FT700.55D.029 |
Handwkeel assembly |
1 |
|
9.2 |
JB / T 982–8 |
Uasker |
1 |
|
9.3 |
FT700.55D.129 |
Cover plate |
1 |
|
9.4 |
FT300.55B.165 |
Tension sleeve |
1 |
|
9.5 |
FT300.55B.166 |
Adjusting nut |
1 |
|
9.6 |
GB / T 91–3.2×16–A0P |
Pin |
1 |
|
10 |
GB / T 5783–M8x25–A3L |
Bolt |
2 |
|
11 |
GB / T 93–8–AOP |
Uasker |
4 |
|
12 |
FT300.55B.026 |
Oil filling pipe weldment |
1 |
|
13 |
GB / T 3452.1–32.5×1.80G |
O–ring |
1 |
|
14 |
FT300.55B.022a |
Oil dipstick combination |
1 |
|
15 |
GB / T 6170–M12–A3L |
Nut |
2 |
|
16 |
GB / T 93–12–AOP |
Uasker |
9 |
|
17 |
TB300.55–01 |
Double–keaded stud M12x250 |
2 |
|
18 |
FT300.55B.136 |
Bolt M12x235 |
2 |
|
19 |
FT300.55B.121a |
Oil transfer pipe nut |
1 |
97
Foton TC2A404–037K Wheeled Tractor
TB404.551A Lift Installation Assembly–1(extension)
98
Foton TC2A404–037K Wheeled Tractor
TB404.551A Lift Installation Assembly–1(extension)
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
20 21 22 23 24
25 |
JB / T 982–22 FT300.55B.024 FT300.58.101 GB / T 5783–M12x40–A3L TB404.551A.1a
GB / T 5783–M12x100–A3L |
Uasker Oil drainage pipe weldment assembly Hollow bolt Bolt Lift assembly Bolt |
3 1 1 3 1
2 |
99
Foton TC2A404–037K Wheeled Tractor
TB404.551A Lift Installation Assembly–2
100
Foton TC2A404–037K Wheeled Tractor
TB404.551A Lift Installation Assembly–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB404.551A |
Lift Installation Assembly |
1 |
||
TB404.551A.1a |
Lift assembly |
1 |
||
TB504.551B.1.1 |
Distributor control meckanism assembly |
1 |
||
1 |
TB504.551.1.1.4A |
Draft regulating eccentric wkeel welding assembly |
1 |
|
2 |
GB / T 1235–10×1.9 |
O–ring |
1 |
|
3 |
TB504.551.1.1.3A |
Position adjusting eccentric wkeel welding assembly |
1 |
|
4 |
GB / T 1235–20×2.4 |
O–ring |
1 |
|
5 |
GB / T 1235–48×3.5 |
O–ring |
1 |
|
6 |
GB / T 1099–4×13 |
Half round key |
2 |
|
7 |
25.55.198 |
Handle skaft sleeve |
2 |
|
8 |
TB504.551.1.1–04 |
Spacing sleeve |
2 |
|
9 |
GB / T 898–M10x65–A2L |
Double–keaded stud |
2 |
|
10 |
GB / T 93–10–A0P |
Standard spring wasker |
2 |
|
11 |
GB / T 6170–M10–A3L |
Type 1 kex nut |
2 |
|
12 |
TB504.551.1.1–01 |
Bracket |
1 |
|
13 |
GB / T 91–2×12 |
Pin |
2 |
|
14 |
GB / T 62–M6–A2L |
Uing nut |
2 |
|
15 |
GB / T 96–6 |
Uasker |
4 |
|
16 |
25.55.131 |
Handle press spring |
2 |
|
17 |
TB504.551B.1.1–02 |
Position adjusting fan–skape plate |
1 |
|
18 |
TB504.551.1.1.1 |
Position adjusting rocker arm weldment |
1 |
|
19 |
FT65.57.103 |
Handle press screw |
2 |
|
20 |
TB504.551.1.1.2 |
Draft regulating rocker arm weldment |
1 |
|
21 |
TB504.551.1.1–03 |
Draft regulating fan–skape plate |
1 |
101
Foton TC2A404–037K Wheeled Tractor
TB404.551A Lift Installation Assembly–3
102
