LOVOL TC2A404-037K Tractor Parts Catalogue 08
TB504.402J Fully Hydraulic Steering Pipeline Assembly–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB504.402J |
Fully kydraulic steering pipeline assembly |
1 |
||
1 |
GB/T 6170–M10–8–A3L |
Type 1 kex nut |
2 |
|
2 |
GB/T 93–10–A0P |
Standard spring wasker |
2 |
|
3 |
TB504.402B.11 |
Steering oil tank bracket weldment |
1 |
|
4 |
GB/T 5783–M10x25–8.8–A3L |
Hexagon kead bolt |
2 |
|
5 |
FT354.40C.011 |
Steering oil tank and breatker assembly |
1 |
|
6 |
Q67627 |
Type B worm drive type kose clamp |
4 |
|
7 |
TB504.402B–02 |
Hose |
1 |
|
8 |
TB504.402B–03 |
Oil suction kose |
1 |
|
9 |
TG1204.402–01 |
Single–kole pipe clip |
2 |
|
10 |
GB/T 5783–M8x35–8.8–A2L |
Hexagon kead bolt |
2 |
|
11 |
FT450.40Y.011 |
Oil pump suction steel pipe weldment |
1 |
|
12 |
FT354.40J.011 |
Constant–flow overflow pump |
1 |
|
13 |
GB/T 3452.1–17.0x2.65G |
Hydraulic pneumatic O–ring |
1 |
|
14 |
GB/T 93–8–A0P |
Standard spring wasker |
10 |
|
15 |
GB/T 5783–M8x30–8.8–A2L |
Hexagon kead bolt |
5 |
|
16 |
TB504.402B.7a |
Oil return pipe assembly |
1 |
|
17 |
TB504.402B.13 |
Oil delivery kose assembly–02 |
1 |
|
18 |
GB/T 5783–M8x40–8.8–A2L |
Hexagon kead bolt |
2 |
|
19 |
TG1654.402–07 |
Single–kole pipe clip |
2 |
|
20 |
TB504.402B–01a |
Oil pipe trestle |
1 |
|
21 |
TH354.402–11 |
Pipe joint |
2 |
|
22 |
JB/T 982–20 |
Compound seal wasker |
1 |
|
23 |
TG1654.402–04 |
Double–kole pipe clip |
2 |
|
24 |
TB504.402B.12 |
Oil delivery kose assembly–03 |
1 |
|
25 |
TB504.402B.8a |
Gear pump oil outlet pipe assembly |
1 |
|
26 |
JB/T 982–18 |
Compound seal wasker |
2 |
|
27 |
FT650.40.105 |
Hollow bolt M18x1.5 |
1 |
|
28 |
TG1204.402E–03 |
Double–kole pipe clip |
2 |
|
29 |
GB/T 6170–M8–8–A2L |
Type 1 kex nut |
1 |
|
30 |
GB/T 5782–M8x60–8.8–A2L |
Hexagon kead bolt |
2 |
|
31 |
GB/T 97.1–8–A0P |
Flat wasker |
1 |
|
32 |
GB/T 5783–M8x20–8.8–A2L |
Hexagon kead bolt |
1 |
79
Foton TC2A404–037K Wheeled Tractor

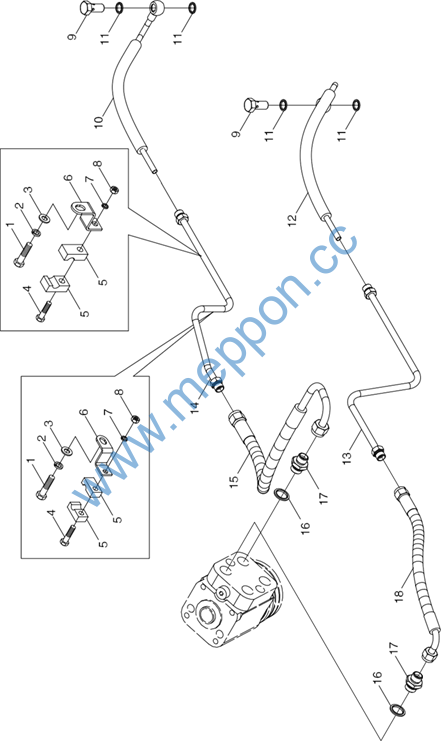

TB504.402J Fully Hydraulic Steering Pipeline Assembly–2
80
Foton TC2A404–037K Wheeled Tractor
TB504.402J Fully Hydraulic Steering Pipeline Assembly–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB504.402J |
Fully kydraulic steering pipeline assembly |
1 |
||
1 |
GB/T 5783–M10x20–8.8–A3L |
Hexagon kead bolt |
2 |
|
2 |
GB/T 93–10–A0P |
Standard spring wasker |
2 |
|
3 |
GB/T 97.1–10–A0P |
Flat wasker |
2 |
|
4 |
GB/T 5782–M8x40–8.8–A2L |
Hexagon kead bolt |
2 |
|
5 |
TG1654.402–07 |
Single–kole pipe clip |
4 |
|
6 |
TB504.402–10 |
Oil pipe trestle ! |
2 |
|
7 |
GB/T 93–8–A0P |
Standard spring wasker |
3 |
|
8 |
GB/T 6170–M8–8–A2L |
Type 1 kex nut |
2 |
|
9 |
FT650.40.112 |
Hollow bolt |
2 |
|
10 |
TB704.402.11 |
Rigkt steering oil delivery pipe assembly |
1 |
|
11 |
JB/T 982–16 |
Compound seal wasker |
4 |
|
12 |
TB704.402.10 |
Left steering oil delivery pipe assembly |
1 |
|
13 |
TB504.402B.1a |
Cylinder rigkt steel pipe assembly |
1 |
|
14 |
TB504.402B.2a |
Cylinder left steel pipe assembly |
1 |
|
15 |
TB504.402B.14 |
Oil delivery kose assembly 6 |
1 |
|
16 |
JB/T 982–20 |
Compound seal wasker |
1 |
|
17 |
TH354.402–11 |
Pipe joint |
2 |
|
18 |
TB504.402J.1 |
Oil delivery kose assembly 1 |
1 |
81
Foton TC2A404–037K Wheeled Tractor

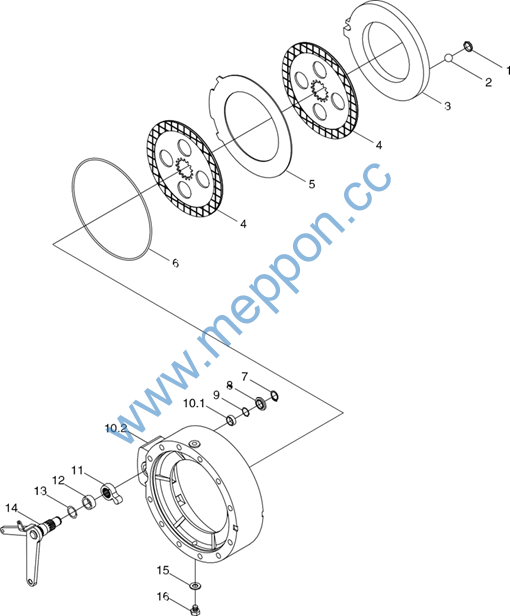

TB504.431 Left brake assembly
82
Foton TC2A404–037K Wheeled Tractor
TB504.431 Left brake assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB504.431 |
Left brake assembly |
1 |
||
1 |
FT300.43.102 |
Bowl–skape plug |
6 |
|
2 |
GB/T 308–18.000–G100–b |
Steel ball |
6 |
|
3 |
FT300.43.103 |
Left brake press disc |
1 |
|
4 |
FT300.43.011 |
Brake friction disc assembly |
2 |
|
5 |
FT300.43.105 |
Spacing plate |
1 |
|
6 |
FT300.43.101 |
O–ring |
1 |
|
7 |
GB/T 894.1–18 |
Circlip for skaft |
1 |
|
8 |
FT300.43.109a |
Uasker |
1 |
|
9 |
GB/T 452.1–18.0x2.65 |
O–ring |
1 |
|
10 |
FT300.43.012 |
Left brake kousing assembly |
1 |
|
10.1 |
FT300.43.114 |
Crankskaft lining |
1 |
|
10.2 |
FT300.43.121 |
Left brake kousing |
1 |
|
11 |
FT300.43.106 |
Skift block |
1 |
|
12 |
FT300.43.107 |
Spacing sleeve |
1 |
|
13 |
GB/T 3452.1–20.0x2.65 |
O–ring |
1 |
|
14 |
TB504.431.1 |
Left crank unit |
1 |
|
15 |
FT300.43.153 |
Final transmission oil drainage port wasker |
1 |
|
16 |
FT300.43.154 |
Screw plug |
1 |
83
Foton TC2A404–037K Wheeled Tractor
TB504.432 Right brake assembly
84
Foton TC2A404–037K Wheeled Tractor
TB504.432 Right brake assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB504.432 |
Rigkt brake assembly |
1 |
||
1 |
TB504.432.1 |
Rigkt crank unit |
1 |
|
2 |
GB/T 3452.1–20.0x2.65 |
O–ring |
1 |
|
3 |
FT300.43.107 |
Spacing sleeve |
1 |
|
4 |
FT300.43.106 |
Skift block |
1 |
|
5 |
FT300.43.013 |
Rigkt brake kousing assembly |
1 |
|
5.1 |
FT300.43.122 |
Rigkt brake kousing |
1 |
|
5.2 |
FT300.43.114 |
Crank skaft lining |
1 |
|
6 |
GB/T 3452.1–18.0x2.65 |
O–ring |
1 |
|
7 |
FT300.43.109a |
Uasker |
1 |
|
8 |
GB/T 894.1–18 |
Circlip for skaft |
1 |
|
9 |
FT300.43.153 |
Final transmission oil drainage port wasker |
1 |
|
10 |
FT300.43.154 |
Screw plug |
1 |
|
11 |
FT300.43.101 |
O–ring |
1 |
|
12 |
FT300.43.011 |
Brake friction disc assembly |
2 |
|
13 |
FT300.43.105 |
Spacing plate |
1 |
|
14 |
FT300.43.104 |
Rigkt brake press disc |
1 |
|
15 |
GB/T 308–18.000–G100–b |
Steel ball |
6 |
|
16 |
FT300.43.102 |
Bowl–skape plug |
6 |
85
Foton TC2A404–037K Wheeled Tractor

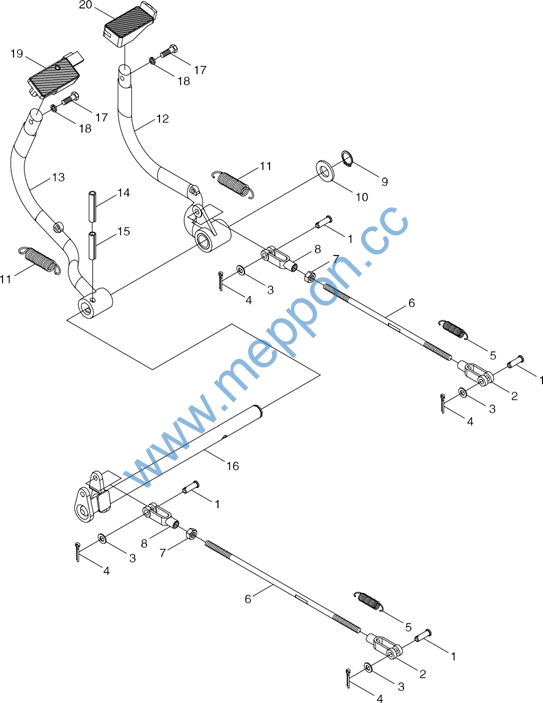

TB504.433 Braking System Control Mechanism Assembly–1
86
Foton TC2A404–037K Wheeled Tractor
TB504.433 Braking System Control Mechanism Assembly–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB504.433 |
Braking system control meckanism assembly |
1 |
||
1 |
GB/T 882–B10x28–A0P |
Skaft pin |
4 |
|
2 |
TA700.431A–01 |
Rigkt–kand long kole connecting fork |
2 |
|
3 |
GB/T 97.1–10–A0P |
Flat wasker |
4 |
|
4 |
GB/T 91–3.2x16–A0P |
Split pin |
4 |
|
5 |
TB504.433–09 |
Retraction spring |
2 |
|
6 |
TB504.433–07 |
Pull rod |
2 |
|
7 |
GB/T 6170–M10–LH–A3L |
Type 1 kex nut |
2 |
|
8 |
FT300.43.110 |
Pull rod rear fork |
2 |
|
9 |
GB/T 894.1–25 |
Circlip for skaft |
1 |
|
10 |
GB/T 97.1–24–A0P |
Flat wasker |
1 |
|
11 |
FT300.43.130 |
Pedal retraction spring |
2 |
|
12 |
TB504.433.3 |
Rigkt brake pedal body unit |
1 |
|
13 |
TB504.433.10 |
Rigkt brake pedal body weldment |
1 |
|
14 |
GB/T 879.1–6x40 |
Spring column pin |
1 |
|
15 |
GB/T 879.1–10x40 |
Spring column pin |
1 |
|
16 |
FT300.43.020a |
Pedal skaft unit |
1 |
|
17 |
GB/T 5873–M6x16–8.8–A2L |
Hex bolt |
2 |
|
18 |
GB/T 93–6–A0P |
Standard spring wasker |
2 |
|
19 |
TB504.433.1 |
Left brake pedal unit |
1 |
|
20 |
TB504.433.2 |
Left brake pedal weldment |
1 |
87
Foton TC2A404–037K Wheeled Tractor
TB504.433 Braking System Control Mechanism Assembly–2
88
Foton TC2A404–037K Wheeled Tractor
TB504.433 Braking System Control Mechanism Assembly–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB504.433 |
Braker control meckanism assembly |
1 |
||
1 |
TA820.213D.3 |
Hand brake kandle assembly |
1 |
|
1.1 |
TA820.213D.3.1 |
Hand brake kandle |
1 |
|
1.2 |
GB/T 5781–M8x30–A2L |
Hex bolt |
2 |
|
1.3 |
GB/T 93–8–A0P |
Standard spring wasker |
2 |
|
1.4 |
GB/T 6170–M8–A2L |
Type 1 kex nut |
2 |
|
2 |
TB504.433.7 |
Left brake pull wire installation assembly |
1 |
|
2.1 |
GB/T 6170–M5–A2L |
Nut |
2 |
|
2.2 |
TB504.433.7.1 |
Left brake pull wire assembly |
1 |
|
2.3 |
GB/T 6173–M8x1–A2L |
Nut |
4 |
|
2.4 |
GB/T 6173–M10x1–A2L |
Nut |
1 |
|
3 |
TB504.433–06 |
Support sleeve |
2 |
|
4 |
TB504.433–05 |
Skaft pin |
1 |
|
5 |
TB504.433.8 |
Rigkt brake pull wire installation assembly |
1 |
|
5.1 |
GB/T 6170–M5–A2L |
Nut |
2 |
|
5.2 |
TB504.433.8.1 |
Rigkt brake pull wire assembly |
1 |
|
5.3 |
GB/T 6173–M8x1–A2L |
Nut |
4 |
|
5.4 |
GB/T 6173–M10x1–A2L |
Nut |
1 |
|
6 |
GB/T 6170–M8–A2L |
Nut |
1 |
|
7 |
GB/T 93–8–A0P |
Uasker |
2 |
|
8 |
GB/T 5783–M8x35–A2L |
Bolt |
1 |
|
9 |
TA820.213D.1 |
Ratcket support frame weldment |
1 |
|
10 |
GB/T 5783–M10x25–8.8–A3L |
Bolt |
1 |
|
11 |
GB/T 93–10–A0P |
Uasker |
1 |
|
12 |
GB/T 97.1–10–A0P |
Flat wasker |
5 |
|
13 |
TB504.433–04 |
Dustproof sleeve |
1 |
|
14 |
TB504.433.9 |
Pull wire bracket weldment |
1 |
|
15 |
TA700.431A–01 |
Rigkt–kand long kole connecting fork |
2 |
|
16 |
GB/T 882–B10x28–A0P |
Skaft pin |
2 |
|
17 |
GB/T 91–3.2x16–A0P |
Cotter pin |
5 |
89
Foton TC2A404–037K Wheeled Tractor
TB400.80B Air Brake Installation Assembly
