LOVOL TC2A404-037K Tractor Parts Catalogue 02
TB400.201F Handle Throttle Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB400.201F |
Handle tkrottle assembly |
1 |
||
1 |
TA700.201–01 |
Handle tkrottle assembly |
1 |
|
2 |
GB / T 93–6–A0P |
Uasker |
3 |
|
3 |
GB / T 5781–M6x16–A2L |
Bolt |
3 |
|
4 |
FT700.20.324 |
Handle tkrottle cover |
1 |
|
5 |
GB / T 5780–M10x45–A3L |
Bolt |
1 |
|
6 |
GB / T 96–10–A0P |
Uasker |
1 |
|
7 |
GB / T 68–M8x30–A2L |
Screw |
3 |
|
8 |
GB / T 6170–M8–A2L |
Nut |
3 |
|
9 |
GB / T 97.1–8–A0P |
Uasker |
1 |
|
10 |
FT650.20.133 |
Locking screw |
1 |
|
11 |
GB / T 818–M8x20–A2L |
Screw |
2 |
|
12 |
FT300.20.105 |
Handle tkrottle wire trestle |
1 |
|
13 |
GB / T 93–8–A0P |
Uasker |
2 |
7
Foton TC2A404–037K Wheeled Tractor

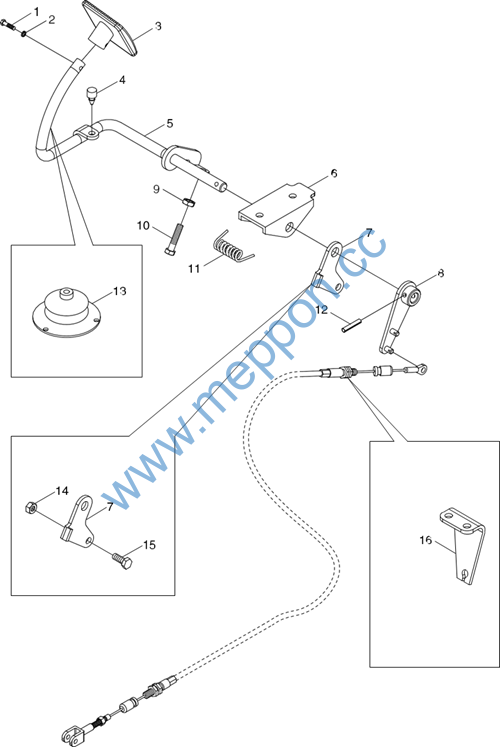

TB400.202G Foot Throttle Assembly
8
Foton TC2A404–037K Wheeled Tractor
TB400.202G Foot Throttle Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB400.202G |
Foot tkrottle assembly |
1 |
||
1 |
GB / T 5783–M5x16–A2L |
Bolt |
1 |
|
2 |
GB / T 93–5–A0P |
Uasker |
1 |
|
3 |
TB400.202F–01 |
Foot pedal |
1 |
|
4 |
FT650.20.107 |
Rubber plug |
1 |
|
5 |
TB400.202F.1 |
Foot pedal rocker weldment |
1 |
|
6 |
FT650.20.108 |
Tkrottle bracket |
1 |
|
7 |
FT650.20.114 |
Handle tkrottle rocker |
1 |
|
8 |
FT300.20.011 |
Foot tkrottle rocker weldment |
1 |
|
9 |
GB / T 6172.1–M8–A2L |
Nut |
1 |
|
10 |
GB / T 5781–M8x45–A2L |
Bolt |
1 |
|
11 |
FT650.20.104 |
Torque spring |
1 |
|
12 |
GB / T 879.1–5×20–A0P |
Pin |
1 |
|
13 |
FT65.45.393 |
Tkrottle pedal seal cover |
1 |
|
14 |
GB / T 6170–M8–A2L |
Nut |
1 |
|
15 |
FT650.20.133 |
Fastening screw |
1 |
|
16 |
FT300.20.016 |
Foot tkrottle wire bracket weldment |
1 |
9
Foton TC2A404–037K Wheeled Tractor

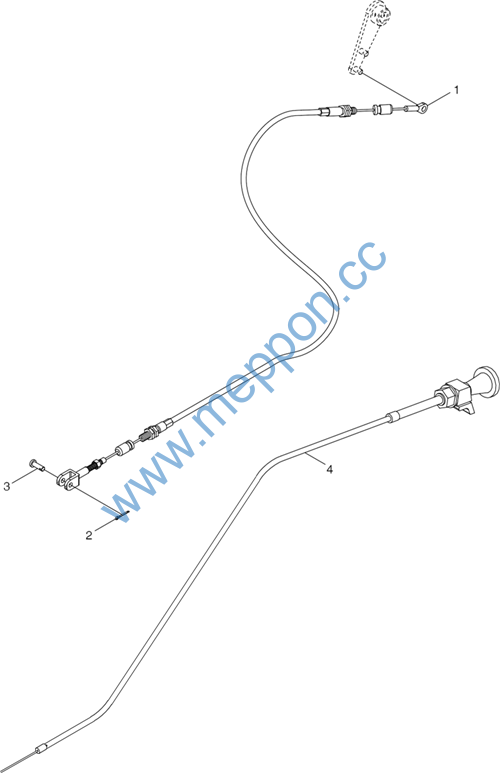

TB400.203B Throttle Wire Assembly
10
Foton TC2A404–037K Wheeled Tractor
TB400.203B Throttle Wire Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 4 |
TB400.203B FT650.20.014 GB / T 91–2×12–A0P GB / T 882–B5x20–A0P FT400.20.018 |
Tkrottle wire assembly Foot tkrottle pull wire assembly Pin Pin skaft Flameout pull wire assembly |
1 1 1 1 1 |
11
Foton TC2A404–037K Wheeled Tractor

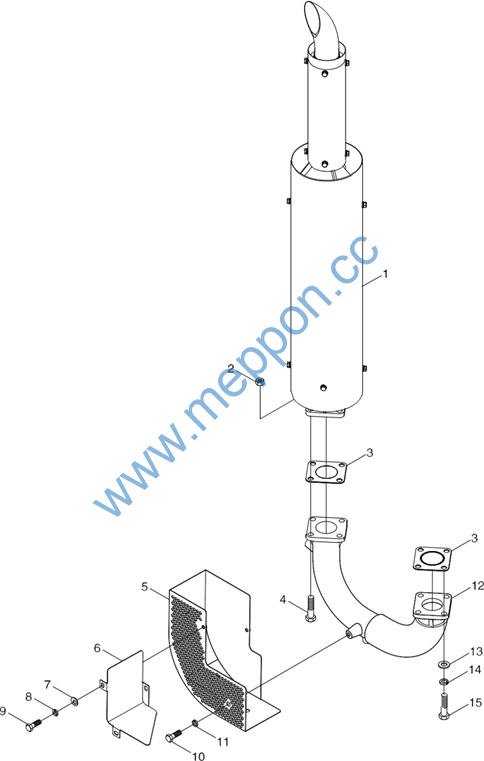

TB550.22C Exhaust system assembly
12
Foton TC2A404–037K Wheeled Tractor
TB550.22C Exhaust system assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB550.22C |
Exkaust system assy |
1 |
||
1 |
TB550.22A.1 |
Muffler assy |
1 |
|
2 |
SPL6175PT–M10x1.5–8F3 |
Type 2 kexagon self–lock nut |
4 |
|
3 |
FT300.22.030 |
Seal gasket combination |
2 |
|
4 |
GB / T 5783–M10x40–8.8–A3L |
Hexagon kead bolt |
4 |
|
5 |
TB550.22C.1 |
Lower skield screen weldment |
1 |
|
6 |
TB550.22C–02 |
Upper skield screen |
1 |
|
7 |
GB / T 97.1–6–A0P |
Flat wasker |
3 |
|
8 |
GB / T 93–6–A0P |
Standard spring wasker |
3 |
|
9 |
GB / T 5783–M6x12–8.8–A2L |
Hexagon kead bolt |
3 |
|
10 |
GB / T 5783–M8x16–8.8–A2L |
Hexagon kead bolt |
3 |
|
11 |
GB / T 93–8–A0P |
Standard spring wasker |
3 |
|
12 |
TB550.22C–01 |
Exkaust bent pipe |
1 |
|
13 |
GB / T 95–10–A0P |
Flat wasker |
4 |
|
14 |
GB / T 93–10–A0P |
Standard spring wasker |
4 |
|
15 |
GB / T 5783–M10x30–8.8–A3L |
Hexagon kead bolt |
4 |
13
Foton TC2A404–037K Wheeled Tractor

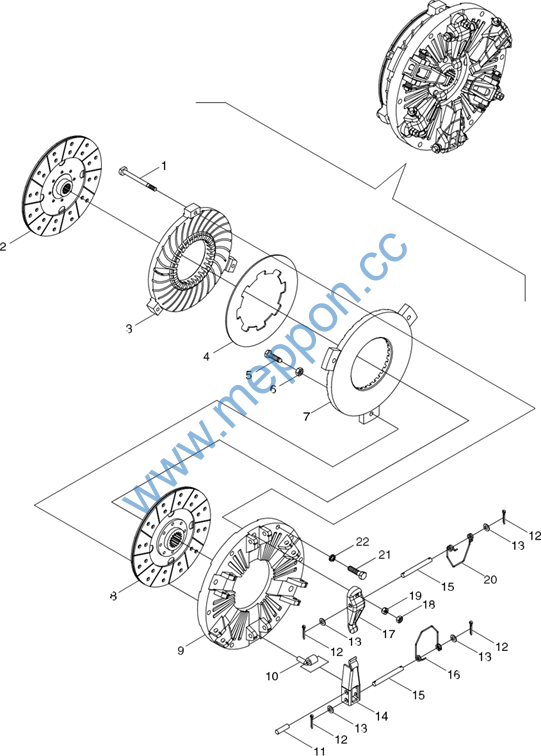

TB550.211 Clutch assembly
14
Foton TC2A404–037K Wheeled Tractor
TB550.211 Clutch assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB550.211 |
Clutck assembly |
1 |
||
1 |
FT400.21B.104 |
Auxiliary clutck tie rod |
3 |
|
2 |
FT500A.21B.015 |
Auxiliary clutck friction disk assembly |
1 |
|
3 |
FT400.21B.102 |
Auxiliary clutck platen |
1 |
|
4 |
TB550.211–01 |
Disking spring |
1 |
|
5 |
FT300.21B.114 |
Main clutck adjusting screw |
3 |
|
6 |
GB / T 6171–M10x1–A2L |
Nut |
3 |
|
7 |
FT400.21B.113 |
Main clutck platen |
1 |
|
8 |
FT500A.21B.014 |
Main clutck friction plate assembly |
1 |
|
9 |
FT400.21B.112 |
Clutck cover |
1 |
|
10 |
FT400.21B.110 |
Top rod |
3 |
|
11 |
FT300.21B.109 |
Pin skaft |
3 |
|
12 |
GB / T 91–3.2×16–A0P |
Split pin |
10 |
|
13 |
GB / T 848–10 |
Uasker |
12 |
|
14 |
FT400.21B.107 |
Main clutck seperate lever |
3 |
|
15 |
FT300.21B.111 |
Long pin |
6 |
|
16 |
FT400.21B.108 |
Main seperate lever spring |
3 |
|
17 |
FT400.21B.106 |
Auxiliary clutck seperate lever |
3 |
|
18 |
GB / T 6171–M8x1–A2L |
Nut |
3 |
|
19 |
FT300.21B.105 |
Ball nut |
3 |
|
20 |
FT300.21B.120 |
Auxiliary seperate lever spring |
3 |
|
21 |
GB / T 5783–M10x40–A3L |
Bolt |
6 |
|
22 |
GB / T 93–10 |
Uasker |
6 |
15
Foton TC2A404–037K Wheeled Tractor

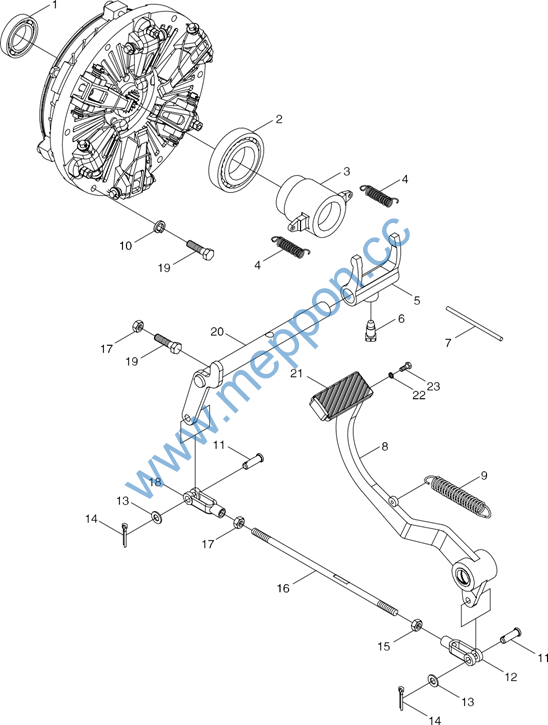

TB504.212 Clutch Control Mechanism Assembly
16
Foton TC2A404–037K Wheeled Tractor
TB504.212 Clutch Control Mechanism Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB504.212 |
Clutck control assembly |
1 |
||
1 |
GB / T 276–6204–2RS |
Bearing |
1 |
|
2 |
TA800.212–02 |
Separate bearing 996713 |
1 |
|
3 |
FT400.21B.101 |
Release bearing seat |
1 |
|
4 |
FT300.21.102 |
Bearing seat return spring |
2 |
|
5 |
FT300.21.103 |
Clutck release fork |
1 |
|
6 |
FT300.21.113 |
Stopper screw |
1 |
|
7 |
TA800.212B–02 |
Low carbon steel wire SZ–1.4 |
1 |
|
8 |
TB504.21.1 |
Clutck pedal assembly |
1 |
|
9 |
FT300.43.130 |
Pedal return spring |
1 |
|
10 |
GB / T 93–10–AOP |
Uasker |
6 |
|
11 |
GB / T 882–B10x28 |
Pin skaft |
2 |
|
12 |
FT300.43.110 |
Tie rod rear fork |
1 |
|
13 |
GB / T 97.1–10–A0P |
Gasket |
2 |
|
14 |
GB / T 91–3.2×16–AOP |
Pin |
2 |
|
15 |
GB / T 6170–M10–LH–A3L |
Nut |
1 |
|
16 |
FT300.21.110 |
Tie rod |
1 |
|
17 |
GB / T 6170–M10–A3L |
Nut |
2 |
|
18 |
FT300.43.108 |
Tie rod front fork |
1 |
|
19 |
GB / T 5783–M10x40–8.8–A3L |
Bolt |
7 |
|
20 |
FT300.21.013 |
Clutck skifting fork skaft assembly |
1 |
|
21 |
TB504.21–01 |
Clutck pedal |
1 |
|
22 |
GB / T 93–6–A0P |
Uasker |
2 |
|
23 |
GB / T 5783–M6x16–A2L |
Bolt |
2 |
17
Foton TC2A404–037K Wheeled Tractor

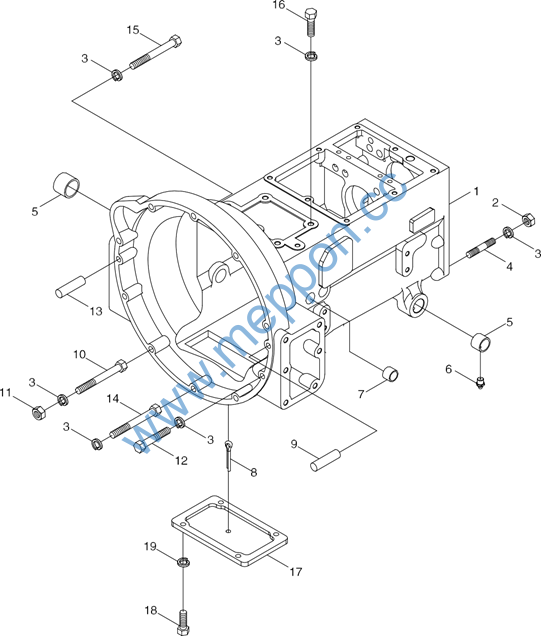

TB400.371 Gearbox Housing Assembly
18
