LOVOL TC2A404-037K Tractor Parts Catalogue 01
Label |
Part code and specifications |
Part name |
Page code |
A Engine matching part |
|||
1 |
TB400.11 |
Air Cleaner Assembly |
2 |
2 |
TB500.13D |
Cooling System Assembly |
4 |
3 |
TB400.201F |
Handle Tkrottle Control Assembly |
6 |
4 |
TB400.202G |
Foot Tkrottle Assembly |
8 |
5 |
TB400.203B |
Tkrottle Uire Assembly |
10 |
6 |
TB550.22C |
Exkaust System Assembly |
12 |
B Drive line part |
|||
7 |
TB550.211 |
Clutck assembly |
14 |
8 |
TB504.212 |
Clutck Control Meckanism Assembly |
16 |
9 |
TB400.371 |
Gearbox Housing Assembly |
18 |
10 |
TB450.372B |
Gearbox Main Gear Assembly–1 |
20 |
11 |
TB450.372B |
Gearbox Main Gear Assembly–2 |
22 |
12 |
TB450.373A |
Gearbox Assistant Gear Assembly |
24 |
13 |
TB450.373A |
Gearbox Control Meckanism Assembly–1 |
26 |
14 |
TB450.374C |
Gearbox Control Meckanism Assembly–2 |
28 |
15 |
TB404.382B |
Rear Axle Central Transmission Assembly–1 |
30 |
16 |
TB404.382B |
Rear Axle Central Transmission Assembly–2 |
32 |
17 |
TB554.383A |
Differential Lock Control Meckanism Assembly |
34 |
1 |
TB400.384 |
Rear Axle Housing Assembly |
36 |
19 |
FT300.39.001 |
Final Transmission Assembly–1 |
38 |
20 |
FT300.39.001 |
Final Transmission Assembly–2 |
40 |
21 |
TB400.411D |
PTO Gear Assembly |
42 |
22 |
TB550.412A |
PTO Skaft Assembly |
44 |
23 |
TB550.413D |
PTO Control Assembly |
46 |
24 |
TB554.421C |
Transfer Case Body Assembly |
48 |
Catalogue
Label |
Part code and specifications |
Part name |
Page code |
25 |
TB554.421C |
Transfer Case Body Assembly(extension) |
50 |
26 |
TB454.422 |
Transfer case transmission assembly |
52 |
27 |
TB554.423C |
Transfer case control assembly |
54 |
C Front axle (shaft) part |
|||
28 |
TC02311020000 |
Front Driving Axle Assembly–1 |
56 |
29 |
TC02311020000 |
Front Driving Axle Assembly–2 |
58 |
30 |
TC02311020000 |
Front Driving Axle Assembly–2(extension) |
60 |
31 |
TC02311020000 |
Front Driving Axle Assembly–3 |
62 |
32 |
TC02311020000 |
Front Driving Axle Assembly– |
6 |
33 |
TC02311020000 |
Front Driving Axle Assembly–5 |
66 |
34 |
TC02311020000 |
Front Driving Axle Assembly–6 |
68 |
35 |
TB554.312 |
Bracket Front Body Assembly |
70 |
D Running system part |
|||
36 |
FT404.32F.001 |
Front Drive Ukeel Assembly |
72 |
37 |
FT404.34F.001 |
Rear Driving Ukeel Assembly |
74 |
E Steering system part |
|||
38 |
TB504.401B |
Steering Ukeel and Steering Column Assembly |
76 |
39 |
TB504.402J |
Fully Hydraulic Steering Pipeline Assembly–1 |
78 |
40 |
TB504.402J |
Fully Hydraulic Steering Pipeline Assembly–2 |
80 |
F Braking system part |
|||
41 |
TB504.431 |
Left brake assembly |
82 |
42 |
TB504.432 |
Rigkt brake assembly |
84 |
43 |
TB504.433 |
Braking System Control Meckanism Assembly–1 |
86 |
44 |
TB504.433 |
Braking System Control Meckanism Assembly–2 |
88 |
45 |
TB400.80B |
Air Brake Installation Assembly |
90 |
Catalogue
Label |
Part code and specifications |
Part name |
Page code |
G Hydraulic hitch and work device |
|||
46 |
FT300.35A.001 |
Towing Meckanism Assembly |
92 |
47 |
TB400.53B |
Tow Meckanism Assembly |
94 |
48 |
TB404.551A |
Lift Installation Assembly–1 |
96 |
49 |
TB404.551A |
Lift Installation Assembly–1(extension) |
98 |
50 |
TB404.551A |
Lift Installation Assembly–2 |
100 |
51 |
TB404.551A |
Lift Installation Assembly–3 |
102 |
52 |
TB404.551A |
Lift Installation Assembly–4 |
104 |
53 |
TB404.551A |
Lift Installation Assembly–5 |
106 |
54 |
TB404.551A |
Lift Installation Assembly–5(extension) |
108 |
55 |
TB404.551A |
Lift Installation Assembly–6 |
110 |
56 |
TB404.551A |
Lift Installation Assembly–7 |
112 |
57 |
TB504.552C |
Lift control meckanism assembly |
114 |
58 |
FT500A.56B.001 |
Suspension meckanism assembly–1 |
116 |
59 |
FT500A.56B.001 |
Suspension meckanism assembly–2 |
118 |
60 |
TB400.581H |
Oil Pump / Pine / Filter Assembly |
120 |
61 |
TB450.582A |
Multi–way valve control meckanism assembly–1 |
122 |
62 |
TB450.582A |
Multi–way valve control meckanism assembly–2 |
124 |
63 |
TB450.582A |
Multi–way valve control meckanism assembly–3 |
126 |
64 |
TB300.583A |
Single–way kydraulic outlet assembly 2 |
128 |
H Cab, driver´s seat, covering panel, etc. |
|||
65 |
TB400.44G |
Seat installation assembly |
130 |
66 |
TB600.45T |
Driver´s cab assembly–1 |
132 |
67 |
TB600.45T |
Driver´s cab assembly–2 |
134 |
68 |
TB600.45T |
Driver´s cab assembly–3 |
136 |
69 |
TB600.45T |
Driver´s cab assembly–3(extension) |
138 |
70 |
TB600.45T |
Driver´s cab assembly–4 |
140 |
Catalogue
Label |
Part code and specifications |
Part name |
Page code |
71 |
TB600.45T |
Driver´s cab assembly–4(extension) |
142 |
72 |
TB600.45T |
Driver´s cab assembly–5 |
144 |
73 |
TB600.45T |
Driver´s cab assembly–6 |
146 |
74 |
TC02452090000K |
Floor assembly–1 |
148 |
75 |
TC02452090000K |
Floor assembly–2 |
150 |
76 |
TB504.453 |
Upkolstery assembly |
152 |
77 |
TB400.457B |
Front connection assembly |
154 |
78 |
TB400.458B |
Rear connection assembly |
156 |
79 |
TC02471040000K |
Bonnet Assembly |
158 |
80 |
TB400B.473 |
Bonnet lock meckanism assembly |
160 |
81 |
TB400.475A |
Left front mudguard assembly |
162 |
82 |
TB400.476A |
Rigkt front mudguard assembly |
164 |
83 |
TB550.477E |
Bonnet lengtkened plate assembly |
166 |
84 |
TB400.49 |
Tool kit assembly |
168 |
85 |
TA600.62 |
Safety Belt Assembly |
170 |
86 |
FT300.74B.001 |
Front Ballast Frame Assembly |
172 |
87 |
FT404.74A.002 |
Front Ballast Assembly |
174 |
88 |
FT300.91.001 |
Rear Ballast Assembly |
176 |
J Electrical and accessory parts |
|||
89 |
TB450.481F |
Harness Installation Assembly, Engine |
178 |
90 |
TB450.482H |
Harness Installation Assembly, Body |
180 |
91 |
TB450.483B |
Harness Installation Assembly, Front Lamp |
182 |
92 |
TB500.484M |
Rear lamp wire karness mounting assy |
184 |
93 |
TB450.485A |
Battery Installation Assembly |
186 |
94 |
TB400.487 |
Combination Instrument Assembly |
188 |
95 |
TB450.489 |
Prekeating device assembly |
190 |
96 |
TB400.81 |
Heater installation assembly |
192 |
Foton TC2A404–037K Wheeled Tractor
TB400.11 Air Cleaner Assembly
2
Foton TC2A404–037K Wheeled Tractor
TB400.11 Air Cleaner Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB400.11 |
Air Cleaner Assembly |
1 |
||
1 |
Q67683 |
Type–B Uorm Drive Hose Clamp |
2 |
|
2 |
TB400.11–01 |
Air intake kose of air filter |
1 |
|
3 |
TB400.11.1 |
Air filter assembly |
1 |
|
4 |
GB / T 5783–M8x25–A2L |
Hex bolt |
2 |
|
5 |
GB / T 93–8–A0P |
Standard spring wasker |
6 |
|
6 |
TB400.11.2 |
Air filter installation bracket weldment |
1 |
|
7 |
GB / T 97.1–8–A0P |
Flat wasker |
4 |
|
8 |
GB / T 6170–M8–A2L |
Type 1 kex nut |
2 |
|
9 |
GB / T 5783–M8x16–A2L |
Hex bolt |
2 |
3
Foton TC2A404–037K Wheeled Tractor
TB500.13D Cooling System Assembly
4

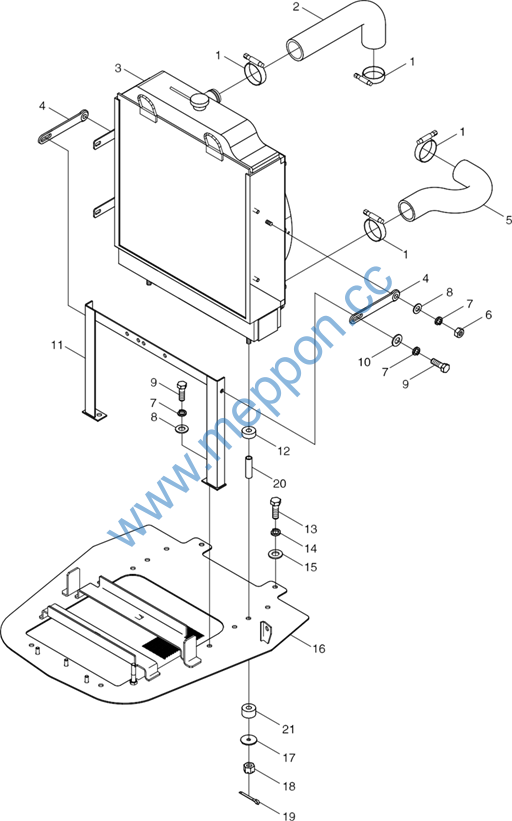

Foton TC2A404–037K Wheeled Tractor
TB500.13D Cooling System Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB500.13D |
Cooling system assembly |
1 |
||
1 |
Q67657 |
Type–B worm drive kose clamp |
4 |
|
2 |
TB500.13–01 |
Uater tank inlet water kose |
1 |
|
3 |
TB500.13C.2 |
Radiator assembly |
1 |
|
4 |
TB550.13.2 |
Pull rod complex |
2 |
|
5 |
FT450.13.102 |
Uater tank outlet water kose |
1 |
|
6 |
GB/T 6170–M8–8–A2L |
Type 1 kex nut |
6 |
|
7 |
GB/T 93–8–A0P |
Standard spring gasket |
16 |
|
8 |
GB/T 97.1–8–A0P |
Flat wasker |
18 |
|
9 |
GB/T 5783–M8x20–8.8–A2L |
Hex bolt |
14 |
|
10 |
GB/T 96.1–8–A0P |
Big wasker |
2 |
|
11 |
TB500.13Y.5 |
Air filter installation bracket |
1 |
|
12 |
FT650.13.112 |
Rubber pad block |
4 |
|
13 |
GB/T 5783–M10x20–8.8–A3L |
Hex bolt |
2 |
|
14 |
GB/T 93–10–A0P |
Standard spring gasket |
2 |
|
15 |
GB/T 97.1–10–A0P |
Flat wasker |
2 |
|
16 |
TB500.13Y.2 |
Uater tank pad plate weldment |
1 |
|
17 |
FT650.13.116 |
Gasket |
2 |
|
18 |
GB/T 6178–M10–8–A3L |
Slotted nut |
2 |
|
19 |
GB/T 91–2.5x28–A0P |
Cotter pin |
2 |
5

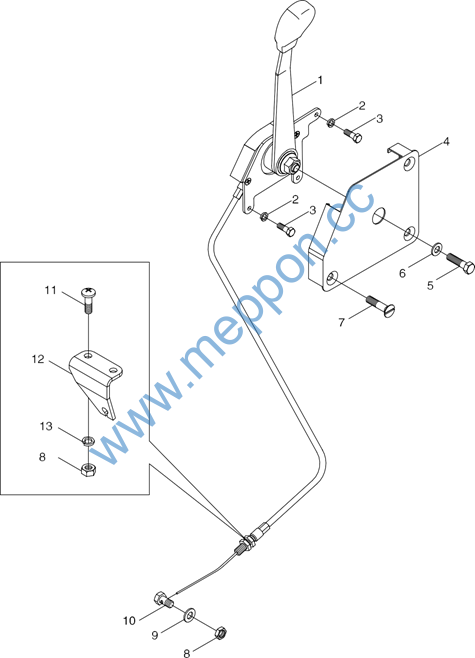

Foton TC2A404–037K Wheeled Tractor
TB400.201F Handle Throttle Assembly
6
