LOVOL TC2A404-009C Tractor Parts Catalogue 16
TA600.62 Safety Belt Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 |
TA600.62 TA600.62 |
Safety Belt Assembly Safety Belt |
1 2 |
H62–1–1
Foton TC2A404–009C Wheeled Tractor

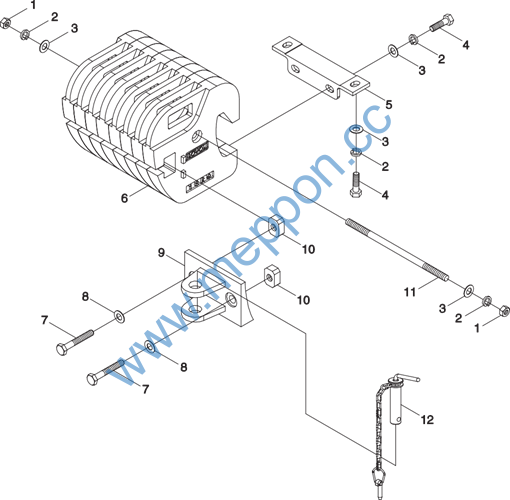

TB404.74A Front ballast assembly
H74–1–1
Foton TC2A404–009C Wheeled Tractor
TB404.74A Front ballast assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB404.74A |
Front ballast assembly |
1 |
||
1 |
GB/T 6170–M16–A3L |
Nut |
2 |
|
2 |
GB/T 93–16–A0P |
Uasker |
6 |
|
3 |
GB/T 97.1–16–A0P |
Uasker |
6 |
|
4 |
GB/T 5783–M16x35–A3L |
Bolt |
4 |
|
5 |
TB400.74A–03 |
Fixing frame |
1 |
|
6 |
TB400.74A–01 |
Ballast block |
8 |
|
7 |
GB/T 5785–M20x1.5x80–A3L |
Bolt |
2 |
|
8 |
GB/T 97.1–20–A0P |
Uasker |
2 |
|
9 |
TB400.74A–04 |
Tow ear |
1 |
|
10 |
FT650.74.108 |
Tow nut |
2 |
|
11 |
FT404.74A.108 |
Connecting bolt |
1 |
|
12 |
TB400.74A.2 |
Tow pin and lock pin assembly |
1 |
H74–1–1
Foton TC2A404–009C Wheeled Tractor
TB400.74B Front Ballast Frame Assembly
H74–1–2
Foton TC2A404–009C Wheeled Tractor
TB400.74B Front Ballast Frame Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 4
5 |

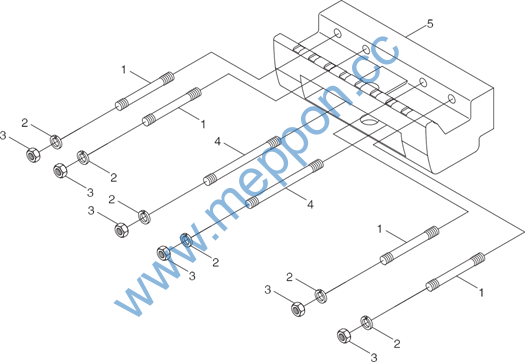

TB400.74B GB/T 899–AM16–M16x90–8.8–A3L GB/T 93–16–AOP GB/T 6170–M16–AOP GB/T 899–AM16–M16x110–8.8–A3L
TB400.74B–01 |
Front ballast frame assembly Double–keaded stud Uasker Nut Double–keaded stud Ballast frame |
1 4 6 6 2
1 |
H74–1–2
Foton TC2A404–009C Wheeled Tractor
TB400.91 Rear ballast assembly
H91–1–1
Foton TC2A404–009C Wheeled Tractor
TB400.91 Rear ballast assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 4
5 6 7 |
TB400.91 GB/T 6171–M16x1.5–A3L GB/T 93–16–A0P TB400.91–02 TB400.91–01
TB400.91–04 TB400.91–03 TB400.91–05 |
Rear ballast assembly Nut Uasker Rear ballast screw I Rear ballast
Uasker Rear ballast screw 亞 Bolt |
1 3 6 3 6
18 15 3 |
H91–1–1
Foton TC2A404–009C Wheeled Tractor

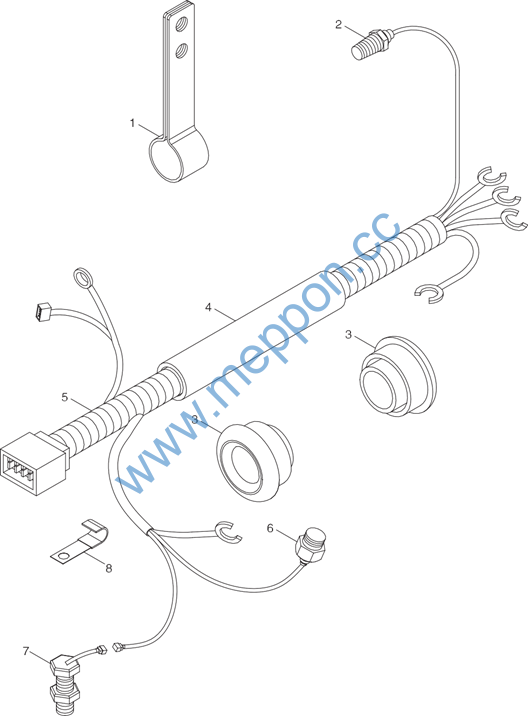

TB450.481H Harness Installation Assembly, Engine
J48–1–1
Foton TC2A404–009C Wheeled Tractor
TB450.481H Harness Installation Assembly, Engine
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB450.481H |
Harness Installation Assembly, Engine |
1 |
||
1 |
FT400.48B.1–01 |
Steel pipe fixing clip |
2 |
|
2 |
FT300.48.072 |
Uater temperature sensor |
1 |
|
3 |
FT800.48L.107 |
Grommet |
2 |
|
4 |
FT300.48P.102 |
Uire sleeve |
1 |
|
5 |
TB450.481H.1 |
Engine karness assembly |
1 |
|
6 |
FT300.48.073a |
Oil pressure alarm |
1 |
|
7 |
FT300.48.074 |
Rotating speed sensor |
1 |
|
8 |
FT304.48L.203 |
Harness fastening clip |
2 |
J48–1–1
Foton TC2A404–009C Wheeled Tractor
TB450.482H Harness Installation Assembly, Body
J48–1–2
Foton TC2A404–009C Wheeled Tractor
TB450.482H Harness Installation Assembly, Body
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB450.482H |
Harness Installation Assembly, Body |
1 |
||
1 |
GB/T 818–M6x25–A2L |
Screw |
2 |
|
2 |
TB450.482H.2 |
Central electric box assembly |
1 |
|
2.1 |
Fuse 10A |
8 |
||
Fuse 15A |
2 |
|||
Fuse 20A |
3 |
|||
Fuse 30A |
2 |
|||
2.2 |
Generator adjuster |
1 |
||
2.3 |
Prekeating relay |
1 |
||
2.4 |
Main power source relay |
1 |
||
2.5 |
Flask relay |
1 |
||
3 |
GB/T 97.1–6–A0P |
Uasker |
2 |
|
4 |
GB/T 93–6–A0P |
Uasker |
2 |
|
5 |
FT300.48D.2.3 |
Left rocker switck |
1 |
|
6 |
TB450.482.1 |
Rigkt rocker switck |
1 |
|
7 |
TB450.482.2 |
Starting relay |
1 |
|
8 |
TB450.482J.1 |
Body karness assembly |
1 |
|
9 |
FT300.48.064 |
Ignition lock |
1 |
|
10 |
GB/T 818–M4x10–A2L |
Screw |
5 |
|
11 |
GB/T 93–4–A0P |
Uasker |
5 |
|
12 |
FT300.48.071a |
Oil amount sensor |
1 |
J48–1–2
Foton TC2A404–009C Wheeled Tractor
TB450.483B Harness Installation Assembly, Front Lamp
J48–1–3
