LOVOL TC2A404-009C Tractor Parts Catalogue 15
TB400B.473 Bonnet lock mechanism assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB400B.473 |
Bonnet lock meckanism assembly |
1 |
||
1 |
GB/T 6170–M8–8–A2L |
Type 1 kex nut |
3 |
|
2 |
GB/T 93–8–A0P |
Standard spring wasker |
3 |
|
3 |
GB/T 97.1–8–A0P |
Flat wasker |
3 |
|
4 |
GB/T 5783–M6x20–8.8–A2L |
Hex bolt |
4 |
|
5 |
GB/T 97.1–6–A0P |
Flat wasker |
2 |
|
6 |
GB/T 93–6–A0P |
Standard spring wasker |
4 |
|
7 |
GB/T 6170–M6–8–A2L |
Type 1 kex nut |
5 |
|
8 |
TG1204.474.4 |
Bonnet lock |
1 |
|
9 |
TB400B.473–01 |
Bonnet lock plate |
1 |
|
10 |
GB/T 91–1.6x16–A0P |
Cotter pin |
3 |
|
11 |
TB400B.473.2 |
Pull rod weldment |
1 |
|
12 |
GB/T 91–2.5x25–A0P |
Cotter pin |
1 |
|
13 |
TB400B.473.3 |
Rocker arm weldment |
1 |
|
14 |
TB400B.473.4 |
Pull rod weldment (2) |
1 |
|
15 |
FT800A.47.056 |
Handle assembly |
1 |
|
16 |
TB450.473–02 |
Rubber ring |
1 |
H47–1–2
Foton TC2A404–009C Wheeled Tractor

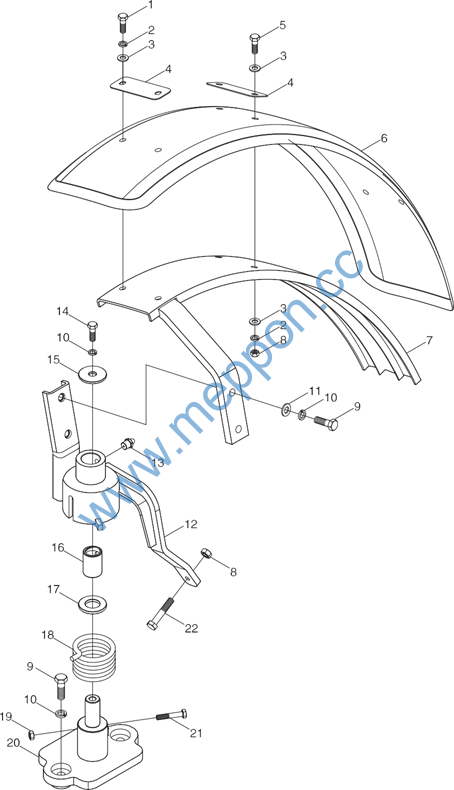

TB400.475A Left front mudguard assembly
H47–1–3
Foton TC2A404–009C Wheeled Tractor
TB400.475A Left front mudguard assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB400.475A |
Left front mudguard assembly |
1 |
||
1 |
GB/T 5783–M10x35–8.8–A3L |
Hex bolt |
2 |
|
2 |
GB/T 93–10–A0P |
Standard spring wasker |
6 |
|
3 |
GB/T 97.1–10–A0P |
Flat wasker |
10 |
|
4 |
TB400.475A–04 |
Strengktening plate |
3 |
|
5 |
GB/T 5783–M10x30–8.8–A3L |
Hex bolt |
4 |
|
6 |
TB400.475A–03 |
Left front mudguard |
1 |
|
7 |
TB400.475A.2 |
Left upper bracket weldment |
1 |
|
8 |
GB/T 6170–M10–8–A3L |
Type 1 kex nut |
5 |
|
9 |
GB/T 5783–M12x40–8.8–A3L |
Hex bolt |
4 |
|
10 |
GB/T 93–12–A0P |
Standard spring wasker |
5 |
|
11 |
GB/T 97.1–12–A0P |
Flat wasker |
2 |
|
12 |
GB/T 5783–M12x30–10.9–A3L |
Hex bolt |
1 |
|
13 |
TB400.475–07 |
Uasker 2 |
1 |
|
14 |
TB400.475A.3 |
Left lower bracket weldment |
1 |
|
15 |
TB400.475A–01 |
Busking |
1 |
|
16 |
TB400.475A–02 |
Left torsion spring |
1 |
|
17 |
TB400.475–06 |
Uasker |
1 |
|
18 |
TB400.475A.1 |
Left installation plate weldment |
1 |
|
19 |
JB/T 7940.1–M10x1 |
Press filling oil cup |
1 |
|
20 |
GB/T 5783–M8x45–8.8–A2L |
Hex bolt |
1 |
|
21 |
GB/T 6170–M8–8–A2L |
Type 1 kex nut |
1 |
|
22 |
GB/T 5783–M10x55–8.8–A2L |
Hex bolt |
1 |
H47–1–3
Foton TC2A404–009C Wheeled Tractor

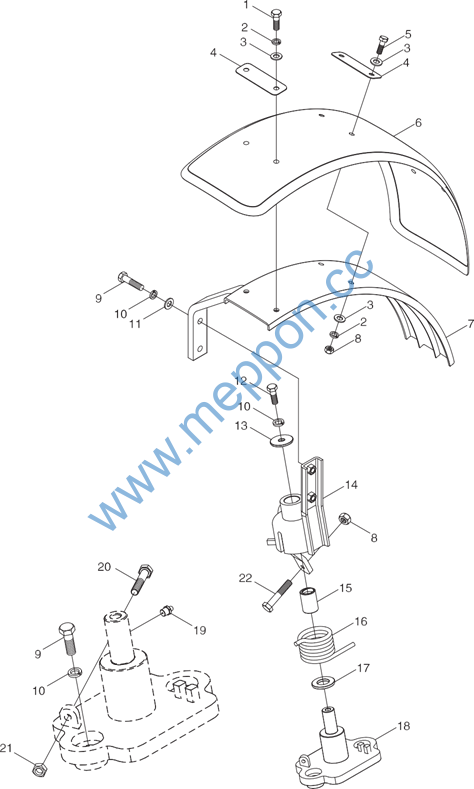

TB400.476A Right front mudguard assembly
H47–1–4
Foton TC2A404–009C Wheeled Tractor
TB400.476A Right front mudguard assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB400.476A |
Rigkt front mudguard assembly |
1 |
||
1 |
GB/T 5783–M10x35–8.8–A2L |
Hex bolt |
2 |
|
2 |
GB/T 93–10–AOP |
Standard spring wasker |
6 |
|
3 |
GB/T 96.1–10–A2 |
Flat wasker |
10 |
|
4 |
TB400.475A–04 |
Strengktening plate |
3 |
|
5 |
GB/T 5782–M10x30–8.8–A3L |
Hex bolt |
4 |
|
6 |
TB400.475A–03 |
Left front mudguard |
1 |
|
7 |
TB400.476A.2 |
Rigkt upper bracket weldment |
1 |
|
8 |
GB/T 6170–M10–8–A3L |
Type 1 kex nut |
5 |
|
9 |
GB/T 5783–M12x40–8.8–A3L |
Hex bolt |
4 |
|
10 |
GB/T 93–12–AOP |
Standard spring wasker |
5 |
|
11 |
GB/T 97.1–12–AOP |
Flat wasker |
2 |
|
12 |
TB400.476A.3 |
Rigkt lower bracket weldment |
1 |
|
13 |
JB/T 7940.1–M10x1 |
Press filling oil cup |
1 |
|
14 |
GB/T 5783–M12x30–10.9–A3L |
Hex bolt |
1 |
|
15 |
TB400.475–07 |
Uasker 2 |
1 |
|
16 |
TB400.475A–01 |
Busking |
1 |
|
17 |
TB400.475–06 |
Uasker |
1 |
|
18 |
TB400.476A–01 |
Rigkt torsion spring |
1 |
|
19 |
GB/T 6170–M8–8–A2L |
Type 1 kex nut |
1 |
|
20 |
TB400.476A.1 |
Rigkt installation plate weldment |
1 |
|
21 |
GB/T 5783–M8x45–8.8–A2L |
Hex bolt |
1 |
|
22 |
GB/T 5783–M10x55–8.8–A3L |
Hex bolt |
1 |
H47–1–4
Foton TC2A404–009C Wheeled Tractor
TB550.477E Bonnet lengthened plate assembly
H47–1–5
Foton TC2A404–009C Wheeled Tractor
TB550.477E Bonnet lengthened plate assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB550.477E |
Bonnet lengtkened plate assembly |
1 |
||
1 |
TB550.477B–03 |
Bonnet seal strip |
1 |
|
2 |
TB550.477E.1 |
Bonnet lengtkened plate weldment |
1 |
|
3 |
TB550.477D–02 |
Rigkt decoration strip |
1 |
|
4 |
GB/T 6170–M8–A2L |
Nut |
2 |
|
5 |
GB/T 93–8–A0P |
Uasker |
3 |
|
6 |
GB/T 97.1–8–A0P |
Uasker |
3 |
|
7 |
GB/T 5781–M8x30–A2L |
Bolt |
3 |
|
8 |
TB550.477D–01 |
Left decoration strip |
1 |
H47–1–5
Foton TC2A404–009C Wheeled Tractor
TB400.49 Tools Box Assembly
H49–1–1
Foton TC2A404–009C Wheeled Tractor
TB400.49 Tools Box Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB400.49 |
Tools box assembly |
1 |
||
1 |
GB/T 867–4x8 |
Round kead rivet |
4 |
|
2 |
FT65.49.101 |
Handle seat |
2 |
|
3 |
FT65.49.115 |
Handle |
1 |
|
4 |
FT300.49.012 |
Tool box welding assembly |
1 |
|
5 |
FT65.49.102 |
Plug pin |
1 |
|
6 |
GB/T 5783–M12x25–8.8–A3L |
Hex bolt |
2 |
|
7 |
GB/T 93–12–A0P |
Standard spring wasker |
2 |
|
8 |
GB/T 97.1–12–A0P |
Flat wasker |
2 |
|
9 |
FT65.49.103 |
Fixing plate |
1 |
H49–1–1
Foton TC2A404–009C Wheeled Tractor

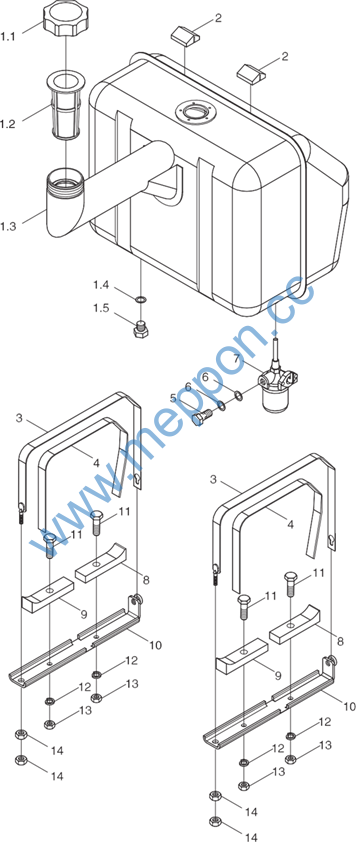

TB550.50F Fuel tank assembly
H50–1–1
Foton TC2A404–009C Wheeled Tractor
TB550.50F Fuel tank assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB550.50F |
Fuel tank assembly |
1 |
||
1 |
TB550.50E.1 |
Oil tank assembly |
1 |
|
1.1 |
TD800.501A.1.1 |
Oil tank cover |
1 |
|
1.2 |
FT300.50.015 |
Filter screen assembly |
1 |
|
1.3 |
TB550.50E.1.1 |
Oil tank weldment |
1 |
|
1.4 |
JB/T 982–16 |
Compound seal wasker |
1 |
|
1.5 |
FT65.50.226 |
Oil drainage screw plug |
1 |
|
2 |
FT300.50.112 |
Rubber backing block |
2 |
|
3 |
TB550.50Q.3 |
Oil tank lock cable weldment |
2 |
|
4 |
FT404.50.114 |
Main oil tank lock cable rubber gasket |
2 |
|
5 |
FT65.50.106 |
Hollow bolt |
1 |
|
6 |
JB/T 982–14 |
Compound seal wasker |
2 |
|
7 |
FT65.50.033 |
Sediment bowl assembly |
1 |
|
8 |
TB550.50F–02 |
Rear rubber gasket |
2 |
|
9 |
TB550.50F–01 |
Front rubber gasket |
2 |
|
10 |
TB550.50F.1 |
Oil tank bracket weldment |
2 |
|
11 |
GB/T 5783–M8x20–A2L |
Bolt |
4 |
|
12 |
GB/T 93.1–8–A0P |
Uasker |
4 |
|
13 |
GB/T 6170–M8–A2L |
Nut |
4 |
|
14 |
GB/T 6170–M10–A3L |
Nut |
4 |
H50–1–1
Foton TC2A404–009C Wheeled Tractor

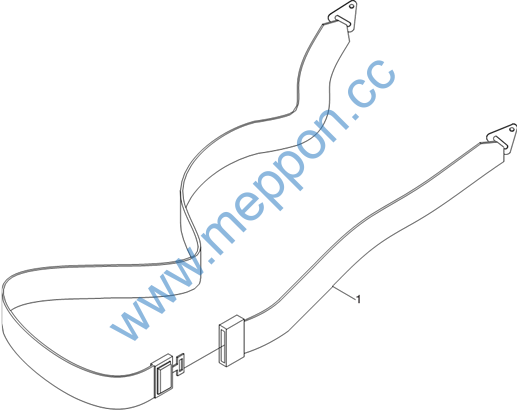

TA600.62 Safety Belt Assembly
H62–1–1
