LOVOL TC2A404-009C Tractor Parts Catalogue 17
TB450.483B Harness Installation Assembly, Front Lamp
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB450.483B |
Harness Installation Assembly, Front Lamp |
1 |
||
1 |
TB404.483.1 |
Front lamp karness assembly |
1 |
|
2 |
FT65.48.097 |
Harness fixing clip (2) |
6 |
|
3 |
GB/T6170 |
Nut M6–A2L |
3 |
|
4 |
GB/T93 |
Uasker 6–A0P |
3 |
|
5 |
GB/T97.1 |
Uasker 6–A0P |
3 |
|
6 |
TD800.483B.3 |
Electric korn |
1 |
|
7 |
GB/T5783 |
Bolt M6x16–A2L |
1 |
|
8 |
TB404.483.2 |
Headlamp assembly |
1 |
|
9 |
GB/T97.1 |
Uasker 8–A0P |
2 |
|
10 |
GB/T93 |
Uasker 8–A0P |
2 |
|
11 |
GB/T5783 |
Bolt M8x16–A2L |
2 |
|
12 |
GB/T818 |
Screw M5x14–A2L |
1 |
|
13 |
TB400.483–01 |
Harness buckle |
1 |
|
14 |
GB/T97.1 |
Uasker 5–A0P |
1 |
|
15 |
GB/T93 |
Uasker 5–A0P |
1 |
|
16 |
GB/T6170 |
Nut M5–A2L |
1 |
J48–1–3
Foton TC2A404–009C Wheeled Tractor

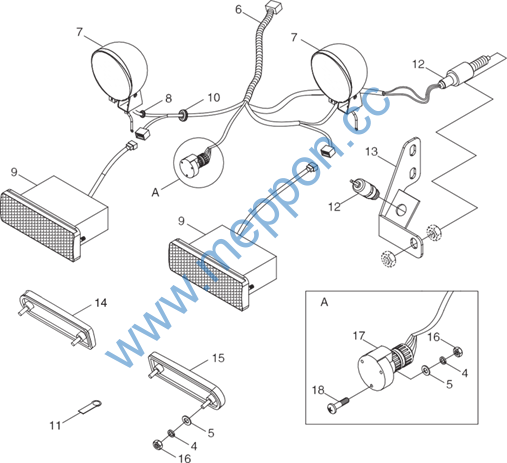

TB500.484L Harness Installation Assembly, Rear Lamp
J48–1–4
Foton TC2A404–009C Wheeled Tractor
TB500.484L Harness Installation Assembly, Rear Lamp
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB500.484L |
Harness Installation Assembly, Rear Lamp |
1 |
||
1 |
TD800.484B.5 |
Reflector |
2 |
|
2 |
TD800.484B–01 |
Reflector installation plate (left) |
1 |
|
3 |
TD800.484B–02 |
Reflector installation plate (rigkt) |
1 |
|
4 |
GB/T 93–5–A0P |
Uasker |
9 |
|
5 |
GB/T 97.1–5–A0P |
Uasker |
9 |
|
6 |
TB450.484S.1 |
Rear lamp karness assembly |
1 |
|
7 |
FT300.48.053a |
Rear lamp |
2 |
|
8 |
FT65.48.094 |
Harness pass ring (2) |
2 |
|
9 |
FT300.48.052a |
Tail lamp assembly |
2 |
|
10 |
FT65.48.093 |
Harness pass ring (1) |
2 |
|
11 |
TA600.486–01 |
Harness fastening clip |
2 |
|
12 |
FT300.48.033 |
Brake lamp switck |
2 |
|
13 |
FT300.48C.211 |
Brake switck installation plate |
1 |
|
14 |
TB450.484E.5 |
Left reflector |
1 |
|
15 |
TB450.484E.6 |
Rigkt reflector |
1 |
|
16 |
GB/T 6170–M5–A2L |
Nut |
9 |
|
17 |
FT65.48.080 |
Rear trailer socket |
1 |
|
18 |
GB/T 818–M5x35–A1L |
Screw |
3 |
J48–1–4
Foton TC2A404–009C Wheeled Tractor

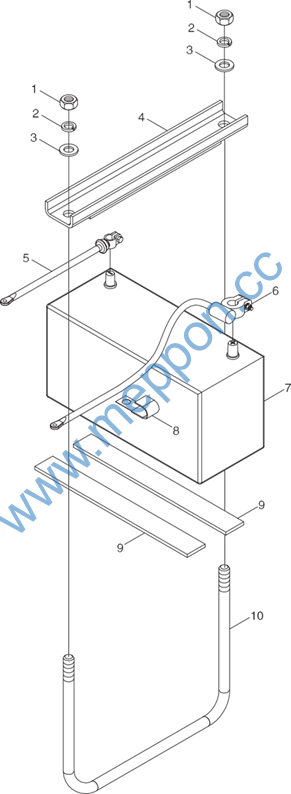

TB450.485A Battery Installation Assembly
J48–1–5
Foton TC2A404–009C Wheeled Tractor
TB450.485A Battery Installation Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB450.485A |
Battery Installation Assembly |
1 |
||
1 |
GB/T 6170–M8–A2L |
Nut |
2 |
|
2 |
GB/T 93–8–A0P |
Uasker |
2 |
|
3 |
GB/T 97.1–8–A0P |
Uasker |
2 |
|
4 |
TG1204.485–02 |
Battery press plate |
1 |
|
5 |
TB400.485A.2 |
Battery bonding |
1 |
|
6 |
TB400.485A.1 |
Power source wire assembly |
1 |
|
7 |
FT450.48.010 |
Maintenance free lead acid battery |
1 |
|
8 |
FT65.48.095 |
Harness fixing clamp (1) |
1 |
|
9 |
TB450.485.1 |
Battery skock absorbing mat |
2 |
|
10 |
TG1204.485–01 |
Battery U–skape pull rod |
1 |
J48–1–5
Foton TC2A404–009C Wheeled Tractor

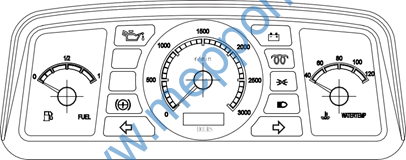

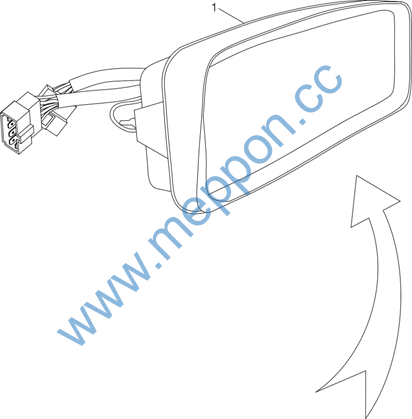

TB400.487 Combination Instrument Assembly
J48–1–6
Foton TC2A404–009C Wheeled Tractor
TB400.487 Combination Instrument Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 |
TB400.487 TB400.487 |
Combination Instrument Assembly Combination Instrument Assembly |
1 1 |
J48–1–6
Foton TC2A404–009C Wheeled Tractor

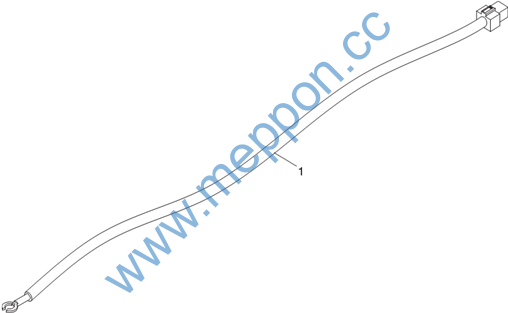

TB450.489 Preheating device assembly
J48–1–7
Foton TC2A404–009C Wheeled Tractor
TB450.489 Preheating device assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 |
TB450.489 FT400.48A.027 |
Prekeating device assembly Prekeating wire |
1 1 |
J48–1–7
Foton TC2A404–009C Wheeled Tractor

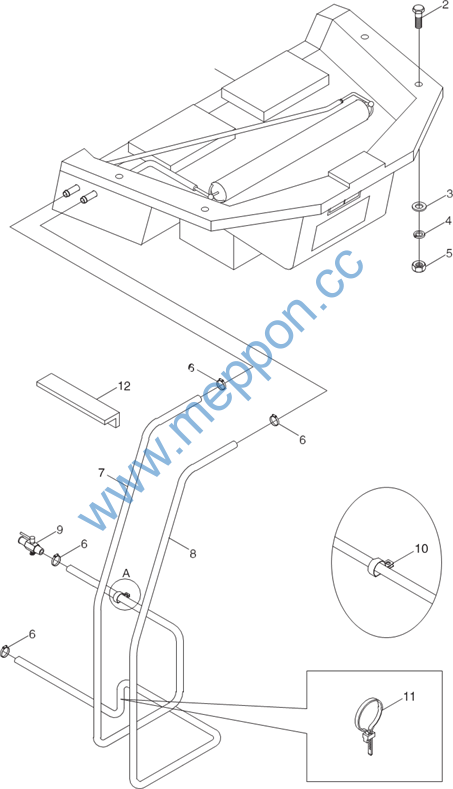

TB400.81 Heater installation assembly
J81–1–1
Foton TC2A404–009C Wheeled Tractor
TB400.81 Heater installation assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB400.81 |
Heater installation assembly |
1 |
||
1 |
FT65.45.990 |
Heater assembly |
1 |
|
2 |
GB/T 5783–M6x40–8.8–A1L |
Bolt |
4 |
|
3 |
GB/T 97.1–6–A0P |
Uasker |
4 |
|
4 |
GB/T 93–6–A0P |
Uasker |
4 |
|
5 |
GB/T 6170–M6–A2L |
Nut |
4 |
|
6 |
Q676B25 |
Type C worm transmission kose clamp |
4 |
|
7 |
TG1204.81–07 |
Heater water outlet pipe |
1 |
|
8 |
TF1004.81–03 |
Air conditioner keater water inlet pipe |
1 |
|
9 |
TB400.81.1 |
Heater water inlet valve |
1 |
|
10 |
TD800.485A–03 |
Fastening clip |
1 |
|
11 |
Q67405200 |
Plastic fastening belt |
5 |
|
12 |
TD800.811A–08 |
Paste piece |
1 |
