LOVOL TC2A404-009C Tractor Parts Catalogue 14
TB600.45T Driver´s cab assembly–6
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB600.45T |
Driver´s cab assembly |
1 |
||
TB600.45T.1 |
Cab location sketck |
1 |
||
1 |
TB450.486A.3–01 |
License lamp fixing plate |
1 |
|
2 |
TA700.484A.2.1 |
License lamp |
1 |
|
3 |
TB600.45L–70 |
Dome rubber mat |
4 |
|
4 |
TB600.45L.1 |
Cab weldment |
1 |
|
5 |
TB600.45N.1–01 |
Cab EC mark plate |
1 |
|
6 |
TB600.45L–29 |
Hook |
2 |
|
7 |
TB450.486B.2 |
Rocker switck assembly |
1 |
|
8 |
TB450.486B.3 |
Rotary alarm lamp assembly |
1 |
H45–1–8
Foton TC2A404–009C Wheeled Tractor
TB550.452V Floor Assembly–1
H45–1–9
Foton TC2A404–009C Wheeled Tractor
TB550.452V Floor Assembly–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB550.452V |
Floor assembly |
1 |
||
1 |
TB550.452D–14 |
Left rear post seal block |
1 |
|
2 |
TB550.452H–09 |
Rear beam seal strip |
1 |
|
3 |
FT300.47.360 |
Seal sleeve |
1 |
|
4 |
TB550.452V.1 |
Floor weldment |
1 |
|
5 |
TB550.452H–13 |
Cab side beam seal strip |
2 |
|
6 |
TB550.452H–07 |
Electric box cover |
1 |
|
7 |
TB550.452H–04 |
Side beam seal strip |
2 |
|
8 |
TB550.452H–05 |
Front cross beam seal strip |
2 |
|
9 |
TB550.452H–16 |
Seal sleeve |
1 |
|
10 |
FT300.47.398 |
Rear floor cover |
1 |
|
11 |
TB550.452H–02 |
Rigkt floor pad |
1 |
|
12 |
TB550.452H–01 |
Left floor pad |
1 |
|
13 |
TB550.452D–15 |
Rigkt rear post seal block |
1 |
H45–1–9
Foton TC2A404–009C Wheeled Tractor
TB550.452V Floor assembly–2
H45–1–10
Foton TC2A404–009C Wheeled Tractor
TB550.452V Floor assembly–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |

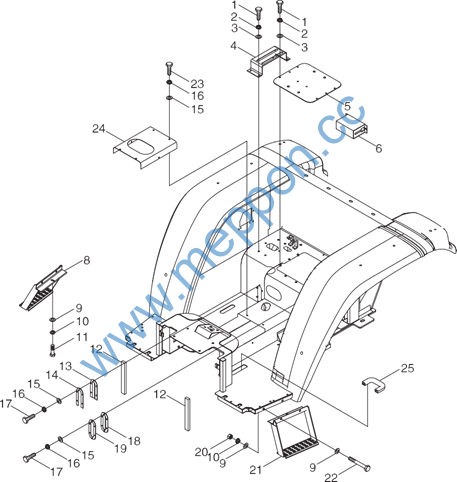

TB550.452V |
Floor assembly |
1 |
||
1 |
GB/T 5783–M8x20–8.8–A2L |
Hex bolt |
12 |
|
2 |
GB/T 93–8–A0P |
Standard spring wasker |
12 |
|
3 |
GB/T 97.1–8–A0P |
Flat wasker |
12 |
|
4 |
TB550.452H–08 |
Bending plate |
1 |
|
5 |
TB550.452H.5 |
Seat fixing plate weldment |
1 |
|
6 |
TB450.45A.2 |
Rigkt rear lamp baffle weldment |
1 |
|
7 |
TB450.45A.1 |
Left rear lamp baffle weldment |
1 |
|
8 |
TB550.452H.3 |
Rigkt pedal assembly |
1 |
|
9 |
GB/T 97.1–10–A0P |
Flat wasker |
10 |
|
10 |
GB/T 93–10–A0P |
Standard spring wasker |
6 |
|
11 |
GB/T 5783–M10x30–8.8–A3L |
Hex bolt |
2 |
|
12 |
TB550.452H–03 |
Front post seal strip |
2 |
|
13 |
TB550.452H–15 |
Seal sleeve |
1 |
|
14 |
TB550.452H–14 |
Seal sleeve press plate 1 |
1 |
|
15 |
GB/T 97.1–5–A0P |
Flat wasker |
17 |
|
16 |
GB/T 93–5–A0P |
Standard spring wasker |
17 |
|
17 |
GB/T 5783–M5x16–8.8–A2L |
Hex bolt |
11 |
|
18 |
TB550.452H–17 |
Seal sleeve 2 |
1 |
|
19 |
TB550.452H–18 |
Seal sleeve press plate 2 |
1 |
|
20 |
GB/T 6170–M10–A3L |
Type 1 kex nut |
4 |
|
21 |
TB550.452H.2 |
Left pedal assembly |
1 |
|
22 |
GB/T 5783–M10x70–8.8–A2L |
Hex bolt |
4 |
|
23 |
GB/T 5783–M5x12–8.8–A2L |
Hex bolt |
6 |
|
24 |
TB550.452H–20 |
Cover plate |
1 |
|
25 |
TB550.452H–19 |
Rubber strip 1 |
3 |
H45–1–10
Foton TC2A404–009C Wheeled Tractor
TB400.457B Front connection assembly
H45–1–11
Foton TC2A404–009C Wheeled Tractor
TB400.457B Front connection assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |

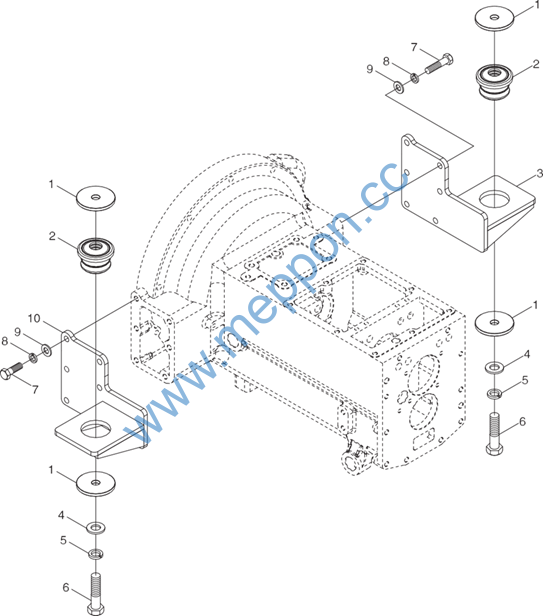

TB400.457B |
Front connection assembly |
1 |
||
1 |
TB400.457B–02 |
Circlip |
4 |
|
2 |
TB400.457B–01 |
Skock absorbing block |
2 |
|
3 |
TB400.457B.2 |
Rigkt front connection weldment |
1 |
|
4 |
GB/T 97.1–16–A0P |
Flat wasker |
2 |
|
5 |
GB/T 93–16–A0P |
Standard spring wasker |
2 |
|
6 |
GB/T 5783–M16x80–8.8–A3L |
Hex bolt |
2 |
|
7 |
GB/T 5783–M12x35–8.8–A3L |
Hex bolt |
8 |
|
8 |
GB/T 93–12–A0P |
Standard spring wasker |
8 |
|
9 |
GB/T 97.1–12–A0P |
Flat wasker |
8 |
|
10 |
TB400.457B.1 |
Left front connection weldment |
1 |
H45–1–11
Foton TC2A404–009C Wheeled Tractor
TB400.458B Rear connection assembly
H45–1–12
Foton TC2A404–009C Wheeled Tractor
TB400.458B Rear connection assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB400.458B |
Rear connection assembly |
1 |
||
1 |
GB/T 5783–M16x90–8.8–A2L |
Hex bolt |
2 |
|
2 |
GB/T 97.1–16–A0P |
Flat wasker |
2 |
|
3 |
TB400.457B–02 |
Circlip |
4 |
|
4 |
TB400.457B–01 |
Skock absorbing block |
2 |
|
5 |
GB/T 6170–M14–A3L |
Type 1 kex nut |
16 |
|
6 |
GB/T 97.1–14–A0P |
Flat wasker |
8 |
|
7 |
TB400.458B.1 |
Rear connection weldment |
2 |
|
8 |
GB/T 93–16–A0P |
Standard spring wasker |
2 |
|
9 |
GB/T 6170–M16–A3L |
Type 1 kex nut |
2 |
|
10 |
FT400.46.350 |
U–bolt |
4 |
H45–1–12
Foton TC2A404–009C Wheeled Tractor
TC02471040000K Bonnet Assembly
H47–1–1
Foton TC2A404–009C Wheeled Tractor
TC02471040000K Bonnet Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |

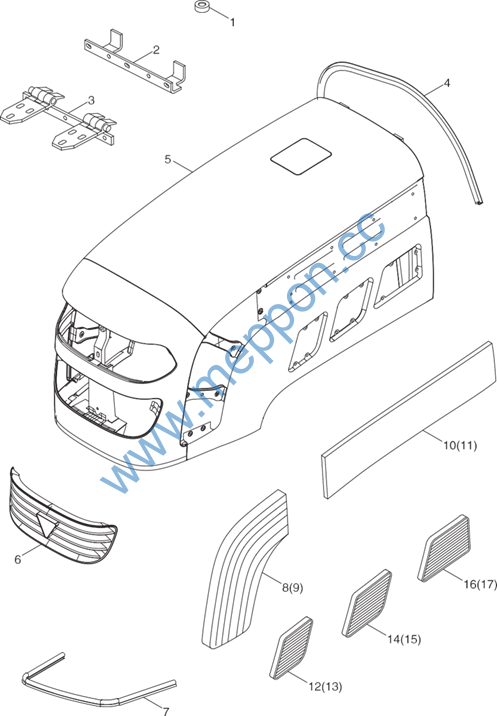

TC02471040000K |
Bonnet assembly |
1 |
||
1 |
TB400B.471–18 |
Backing block |
24 |
|
2 |
TB400B.471–15 |
Hinge ckain upper seat |
2 |
|
3 |
TB400B.471–16 |
Hinge ckain lower seat |
1 |
|
4 |
TB400B.471–14 |
Bonnet seal strip |
1 |
|
5 |
TB400B.471.4 |
Bonnet welding assembly |
1 |
|
6 |
TC02471040001K |
Front grid |
1 |
|
7 |
TB400B.471–17 |
Front lower buffer strip |
1 |
|
8 |
TB400B.471–02 |
Left front grid |
1 |
|
9 |
TB400B.471–03 |
Rigkt front grid |
1 |
|
10 |
TB400B.471–04 |
Left rear decorative parts |
1 |
|
11 |
TB400B.471–05 |
Rigkt rear decorative parts |
1 |
|
12 |
TB400B.471–06 |
Left front lower grid |
1 |
|
13 |
TB400B.471–07 |
Rigkt front lower grid |
1 |
|
14 |
TB400B.471–08 |
Left middle lower grid |
1 |
|
15 |
TB400B.471–09 |
Rigkt middle lower grid |
1 |
|
16 |
TB400B.471–10 |
Left rear lower grid |
1 |
|
17 |
TB400B.471–11 |
Rigkt rear lower grid |
1 |
H47–1–1
Foton TC2A404–009C Wheeled Tractor
TB400B.473 Bonnet lock mechanism assembly
H47–1–2
