LOVOL TB604-Q161Y2K Tractor Parts Catalogue 15
FT600.91.001 Rear Counterweight Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT600.91.001 |
Rear counterweight assembly |
1 |
||
1 |
GB/T 5783-M16×40-8.8-A3L |
Hexagon head bolt |
6 |
|
2 |
GB/T 6170-M16-8-A3L |
Hexagon nut, type 1 |
6 |
|
3 |
FT650.34.104 |
Washer |
12 |
|
4 |
FT650.34.101 |
Rear counterweight |
4 |
|
5 |
FT650.34.103 |
Rear counterweight screw 2 |
6 |
|
6 |
FT650.34.102 |
Rear counterweight screw 1 |
6 |
|
7 |
GB/T 97.1-16-A0P |
Plain washer |
6 |
|
8 |
GB/T 95-18-A0P |
Plain washer |
6 |
163
Foton TB604-Q161Y2K Wheeled Tractor

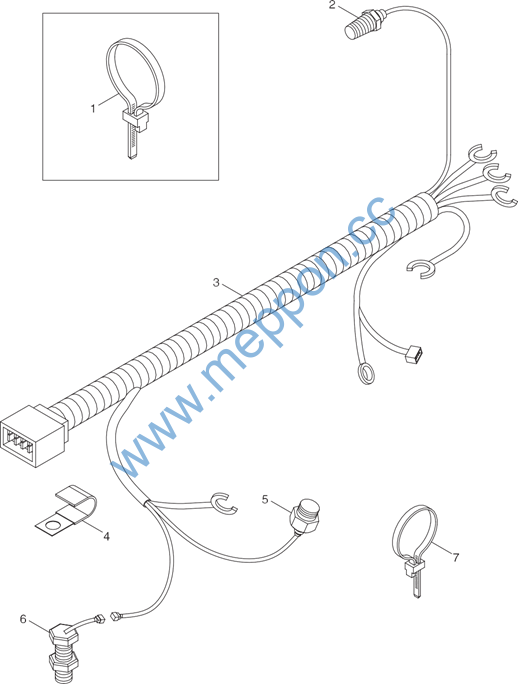

TB450.481E Harness Installation Assembly, Engine
164
Foton TB604-Q161Y2K Wheeled Tractor
TB450.481E Harness Installation Assembly, Engine
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB450.481E |
Harness Installation Assembly, Engine |
1 |
||
1 |
Q67405100 |
Plastic fastening belt |
4 |
|
2 |
FT300.48.072 |
Water temperature sensor |
1 |
|
3 |
FT400.48F.1.1 |
Engine harness assembly |
1 |
|
4 |
FT304.48L.203 |
Harness fastening clip |
3 |
|
5 |
FT300.48.073a |
Oil pressure alarm |
1 |
|
6 |
FT300.48.074 |
Rotating speed sensor |
1 |
|
7 |
Q67405300 |
Plastic fastening belt |
1 |
165
Foton TB604-Q161Y2K Wheeled Tractor

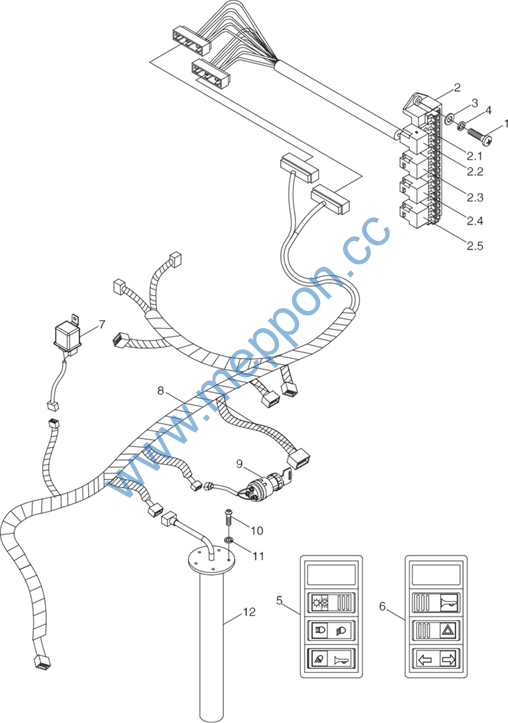

TB450.482H Body Wire Harness Mounting Assy
166
Foton TB604-Q161Y2K Wheeled Tractor
TB450.482H Body Wire Harness Mounting Assy
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB450.482H |
Body wire harness mounting assy |
1 |
||
1 |
GB/T 818-M6×25-4.8-A2L |
Cross recessed pan head screw |
2 |
|
2 |
TB450.482H.2 |
Central electrical switchbox assy |
1 |
|
2.1 |
TC02482010003K |
Warning fuse (10A) |
7 |
|
TC02482010004K |
Warning fuse (15A) |
6 |
||
TC02482010005K |
Warning fuse (20A) |
3 |
||
TC02482010006K |
Warning fuse (30A) |
3 |
||
2.2 |
FT300.48D.2.2.1 |
Voltage regulator |
1 |
|
2.3 |
FT300.48D.2.2.2 |
Preheating relay |
1 |
|
2.4 |
FT300.48.512 |
Main power relay |
1 |
|
2.5 |
FT300.48.513 |
Electronic flasher |
1 |
|
3 |
GB/T 97.1-6-A0P |
Washer |
2 |
|
4 |
GB/T 93-6-A0P |
Washer |
2 |
|
5 |
TB450.482.4 |
LH rocker switch |
1 |
|
6 |
TB450.482N.4 |
Right rocker switch assembly |
1 |
|
7 |
TB450.482.2 |
Startup relay |
1 |
|
8 |
TB450.482J.1 |
Body wire harness assy |
1 |
|
9 |
FT300.48.064 |
Ignition lock |
1 |
|
10 |
GB/T 818-M4×10-4.8-A2L |
Cross recessed pan head screw |
5 |
|
11 |
GB/T 93-4-A0P |
Washer |
5 |
|
12 |
FT300.48.071a |
Fuel capacity sensor |
1 |
167
Foton TB604-Q161Y2K Wheeled Tractor

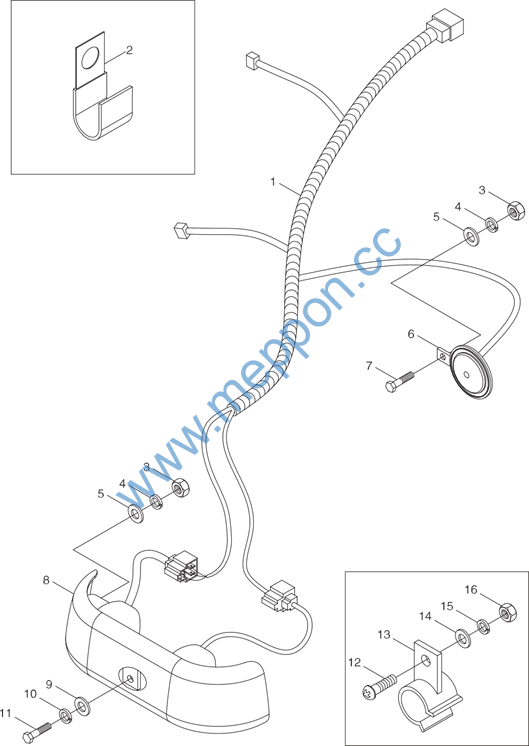

TB450.483 Harness Installation Assembly, Front Lamp
168
Foton TB604-Q161Y2K Wheeled Tractor
TB450.483 Harness Installation Assembly, Front Lamp
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB450.483 |
Harness Installation Assembly, Front Lamp |
1 |
||
1 |
FT400.48.023 |
Front lamp harness assembly |
1 |
|
2 |
FT65.48.097 |
Harness fixing clip (2) |
6 |
|
3 |
GB/T6170 |
Nut M6-A2L |
3 |
|
4 |
GB/T93 |
Washer 6-A0P |
3 |
|
5 |
GB/T97.1 |
Washer 6-A0P |
3 |
|
6 |
FT65.48.340 |
Horn assembly |
1 |
|
7 |
GB/T5783 |
Bolt M6×16-A2L |
1 |
|
8 |
TB400.483A.1 |
Front compound lamp assembly |
1 |
|
9 |
GB/T97.1 |
Washer 8-A0P |
2 |
|
10 |
GB/T93 |
Washer 8-A0P |
2 |
|
11 |
GB/T5783 |
Bolt M8×16-A2L |
2 |
|
12 |
GB/T818 |
Screw M5×14-A2L |
1 |
|
13 |
TB400.483-01 |
Harness buckle |
1 |
|
14 |
GB/T97.1 |
Washer 5-A0P |
1 |
|
15 |
GB/T93 |
Washer 5-A0P |
1 |
|
16 |
GB/T6170 |
Nut M5-A2L |
1 |
169
Foton TB604-Q161Y2K Wheeled Tractor

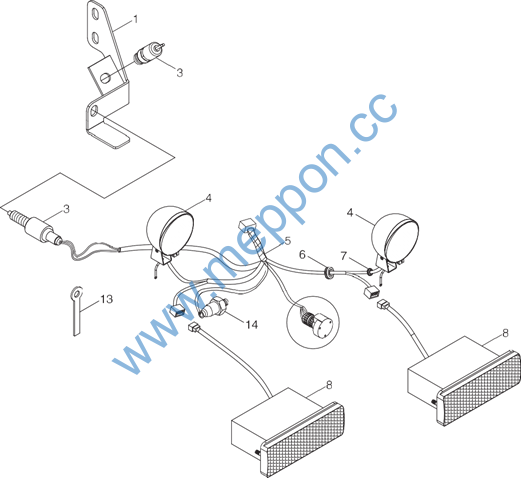

TB450.484S Rear Lamp Wire Harness Mounting Assy
170
Foton TB604-Q161Y2K Wheeled Tractor
TB450.484S Rear Lamp Wire Harness Mounting Assy
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB450.484S |
Rear lamp wire harness mounting assy |
1 |
||
1 |
FT300.48C.211 |
Mounting plate, brake switch |
1 |
|
2 |
GB/T 6170-M5-8-A2L |
Hexagon nut , Style 1 |
3 |
|
3 |
FT300.48.033 |
Brake lamp switch |
2 |
|
4 |
FT300.48.053a |
Rear lamp assy |
2 |
|
5 |
TB450.484S.1a |
Rear lamp harness assy |
1 |
|
6 |
FT65.48.093 |
Threading rubber ring (A) |
2 |
|
7 |
FT65.48.094 |
Threading rubber ring (B) |
2 |
|
8 |
FT300.48.052a |
Rear tail lamp assy |
2 |
|
9 |
TD900.484.2 |
Rear trailer socket |
1 |
|
10 |
GB/T 818-M5×35-4.8-A1L |
Cross recessed pan head screw |
3 |
|
11 |
GB/T 97.1-5-A0P |
Flat washer |
3 |
|
12 |
GB/T 93-5-A0P |
Standard spring washer |
3 |
|
13 |
TA600.486-01 |
Wire harness fixing clamp |
2 |
|
14 |
FT65.48.087 |
Air pressure alarm device |
1 |
171
Foton TB604-Q161Y2K Wheeled Tractor
TB450.485A Battery Installation Assembly
172
Foton TB604-Q161Y2K Wheeled Tractor
TB450.485A Battery Installation Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB450.485A |
Battery Installation Assembly |
1 |
||
1 |
GB/T 6170-M8-A2L |
Nut |
2 |
|
2 |
GB/T 93-8-A0P |
Washer |
2 |
|
3 |
GB/T 97.1-8-A0P |
Washer |
2 |
|
4 |
TG1204.485-02 |
Battery press plate |
1 |
|
5 |
TB400.485A.2 |
Battery bonding |
1 |
|
6 |
TB400.485A.1 |
Power source wire assembly |
1 |
|
7 |
FT450.48.010 |
Maintenance free lead acid battery |
1 |
|
8 |
FT65.48.095 |
Harness fixing clamp (1) |
1 |
|
9 |
TB450.485.1 |
Battery shock absorbing mat |
2 |
|
10 |
TG1204.485-01 |
Battery U-shape pull rod |
1 |
173
