LOVOL TB604-Q161Y2K Tractor Parts Catalogue 14
TB550.477D Bonnet Lengthened Plate Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB550.477D |
Bonnet lengthened plate assembly |
1 |
||
1 |
TB550.477D.1 |
Bonnet lengthened plate weldment |
1 |
|
2 |
TB550.477D-01 |
Left decoration strip |
1 |
|
3 |
TB550.477D-02 |
Right decoration strip |
1 |
|
4 |
GB/T 5781-M8×30-A2L |
Bolt |
3 |
|
5 |
GB/T 93-8-A0P |
Washer |
3 |
|
6 |
GB/T 97.1-8-A0P |
Washer |
3 |
|
7 |
GB/T 6170-M8-A2L |
Nut |
2 |
|
8 |
TB550.477D-03 |
Bonnet seal strip |
1 |
151
Foton TB604-Q161Y2K Wheeled Tractor

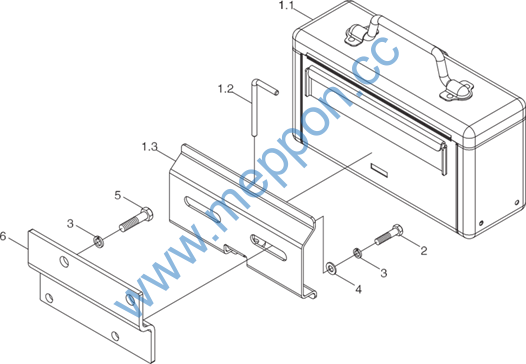

TB400.49 Tool Kit Assembly
152
Foton TB604-Q161Y2K Wheeled Tractor
TB400.49 Tool Kit Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB400.49 |
Tool kit assembly |
1 |
||
1 |
TB400.49.1 |
Tool kit supply assembly |
1 |
|
1.1 |
TB400.49.1.1 |
Tool kit welding and riveting assembly |
1 |
|
1.2 |
FT65.49.102 |
Plug pin |
1 |
|
1.3 |
FT65.49.103 |
Fixed support plate |
1 |
|
2 |
GB/T 5783-M12×20-8.8-A3L |
Hex head bolt |
2 |
|
3 |
GB/T 93-12-A0P |
Standard spring washer |
4 |
|
4 |
GB/T 97.1-12-A0P |
Flat washer |
2 |
|
5 |
GB/T 5783-M12×25-8.8-A3L |
Hex head bolt |
2 |
|
6 |
TB400.49-01 |
Transition mounting plate |
1 |
153
Foton TB604-Q161Y2K Wheeled Tractor

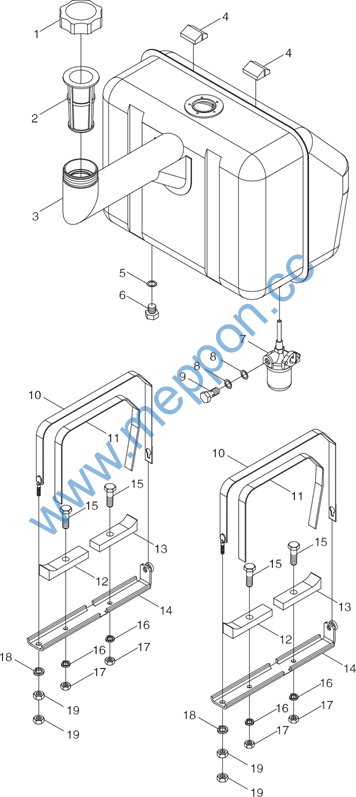

TB400.50X Fuel tank assembly
154
Foton TB604-Q161Y2K Wheeled Tractor
TB400.50X Fuel tank assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB400.50X |
Fuel tank assembly |
1 |
||
1 |
TA650.502.3 |
Oil tank cover assembly |
1 |
|
2 |
FT300.50.015 |
Filter screen assembly |
1 |
|
3 |
TB550.50Q.1 |
Oil tank weldment |
1 |
|
4 |
FT300.50.112 |
Rubber backing block |
2 |
|
5 |
JB/T 982-16 |
Compound seal washer |
1 |
|
6 |
FT65.50.226 |
Oil drainage screw plug |
1 |
|
7 |
FT65.50.033 |
Sediment bowl assembly |
1 |
|
8 |
JB/T 982-14 |
Compound seal washer |
2 |
|
9 |
FT65.50.106 |
Hollow bolt |
1 |
|
10 |
TB400.50X.2 |
Oil tank lock cable weldment |
2 |
|
11 |
FT404.50.114 |
Main oil tank lock cable rubber gasket |
2 |
|
12 |
FT300.50.110 |
Front rubber gasket |
2 |
|
13 |
FT300.50.111 |
Rear rubber gasket |
2 |
|
14 |
TB400.50X.1 |
Oil tank bracket weldment |
2 |
|
15 |
GB/T 5783-M8×20-A2L |
Hex bolt |
4 |
|
16 |
GB/T 93.1-8-A0P |
Washer |
4 |
|
17 |
GB/T 6170-M8-A2L |
Washer |
4 |
|
18 |
GB/T 93-10-A0P |
Standard spring washer |
2 |
|
19 |
GB/T 6170-M10-A3L |
Type 1 hex nut |
4 |
155
Foton TB604-Q161Y2K Wheeled Tractor

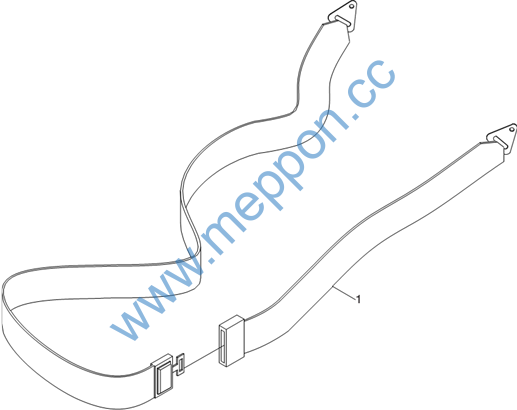

TA600.62 Safety Belt Assembly
156
Foton TB604-Q161Y2K Wheeled Tractor
TA600.62 Safety Belt Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1 |
TA600.62 TA600.62 |
Safety Belt Assembly Safety Belt |
1 2 |
157
Foton TB604-Q161Y2K Wheeled Tractor
FT404.74A.002 Front Ballast Assembly
158
Foton TB604-Q161Y2K Wheeled Tractor
FT404.74A.002 Front Ballast Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT404.74A.002 |
Front ballast assembly |
1 |
||
1 |
GB/T 5783-M16×35-8.8-A3L |
Hexagon head bolt |
4 |
|
2 |
GB/T 93-16-A0P |
Standard spring washer |
4 |
|
3 |
GB/T 97.1-16-A0P |
Flat washer |
4 |
|
4 |
FT300.74A.107 |
Fixing frame |
1 |
|
5 |
FT404.74A.010 |
Front ballast subassembly |
1 |
|
5.1 |
GB/T 6170-M16-8-A3L |
Hexagon nut, style 1 |
2 |
|
5.2 |
GB/T 93-16-A0P |
Standard spring washer |
2 |
|
5.3 |
GB/T 97.1-16-A0P |
Flat washer |
2 |
|
5.4 |
FT300.74A.108 |
Connecting bolt |
1 |
|
5.5 |
FT300.74A.105 |
Ballast block |
2 |
|
5.6 |
FT300.74A.106 |
Ballast block |
4 |
|
6 |
FT650.74.108 |
Traction nut |
2 |
|
7 |
GB/T 5785-M20×1.5×80-8.8-A3L |
Hexagon head bolt |
2 |
|
8 |
GB/T 97.1-20-A0P |
Flat washer |
2 |
|
9 |
FT300.74A.100 |
Traction lug |
1 |
159
Foton TB604-Q161Y2K Wheeled Tractor

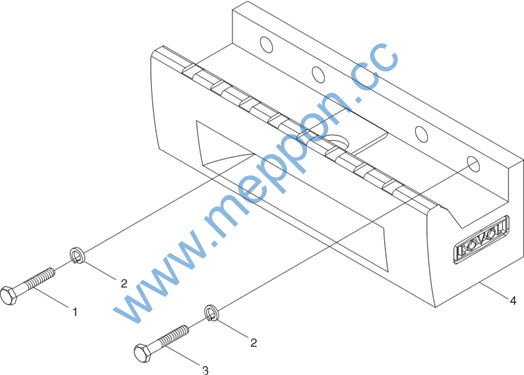

FT300.74A.001 Front Ballast Frame Assembly
160
Foton TB604-Q161Y2K Wheeled Tractor
FT300.74A.001 Front Ballast Frame Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1 2 3 4 |
FT300.74A.001 GB/T 5783-M16×70-8.8-A3L GB/T 93-16-AOP GB/T 5783-M16×50-8.8-A3L FT300.74A.101a |
Front ballast frame assembly Bolt Washer Bolt Ballast frame |
1 2 6 4 1 |
161
Foton TB604-Q161Y2K Wheeled Tractor

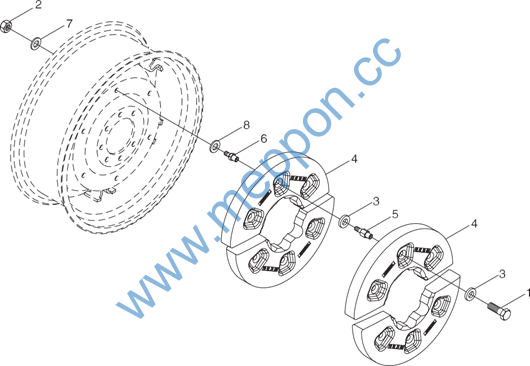

FT600.91.001 Rear Counterweight Assembly
