LOVOL TB604-Q161Y2K Tractor Parts Catalogue 13
TB550.452Z Floor assy-3
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB550.452Z |
Floor assy |
1 |
||
1 |
GB/T 5783-M6×12-8.8-A2L |
Hex head bolt |
6 |
|
2 |
GB/T 93-6-A0P |
Standard spring washer |
17 |
|
3 |
GB/T 97.1-6-A0P |
Flat washer |
17 |
|
4 |
TB550.452H-18 |
Pressing plate 2, seal cartridge |
1 |
|
5 |
TB550.452H-17 |
Seal cartridge 2 |
1 |
|
6 |
TB550.452H-14 |
Pressing plate 1, seal cartridge |
1 |
|
7 |
TB550.452H-15 |
Seal cartridge |
1 |
|
8 |
FT250.47.163 |
Armrest |
2 |
|
9 |
TE250.45E.5 |
Armrest washer cluster |
4 |
|
10 |
GB/T 5783-M8×20-8.8-A2L |
Hex head bolt |
12 |
|
11 |
GB/T 93-8-A0P |
Standard spring washer |
12 |
|
12 |
GB/T 96.1-8-A0P |
Big gasket |
12 |
|
13 |
TB550.452H-08 |
Bending plate |
1 |
|
14 |
GB/T 6170-M12-8-A3L |
Hexagon nut, Style 1 |
4 |
|
15 |
GB/T 5783-M16×90-8.8-A2L |
Hex head bolt |
2 |
|
16 |
GB/T 97.1-16-A0P |
Flat washer |
2 |
|
17 |
TB400.457B-02 |
Retainer ring |
4 |
|
18 |
TB400.457B-01 |
Damping block |
2 |
|
19 |
GB/T 93-16-A0P |
Standard spring washer |
2 |
|
20 |
GB/T 6170-M16-8-A3L |
Hexagon nut , Style 1 |
2 |
|
21 |
TB550.452H.5-01 |
Seat fixing plate |
1 |
|
22 |
TB550.452H-20 |
Cover plate |
1 |
|
23 |
GB/T 5783-M6×16-8.8-A2L |
Hex head bolt |
11 |
|
24 |
GB/T 93-12-A0P |
Standard spring washer |
4 |
|
25 |
GB/T 96.1-12-A0P |
Big gasket |
4 |
139
Foton TB604-Q161Y2K Wheeled Tractor

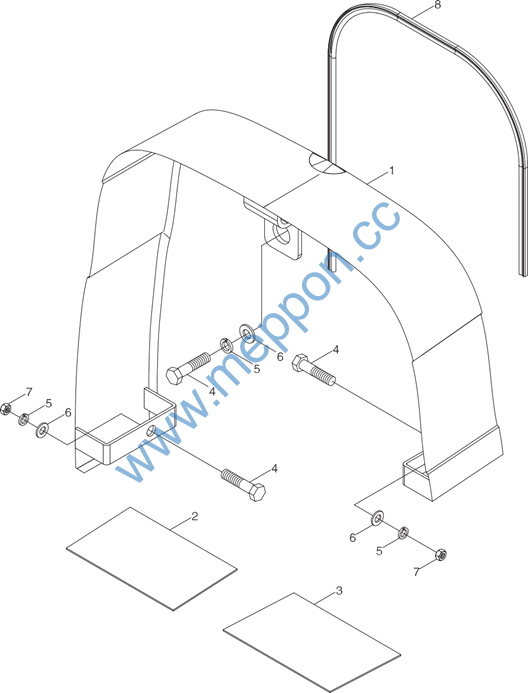

TB400.457B Front Connection Assembly
140
Foton TB604-Q161Y2K Wheeled Tractor
TB400.457B Front Connection Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB400.457B |
Front connection assembly |
1 |
||
1 |
TB400.457B-02 |
Circlip |
4 |
|
2 |
TB400.457B-01 |
Shock absorbing block |
2 |
|
3 |
TB400.457B.2 |
Right front connection weldment |
1 |
|
4 |
GB/T 97.1-16-A0P |
Flat washer |
2 |
|
5 |
GB/T 93-16-A0P |
Standard spring washer |
2 |
|
6 |
GB/T 5783-M16×80-8.8-A3L |
Hex bolt |
2 |
|
7 |
GB/T 5783-M12×35-8.8-A3L |
Hex bolt |
8 |
|
8 |
GB/T 93-12-A0P |
Standard spring washer |
8 |
|
9 |
GB/T 97.1-12-A0P |
Flat washer |
8 |
|
10 |
TB400.457B.1 |
Left front connection weldment |
1 |
141
Foton TB604-Q161Y2K Wheeled Tractor

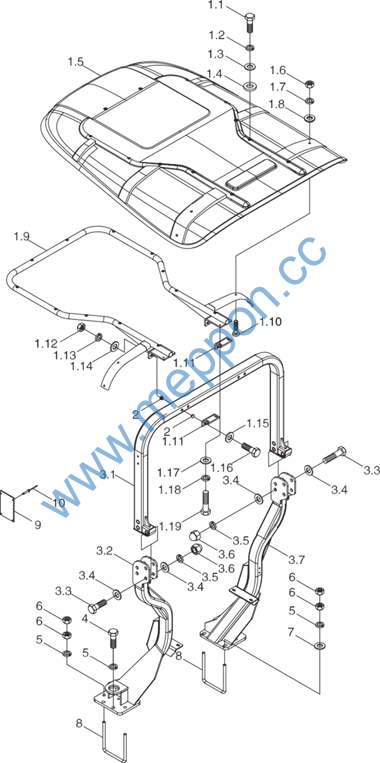

TB400.46H Safety Frame Mounting Assembly
142
Foton TB604-Q161Y2K Wheeled Tractor
TB400.46H Safety Frame Mounting Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB400.46H |
Safety frame mounting assembly |
1 |
||
1 |
TB400.46C.3 |
Sunshade assembly |
1 |
|
1.1 |
GB/T 5783-M6×25-8.8-A2L |
Hex head bolt |
12 |
|
1.2 |
GB/T 93-6-A0P |
Standard spring washer |
12 |
|
1.3 |
GB/T 97.1-6-A0P |
Flat washer |
12 |
|
1.4 |
TE254.46.2.1-02 |
Rubber washer |
12 |
|
1.5 |
TB400.46C.3.1 |
Sunshade |
1 |
|
1.6 |
GB/T 6170-M10-8-A3L |
Hexagon nut , Style 1 |
4 |
|
1.7 |
GB/T 93-10-A0P |
Standard spring washer |
4 |
|
1.8 |
FT400.46.021 |
Gasket cluster |
4 |
|
1.9 |
TB400.46C.3.3 |
Sunshade fixed mount weldment |
1 |
|
1.10 |
GB/T 818-M10×30-4.8-A3L |
Cross recessed pan head screw |
4 |
|
1.11 |
TB400.46C.3-01 |
Sunshade fixed mount |
2 |
|
1.12 |
GB/T 6170-M12-10-A3L |
Hexagon nut , Style 1 |
4 |
|
1.13 |
GB/T 93-12-A0P |
Standard spring washer |
4 |
|
1.14 |
GB/T 96.1-12-A3L |
Big gasket |
4 |
|
1.15 |
GB/T 97.1-12-A0P |
Flat washer |
4 |
|
1.16 |
GB/T 5782-M12×110-8.8-A2L |
Hex head bolt |
4 |
|
1.17 |
GB/T 97.1-8-A0P |
Big gasket |
4 |
|
1.18 |
GB/T 93-8-A0P |
Standard spring washer |
4 |
|
1.19 |
GB/T 5783-M8×20-10.9-A2L |
Hex head bolt |
4 |
|
2 |
TB400.46C-01 |
Blanking cap |
8 |
|
3 |
TB400.46D.1 |
Safety frame assembly |
1 |
|
3.1 |
TB400.46D.1.4 |
Top bar weldment |
1 |
|
3.2 |
TB400.46D.1.1 |
Left support weldment |
1 |
|
3.3 |
GB/T 5782-M16×90-10.9-A2L |
Hex head bolt |
6 |
|
3.4 |
GB/T 97.1-16-A0P |
Flat washer |
12 |
|
3.5 |
GB/T 93-16-A0P |
Standard spring washer |
6 |
|
3.6 |
GB/T 802-M16-6 |
Combined cap nut |
6 |
|
3.7 |
TB400.46D.1.2 |
Right support weldment |
1 |
|
4 |
GB/T 5783-M14×40-8.8-A3L |
Hex head bolt |
4 |
|
5 |
GB/T 93-14-A0P |
Standard spring washer |
12 |
143
Foton TB604-Q161Y2K Wheeled Tractor
TB400.46H Safety Frame Mounting Assembly(extension)
144
Foton TB604-Q161Y2K Wheeled Tractor
TB400.46H Safety Frame Mounting Assembly(extension)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
6 7 8 9 10 |
GB/T 6170-M14-8-A3L GB/T 97.1-14-A0P FT400.46.350 TB400.46H-01 GB/T 12618-3×15 |
Hexagon nut , Style 1 Flat washer U-bolt OECD nameplate Open-type flat head blind rivet |
16 12 4 1 4 |
145
Foton TB604-Q161Y2K Wheeled Tractor

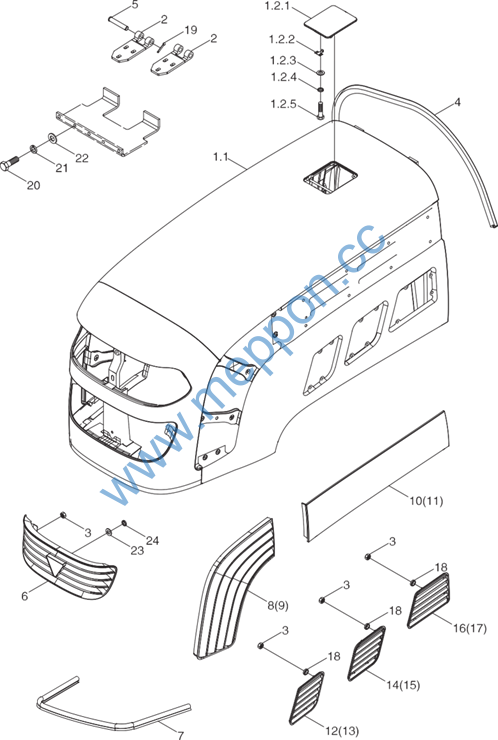

TB400B.471A Engine hood assembly
146
Foton TB604-Q161Y2K Wheeled Tractor
TB400B.471A Engine hood assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB400B.471A |
Engine hood assembly |
1 |
||
1 |
TB400B.471.4 |
Engine hood fitting and welding assembly |
1 |
|
1.1 |
TB400B.471.1 |
Engine hood weldment |
1 |
|
1.2 |
TB400B.471.3 |
Filler cap assembly |
1 |
|
1.2.1 |
TB400B.471.3.1 |
Filler cap weldment |
1 |
|
1.2.2 |
TB400B.471.3-01 |
Bracket 2 |
1 |
|
1.2.3 |
GB/T 97.1-5-A0P |
Flat washer |
2 |
|
1.2.4 |
GB/T 93-5-A0P |
Standard spring washer |
2 |
|
1.2.5 |
GB/T 5783-M6×12-8.8-A2L |
Hex head bolt |
2 |
|
2 |
TB400B.471-15 |
Hinge base (upper) |
2 |
|
3 |
GB/T 6170-M5-8-A2L |
Hexagon nut , Style 1 |
53 |
|
4 |
TB400B.471-14 |
Sealing strip, engine hood |
1 |
|
5 |
GB/T 882-B16×90-A0P |
Axis pin |
2 |
|
6 |
TB400B.471-01 |
Front grille |
1 |
|
7 |
TB400B.471-17 |
Front lower buffer adhesive tape |
1 |
|
8 |
TB400B.471-02 |
Front left grille |
1 |
|
9 |
TB400B.471-03 |
Front right grille |
1 |
|
10 |
TB400B.471-04 |
Rear left trimming |
1 |
|
11 |
TB400B.471-05 |
Rear right trimming |
1 |
|
12 |
TB400B.471-06 |
Front left lower grid |
1 |
|
13 |
TB400B.471-07 |
Front right lower grid |
1 |
|
14 |
TB400B.471-08 |
Front middle lower grid |
1 |
|
15 |
TB400B.471-09 |
Right middle lower grid |
1 |
|
16 |
TB400B.471-10 |
Rear left lower grid |
1 |
|
17 |
TB400B.471-11 |
Rear right lower grid |
1 |
|
18 |
TB400B.471-18 |
Cushion block |
24 |
|
19 |
GB/T 91-5×32-A0P |
Split pin |
2 |
|
20 |
GB/T 5781-M10×30-4.8-A3L |
Hex head bolt |
5 |
|
21 |
GB/T 93-10-A0P |
Standard spring washer |
10 |
|
22 |
GB/T 97.1-10-A0P |
Flat washer |
8 |
|
23 |
GB/T 97.1-6-A0P |
Flat washer |
14 |
|
24 |
GB/T 93-6-A0P |
Standard spring washer |
29 |
147
Foton TB604-Q161Y2K Wheeled Tractor

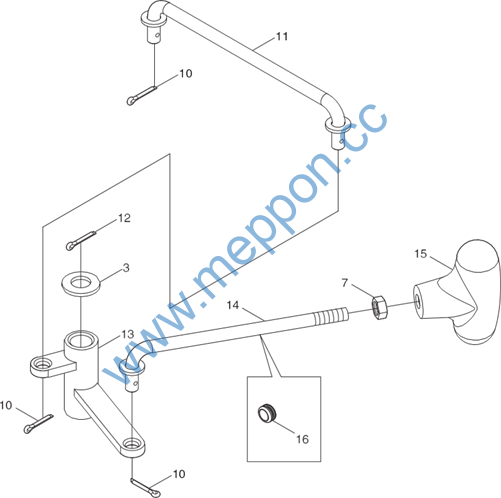

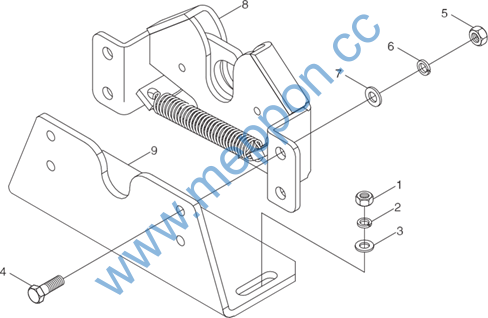

TB400B.473 Bonnet Lock Mechanism Assembly
148
Foton TB604-Q161Y2K Wheeled Tractor
TB400B.473 Bonnet Lock Mechanism Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB400B.473 |
Bonnet lock mechanism assembly |
1 |
||
1 |
GB/T 6170-M8-8-A2L |
Type 1 hex nut |
3 |
|
2 |
GB/T 93-8-A0P |
Standard spring washer |
3 |
|
3 |
GB/T 97.1-8-A0P |
Flat washer |
3 |
|
4 |
GB/T 5783-M6×20-8.8-A2L |
Hex bolt |
4 |
|
5 |
GB/T 6170-M6-8-A2L |
Type 1 hex nut |
5 |
|
6 |
GB/T 93-6-A0P |
Standard spring washer |
4 |
|
7 |
GB/T 97.1-6-A0P |
Flat washer |
2 |
|
8 |
TG1204.474.4 |
Bonnet lock assembly |
1 |
|
9 |
TB400B.473-01 |
Bonnet lock plate |
1 |
|
10 |
GB/T 91-1.6×16-A0P |
Cotter pin |
3 |
|
11 |
TB400B.473.2 |
Pull rod weldment |
1 |
|
12 |
GB/T 91-2.5×25-A0P |
Cotter pin |
1 |
|
13 |
TB400B.473.3 |
Rocker arm weldment |
1 |
|
14 |
TB400B.473.4 |
Pull rod weldment (2) |
1 |
|
15 |
FT800A.47.056 |
Handle assembly |
1 |
|
16 |
TB450.473-02 |
Rubber ring |
1 |
149
Foton TB604-Q161Y2K Wheeled Tractor
TB550.477D Bonnet Lengthened Plate Assembly
150
