LOVOL TB604-Q161Y2K Tractor Parts Catalogue 12
TB604.582A Multi-way Valve Pipe and Control Mechanism Assembly-3
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB604.582A |
Multi-way valve pipe and control mechanism assembly |
1 |
||
1 |
FT654.58.107 |
Hollow bolt -1 |
1 |
|
2 |
JB/T 982-22 |
Combined seal gasket |
3 |
|
3 |
TB604.582A.3 |
Multi-way valve return pipe assembly |
1 |
|
4 |
FT654.58B.102 |
Snap-fitting through-joint body 1 |
1 |
|
5 |
GB/T 6170-M10-8-A3L |
Hexagon nut , Style 1 |
3 |
|
6 |
GB/T 93-10-A0P |
Standard spring washer |
4 |
|
7 |
TB604.582A.1 |
Multi-way valve bracket weldment |
1 |
|
8 |
GB/T 5782-M10×70-8.8-A2L |
Hex head bolt |
3 |
|
9 |
GB/T 5783-M10×30-8.8-A3L |
Hex head bolt |
1 |
127
Foton TB604-Q161Y2K Wheeled Tractor

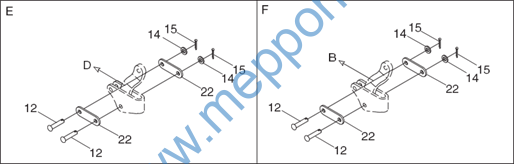

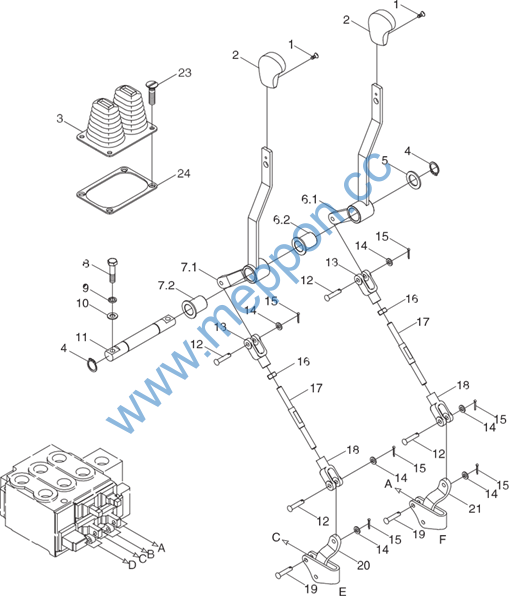

TB604.582A Multi-way Valve Pipe and Control Mechanism Assembly-4
128
Foton TB604-Q161Y2K Wheeled Tractor
TB604.582A Multi-way Valve Pipe and Control Mechanism Assembly-4
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB604.582A |
Multi-way valve pipe and control mechanism assembly |
1 |
||
1 |
GB/T 68-M4×10-4.8-A2L |
Slotted countersunk head screw |
2 |
|
2 |
TB604.582G-01 |
Handle head |
2 |
|
3 |
TB504.552A-02b |
Dust boot |
1 |
|
4 |
GB/T 894.1-18 |
Circlip for shaft |
2 |
|
5 |
TB504.552A-03 |
Nylon washer |
1 |
|
6 |
TB504.582H.3a |
Multi-way valve control lever press-fit 1 |
1 |
|
6.1 |
TB504.582H.3A.1 |
Multi-way valve control lever weldment 1 |
1 |
|
6.2 |
TB504.552A.1-01 |
Nylon spacer bush |
1 |
|
7 |
TB504.582H.4a |
Multi-way valve control lever press-fit 2 |
1 |
|
7.1 |
TB504.582H.4A.1 |
Multi-way valve control lever weldment 2 |
1 |
|
7.2 |
TB504.552A.1-01 |
Nylon spacer bush |
1 |
|
8 |
GB/T 5783-M8×35-8.8-A2L |
Hex head bolt |
2 |
|
9 |
GB/T 93-8-A0P |
Standard spring washer |
2 |
|
10 |
GB/T 97.1-8-A0P |
Flat washer |
2 |
|
11 |
TB504.552A-01 |
Revolving shaft |
1 |
|
12 |
GB/T 882-B6×28 |
Axis pin |
8 |
|
13 |
FT804A.58L.133 |
Right-handed rotation pull rod fork |
2 |
|
14 |
GB/T 97.1-6-A0P |
Flat washer |
10 |
|
15 |
GB/T 91-2×12-A0P |
Split pin |
10 |
|
16 |
GB/T 6170-M8-8-A2L |
Hexagon nut , Style 1 |
2 |
|
17 |
TB604.582A-01 |
Threaded rod |
2 |
|
18 |
FT804A.58L.136 |
Left-handed rotation pull rod fork |
2 |
|
19 |
GB/T 882-B6×22 |
Axis pin |
2 |
|
20 |
TB504.582A.2 |
Connecting plate weldment 2 |
1 |
|
21 |
TB504.582A.1 |
Connecting plate weldment 1 |
1 |
|
22 |
FT654.58.103 |
Connecting plate |
4 |
|
23 |
GB/T 68-M6×16-4.8-A2L |
Slotted countersunk head screw |
4 |
|
24 |
TB504.552A-06 |
Pressing plate, dust cover |
1 |
129
Foton TB604-Q161Y2K Wheeled Tractor

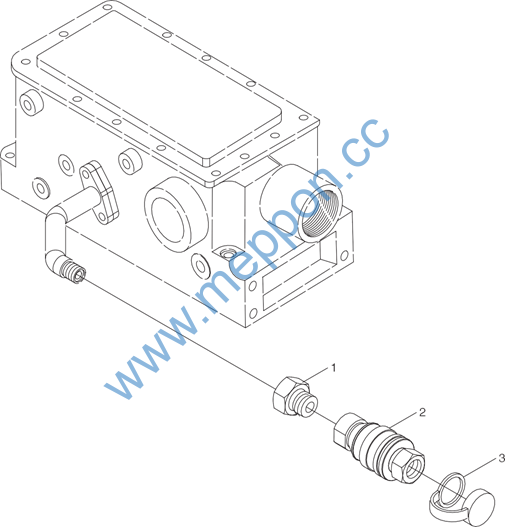

TB300.583A Single-way Hydraulic Outlet Assembly 2
130
Foton TB604-Q161Y2K Wheeled Tractor
TB300.583A Single-way Hydraulic Outlet Assembly 2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1 2 3 |
TB300.583A FT354.58A.104 FT354.58A.030 FT354.58A.103 |
Single-way hydraulic outlet assembly 2 Oil pipe joint Quick-adapt joint Dustproof cover |
1 1 1 1 |
131
Foton TB604-Q161Y2K Wheeled Tractor

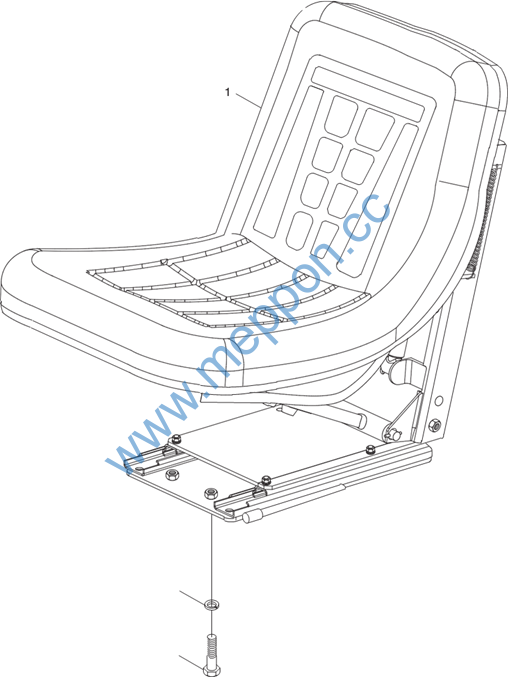

TB400.44G Seat Mounting Assembly
132
Foton TB604-Q161Y2K Wheeled Tractor
TB400.44G Seat Mounting Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1 2 3 |
TB400.44G TB400.44G.1 GB/T 93-10-A0P GB/T 5783-M10×20-8.8-A3L |
Seat mounting assembly Seat assembly Standard spring washer Hex head bolt |
1 1 4 4 |
133
Foton TB604-Q161Y2K Wheeled Tractor

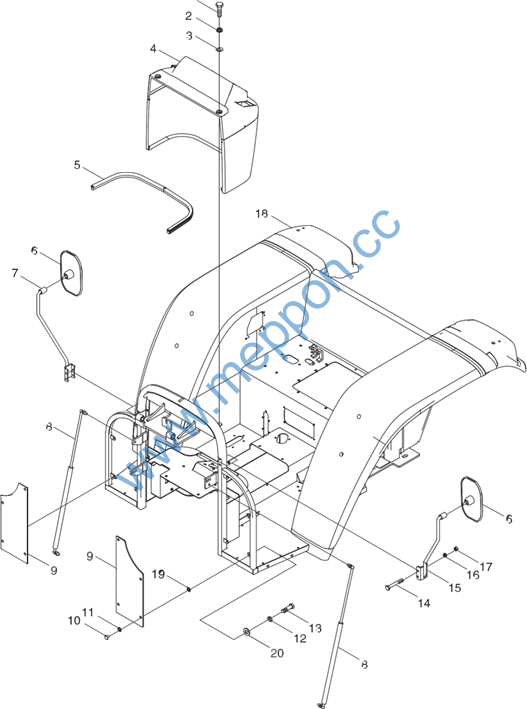

TB550.452Z Floor assy-1
134
Foton TB604-Q161Y2K Wheeled Tractor
TB550.452Z Floor assy-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB550.452Z |
Floor assy |
1 |
||
1 |
GB/T 5783-M6×16-8.8-A2L |
Hex head bolt |
6 |
|
2 |
GB/T 93-6-A0P |
Standard spring washer |
6 |
|
3 |
GB/T 97.1-6-A0P |
Flat washer |
6 |
|
4 |
TB600.45Z-01 |
Dashboard assembly |
1 |
|
5 |
TB600.45L-69 |
Dashboard sealing strip |
1 |
|
6 |
TB400.456A.3 |
Rearview mirror assembly |
2 |
|
7 |
TB550.452J.5 |
Right bracket weldment |
1 |
|
8 |
TB400B.471-30 |
Gas spring, engine hood |
2 |
|
9 |
TB550.452J-01 |
Front windshield |
2 |
|
10 |
TA700.452B-02 |
Plastic casting nut |
8 |
|
11 |
TA700.452B-03 |
Rubber washer |
8 |
|
12 |
GB/T 93-5-A0P |
Standard spring washer |
8 |
|
13 |
GB/T 5783-M5×16-8.8-A2L |
Hex head bolt |
8 |
|
14 |
GB/T 5783-M8×65-8.8-A2L |
Hex head bolt |
4 |
|
15 |
TB550.452J.4 |
Rearview mirror bracket weldment |
1 |
|
16 |
GB/T 93-8-A0P |
Standard spring washer |
4 |
|
17 |
GB/T 6170-M8-8-A2L |
Hexagon nut , Style 1 |
4 |
|
18 |
TB550.452J.1 |
Floor weldment |
1 |
|
19 |
TA700.452B-06 |
Rubber washer |
8 |
|
20 |
GB/T 97.1-5-A0P |
Flat washer |
8 |
135
Foton TB604-Q161Y2K Wheeled Tractor

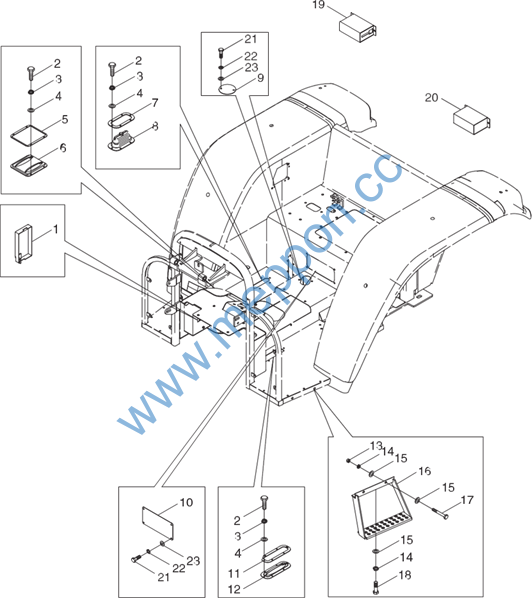

TB550.452Z Floor assy-2
136
Foton TB604-Q161Y2K Wheeled Tractor
TB550.452Z Floor assy-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB550.452Z |
Floor assy |
1 |
||
1 |
TB550.452H-07 |
Electrical box cover |
1 |
|
2 |
GB/T 5783-M5×16-8.8-A2L |
Hex head bolt |
16 |
|
3 |
GB/T 93-5-A0P |
Standard spring washer |
16 |
|
4 |
GB/T 97.1-5-A0P |
Flat washer |
16 |
|
5 |
TB604.452C-02 |
Pressing plate, brake seal cartridge |
1 |
|
6 |
TB604.452C-01 |
Seal cartridge, brake pedal |
1 |
|
7 |
TB550.452J-02 |
Pressing plate |
1 |
|
8 |
TB550.452H-16 |
Seal cartridge |
1 |
|
9 |
TB550.452H-25 |
U cover plate |
1 |
|
10 |
TB550.452H-24 |
Rear floor cover |
1 |
|
11 |
FT300.45.134 |
Trim strip, clutch pedal dust cover |
1 |
|
12 |
FT300.45.133 |
Clutch pedal dust cover |
1 |
|
13 |
GB/T 6170-M10-8-A3L |
Hexagon nut, Style 1 |
4 |
|
14 |
GB/T 93-10-A0P |
Standard spring washer |
6 |
|
15 |
GB/T 97.1-10-A0P |
Flat washer |
9 |
|
16 |
TB550.452J.2 |
Sill step assy |
2 |
|
17 |
GB/T 5783-M10×55-8.8-A2L |
Hex head bolt |
4 |
|
18 |
GB/T 5783-M10×30-8.8-A3L |
Hex head bolt |
2 |
|
19 |
TB450.45A.1 |
Rear left lamp baffle weldment |
1 |
|
20 |
TB450.45A.2 |
Rear right lamp baffle weldment |
1 |
|
21 |
GB/T 5783-M6×16-8.8-A2L |
Hex head bolt |
6 |
|
22 |
GB/T 93-6-A0P |
Standard spring washer |
6 |
|
23 |
GB/T 97.1-6-A0P |
Flat washer |
6 |
137
Foton TB604-Q161Y2K Wheeled Tractor

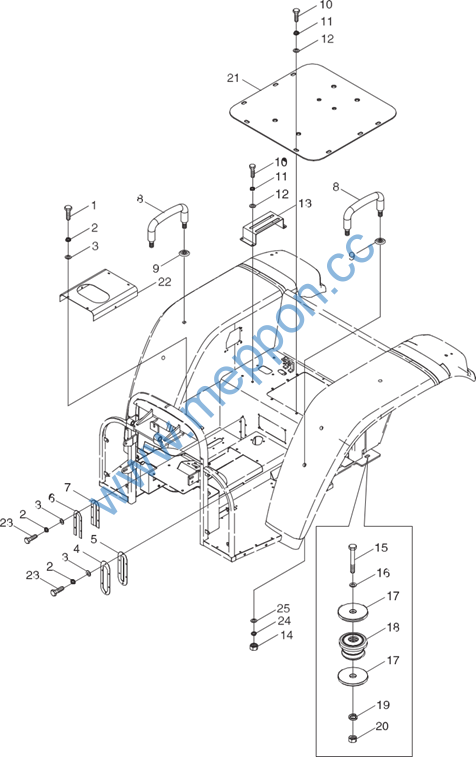

TB550.452Z Floor assy-3
138
