No.

Part code and specification

Part name

Quantity

Remark

FT304.31F.011

Front driving axle subassembly

1

1

GB/T 3452.1

O-ring 140×3.5G

2

2

FT304.31F.191

Dowel disc

1

3

FT304.31F.129

Main reducer casing housing

1

4

FT304.31F.106

Washer

1

5

FT304.31F.105

Screw plug

1

6

GB/T 119

Pin B12×20

4

7

GB/T 3452.1

O-ring 90×2.65G

1

8

FT304.31F.131

Driving bevel gear shaft

1

9

GB/T 297

Bearing 32207

2

10

FT304.31F.132

Spacing sleeve

1

11

FT304.31F.133

Adjusting sleeve

1

12

GB/T 893.1

Circlip 72

1

13

GB/T 9877.1

Oil seal (F) 50 72 8D

1

14

FT304.31F.134

Oil seal seat

1

15

GB/T 3452.1

O-ring 34.5×3.55G

1

16

FT304.31F.104

Copper gasket

1

17

GB/T 810

Small round nut M30×1.5

2

18

GB/T 858

Washer 30

1

19

FT304.31F.138

Central transmission bevel gear

1

20

GB/T 276

Bearing 6216

2

21

FT304.31F.137

Differential right housing

1

22

GB/T 119

Pin B8×20

2

23

FT304.31F.139

Spacing ring

2

24

FT304.31F.144

Half axle gear

2

25

FT304.31F.140

Washer

2

26

FT304.31F.143

Planetary gear

2

27

FT304.31F.142

Shaft pin

1

28

FT304.31F.141

Thrust pin

1

29

FT304.31F.136

Differential left housing

1

30

GB/T 93

Washer 10

6

31

GB/T 70

Screw M10×70

6

No.

Part code and specification

Part name

Quantity

Remark

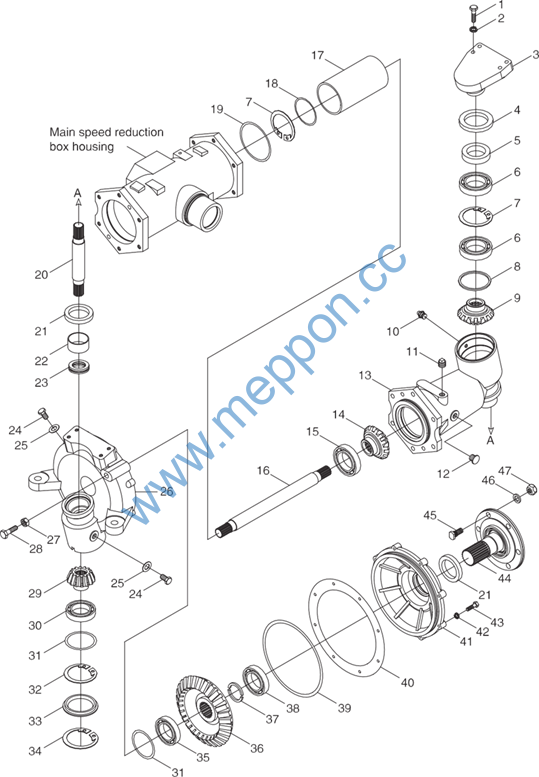

FT304.31F.011

Front driving axle subassembly

1

1

GB/T 5783

Bolt M12×40

4

2

GB/T 93

Washer 12

4

3

FT304.31F.124

Connecting cover

1

4

GB/T 9877.1

Oil seal

1

5

FT304.31F.125

Oil seal bush

1

6

GB/T 276

Bearing 6013

2

7

GB/T 893.1

Circlip 100

2

8

FT304.31F.188

Flat washer

1

9

FT304.31F.122

Gear

1

10

JB/T 7940.1

Oil cup M10×1

1

11

Q/YXF70-1992

Screw plug Z3/8″

1

12

GB/T 1160.2

Oil scale A10

1

13

FT304.31F.121

Half axle housing

1

14

FT304.31F.126

Gear

1

15

GB/T 276

Bearing 6309

1

16

FT304.31F.145

Spline shaft

1

17

FT304.31F.127

Sleeve

1

18

FT304.31F.123

Adjusting gasket

1 group

19

FT304.31F.130

Adjusting gasket

1 group

20

FT304.31F.110

End spline shaft

1

21

Floating oil seal

2 pairs

22

FT304.31F.111

Bushing 55×30

1

23

GB/T 301

Thrust bearing 8107

1

24

FT304.31F.105

Screw plug

2

25

FT304.31F.106

Washer

2

26

FT304.31F.146

Right end housing

1

27

GB/T 6170

Nut M16

1

28

GB/T 5783

Bolt M16×50

1

29

FT304.31F.112

End pinion

1

30

GB/T 276

Bearing 6308

1

31

FT304.31F.113

Adjusting gasket

2

No.

Part code and specification

Part name

Quantity

Remark

32

GB/T 893.1

Circlip 90

1

33

FT304.31F.022

Seal cover

1

34

GB/T 893.1

Circlip 102

1

35

GB/T 276

Bearing 6210

1

36

FT304.31F.108

End gear

1

37

FT304.31F.114

Circlip

2

38

GB/T 276

Bearing 6310

1

39

GB/T 3452.1

O-ring 236×5.3G

1

40

FT304.31F.190

Adjusting gasket

1 group

41

FT304.31F.107

End big cover

1

42

GB/T 93

Washer

8

43

GB/T 5783

Bolt M8×35

8

44

FT304.31F.117

Front driving shaft

1

45

FT304.31F.115

Knurled bolt

6

46

FT204.31F.205

Washer

6

47

GB/T 6176

Nut M14×1.5

6

No.

Part code and specification

Part name

Quantity

Remark

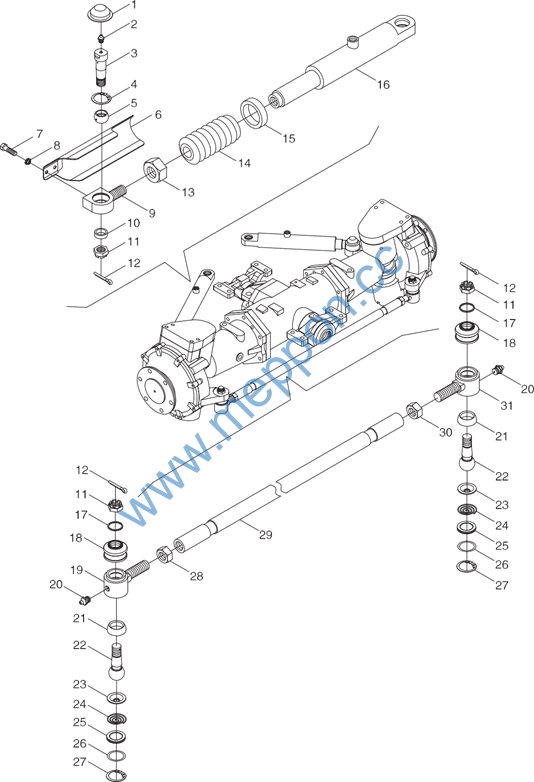

FT304.31F.011

Front driving axle subssembly

1

1

FT304.31F.160

Dustproof cover

2

2

JB/T 7940.1

Oil cup M6×1

2

3

FT304.31F.165a

Fixing pin

2

4

GB/T 893.1

Circlip 35

2

5

GB/T 9163

Knuckle bearing GE20ES

2

6

FT304.31F.185

Left shield plate

1

FT304.31F.186

Right shield plate

1

7

GB/T 5783

Bolt M8×16

4

8

GB/T 93

Washer 8

4

9

FT304.31F.195

Left piston rod dangler

1

FT304.31F.196

Right piston rod dangler

1

10

FT304.31F.167

Spacing sleeve

2

11

FT304.31F.168

Hex slotted nut

4

12

GB/T 91

Cotter pin 3.2×40

4

13

GB/T 6173

Nut M20×1.5

2

14

FT304.31F.027

Dustproof bladder

2

15

Q50MZ3040

Clamp 50

2

16

FT304.31F.019a

Hydraulic cylinder

2

17

FT304.31F.184

Snap spring

2

18

FT304.31F.026A

Dustproof bladder

2

19

FT304.31F.174A

Left ball head pin seat

1

20

JB/T 7940.1

Oil cup M6×1

2

21

804.31.151

Ball head pin seat

2

22

FT304.31F.177A

Ball head pin

2

23

804.31.153

Ball head pin cover

2

24

804.31.154

Spring

2

25

FT304.31F.187

Press cover

2

26

GB/T 3452.1

O-ring 33.5×1.8G

1

27

GB/T 893.1

Circlip 37

2

28

GB/T 6171

Nut M20×1.5LH

1

29

FT304.31F.175

Pull rod

1

30

GB/T 6171

Nut M20×1.5

1

31

FT304.31F.176A

Right ball head pin seat

1

No.

Part code and specification

Part name

Quantity

Remark

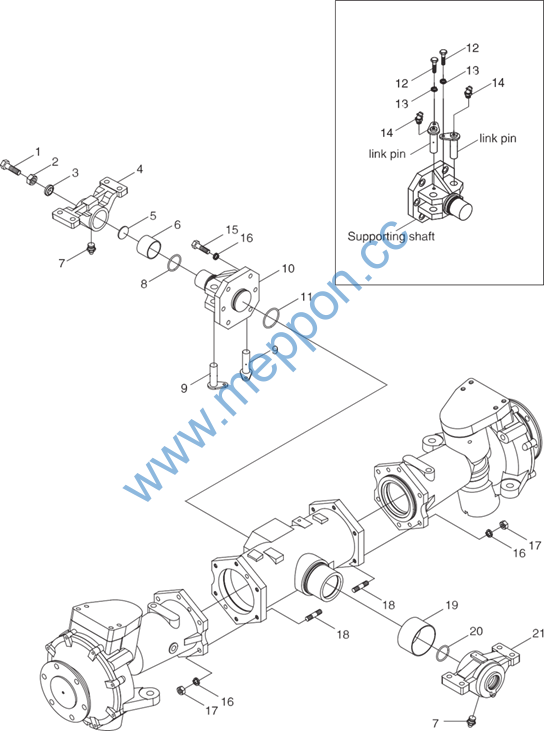

FT304.31F.011

Front driving axle subassembly

1

1

GB/T 5783

Bolt M16×40-Zn.D

1

2

GB/T 6170

Nut M16

1

3

FT304.31F.025

Seal gasket

1

4

FT304.31F.149

Front support seat

1

5

FT304.31F.150

Gasket

1

6

FT304.31F.148

Sliding bearing 50×40

1

7

GB/T 7940.1

Oil cup M8×1

2

8

GB/T 3452.1

O-ring 47.5×3.55G

1

9

FT304.31F.024

Connecting pin

2

10

FT304.31F.147

Support shaft

1

11

GB/T 3452.1

O-ring 58×3.55G

1

12

GB/T 5783

Bolt M8×20-Zn.D

2

13

GB/T 93

Washer

2

14

GB/T 7940.2

Oil cup 45° M8×1

2

15

GB/T 5783

Bolt M12×40-Zn.D

6

16

GB/T 93

Washer 12

18

17

GB/T 6170

Nut M12

12

18

GB/T 900

Stud AM12×40-8.8-Zn.D

12

19

FT304.31F.156

Sliding bearing 90×55

1

20

GB/T 3452.1

O-ring 45×3.55G

1

21

FT304.31F.155

Rear support seat

1

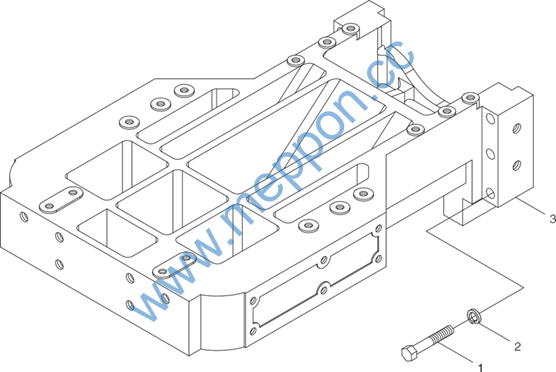

No.

Part code and specification

Part name

Quantity

Remark

1

2

3

TB554.312

GB/T 5782-M16×110-10.9-A2L GB/T93-16-A0P

TB554.312-01

Front bracket assembly Hex bolt

Standard spring washer Front bracket

1

6

6

1
