LOVOL TB604-Q161Y2K Tractor Parts Catalogue 06
TB554.421B Transfer Case Body Assembly(extension)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1.31 |
GB/T 93-10-A0P |
Washer |
4 |
|
1.32 |
TB554.423B-01 |
Side cover |
1 |
|
1.33 |
TB554.423B-02 |
Revolving shaft spacing sleeve |
1 |
|
1.34 |
GB/T 3452.1-17.0×1.80G |
O-ring |
2 |
|
1.35 |
TB554.423B.1 |
Revolving shaft weldment |
1 |
|
2 |
GB/T 3452.1-132×3.55G |
O-ring |
1 |
|
3 |
GB/T 119.1-10m6×20-A0P |
Pin |
2 |
|
4 |
GB/T 93-10-A0P |
Washer |
4 |
|
5 |
GB/T 5783-M10×30-8.8-A3L |
Bolt |
4 |
55
Foton TB604-Q161Y2K Wheeled Tractor

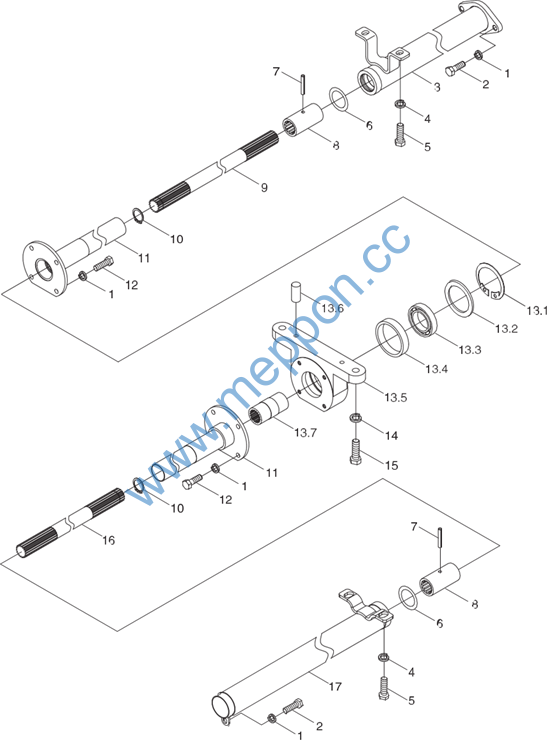

TB554.422 Transfer Case Transmission Assembly
56
Foton TB604-Q161Y2K Wheeled Tractor
TB554.422 Transfer Case Transmission Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB554.422 |
Transfer case transmission assembly |
1 |
||
1 |
GB/T 93-8-AOP |
Washer |
11 |
|
2 |
GB/T 5783-M8×16-A2L |
Bolt |
3 |
|
3 |
FT304.42F.015 |
Shield (1) weldment |
1 |
|
4 |
GB/T 93-10-A0P |
Washer |
4 |
|
5 |
GB/T 5783-M10×20-A2L |
Bolt |
4 |
|
6 |
GB/T 3452.1-34.5×3.55 |
O-ring |
2 |
|
7 |
GB/T 879.1-6×35 |
Pin |
2 |
|
8 |
FT304.42.107a |
Spline sleeve |
2 |
|
9 |
FT404.42.128 |
Rear transmission shaft |
1 |
|
10 |
GB/T 894.1-26 |
Circlip |
2 |
|
11 |
FT304.42X.017 |
Shield (2) weldment |
2 |
|
12 |
GB/T 5783-M8×20-A2L |
Bolt |
8 |
|
13 |
TB554.422.1 |
Middle bearing seat assembly |
1 |
|
13.1 |
GB/T 893.2-72 |
Circlip |
1 |
|
13.2 |
FT304.42X.136 |
Spacing ring |
1 |
|
13.3 |
GB/T 276-6007-2RZ |
Bearing |
1 |
|
13.4 |
FT304.42X.137 |
Rubber ring |
1 |
|
13.5 |
FT304.42X.138 |
Middle bearing seat |
1 |
|
13.6 |
GB/T 119.1-8m6×20-AOP |
Pin |
2 |
|
13.7 |
FT304.42X.135 |
Middle spline sleeve |
1 |
|
14 |
GB/T 93-12-AOP |
Washer |
2 |
|
15 |
GB/T 5783-M12×40-A3L |
Bolt |
2 |
|
16 |
TB554.422-01 |
Front transmission shaft |
1 |
|
17 |
TB554.422.2 |
Shield (3) weldment |
1 |
57
Foton TB604-Q161Y2K Wheeled Tractor

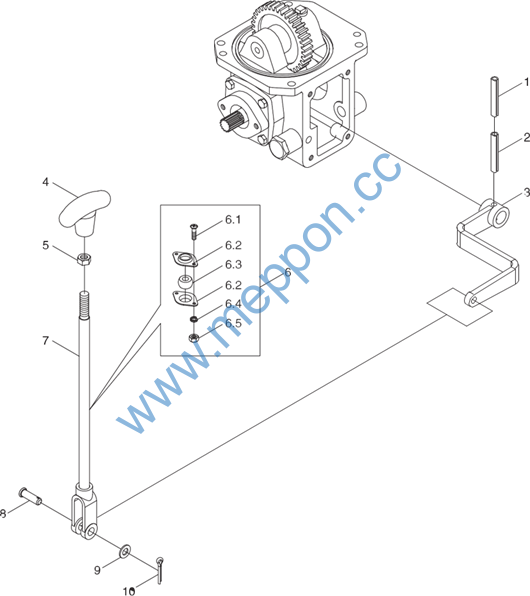

TB554.423B Transfer case control assembly
58
Foton TB604-Q161Y2K Wheeled Tractor
TB554.423B Transfer case control assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB554.423B |
Transfer case control assembly |
1 |
||
1 |
GB/T 879.1-8×30 |
Pin |
1 |
|
2 |
GB/T 879.1-5×30 |
Pin |
1 |
|
3 |
TB554.423B.2 |
Rocker arm weldment |
1 |
|
4 |
FT65.38.051 |
Pull and press handle |
1 |
|
5 |
GB/T 6170-8-M10-A3L |
Nut |
1 |
|
6 |
TG1204.435.2 |
Seal lining seat assembly |
1 |
|
6.1 |
GB/T 818-M6×14-A2L |
Screw |
2 |
|
6.2 |
TG1204.435.2-01 |
Spherical shaft lining seat |
2 |
|
6.3 |
TG1204.435.2-02 |
Spherical shaft lining |
1 |
|
6.4 |
GB/T 93-6-A0P |
Washer |
2 |
|
6.5 |
GB/T 6170-M6-A2L |
Nut |
2 |
|
7 |
TB554.423B.3 |
Control lever unit |
1 |
|
8 |
GB/T 882-B10×30-A0P |
Shaft pin |
1 |
|
9 |
GB/T 97.1-10-A0P |
Washer |
1 |
|
10 |
GB/T 91-3.2×16-A0P |
Pin |
1 |
59
Foton TB604-Q161Y2K Wheeled Tractor

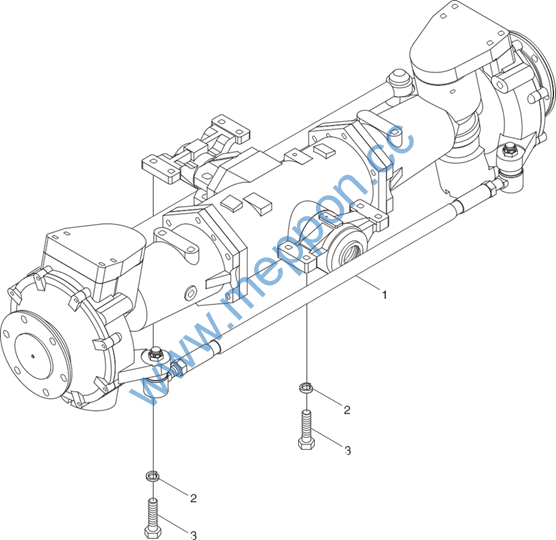

TB504.311 Front Driving Axle Assembly-1
60
Foton TB604-Q161Y2K Wheeled Tractor
TB504.311 Front Driving Axle Assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1 2 3 |
TB504.311 FT304.31F.011 GB/T93 GB/T5783 |
Front driving axle assembly Front driving axle subassembly Washer 14-A0P Bolt M14×45-A3L |
1 1 8 8 |
61
Foton TB604-Q161Y2K Wheeled Tractor
TB504.311 Front Driving Axle Assembly-2
62
Foton TB604-Q161Y2K Wheeled Tractor

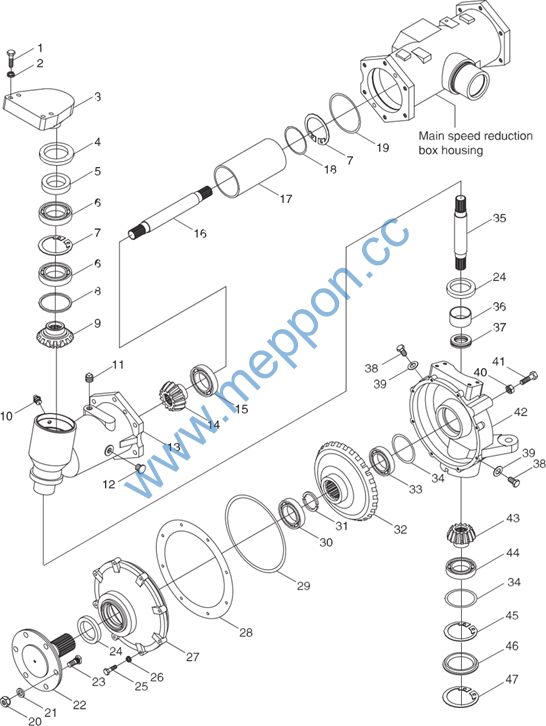

TB504.311 Front Driving Axle Assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT304.31F.011 |
Front driving axle subassembly |
1 |
||
1 |
GB/T 5783 |
Bolt M12×40 |
4 |
|
2 |
GB/T 93 |
Washer 12 |
4 |
|
3 |
FT304.31F.124 |
Connecting cover |
1 |
|
4 |
GB/T 9877.1 |
Oil seal FB8010512 |
1 |
|
5 |
FT304.31F.125 |
Oil seal bush |
1 |
|
6 |
GB/T 276 |
Bearing 6013 |
2 |
|
7 |
GB/T 893.1 |
Circlip 100 |
2 |
|
8 |
FT304.31F.188 |
Flat washer |
1 |
|
9 |
FT304.31F.122 |
Gear |
1 |
|
10 |
JB/T 7940.1 |
Oil cup M10×1 |
1 |
|
11 |
Q/YXF70-1992 |
Screw plug Z3/8″ |
1 |
|
12 |
GB/T 1160.2 |
Oil scale A10 |
1 |
|
13 |
FT304.31F.121 |
Half axle housing |
1 |
|
14 |
FT304.31F.126 |
Gear |
1 |
|
15 |
GB/T 276 |
Bearing 6309 |
1 |
|
16 |
FT304.31F.128 |
Spline shaft |
1 |
|
17 |
FT304.31F.127 |
Sleeve |
1 |
|
18 |
FT304.31F.123 |
Adjusting gasket |
1 group |
|
19 |
FT304.31F.130 |
Adjusting gasket |
1 group |
|
20 |
GB/T 6176 |
Nut M14×1.5 |
6 |
|
21 |
FT204.31F.205 |
Washer |
6 |
|
22 |
FT304.31F.117 |
Front driving axle |
1 |
|
23 |
FT304.31F.115 |
Knurled bolt |
6 |
|
24 |
Floating oil seal |
2 pairs |
||
25 |
GB/T 5783 |
Bolt M8×35 |
8 |
|
26 |
GB/T 93 |
Washer |
8 |
|
27 |
FT304.31F.107 |
End cover |
1 |
|
28 |
FT304.31F.190 |
Adjusting gasket |
1 group |
|
29 |
GB/T 3452.1 |
O-ring 236×5.3G |
1 |
|
30 |
GB/T 276 |
Bearing 6310 |
1 |
|
31 |
FT304.31F.114 |
Circlip |
2 |
63
Foton TB604-Q161Y2K Wheeled Tractor
TB504.311 Front Driving Axle Assembly-2(extension)
64
Foton TB604-Q161Y2K Wheeled Tractor

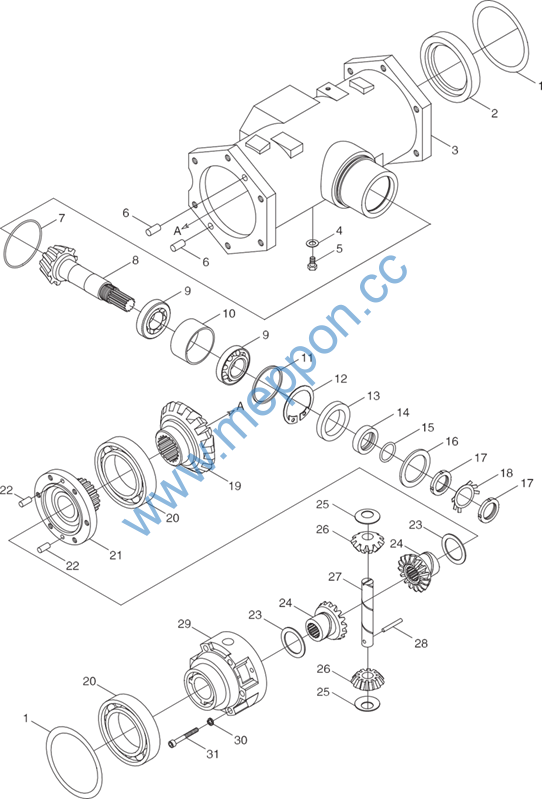

TB504.311 Front Driving Axle Assembly-2(extension)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
32 |
FT304.31F.108 |
End big gear |
1 |
|
33 |
GB/T 276 |
Bearing 6210 |
1 |
|
34 |
FT304.31F.113 |
Adjusting gasket |
2 |
|
35 |
FT304.31F.110 |
End spline shaft |
1 |
|
36 |
FT304.31F.111 |
Bushing 55×30 |
1 |
|
37 |
GB/T 301 |
Thrust bearing 8107 |
1 |
|
38 |
FT304.31F.105 |
Screw plug |
2 |
|
39 |
FT304.31F.106 |
Washer |
2 |
|
40 |
GB/T 6170 |
Nut M16 |
1 |
|
41 |
GB/T 5783 |
Bolt M16×50 |
1 |
|
42 |
FT304.31F.109 |
Left end housing |
1 |
|
43 |
FT304.31F.112 |
End pinion |
1 |
|
44 |
GB/T 276 |
Bearing 6308 |
1 |
|
45 |
GB/T 893.1 |
Circlip 90 |
1 |
|
46 |
FT304.31F.022 |
Seal cover |
1 |
|
47 |
GB/T 893.1 |
Circlip 102 |
