LOVOL TB604-Q161Y2K Tractor Parts Catalogue 08
FT404.32F.001 Front Drive Wheel Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT404.32F.001 |
Front drive wheel assembly |
1 |
||
1 |
TB704.32B.2 |
Inner tube/tyre assembly 8.3-20 |
1 |
|
1.1 |
GB/T 2979-8.3-20-6PR-R |
General section bias tyre of tractor drive wheel |
1 |
|
1.2 |
GB/T 2979-8.3-20-R |
Inner tube of tractor drive wheel |
1 |
|
2 |
FT404.32F.011 |
Rim welding |
1 |
79
Foton TB604-Q161Y2K Wheeled Tractor

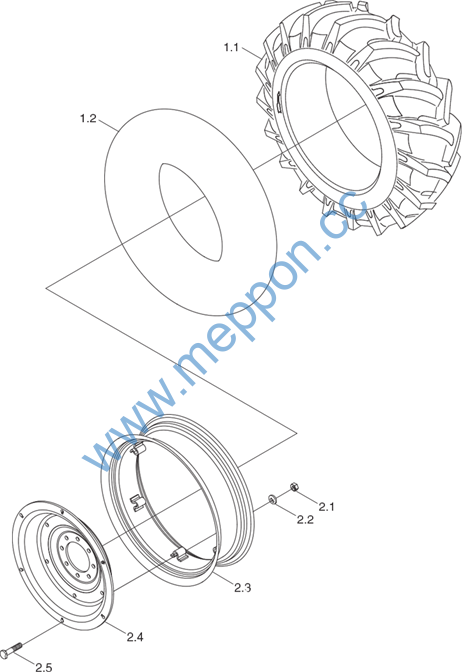

FT550.34F.001 Rear Driving Wheel Assembly
80
Foton TB604-Q161Y2K Wheeled Tractor
FT550.34F.001 Rear Driving Wheel Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT550.34F.001 |
Rear driving wheel assembly |
1 |
||
1 |
TB604.34A.1.2 |
Tire and tube assembly 14.9-28 |
1 |
|
1.1 |
GB/T 2979-14.9-28-6PR-R |
Diagonal tire with conventional section, tractor driving wheel |
1 |
|
1.2 |
GB/T 2979-14.9-28-R |
Tube, tractor driving wheel |
1 |
|
2 |
FT550.34F.011 |
Rim disc assembly |
1 |
|
2.1 |
GB/T 6171-M16×1.5-10-A3L |
Nut |
6 |
|
2.2 |
FT654.32.104 |
Washer |
6 |
|
2.3 |
FT550.34F.012 |
Rim weldment |
1 |
|
2.4 |
FT550.34.105b |
Spoke |
1 |
|
2.5 |
FT650.34.107 |
Rim bolt |
6 |
81
Foton TB604-Q161Y2K Wheeled Tractor

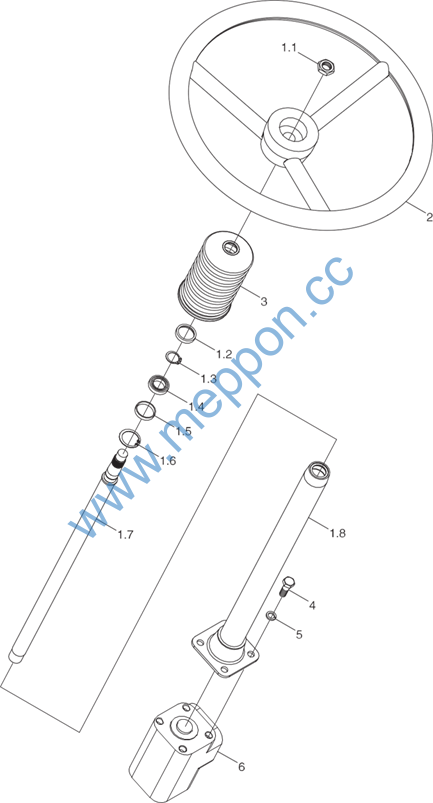

TB504.401B Steering Wheel and Steering Column Assembly
82
Foton TB604-Q161Y2K Wheeled Tractor
TB504.401B Steering Wheel and Steering Column Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB504.401B |
Steering wheel and steering column assembly |
1 |
||
1 |
FT354.40C.016A |
Steering column assembly |
1 |
|
1.1 |
GB/T 6173-M16×1.5-A3L |
Hex thin nut |
1 |
|
1.2 |
FT650.40.172 |
Bearing circlip |
1 |
|
1.3 |
GB/T 894.1-20 |
Circlip for shaft |
1 |
|
1.4 |
GB/T 276-61804-2LS |
Deep-grooved ball bearing |
1 |
|
1.5 |
FT650.40.173 |
Bearing circlip 2 |
1 |
|
1.6 |
GB/T 893.1-32 |
Circlip for hole |
1 |
|
1.7 |
FT354.40C.130A |
Steering lever |
1 |
|
1.8 |
FT354.40C.030 |
Steering sleeve weldment |
1 |
|
2 |
FT400.40.016 |
Steering wheel assembly |
1 |
|
3 |
TB504.401-01 |
Steering lever protection sleeve |
1 |
|
4 |
GB/T 5783-M10×30-8.8-A3L |
Hex bolt |
4 |
|
5 |
GB/T 93-10-A0P |
Standard spring washer |
4 |
|
6 |
FT354.40C.015 |
Hydraulic steering wheel assembly |
1 |
83
Foton TB604-Q161Y2K Wheeled Tractor

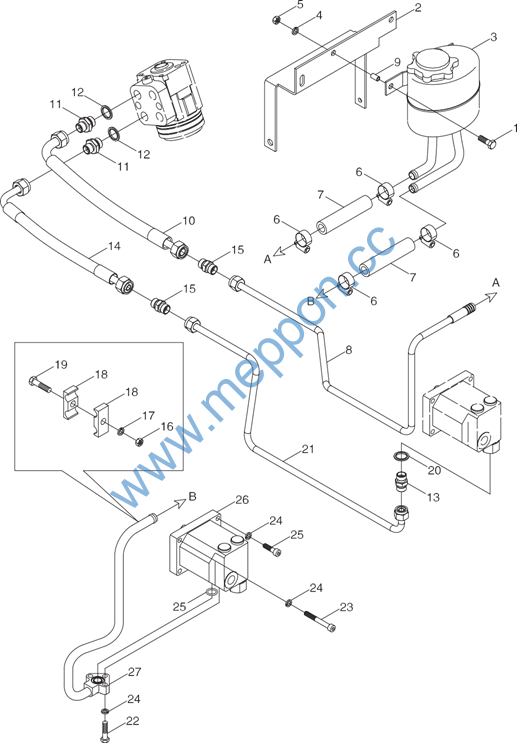

TB524.402 Full hydraulic steering assembly-1
84
Foton TB604-Q161Y2K Wheeled Tractor
TB524.402 Full hydraulic steering assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB524.402 |
Full hydraulic steering assembly |
1 |
||
1 |
GB/T 5783-M10×50-8.8-A2L |
Hex head bolt |
2 |
|
2 |
TB554.40Q-02 |
Reservoir bracket |
1 |
|
3 |
TB554.40Q.5 |
Steering reservoir and respirator assembly |
1 |
|
4 |
GB/T 93-10-A0P |
Standard spring washer |
2 |
|
5 |
GB/T 6170-M10-8-A3L |
Hexagon nut , Style 1 |
2 |
|
6 |
Q67627 |
Worm driven hose hoop, type B |
4 |
|
7 |
FT800A.40K.101 |
Oil inlet hose |
2 |
|
8 |
TB524.402.7 |
Oil-delivery steel pipe weldment 7 |
1 |
|
9 |
TB554.40C-02 |
Spacer bush |
2 |
|
10 |
TB504.402B.4 |
Oil-delivery hose assembly 4 |
1 |
|
11 |
TH354.402-11 |
Pipe joint |
2 |
|
12 |
JB/T 982-20 |
Combined seal gasket |
2 |
|
13 |
FT404.40C.102 |
Snap-fitting straight pipe joint |
1 |
|
14 |
TB504.402B.3 |
Oil-delivery hose assembly 3 |
1 |
|
15 |
GB/T 3737.2-G12 |
Snap-fitting through-joint body |
2 |
|
16 |
GB/T 6170-M12-8-A3L |
Hexagon nut, Style 1 |
1 |
|
17 |
GB/T 93-12-A0P |
Standard spring washer |
1 |
|
18 |
FT750.40.108 |
Dual-hole pipe clamp |
2 |
|
19 |
GB/T 5783-M12×45-8.8-A3L |
Hex head bolt |
1 |
|
20 |
JB/T 982-18 |
Combined seal gasket |
1 |
|
21 |
TB524.402.8 |
Oil-delivery steel pipe assembly 8 |
1 |
|
22 |
GB/T 5783-M8×30-8.8-A2L |
Hex head bolt |
3 |
|
23 |
GB/T 5782-M8×65-8.8-A2L |
Hex head bolt |
4 |
|
24 |
GB/T 93-8-A0P |
Standard spring washer |
4 |
|
25 |
GB/T 3452.1-17.0×2.65G |
Hydraulic and pneumatic O-ring |
1 |
|
26 |
FT304.40L.023 |
Constant overflow pump |
1 |
|
27 |
TB554.40C.1a |
Oil-absorption steel pipe welded unit, oil pump |
1 |
85
Foton TB604-Q161Y2K Wheeled Tractor

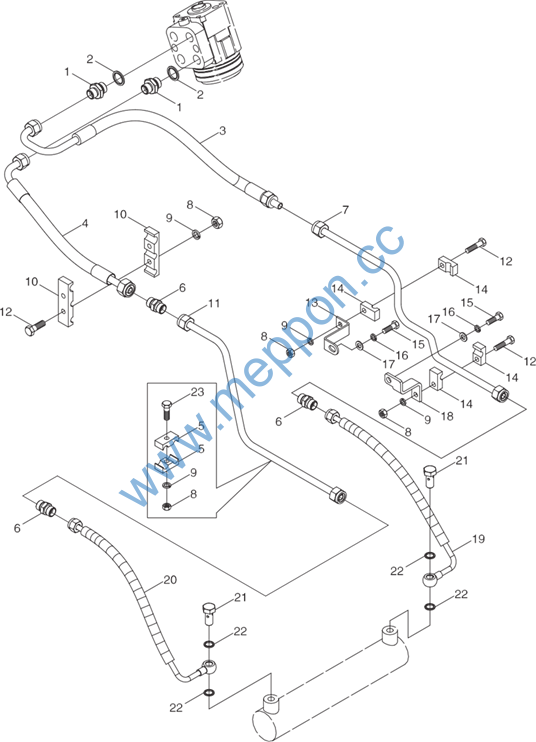

TB524.402 Full hydraulic steering assembly-2
86
Foton TB604-Q161Y2K Wheeled Tractor
TB524.402 Full hydraulic steering assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB524.402 |
Full hydraulic steering assembly |
1 |
||
1 |
TH354.402-11 |
Pipe joint |
2 |
|
2 |
JB/T 982-20 |
Combined seal gasket |
2 |
|
3 |
TB504.402B.6 |
Oil-delivery hose assembly 6 |
1 |
|
4 |
TB504.402B.9 |
Oil-delivery hose assembly 9 |
1 |
|
5 |
TG1204.402E-03 |
Dual-hole pipe clamp |
2 |
|
6 |
GB/T 3737.2-G12 |
Snap-fitting through-joint body |
3 |
|
7 |
TB704.402.8 |
Steering steel pipe assembly, LH |
1 |
|
8 |
GB/T 6170-M8-8-A2L |
Hexagon nut, Style 1 |
5 |
|
9 |
GB/T 93-8-A0P |
Standard spring washer |
8 |
|
10 |
TG1204.402F-02 |
3-hole pipe clamp |
2 |
|
11 |
TB524.402.1 |
Oil-delivery steel pipe assembly 1 |
1 |
|
12 |
GB/T 5782-M8×40-8.8-A2L |
Hex head bolt |
2 |
|
13 |
TB704.402-03 |
Oil pipe bracket |
1 |
|
14 |
TG1654.402-07 |
Single-hole pipe clamp |
4 |
|
15 |
GB/T 5783-M10×20-8.8-A3L |
Hex head bolt |
1 |
|
16 |
GB/T 93-10-A0P |
Standard spring washer |
1 |
|
17 |
GB/T 97.1-10-A0P |
Flat washer |
2 |
|
18 |
TB604.402A-04 |
Oil pipe bracket 3 |
1 |
|
19 |
TB704.402.11 |
Steering oil-delivery pipe assembly, RH |
1 |
|
20 |
TB704.402.10 |
Steering oil-delivery pipe assembly, LH |
1 |
|
21 |
FT650.40.112 |
Hollow bolt |
2 |
|
22 |
JB/T 982-16 |
Combined seal gasket |
4 |
|
23 |
GB/T 5783-M8×35-8.8-A2L |
Hex head bolt |
3 |
87
Foton TB604-Q161Y2K Wheeled Tractor

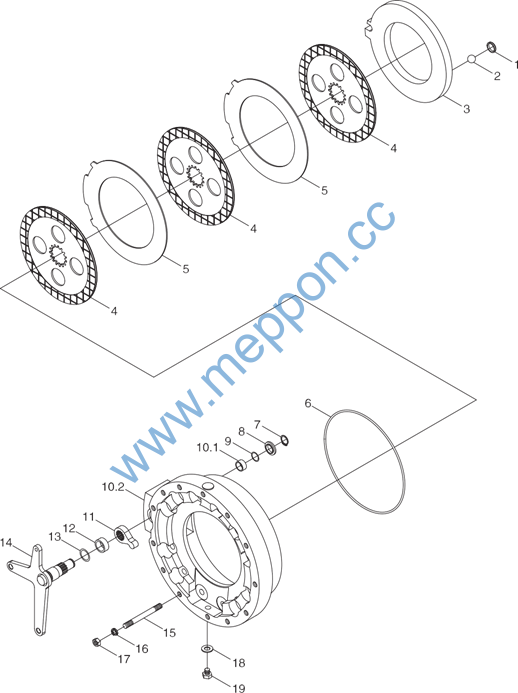

TB604.431 Left Brake Assembly
88
Foton TB604-Q161Y2K Wheeled Tractor
TB604.431 Left Brake Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB604.431 |
Left brake assembly |
1 |
||
1 |
FT300.43.102 |
Plug piece |
6 |
|
2 |
GB/T 308-18.000-G100-b |
Steel ball |
6 |
|
3 |
TB550.431-01 |
Left brake platen |
1 |
|
4 |
TB550.431.3 |
Brake friction disc assembly |
3 |
|
5 |
FT300.43.105 |
Spacing plate |
2 |
|
6 |
FT300.43.101 |
O-ring |
1 |
|
7 |
GB/T 894.1-18 |
Circlip for shaft |
1 |
|
8 |
FT300.43.109a |
Washer |
1 |
|
9 |
GB/T 3452.1-18.0×2.65G |
O-ring |
1 |
|
10 |
TB550.431.1 |
Left brake housing assembly |
1 |
|
10.1 |
TB550.431.1-02 |
Crankshaft lining |
1 |
|
10.2 |
TB550.431.1-01 |
Left brake housing |
1 |
|
11 |
TB550.431-02 |
Shift block |
1 |
|
12 |
FT300.43.107 |
Spacing sleeve |
1 |
|
13 |
GB/T 3452.1-20.0×2.65G |
O-ring |
1 |
|
14 |
TB604.431.1 |
Left crank unit |
1 |
|
15 |
GB/T 898-AM12-M12×1.25×80-10.9-A2L |
Stud |
13 |
|
16 |
GB/T 93-12 |
Washer |
13 |
|
17 |
GB/T 6171-M12×1.25-10-A3L |
Nut |
13 |
|
18 |
FT300.43.153 |
Final transmission oil drainage port washer |
1 |
|
19 |
FT300.43.154 |
Screw plug |
1 |
89
Foton TB604-Q161Y2K Wheeled Tractor

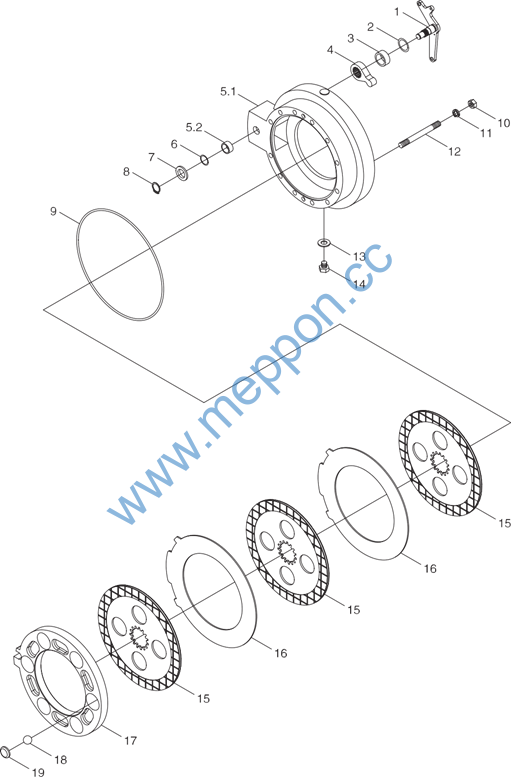

TB604.432 Right Brake Assembly
90
