LOVOL TB604-A161Y1K Tractor Parts Catalogue 12
TB500A.55 Lifter Device Assembly-5
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB500A.55 |
Lift Mechanism Assembly |
1 |
||
FT500A.55.010 |
Lift And Control Mechanism Assembly |
1 |
||
1 |
TS300B.55.187 |
Adjusting Valve |
1 |
|
2 |
GBT 1235-8X1.9 |
O-Ring |
1 |
|
3 |
KR130.55.105 |
Seal Sleeve |
1 |
|
4 |
GBT 3452.1-19X1.8 |
O-Ring |
2 |
|
5 |
GBT 1235-22X2.4 |
O-Ring |
1 |
|
6 |
KR130.55.103 |
Oil Return Valve Body |
1 |
|
7 |
25.55.180 |
Limitation Plate |
1 |
|
8 |
GBT 93-6 |
Washer |
8 |
|
9 |
GBT 5783-M6X10 |
Bolt |
4 |
|
10 |
TS300.55.172 |
Main Control Valve |
1 |
|
11 |
25.55.184 |
Oil Return Valve Spring |
1 |
|
12 |
25.55.176 |
Rear Plug Of Oil Return Valve |
1 |
|
13 |
GBT 5783-M6X20 |
Bolt |
4 |
|
14 |
KR130.55.183 |
Valve Front Cover |
1 |
|
15 |
25.55.181 |
Main Control Valve Spring |
1 |
|
16 |
GBT 1235-26X2.4 |
O-Ring |
3 |
|
17 |
TS300.55.217 |
Main Control Valve Sleeve |
1 |
105
Lovol TB604-A161Y1K Wheeled Tractor
TB500A.55 Lifter Device Assembly-6
106
Lovol TB604-A161Y1K Wheeled Tractor
TB500A.55 Lifter Device Assembly-6
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB500A.55 |
Lift Mechanism Assembly |
1 |
||
FT500A.55.010 |
Lift And Control Mechanism Assembly |
1 |
||
1 |
GBT 879-4X20 |
Pin |
1 |
|
2 |
E300.55.140A |
Speed Reducing Valve Handwheel |
1 |
|
3 |
GBT 3452.1-11.2X2.65 |
O-Ring |
2 |
|
4 |
YT300A.55.116 |
Dropping Speed Adjusting Lever |
1 |
|
5 |
GBT 91-4X20 |
Pin |
1 |
|
6 |
JBT 982-22 |
Compound Seal Washer |
1 |
|
7 |
GBT 5786-M22X1.5X20 |
Bolt |
1 |
|
8 |
TB504.551A.1-01 |
Lift Housing |
1 |
|
9 |
FT500A.55.103 |
Upper Cover Gasket |
1 |
|
10 |
FT500A.55.104B |
Lift Upper Cover |
1 |
|
11 |
GBT 93-8 |
Washer |
11 |
|
12 |
GBT 5781-M8X20 |
Bolt |
7 |
|
13 |
GBT 5781-M8X35 |
Bolt |
4 |
|
14 |
25.55.146L |
Push Lever Sleeve |
1 |
|
15 |
25.55.145L |
Draft Adjusting Seal Sleeve |
1 |
|
16 |
GBT 1235-11X1.9 |
O-Ring |
1 |
|
17 |
GBT 3452.1-16X1.8 |
O-Ring |
1 |
|
18 |
25.55.158 |
Spring Lever |
1 |
|
19 |
25.55.159 |
Spring Seat |
1 |
|
20 |
25.55.157 |
Draft Adjusting Spring |
1 |
|
21 |
25.55.160 |
Spring Press Plate |
1 |
|
22 |
25.55.161 |
Nut |
1 |
|
23 |
GBT 119-C4X14 |
Pin |
1 |
|
24 |
25.55.162 |
Dustproof Cover |
1 |
|
25 |
GBT 119-B3X40 |
Pin |
1 |
|
26 |
YT300A.55.121 |
Upper Pull Rod Connecting Head |
1 |
|
27 |
GBT 91-5X36 |
Pin |
2 |
|
28 |
GBT 97.1-22 |
Washer |
1 |
|
29 |
25.56.030 |
Lock Pin And Lock Pin Ring Assembly |
1 |
|
30 |
GBT 97.1-20 |
Washer |
1 |
107
Lovol TB604-A161Y1K Wheeled Tractor
TB500A.55 Lifter Device Assembly-6(extension)
108
Lovol TB604-A161Y1K Wheeled Tractor
TB500A.55 Lifter Device Assembly-6(extension)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
31 |
FT500A.55.128 |
Upper Hanging Point Rocker Arm Bracket |
1 |
|
32 |
450.55.167 |
Rocker Arm Connecting Pin |
1 |
|
33 |
FT500A.55B.182 |
Rocker Arm Front Connecting Pin |
1 |
|
34 |
FT500A.55.106 |
Rocker Arm Upper Connecting Pin |
1 |
|
35 |
FT500B.55.130A |
Upper Hanging Point Rocker Arm |
1 |
109
Lovol TB604-A161Y1K Wheeled Tractor

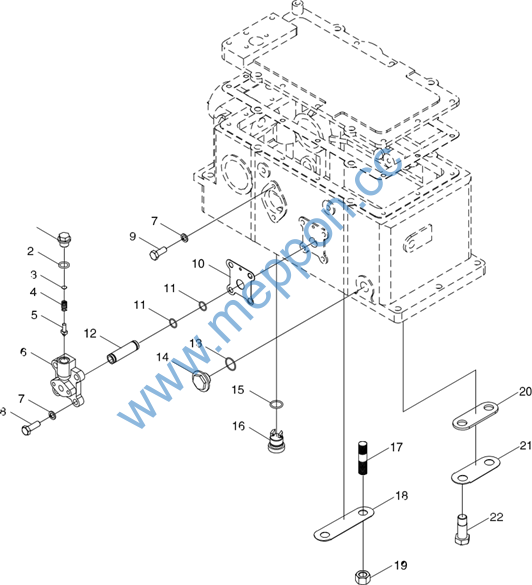

TB500A.55 Lifter Device Assembly-7
110
Lovol TB604-A161Y1K Wheeled Tractor
TB500A.55 Lifter Device Assembly-7
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB500A.55 |
Lift Mechanism Assembly |
1 |
||
FT500A.55.010 |
Lift And Control Mechanism Assembly |
1 |
||
1 |
300.55.130 |
Plug |
1 |
|
2 |
GBT 3452.1-15X2.65 |
O-Ring |
1 |
|
3 |
300.55.131-132 |
Adjusting Gasket |
On Demand |
|
4 |
300.55.133 |
Oil Cylinder Safety Valve Spring |
1 |
|
5 |
300.55.134 |
Oil Cylinder Safety Valve Body |
1 |
|
6 |
FT500B.55.108A |
Oil Inlet Connecting Plate |
1 |
|
7 |
GBT 93-10 |
Washer |
6 |
|
8 |
GBT 5781-M10X30 |
Bolt |
4 |
|
9 |
GBT 5783-M10X25 |
Bolt |
2 |
|
10 |
FT500B.55.102 |
Oil Inlet Connecting Plate Gasket |
1 |
|
11 |
GBT 3452.1-15X1.8 |
O-Ring |
2 |
|
12 |
FT500B.55.103 |
Oil Inlet Pipe |
1 |
|
13 |
GBT 3452.1-22.4X1.8 |
O-Ring |
1 |
|
14 |
FT500B.55.197 |
Plug |
1 |
|
15 |
GBT 1235-24X2.4 |
O-Ring |
1 |
|
16 |
TS300B.55.110 |
Spring Hook |
1 |
|
17 |
GBT 898-AM16X40 |
Stud |
2 |
|
18 |
FT500B.55.118 |
Lock Disc |
1 |
|
19 |
GBT 6170-M16 |
Nut |
2 |
|
20 |
FT500B.55.120 |
Gasket |
1 |
|
21 |
FT500B.55.121 |
Lock Disc |
1 |
|
22 |
FT500B.55.125 |
Cylinder Bolt |
2 |
111
Lovol TB604-A161Y1K Wheeled Tractor
FT500A.56B.001 Suspension Mechanism Assembly-1(010)
112
Lovol TB604-A161Y1K Wheeled Tractor
FT500A.56B.001 Suspension Mechanism Assembly-1(010)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT500A.56B.001 |
Suspension Mechanism Assembly |
1 |
||
1 |
GBT898-AM16-M16X1.5X45-10.9-A3L |
Stud |
6 |
|
2 |
FT300.56B.014 |
Support Welded Unit, Right Lower Link |
1 |
|
3 |
FT300.56B.015 |
Left Lower Link Support Welded Unit |
1 |
|
4 |
SPL-CO-M16X1.5-10-F3 |
Hex Flange Nut |
6 |
|
5 |
FT300.56A.102 |
Connecting Pin, Position-Limit Link |
2 |
|
6 |
FT300.56A.019 |
Bracket Welded Unit, Right Position-Limit Link |
1 |
|
7 |
GBT16674.1-M16X40-10.9-A3L |
Hexagon Flange Bolt |
10 |
|
8 |
GBT91-5X32-A0P |
Split Pin |
6 |
|
9 |
GBT882-B18X55-A0P |
Axis Pin |
2 |
|
10 |
FT300.56A.103 |
Bushing |
4 |
|
11 |
FT300.56A.016a |
Position-Limit Link Assembly |
2 |
|
11.1 |
FT300.56A.023 |
Lockpin Combination, Position-Limit Link |
1 |
|
11.2 |
FT300.56A.161 |
Adjusting Screw, Position-Limit Link |
1 |
|
11.3 |
GBT6170-M22-8-A9L |
Nut |
1 |
|
11.4 |
FT300.56A.022a |
Telescopic Pipe Welded Unit |
1 |
|
11.5 |
FT300.56A.021a |
Telescopic Link Ball Assembly |
1 |
|
12 |
GBT91-4X36-A0P |
Pin |
2 |
|
13 |
GBT6178-M20-8-A9L |
Nut |
2 |
|
14 |
GBT97.1-20-A0P |
Washer |
2 |
|
15 |
FT300.56A.110a |
Rear Connecting Pin, Position-Limit Link |
2 |
|
16 |
FT500A.56.012 |
Lower Link Assembly |
2 |
|
17 |
FT300.56A.111a |
Circular Plate |
2 |
|
18 |
FT300.56A.017 |
Left Position-Limit Link Bracket Welded Unit |
1 |
|
19 |
GBT93-20-A0P |
Standard Spring Washer |
2 |
|
20 |
GBT6170-M20-8-A3L |
Nut |
2 |
113
Lovol TB604-A161Y1K Wheeled Tractor

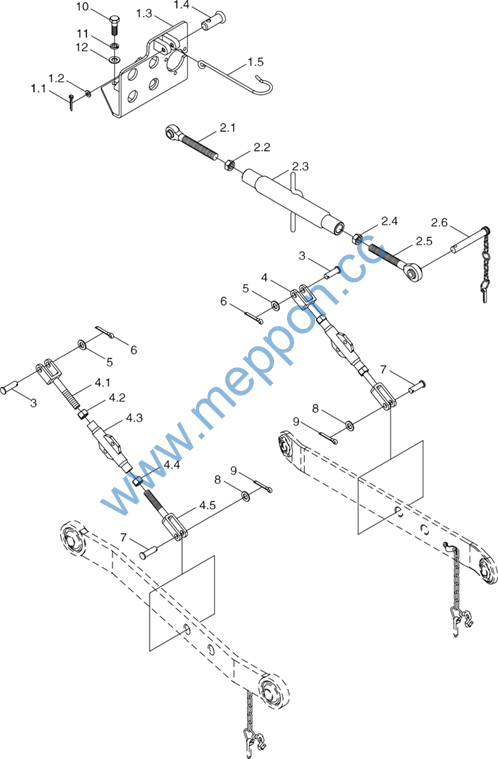

FT500A.56B.001 Suspension Mechanism Assembly-2(010)
114
