LOVOL TB604-A161Y1K Tractor Parts Catalogue 11
Lovol TB604-A161Y1K Wheeled Tractor
TB500A.55 Lifter Device Assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB500A.55 |
Lift Mechanism Assembly |
1 |
||
FT300.55B.023 |
Control Lever Positioning Assembly |
1 |
||
1 |
FT65.57.014 |
Adjusting Lever Head Assembly |
2 |
|
2 |
FT300.55B.133 |
Positioning Bending Plate |
2 |
|
3 |
GBT 818-M5X16-4.8-A2L |
Screw |
4 |
|
4 |
GBT 93-5-A0P |
Standard Spring Washer |
4 |
|
5 |
FT300.55B.131 |
Washer |
4 |
|
6 |
FT300.55B.132 |
Positioning Nut |
2 |
|
7 |
GBT 91-1.6X12-A0P |
Cotter Pin |
2 |
|
8 |
FT300.55B.135 |
Force Adjusting Mark Plate |
1 |
|
9 |
FT300.55B.134 |
Position Adjusting Mark Plate |
1 |
95
Lovol TB604-A161Y1K Wheeled Tractor

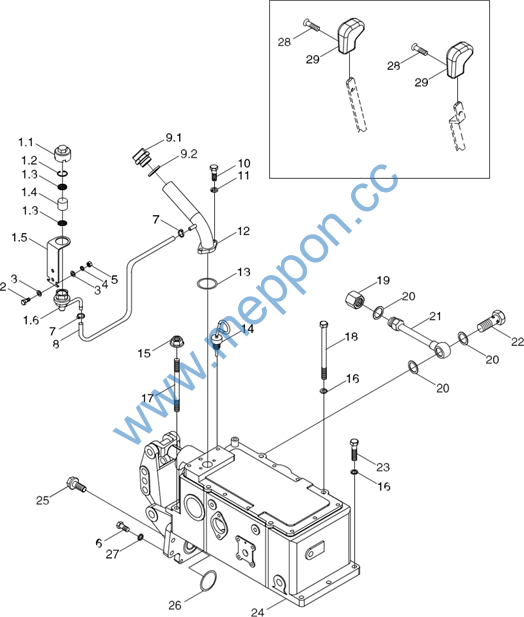

TB500A.55 Lifter Device Assembly-2
96
Lovol TB604-A161Y1K Wheeled Tractor
TB500A.55 Lifter Device Assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB500A.55 |
Lift Installation Assembly |
1 |
||
1 |
FT300.55B.016c |
Breather Assembly |
1 |
|
1.1 |
FT700.55D.136 |
Breather Cover |
1 |
|
1.2 |
GBT 893.1-26 |
Circlip For Hole |
1 |
|
1.3 |
FT650.40.167 |
Seat Plate |
2 |
|
1.4 |
FT700.55D.109 |
Breather Filter Element |
1 |
|
1.5 |
FT300.55B.164 |
Breather Bracket |
1 |
|
1.6 |
FT300.55B.027a |
Breather Connecting Pipe Weldment |
1 |
|
2 |
GBT 5783-M10X20-8.8-A3L |
Hexagon Head Bolt |
2 |
|
3 |
GBT 97.1-10-A0P |
Flat Washer |
4 |
|
4 |
GBT 93-10-A0P |
Standard Spring Washer |
2 |
|
5 |
GBT 6170-M10-8-A3L |
Hexagon Nut, Style 1 |
2 |
|
6 |
GBT 5783-M8X30-10.9-A2L |
Hexagon Bolt |
2 |
|
7 |
Q67512 |
Type A Worm Transmission Hose Clamp |
2 |
|
8 |
FT300.55B.169 |
Breather Connecting Pipe 2 |
1 |
|
9 |
TA700.55A.7-01a |
Oil Pipe Plug |
1 |
|
10 |
GBT 5783-M8X25-8.8-A2L |
Hexagon Head Bolt |
2 |
|
11 |
GBT 93-8-A0P |
Standard Spring Washer |
2 |
|
12 |
FT300.55B.026a |
Oil Filling Pipe Weldment |
1 |
|
13 |
GBT 3452.1-32.5X1.80G |
O-Ring Sealant Used For Hydraulic Or Pneumatic Parts |
1 |
|
14 |
FT300.55B.022a |
Adjusting Nut |
1 |
|
15 |
SPL-CO-M12-10-F3 |
Hexagon Nut |
2 |
|
16 |
TB404.312B-01 |
Washer |
7 |
|
17 |
GBT 5783-M12X100-10.9-A3L |
Hexagon Head Bolt |
2 |
|
18 |
FT300.55B.136 |
Bolt M12x240 |
2 |
|
19 |
FT300.55B.121a |
Oil Delivery Pipe Nut |
1 |
|
20 |
JBT 982-22 |
Combined Sealing Washer |
3 |
|
21 |
FT300.55B.024 |
Oil Drainage Pipe Weldment Assembly |
1 |
|
22 |
FT300.58.101 |
Hollow Bolt |
1 |
|
23 |
GBT 5783-M12X40-10.9-A3L |
Hexagon Head Bolt |
3 |
|
24 |
FT500A.55.010 |
Lift And Control Mechanism Assembly |
1 |
|
25 |
GBT 16674.1-M12X35-10.9-A2L |
Hexagon Head Bolt |
4 |
97
Lovol TB604-A161Y1K Wheeled Tractor
TB500A.55 Lifter Device Assembly-2(extension)
98
Lovol TB604-A161Y1K Wheeled Tractor
TB500A.55 Lifter Device Assembly-2(extension)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
26 |
GBT 3452.1–103X2.65G |
O-Ring Seal |
1 |
|
27 |
TB300.55-02 |
Washer |
2 |
|
28 |
GBT 68-M4X10-4.8-A2L |
Slotted Countersunk Head Screw |
2 |
|
29 |
TB504.552-04 |
Handle Head |
2 |
|
30 |
JBT 982-33 |
Combined Sealing Washer |
1 |
|
31 |
TB300.55-01 |
Double-Headed Stud M12x250 |
2 |
99
Lovol TB604-A161Y1K Wheeled Tractor

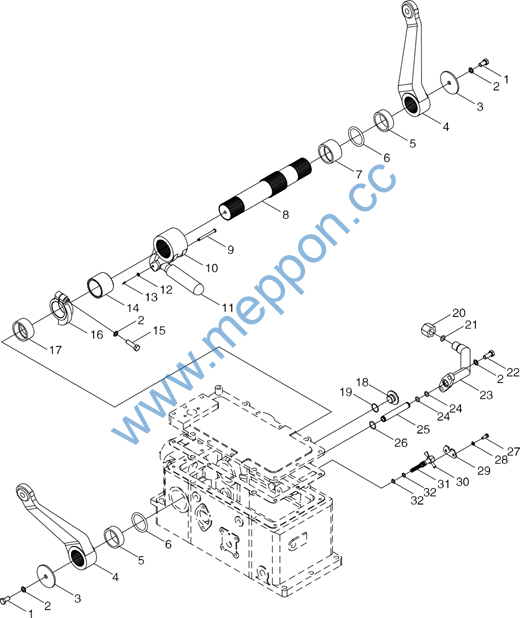

TB500A.55 Lifter Device Assembly-3
100
Lovol TB604-A161Y1K Wheeled Tractor
TB500A.55 Lifter Device Assembly-3
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB500A.55 |
Lift Mechanism Assembly |
1 |
||
FT500A.55.010 |
Lift And Control Mechanism Assembly |
1 |
||
1 |
GBT 5781-M10X20 |
Bolt |
2 |
|
2 |
GBT 93-10 |
Washer |
5 |
|
3 |
FT500B.55.127 |
Lift Arm Press Plate |
2 |
|
4 |
FT500A.55B.016 |
Lift Arm Assembly |
2 |
|
5 |
FT500B.55.115A |
Lift Shaft Bush B |
2 |
|
6 |
GBT 1235-60X5.7 |
O-Ring |
2 |
|
7 |
FT500B.55.122A |
Shaft Bush |
1 |
|
8 |
FT500A.55.110 |
Lift Shaft |
1 |
|
9 |
GBT 882-B5X65 |
Shaft Pin |
1 |
|
10 |
FT500B.55.113E |
Inner Lift Arm |
1 |
|
11 |
FT500B.55.114D |
Piston Push Rod |
1 |
|
12 |
GBT 97.1-5 |
Washer |
1 |
|
13 |
GBT 91-2X12 |
Pin |
1 |
|
14 |
KM550.55.105-1 |
Shaft Sleeve |
1 |
|
15 |
GBT 5783-M10X35 |
Bolt |
1 |
|
16 |
KM550.55.109 |
Cam |
1 |
|
17 |
FT500B.55.104B |
Shaft Bush |
1 |
|
18 |
FT500B.55.197 |
Plug |
1 |
|
19 |
GBT 3452.1-22.4X1.8 |
O-Ring |
1 |
|
20 |
FT300.55B.121a |
Oil Delivery Pipe Nut |
1 |
|
21 |
GBT 3452.1-12.5X2.65 |
O-Ring |
1 |
|
22 |
GBT 5783-M10X25 |
Bolt |
2 |
|
23 |
FT300.55B.120a |
Hydraulic Output Pipe Joint |
1 |
|
24 |
GBT 1235-16X2.4 |
O-Ring |
2 |
|
25 |
FT500B.55.105 |
Oil Outlet Pipe |
1 |
|
26 |
GBT 1235-24X2.4 |
O-Ring |
1 |
|
27 |
GBT 5781-M6X16 |
Bolt |
2 |
|
28 |
GBT 93-6 |
Washer |
2 |
|
29 |
YT300A.55.122 |
Cut-Off Valve Limitation Plate |
1 |
|
30 |
BY350.55.163 |
Adjusting Valve Screw Lever Handle |
1 |
|
31 |
FT500B.55.126 |
Cut-Off Valve Adjusting Lever |
1 |
|
32 |
GBT 1235-13X1.9 |
O-Ring |
2 |
101
Lovol TB604-A161Y1K Wheeled Tractor

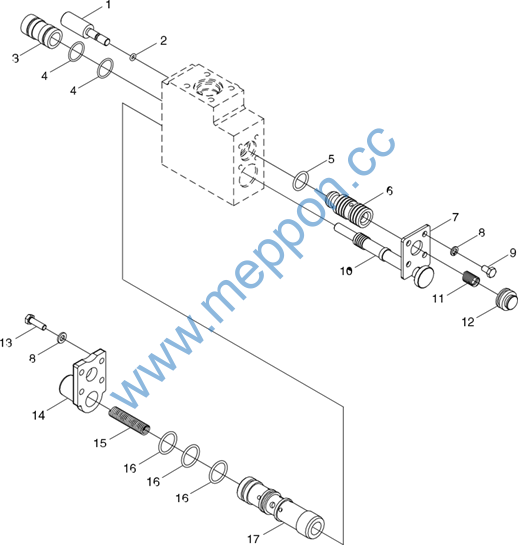

TB500A.55 Lifter Device Assembly-4
102
Lovol TB604-A161Y1K Wheeled Tractor
TB500A.55 Lifter Device Assembly-4
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB500A.55 |
Lift Mechanism Assembly |
1 |
||
FT500A.55.010 |
Lift And Control Mechanism Assembly |
1 |
||
1 |
GBT 5782-M8X45 |
Bolt |
4 |
|
2 |
GBT 93-8 |
Washer |
8 |
|
3 |
GBT 5782-M8X50 |
Bolt |
4 |
|
4 |
JBT 1000-M12X1.5 |
Screw Plug |
2 |
|
5 |
JBT 982-12 |
Compound Seal Washer |
2 |
|
6 |
GBT 3452.1-25.7X2.65 |
O-Ring |
1 |
|
7 |
GBT 1235-24X2.4 |
O-Ring |
1 |
|
8 |
YT300A.55.124 |
Single-Way Valve Sleeve |
1 |
|
9 |
T30.57.164 |
Single-Way Valve Body Gasket |
1 |
|
10 |
T30.57.144B |
Single-Way Valve Spring |
1 |
|
11 |
GBT 3452.1-19X2.65 |
O-Ring |
1 |
|
12 |
T30.57.142B |
Single-Way Valve Body |
1 |
|
13 |
T30.57.143B |
Single-Way Valve Seat |
1 |
|
14 |
KM550.55.120E |
Distributor Housing |
1 |
|
15 |
JBT 982-10 |
Compound Seal Washer |
2 |
|
16 |
JBT 1000-M10X1 |
Screw Plug |
2 |
|
17 |
FT500B.55.246 |
Cutoff Valve |
1 |
|
18 |
GBT 3452.1-11.8X2.65 |
O-Ring |
1 |
|
19 |
FT500B.55.107 |
Distributor Bracket |
1 |
|
20 |
TS300B.55.211 |
Safety Valve Spring Seat |
1 |
|
21 |
TS300B.55.210 |
Aluminum Gasket |
1 |
|
22 |
12.55.218 |
Safety Valve Spring |
1 |
|
23 |
TS300B.55.209 |
Safety Valve Body |
1 |
|
24 |
GBT 308-φ6 Ⅱ |
Steel Ball |
1 |
|
25 |
GBT 6173-M16X1.5 |
Nut |
1 |
|
26 |
TS300B.55.251 |
Pressure Adjusting Stud |
1 |
|
27 |
GBT 3452.1-13.2X2.65 |
O-Ring |
1 |
|
28 |
KM550.55.023 |
Piston Assembly |
1 |
|
29 |
520.55.143 |
Circlip |
1 |
|
30 |
GBT 3452.1-90X5.3 |
O-Ring |
1 |
|
31 |
FT500B.55.106 |
Cylinder Body |
1 |
|
32 |
GBT 3452.1-17X2.65 |
O-Ring |
4 |
103
Lovol TB604-A161Y1K Wheeled Tractor
TB500A.55 Lifter Device Assembly-5
104
