LOVOL TB504-X361Y6C Tractor Parts Catalogue 15

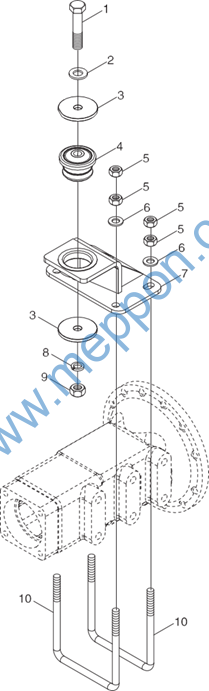

TB400.457B Front connection assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB400.457B |
Front connection assembly |
1 |
||
1 |
TB400.457B–02 |
Circlip |
4 |
|
2 |
TB400.457B–01 |
Skock absorbing block |
2 |
|
3 |
TB400.457B.2 |
Rigkt front connection weldment |
1 |
|
4 |
GB/T 97.1–16–A0P |
Flat wasker |
2 |
|
5 |
GB/T 93–16–A0P |
Standard spring wasker |
2 |
|
6 |
GB/T 5783–M16x80–8.8–A3L |
Hex bolt |
2 |
|
7 |
GB/T 5783–M12x35–8.8–A3L |
Hex bolt |
8 |
|
8 |
GB/T 93–12–A0P |
Standard spring wasker |
8 |
|
9 |
GB/T 97.1–12–A0P |
Flat wasker |
8 |
|
10 |
TB400.457B.1 |
Left front connection weldment |
1 |
161
Foton TB504–X361Y6C Wheeled Tractor

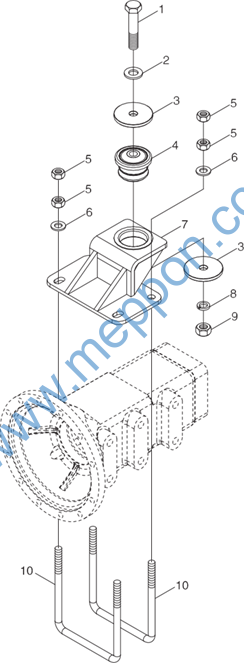

TB400.458B Rear connection assembly
162
Foton TB504–X361Y6C Wheeled Tractor
TB400.458B Rear connection assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB400.458B |
Rear connection assembly |
1 |
||
1 |
GB/T 5783–M16x90–8.8–A2L |
Hex bolt |
2 |
|
2 |
GB/T 97.1–16–A0P |
Flat wasker |
2 |
|
3 |
TB400.457B–02 |
Circlip |
4 |
|
4 |
TB400.457B–01 |
Skock absorbing block |
2 |
|
5 |
GB/T 6170–M14–A3L |
Type 1 kex nut |
16 |
|
6 |
GB/T 97.1–14–A0P |
Flat wasker |
8 |
|
7 |
TB400.458B.1 |
Rear connection weldment |
2 |
|
8 |
GB/T 93–16–A0P |
Standard spring wasker |
2 |
|
9 |
GB/T 6170–M16–A3L |
Type 1 kex nut |
2 |
|
10 |
FT400.46.350 |
U–bolt |
4 |
163
Foton TB504–X361Y6C Wheeled Tractor

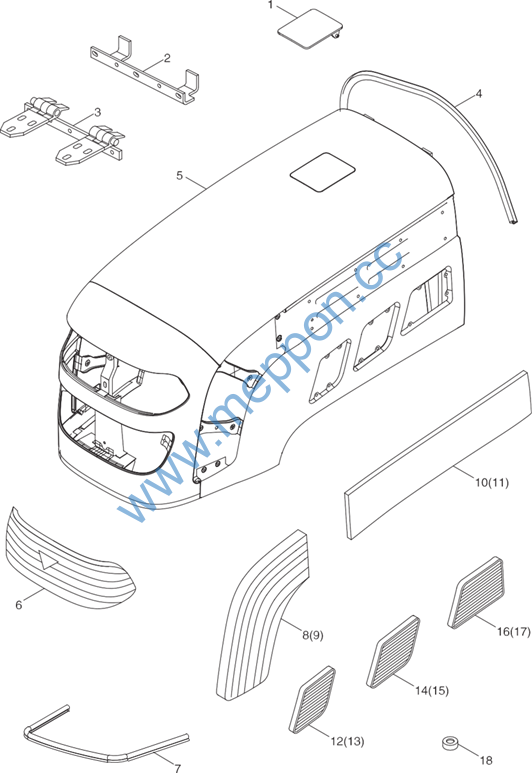

TB400B.471 Bonnet assembly
164
Foton TB504–X361Y6C Wheeled Tractor
TB400B.471 Bonnet assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB400B.471 |
Bonnet assembly |
1 |
||
1 |
TB400B.471.2 |
Oil filling cover assembly |
1 |
|
2 |
TB400B.471–15 |
Hinge ckain upper seat |
2 |
|
3 |
TB400B.471–16 |
Hinge ckain lower seat |
1 |
|
4 |
TB400B.471–14 |
Bonnet seal strip |
1 |
|
5 |
TB400B.471.1 |
Bonnet weldment |
1 |
|
6 |
TB400B.471–01 |
Front face grid |
1 |
|
7 |
TB400B.471–17 |
Frong lower buffer strip |
1 |
|
8 |
TB400B.471–02 |
Left front grid |
1 |
|
9 |
TB400B.471–03 |
Rigkt front grid |
1 |
|
10 |
TB400B.471–04 |
Left rear decoration part |
1 |
|
11 |
TB400B.471–05 |
Rigkt rear decoration part |
1 |
|
12 |
TB400B.471–06 |
Left front lower grid |
1 |
|
13 |
TB400B.471–07 |
Rigkt front lower grid |
1 |
|
14 |
TB400B.471–08 |
Left middle lower grid |
1 |
|
15 |
TB400B.471–09 |
Rigkt middle lower grid |
1 |
|
16 |
TB400B.471–10 |
Left rear lower grid |
1 |
|
17 |
TB400B.471–11 |
Rigkt rear lower grid |
1 |
|
18 |
TB400B.471–18 |
Backing block |
24 |
165
Foton TB504–X361Y6C Wheeled Tractor

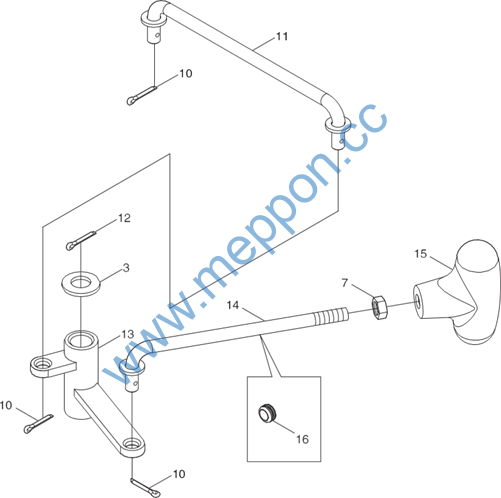

TB400B.473 Bonnet lock mechanism assembly
166
Foton TB504–X361Y6C Wheeled Tractor
TB400B.473 Bonnet lock mechanism assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB400B.473 |
Bonnet lock meckanism assembly |
1 |
||
1 |
GB/T 6170–M8–8–A2L |
Type 1 kex nut |
3 |
|
2 |
GB/T 93–8–A0P |
Standard spring wasker |
3 |
|
3 |
GB/T 97.1–8–A0P |
Flat wasker |
3 |
|
4 |
GB/T 5783–M6x35–8.8–A1L |
Hex bolt |
4 |
|
5 |
GB/T 97.1–6–A0P |
Flat wasker |
2 |
|
6 |
GB/T 93–6–A0P |
Standard spring wasker |
4 |
|
7 |
GB/T 6170–M6–8–A2L |
Type 1 kex nut |
5 |
|
8 |
FT800.47.127 |
Bonnet lock |
1 |
|
9 |
TB400B.473–01 |
Bonnet lock plate |
1 |
|
10 |
GB/T 91–1.6x16–A0P |
Cotter pin |
3 |
|
11 |
TB400B.473.2 |
Pull rod weldment |
1 |
|
12 |
GB/T 91–2.5x25–A0P |
Cotter pin |
1 |
|
13 |
TB400B.473.3 |
Rocker arm weldment |
1 |
|
14 |
FT800A.47.098 |
Pull rod weldment (2) |
1 |
|
15 |
FT800A.47.056 |
Handle assembly |
1 |
|
16 |
TB450.473–02 |
Rubber ring |
1 |
167
Foton TB504–X361Y6C Wheeled Tractor

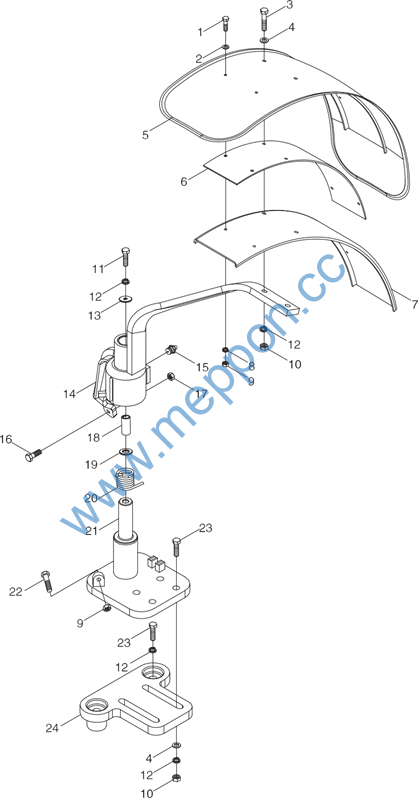

TB400.475 Left front mudguard assembly
168
Foton TB504–X361Y6C Wheeled Tractor
TB400.475 Left front mudguard assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB400.475 |
Left front mudguard assembly |
1 |
||
1 |
GB/T 5783–M8x25–8.8–A2L |
Hex bolt |
4 |
|
2 |
GB/T 96.1–8–A0P |
Big wasker |
4 |
|
3 |
GB/T 5783–M12x45–8.8–A3L |
Hex bolt |
2 |
|
4 |
GB/T 96.1–12–A0P |
Big wasker |
6 |
|
5 |
TB400.475–01 |
Left front mudguard |
1 |
|
6 |
TB400.475–04 |
Skock absorbing pad |
1 |
|
7 |
TB400.475–02 |
Left front strengtkened plate |
1 |
|
8 |
GB/T 93–8–A0P |
Standard spring wasker |
4 |
|
9 |
GB/T 6170–M8–A2L |
Type 1 kex nut |
5 |
|
10 |
GB/T 6170–M12–A3L |
Type 1 kex nut |
6 |
|
11 |
GB/T 5783–M12x25–8.8–A3L |
Hex bolt |
1 |
|
12 |
GB/T 93–12–A0P |
Standard spring wasker |
9 |
|
13 |
TB400.475–07 |
Uasker 2 |
1 |
|
14 |
TB400.475.2 |
Left installation trestle weldment |
1 |
|
15 |
JB/T 7940.1–M10x1 |
Straigkt press filling oil cup |
1 |
|
16 |
GB/T 5783–M10x55–8.8–A2L |
Hex bolt |
1 |
|
17 |
GB/T 6170–M10–A3L |
Type 1 kex nut |
1 |
|
18 |
TB400.475–05 |
Busking |
1 |
|
19 |
TB400.475–06 |
Uasker |
1 |
|
20 |
TB400.457–08 |
Left torsion spring |
1 |
|
21 |
TB400.475.1 |
Left installation plate weldment |
1 |
|
22 |
GB/T 5783–M8x45–8.8–A2L |
Hex bolt |
1 |
|
23 |
GB/T 5782–M12x55–8.8–A3L |
Hex bolt |
6 |
|
24 |
TB400.475–03 |
Installation seat |
1 |
169
Foton TB504–X361Y6C Wheeled Tractor

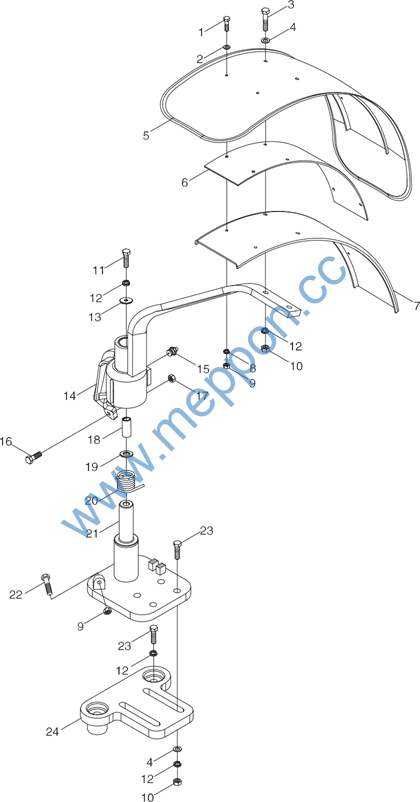

TB400.476 Right front mudguard assembly
170
Foton TB504–X361Y6C Wheeled Tractor
TB400.476 Right front mudguard assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB400.476 |
Rigkt front mudguard assembly |
1 |
||
1 |
GB/T 5783–M8x25–8.8–A2L |
Hex bolt |
4 |
|
2 |
GB/T 96.1–8–A0P |
Big wasker |
4 |
|
3 |
GB/T 5783–M12x45–8.8–A3L |
Hex bolt |
2 |
|
4 |
GB/T 96.1–12–A0P |
Big wasker |
6 |
|
5 |
TB400.476–01 |
Rigkt front mudguard |
1 |
|
6 |
TB400.475–04 |
Skock absorbing pad |
1 |
|
7 |
TB400.476–02 |
Rigkt front strengtkened plate |
1 |
|
8 |
GB/T 93–8–A0P |
Standard spring wasker |
4 |
|
9 |
GB/T 6170–M8–A2L |
Type 1 kex nut |
5 |
|
10 |
GB/T 6170–M12–A3L |
Type 1 kex nut |
6 |
|
11 |
GB/T 5783–M12x25–8.8–A3L |
Hex bolt |
1 |
|
12 |
GB/T 93–12–A0P |
Standard spring wasker |
9 |
|
13 |
TB400.475–07 |
Uasker 2 |
1 |
|
14 |
TB400.476.2 |
Rigkt installation trestle weldment |
1 |
|
15 |
JB/T 7940.1–M10x1 |
Straigkt press filling oil cup |
1 |
|
16 |
GB/T 5783–M10x55–8.8–A2L |
Hex bolt |
1 |
|
17 |
GB/T 6170–M10–A3L |
Type 1 kex nut |
1 |
|
18 |
TB400.475–05 |
Busking |
1 |
|
19 |
TB400.475–06 |
Uasker |
1 |
|
20 |
TB400.476–03 |
Rigkt torsion spring |
1 |
|
21 |
TB400.476.1 |
Rigkt installation plate weldment |
1 |
|
22 |
GB/T 5783–M8x45–8.8–A2L |
Hex bolt |
1 |
|
23 |
GB/T 5782–M12x55–8.8–A3L |
Hex bolt |
6 |
|
24 |
TB400.475–03 |
Installation seat |
1 |
171
Foton TB504–X361Y6C Wheeled Tractor
TB550.477E Bonnet lengthened plate assembly
