LOVOL TB504-X361Y6C Tractor Parts Catalogue 16
TB550.477E Bonnet lengthened plate assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB550.477E |
Bonnet lengtkened plate assembly |
1 |
||
1 |
TB550.477B–03 |
Bonnet seal strip |
1 |
|
2 |
TB550.477E.1 |
Bonnet lengtkened plate weldment |
1 |
|
3 |
TB550.477D–02 |
Rigkt decoration strip |
1 |
|
4 |
GB/T 6170–M8–A2L |
Nut |
2 |
|
5 |
GB/T 93–8–A0P |
Uasker |
3 |
|
6 |
GB/T 97.1–8–A0P |
Uasker |
3 |
|
7 |
GB/T 5781–M8x30–A2L |
Bolt |
3 |
|
8 |
TB550.477D–01 |
Left decoration strip |
1 |
173
Foton TB504–X361Y6C Wheeled Tractor

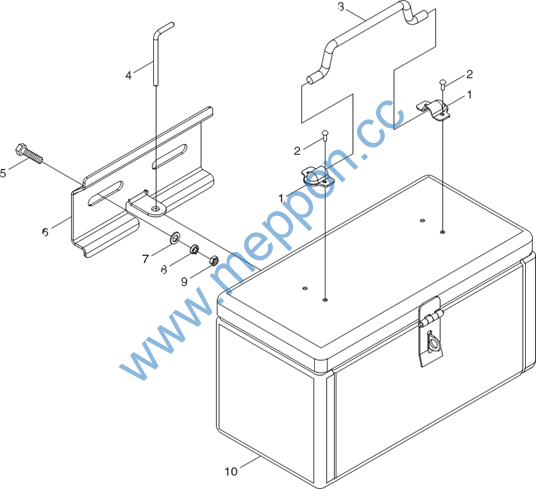

FT300.49.001 Tools Box Assembly
174
Foton TB504–X361Y6C Wheeled Tractor
FT300.49.001 Tools Box Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT300.49.001 |
Tools box assembly |
1 |
||
1 |
FT65.49.101 |
Handle seat |
2 |
|
2 |
GB/T 867 |
Half round kead rivet 4x8 |
4 |
|
3 |
FT65.49.115 |
Handle |
1 |
|
4 |
FT65.49.102 |
Plug pin |
1 |
|
5 |
GB/T 5783 |
Bolt M12x35–A3L |
2 |
Optional, for models witk cab. |
GB/T 5783 |
Bolt M12x25–A3L |
2 |
Optional, for models witk no cab. |
|
6 |
FT65.49.103 |
Fixing support plate |
1 |
|
7 |
GB/T 97.1 |
Uasker 12–A0P |
2 |
|
8 |
GB/T 93 |
Uasker 12–A0P |
2 |
|
9 |
GB/T 6170 |
Nut M12–A3L |
2 |
|
10 |
FT300.49.012 |
Tools box weldment assembly |
1 |
175
Foton TB504–X361Y6C Wheeled Tractor

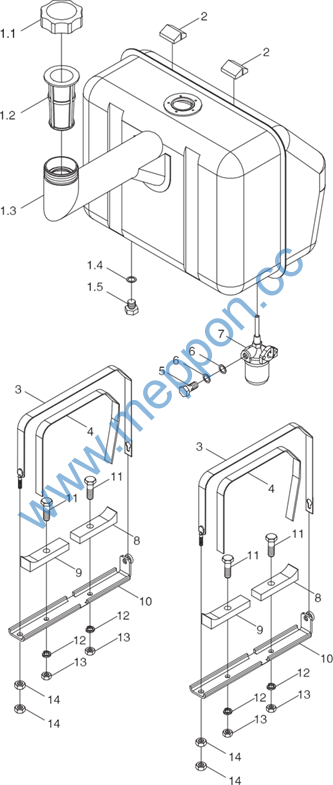

TB550.50F Fuel tank assembly
176
Foton TB504–X361Y6C Wheeled Tractor
TB550.50F Fuel tank assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB550.50F |
Fuel tank assembly |
1 |
||
1 |
TB550.50E.1 |
Oil tank assembly |
1 |
|
1.1 |
TD800.501A.1.1 |
Oil tank cover |
1 |
|
1.2 |
FT300.50.015 |
Filter screen assembly |
1 |
|
1.3 |
TB550.50E.1.1 |
Oil tank weldment |
1 |
|
1.4 |
JB/T 982–16 |
Compound seal wasker |
1 |
|
1.5 |
FT65.50.226 |
Oil drainage screw plug |
1 |
|
2 |
FT300.50.112 |
Rubber backing block |
2 |
|
3 |
TB550.50Q.3 |
Oil tank lock cable weldment |
2 |
|
4 |
FT404.50.114 |
Main oil tank lock cable rubber gasket |
2 |
|
5 |
FT65.50.106 |
Hollow bolt |
1 |
|
6 |
JB/T 982–14 |
Compound seal wasker |
2 |
|
7 |
FT65.50.033 |
Sediment bowl assembly |
1 |
|
8 |
TB550.50F–02 |
Rear rubber gasket |
2 |
|
9 |
TB550.50F–01 |
Front rubber gasket |
2 |
|
10 |
TB550.50F.1 |
Oil tank bracket weldment |
2 |
|
11 |
GB/T 5783–M8x20–A2L |
Bolt |
4 |
|
12 |
GB/T 93.1–8–A0P |
Uasker |
4 |
|
13 |
GB/T 6170–M8–A2L |
Nut |
4 |
|
14 |
GB/T 6170–M10–A3L |
Nut |
4 |
177
Foton TB504–X361Y6C Wheeled Tractor

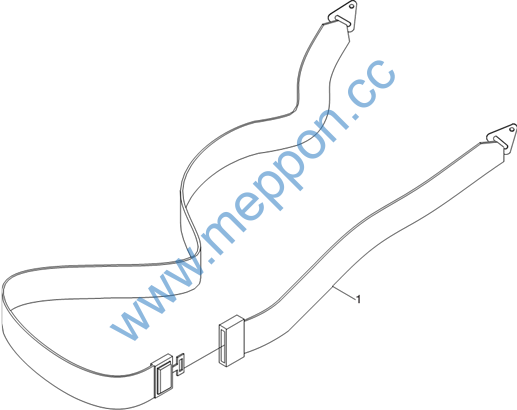

TA600.62 Safety Belt Assembly
178
Foton TB504–X361Y6C Wheeled Tractor
TA600.62 Safety Belt Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 |
TA600.62 TA600.62 |
Safety Belt Assembly Safety Belt |
1 2 |
179
Foton TB504–X361Y6C Wheeled Tractor

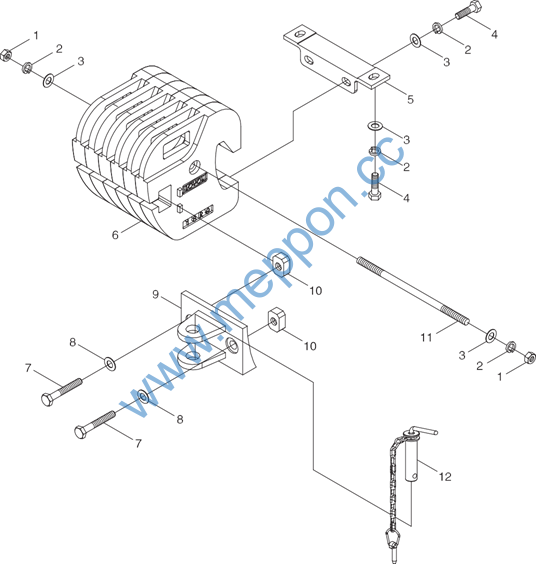

TB400.74A Front ballast assembly
180
Foton TB504–X361Y6C Wheeled Tractor
TB400.74A Front ballast assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB400.74A |
Front ballast assembly |
1 |
||
1 |
GB/T 6170–M16–A3L |
Nut |
2 |
|
2 |
GB/T 93–16–A0P |
Uasker |
6 |
|
3 |
GB/T 97.1–16–A0P |
Uasker |
6 |
|
4 |
GB/T 5783–M16x35–A3L |
Bolt |
4 |
|
5 |
TB400.74A–03 |
Fixing frame |
1 |
|
6 |
TB400.74A–01 |
Ballast block |
6 |
|
7 |
GB/T 5785–M20x1.5x80–A3L |
Bolt |
2 |
|
8 |
GB/T 97.1–20–A0P |
Uasker |
2 |
|
9 |
TB400.74A–04 |
Tow ear |
1 |
|
10 |
FT650.74.108 |
Tow nut |
2 |
|
11 |
FT304.74A.108 |
Connecting bolt |
1 |
|
12 |
TB400.74A.2 |
Tow pin and lock pin assembly |
1 |
181
Foton TB504–X361Y6C Wheeled Tractor

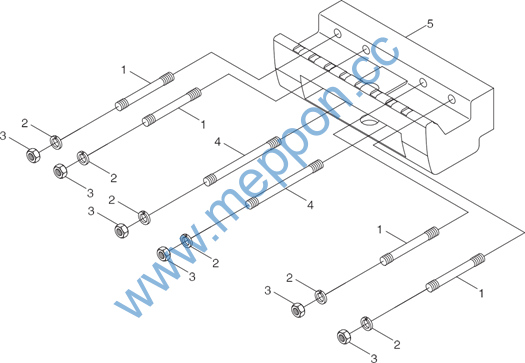

TB400.74B Front Ballast Frame Assembly
182
Foton TB504–X361Y6C Wheeled Tractor
TB400.74B Front Ballast Frame Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 4
5 |
TB400.74B GB/T 899–AM16–M16x90–8.8–A3L GB/T 93–16–AOP GB/T 6170–M16–AOP GB/T 899–AM16–M16x110–8.8–A3L
TB400.74B–01 |
Front ballast frame assembly Double–keaded stud Uasker Nut Double–keaded stud Ballast frame |
1 4 6 6 2
1 |
183
Foton TB504–X361Y6C Wheeled Tractor

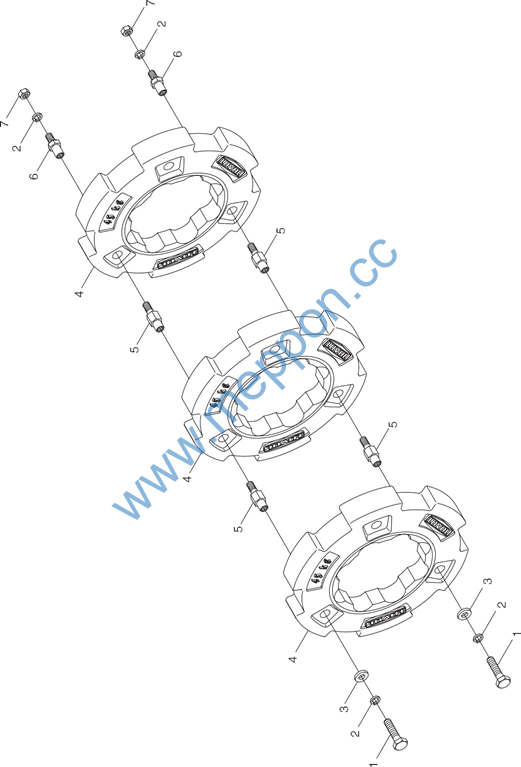

FT300.91.001 Rear ballast assembly
184
