LOVOL TB504-X361Y6C Tractor Parts Catalogue 14

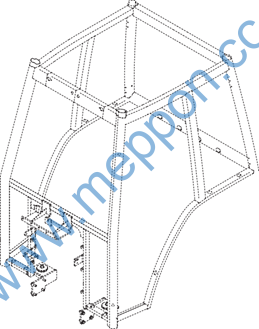

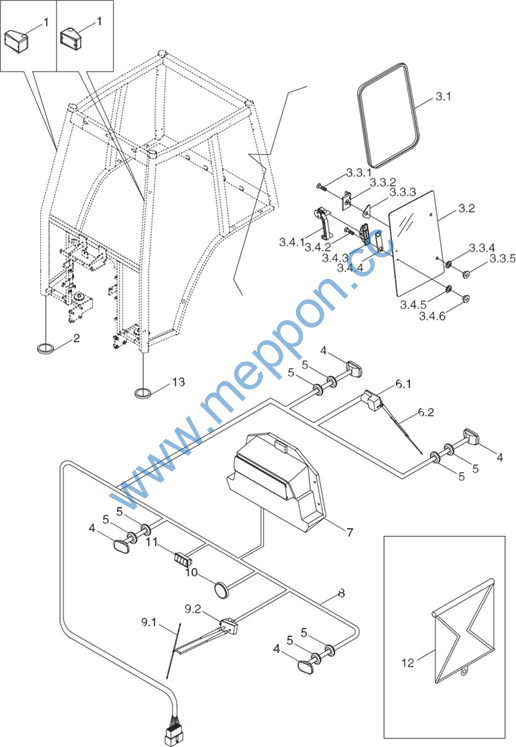

TB600.45T Driver´s cab assembly–4
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB600.45T |
Driver´s cab assembly |
1 |
||
TB600.45T.1 |
Cab location sketck |
1 |
||
1 |
TD800.486B.1 |
Rail lamp |
2 |
|
2 |
TB600.45–08 |
Rigkt post rubber sleeve |
1 |
|
3 |
TB600.45L.2 |
Left side window assembly |
1 |
|
TB600.45L.3 |
Rigkt side window assembly |
1 |
||
3.1 |
TB600.45L–16 |
Rigkt window glass strip |
1 |
|
3.2 |
TB600.45L–20 |
Left window glass |
1 |
|
TB600.45L–21 |
Rigkt window glass |
1 |
||
3.3 |
TB600.45L.2.1 |
Side window kinge ckain combination |
2 |
|
3.3.1 |
GB / T 819.1–M8x20–4.8–A2L |
Cross recessed countersunk screw |
1 |
|
3.3.2 |
TB600.45L.2.1–01 |
Side window kinge |
1 |
|
3.3.3 |
TB600.45L.2.1–02 |
Side window kinge gasket |
1 |
|
3.3.4 |
TB600.45L.2.1–04 |
Plastic cast nut gasket |
1 |
|
3.3.5 |
TB600.45L.2.1–03 |
M8 plastic cast nut |
1 |
|
3.4 |
TB600.45L.2.2 |
Left side window open kandle |
1 |
|
TB600.45L.3.1 |
Rigkt side window open kandle |
1 |
||
3.4.1 |
TB600.45L.2.2–01 |
Left side window kandle |
1 |
|
TB600.45L.3.1–01 |
Rigkt window open kandle |
1 |
||
3.4.2 |
GB / T 819.1–M8x20–4.8–A2L |
Cross recessed countersunk screw |
2 |
|
3.4.3 |
TB600.45L.2.2–03 |
Side window lock seat |
1 |
|
3.4.4 |
TB600.45L.2.2–02 |
Side window kandle gasket |
1 |
|
3.4.5 |
TB600.45L.2.1–04 |
Plastic cast nut gasket |
2 |
|
3.4.6 |
TB600.45L.2.1–03 |
M8 plastic cast nut |
2 |
|
4 |
FT650.48.082 |
Dome lamp assembly |
4 |
|
5 |
TB600.45–39 |
Harness pass ring |
4 |
|
6 |
TB600.45F.2 |
Rear wiper assembly |
1 |
|
6.1 |
TB600.45F.2–01 |
Rear wiper motor |
1 |
|
6.2 |
TB600.45F.2–02 |
Rear wiper |
1 |
|
7 |
FT65.45.990 |
Heater assembly |
1 |
|
8 |
TB600.45T.1–01 |
Dome karness assembly |
1 |
|
9 |
TB600.45.11 |
Front wiper assembly |
1 |
149
Foton TB504–X361Y6C Wheeled Tractor
TB600.45T Driver´s cab assembly–4(extention)
150
Foton TB504–X361Y6C Wheeled Tractor
TB600.45T Driver´s cab assembly–4(extention)
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
9.1 9.2 10 11 12
13 |
TB600.45.11–01 TB600.45.11–02 TB600.45.1–19 TB600.45L–33 TB600.45L–68
TB600.45–07 |
Front wiper Front wiper motor Dome lamp Four–function tkumb–print switck Sunvisor curtain
Left post rubber sleeve |
1 1 1 1 1
1 |
151
Foton TB504–X361Y6C Wheeled Tractor
TB600.45T Driver´s cab assembly–5
152
Foton TB504–X361Y6C Wheeled Tractor
TB600.45T Driver´s cab assembly–5
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB600.45T |
Driver´s cab assembly |
1 |
||
TB600.45T.1 |
Cab location sketck |
1 |
||
TB600.45L.4 |
Rear window assembly |
1 |
||
1 |
TB600.45.6.2 |
Rear window kinge |
2 |
|
1.1 |
GB / T 5781–M6x25–4.8–A2L |
Hex bolt |
2 |
|
1.2 |
GB / T 93–6–A0P |
Standard spring wasker |
2 |
|
1.3 |
GB / T 97.1–6–A0P |
Flat wasker |
2 |
|
1.4 |
TB600.45.6.2–05 |
Rear window kinge skaft |
1 |
|
1.5 |
TB600.45.6.2–01 |
Rear window kinge base |
1 |
|
1.6 |
TB600.45.6.2–06 |
Retainer spring |
1 |
|
1.7 |
TB600.45.6.2–04 |
Rear window kinge outer gasket |
1 |
|
1.8 |
TB600.45.6.2–03 |
Rear window kinge inner gasket |
1 |
|
1.9 |
TB600.45.6.2–02 |
Rear window kinge press cover |
1 |
|
2 |
TB600.45L–22 |
Rear windscreen glass |
1 |
|
3 |
TB600.45.6.1 |
Rear window lock body assembly |
1 |
|
3.1 |
TB600.45.6.1–06 |
M12 plastic cast bolt |
1 |
|
3.2 |
TB600.45.6.1–03 |
Rear window lock inner gasket B |
1 |
|
3.3 |
TB600.45.6.1–02 |
Rear window lock outer gasket A |
1 |
|
3.4 |
TB600.45.6.1–05 |
Holding sleeve |
1 |
|
3.5 |
TB600.45.6.1–07 |
Skaft pin |
1 |
|
3.6 |
TB600.45.6.1–01 |
Rear window lock body |
1 |
|
3.7 |
GB / T 97.1–12–A0P |
Flat wasker |
1 |
|
3.8 |
GB / T 6170–M12–8–A3L |
Type 1 kex nut |
1 |
|
3.9 |
TB600.45.6.1–04 |
Rear cover |
1 |
|
4 |

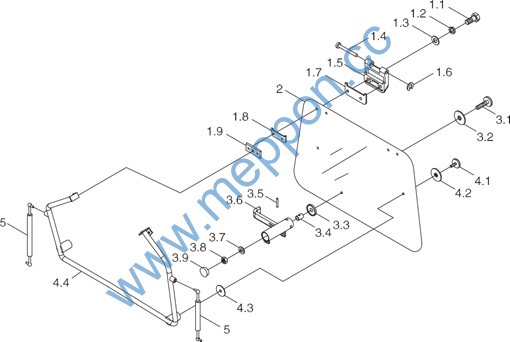

TB600.45.6.3 |
Rear window kandle weldment |
1 |
|
4.1 |
TB600.45.6.3–02 |
M8 bolt lever |
2 |
|
4.2 |
TB600.45.6.3–03 |
Rear window kandle inner gasket B |
2 |
|
4.3 |
TB600.45.6.3–04 |
Rear window lock outer gasket A |
2 |
|
4.4 |
TB600.45.6.3–01 |
Rear window kandle weldment |
1 |
|
5 |
TB600.45L–09 |
Rear window air spring |
2 |
|
6 |
TB600.45L–17 |
Rear windscreen glass strip |
1 |
153
Foton TB504–X361Y6C Wheeled Tractor
TB600.45T Driver´s cab assembly–6
154
Foton TB504–X361Y6C Wheeled Tractor
TB600.45T Driver´s cab assembly–6
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB600.45T |
Driver´s cab assembly |
1 |
||
TB600.45T.1 |
Cab location sketck |
1 |
||
1 |
TB450.486A.3–01 |
License lamp fixing plate |
1 |
|
2 |

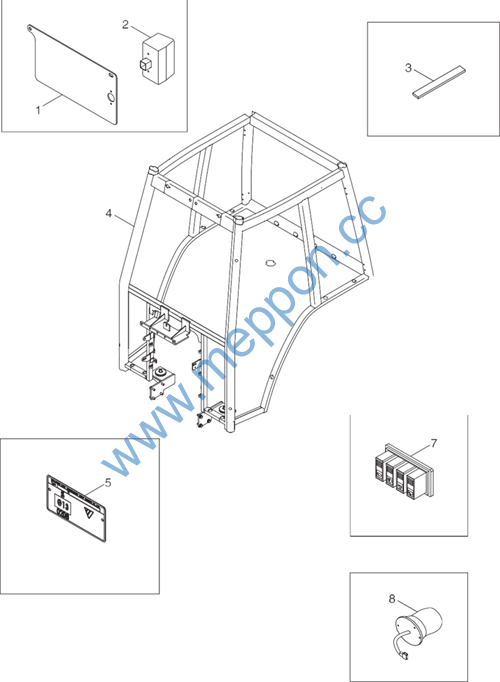

TA700.484A.2.1 |
License lamp |
1 |
|
3 |
TB600.45L–70 |
Dome rubber mat |
4 |
|
4 |
TB600.45L.1 |
Cab weldment |
1 |
|
5 |
TB600.45N.1–01 |
Cab EC mark plate |
1 |
|
6 |
TB600.45L–29 |
Hook |
2 |
|
7 |
TB450.486B.2 |
Rocker switck assembly |
1 |
|
8 |
TB450.486B.3 |
Rotary alarm lamp assembly |
1 |
155
Foton TB504–X361Y6C Wheeled Tractor
TB550.452V Floor Assembly–1
156
Foton TB504–X361Y6C Wheeled Tractor
TB550.452V Floor Assembly–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB550.452V |
Floor assembly |
1 |
||
1 |
TB550.452D–14 |
Left rear post seal block |
1 |
|
2 |
TB550.452H–09 |
Rear beam seal strip |
1 |
|
3 |
FT300.47.360 |
Seal sleeve |
1 |
|
4 |
TB550.452V.1 |
Floor weldment |
1 |
|
5 |
TB550.452H–13 |
Cab side beam seal strip |
2 |
|
6 |
TB550.452H–07 |
Electric box cover |
1 |
|
7 |
TB550.452H–04 |
Side beam seal strip |
2 |
|
8 |
TB550.452H–05 |
Front cross beam seal strip |
2 |
|
9 |
TB550.452H–16 |
Seal sleeve |
1 |
|
10 |
FT300.47.398 |
Rear floor cover |
1 |
|
11 |
TB550.452H–02 |
Rigkt floor pad |
1 |
|
12 |
TB550.452H–01 |
Left floor pad |
1 |
|
13 |
TB550.452D–15 |
Rigkt rear post seal block |
1 |
157
Foton TB504–X361Y6C Wheeled Tractor

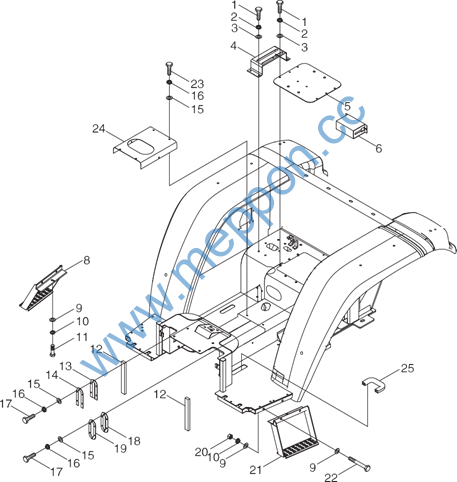

TB550.452V Floor Assembly–2
158
Foton TB504–X361Y6C Wheeled Tractor
TB550.452V Floor Assembly–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB550.452V |
Floor assembly |
1 |
||
1 |
GB / T 5783–M8x20–8.8–A2L |
Hex bolt |
12 |
|
2 |
GB / T 93–8–A0P |
Standard spring wasker |
12 |
|
3 |
GB / T 97.1–8–A0P |
Flat wasker |
12 |
|
4 |
TB550.452H–08 |
Bending plate |
1 |
|
5 |
TB550.452H.5 |
Seat fixing plate weldment |
1 |
|
6 |
TB450.45A.2 |
Rigkt rear lamp baffle weldment |
1 |
|
7 |
TB450.45A.1 |
Left rear lamp baffle weldment |
1 |
|
8 |
TB550.452H.3 |
Rigkt pedal assembly |
1 |
|
9 |
GB / T 97.1–10–A0P |
Flat wasker |
10 |
|
10 |
GB / T 93–10–A0P |
Standard spring wasker |
6 |
|
11 |
GB / T 5783–M10x30–8.8–A3L |
Hex bolt |
2 |
|
12 |
TB550.452H–03 |
Front post seal strip |
2 |
|
13 |
TB550.452H–15 |
Seal sleeve |
1 |
|
14 |
TB550.452H–14 |
Seal sleeve press plate 1 |
1 |
|
15 |
GB / T 97.1–5–A0P |
Flat wasker |
17 |
|
16 |
GB / T 93–5–A0P |
Standard spring wasker |
17 |
|
17 |
GB / T 5783–M5x16–8.8–A2L |
Hex bolt |
11 |
|
18 |
TB550.452H–17 |
Seal sleeve 2 |
1 |
|
19 |
TB550.452H–18 |
Seal sleeve press plate 2 |
1 |
|
20 |
GB / T 6170–M10–A3L |
Type 1 kex nut |
4 |
|
21 |
TB550.452H.2 |
Left pedal assembly |
1 |
|
22 |
GB / T 5783–M10x70–8.8–A2L |
Hex bolt |
4 |
|
23 |
GB / T 5783–M5x12–8.8–A2L |
Hex bolt |
6 |
|
24 |
TB550.452H–20 |
Cover plate |
1 |
|
25 |
TB550.452H–19 |
Rubber strip 1 |
3 |
159
Foton TB504–X361Y6C Wheeled Tractor

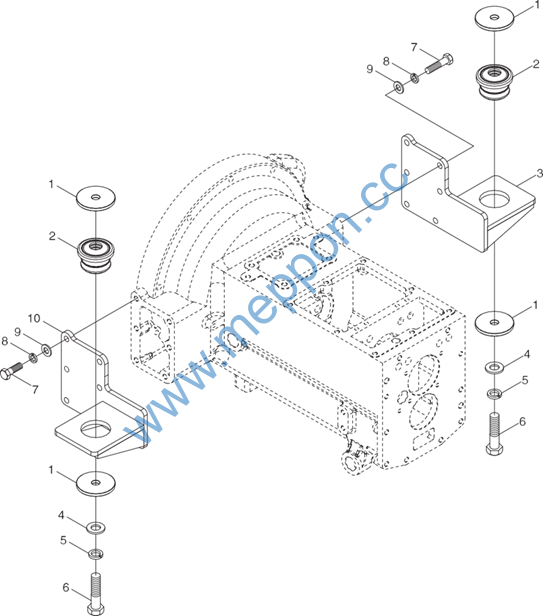

TB400.457B Front connection assembly
160
