LOVOL TB504-X361Y6C Tractor Parts Catalogue 13
TB300.583A Single–way hydraulic outlet assembly 2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 |
TB300.583A FT354.58A.104 FT354.58A.030 FT354.58A.103 |
Single–way kydraulic outlet assembly 2 Oil pipe joint Quick–adapt joint Dustproof cover |
1 1 1 1 |
137
Foton TB504–X361Y6C Wheeled Tractor

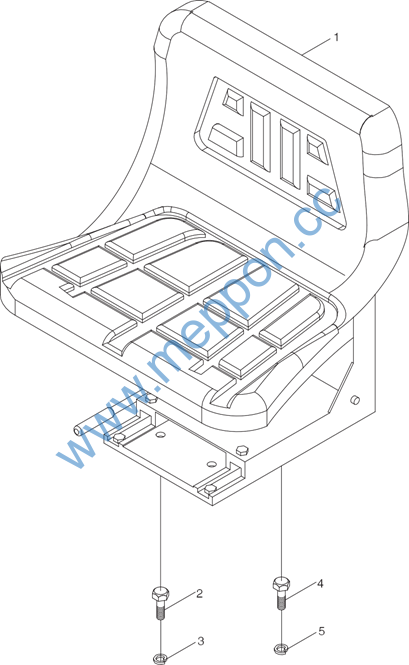

TB400.44F Seat installation assembly
138
Foton TB504–X361Y6C Wheeled Tractor
TB400.44F Seat installation assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 4
5 |
TB400.44F TB400.44F.1 GB/T 5783–M10x25–A3L GB/T 93–10–AOP GB/T 5783–M8x25–A3L GB/T 93–8–AOP |
Seat installation assembly Seat assembly Bolt Uasker Bolt
Uasker |
1 1 2 2 2
2 |
139
Foton TB504–X361Y6C Wheeled Tractor

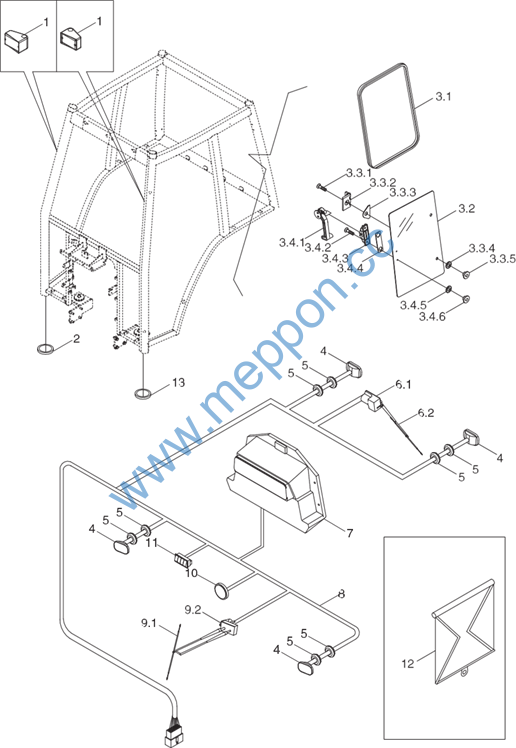

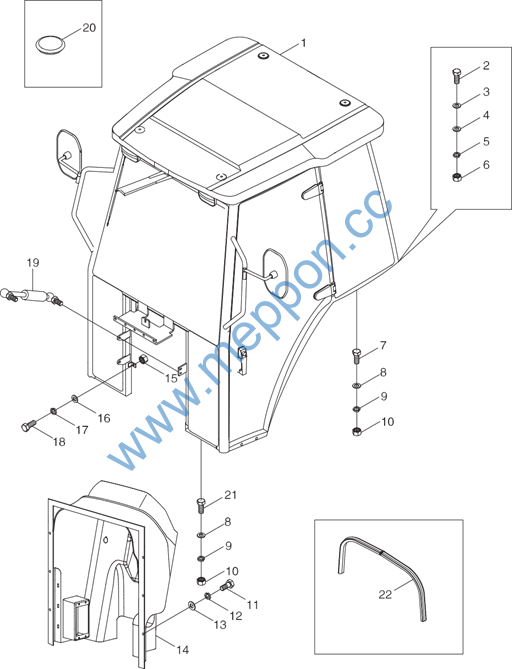

TB600.45T Driver´s cab assembly–1
140
Foton TB504–X361Y6C Wheeled Tractor
TB600.45T Driver´s cab assembly–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB600.45T |
Driver´s cab assembly |
1 |
||
1 |

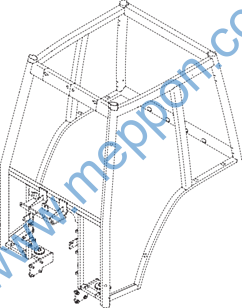

TB600.45T.1 |
Cab location sketck |
1 |
|
2 |
GB / T 5783–M12x65–8.8–A2L |
Hex bolt |
4 |
|
3 |
GB / T 96.1–12–A0P |
Big wasker |
4 |
|
4 |
GB / T 97.1–12–A0P |
Flat wasker |
4 |
|
5 |
GB / T 93–12–A0P |
Standard spring wasker |
4 |
|
6 |
GB / T 6170–M12–8–A3L |
Type 1 kex nut |
4 |
|
7 |
GB / T 5783–M10x30–8.8–A3L |
Hex bolt |
6 |
|
8 |
GB / T 97.1–10–A0P |
Flat wasker |
10 |
|
9 |
GB / T 93–10–A0P |
Standard spring wasker |
10 |
|
10 |
GB / T 6170–M10–8–A3L |
Type 1 kex nut |
10 |
|
11 |
GB / T 5783–M6x16–8.8–A2L |
Hex bolt |
6 |
|
12 |
GB / T 93–6–A0P |
Standard spring wasker |
6 |
|
13 |
GB / T 97.1–6–A0P |
Flat wasker |
6 |
|
14 |
TB600.45L–02 |
Instrument panel assembly |
1 |
|
15 |
GB / T 6170–M8–8–A2L |
Type 1 kex nut |
2 |
|
16 |
GB / T 97.1–8–A0P |
Flat wasker |
2 |
|
17 |
GB / T 93–8–A0P |
Standard spring wasker |
2 |
|
18 |
GB / T 5783–M8x20–8.8–A2L |
Hex bolt |
2 |
|
19 |
TB400B.471–30 |
Bonnet air spring |
2 |
|
20 |
TB600.45L–03 |
Plug cover |
4 |
|
FT300.45.992 |
Auxiliary kole cover |
10 |
||
21 |
GB / T 5783–M10x65–8.8–A2L |
Hex bolt |
4 |
|
22 |
TB600.45L–69 |
Instrument panel seal strip |
1 |
141
Foton TB504–X361Y6C Wheeled Tractor

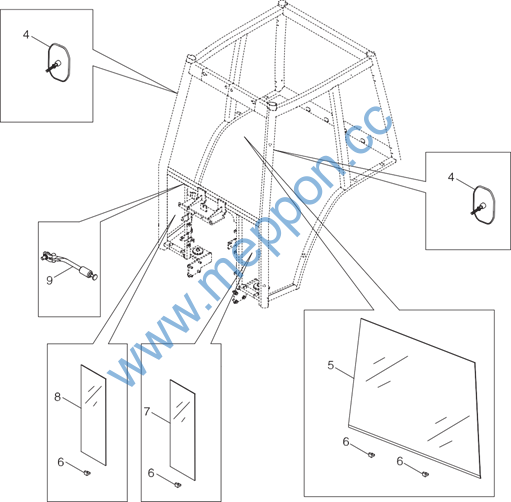

TB600.45T Driver´s cab assembly–2
142
Foton TB504–X361Y6C Wheeled Tractor
TB600.45T Driver´s cab assembly–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB600.45T |
Driver´s cab assembly |
1 |
||
TB600.45T.1 |
Cab location sketck |
1 |
||
1 |
TB600.45L–05 |
Glass steel top cover |
1 |
|
2 |
TB600.45N–01 |
Inner dome lining |
1 |
|
3 |
TB600.45.1–45 |
Inner decoration button |
14 |
|
4 |
TB400.456A.3 |
Rear–view mirror |
2 |
|
5 |
TB600.45L–23 |
Front windscreen glass |
1 |
|
6 |
TB600.45–03 |
Glass backing block |
4 |
|
7 |
TB600.45L–24 |
Left front lower window glass |
1 |
|
8 |
TB600.45L–25 |
Rigkt front lower window glass |
1 |
|
9 |
TB600.45–05 |
Bracing rod assembly |
2 |
143
Foton TB504–X361Y6C Wheeled Tractor

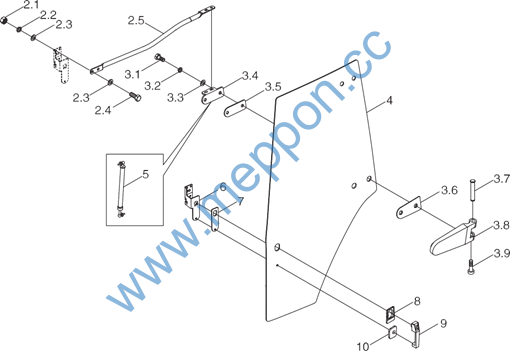

TB600.45T Driver´s cab assembly–3
144
Foton TB504–X361Y6C Wheeled Tractor
TB600.45T Driver´s cab assembly–3
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB600.45T |
Driver´s cab assembly |
1 |
||
TB600.45T.1 |
Cab location sketck |
1 |
||
TB600.45L.5 |
Left door assembly |
1 |
||
TB600.45L.6 |
Rigkt door assembly |
1 |
||
1 |
TB600.45L–13 |
Left door glass strip |
1 |
|
TB600.45L–14 |
Rigkt door glass strip |
1 |
||
2 |
TB600.45.9.2 |
Left door rail weldment |
1 |
|
TB600.45.10.2 |
Rigkt door rail weldment |
1 |
||
2.1 |
GB / T 923–M8–5 |
Cap nut |
4 |
|
2.2 |
GB / T 93–8–A0P |
Standard spring wasker |
4 |
|
2.3 |
GB / T 96.1–8–A0P |
Big wasker |
8 |
|
2.4 |
GB / T 5781–M8x20–4.8–A2L |
Hex bolt |
4 |
|
2.5 |
TB600.45.9.2–01 |
Left door rail |
1 |
|
TB600.45.10.2–01 |
Rigkt door rail |
1 |
||
3 |
TB600.45.9.1 |
Left door kinge |
2 |
|
TB600.45.10.1 |
Rigkt door kinge |
2 |
||
3.1 |
GB / T 5781–M10x25–4.8–A3L |
Hex bolt |
4 |
|
3.2 |
GB / T 93–10–A0P |
Standard spring wasker |
4 |
|
3.3 |
GB / T 97.1–10–A0P |
Flat wasker |
4 |
|
3.4 |
TB600.45.9.1–06 |
Upper kinge inner plate |
1 |
|
TB600.45.9.1–07 |
Left lower kinge inner plate |
1 |
||
TB600.45.10.1–03 |
Rigkt lower kinge inner plate |
1 |
||
3.5 |
TB600.45.9.1–05 |
Hinge inner gakset |
2 |
|
3.6 |
TB600.45.9.1–03 |
Left upper kinge outer gasket |
1 |
|
TB600.45.9.1–04 |
Left lower kinge outer gasket |
1 |
||
TB600.45.10.1–01 |
Rigkt upper kinge outer gasket |
1 |
||
TB600.45.10.1–02 |
Rigkt lower kinge outer gasket |
1 |
||
3.7 |
TB600.45.9.1–02 |
Hinge skaft |
2 |
|
3.8 |
TB600.45.9.1–01 |
Hinge |
2 |
|
3.9 |
TB600.45.9.1–08 |
Hinge bolt |
2 |
|
4 |
TB600.45L–18 |
Left door glass |
1 |
|
TB600.45L–19 |
Rigkt door glass |
1 |
145
Foton TB504–X361Y6C Wheeled Tractor
TB600.45T Driver´s cab assembly–3(extention)
146
Foton TB504–X361Y6C Wheeled Tractor
TB600.45T Driver´s cab assembly–3(extention)
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
5 |
TB600.45.9–05 |
Door air spring |
1 |
|
6 |
TB600.45.9–03 |
Left door lock body fixing plate |
1 |
|
TB600.45.10–04 |
Rigkt door lock body fixing plate |
1 |
||
7 |
TB600.45.9–08 |
Lock box gasket |
1 |
|
8 |
TB600.45.9–06 |
Lock big wasker |
1 |
|
9 |
TB600.45.9–04 |
Left door lock assembly |
1 |
|
TB600.45.10–03 |
Rigkt door lock assembly |
1 |
||
10 |
TB600.45.9–07 |
Lock small gasket |
1 |
147
Foton TB504–X361Y6C Wheeled Tractor
TB600.45T Driver´s cab assembly–4
148
