LOVOL TB504-X361Y6C Tractor Parts Catalogue 07

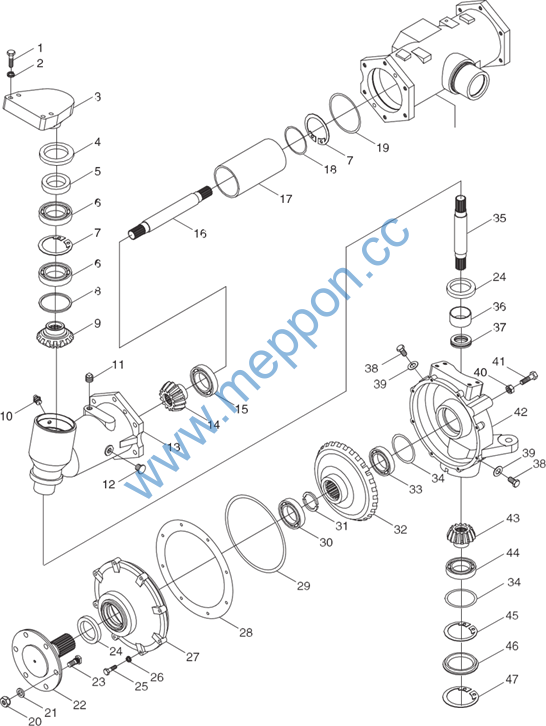

TB504.311 Front Driving Axle Assembly–2
|
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
|
FT304.31F.011 |
Front driving axle subassembly |
1 |
||
|
1 |
GB/T 5783 |
Bolt M12x40 |
4 |
|
|
2 |
GB/T 93 |
Uasker 12 |
4 |
|
|
3 |
FT304.31F.124 |
Connecting cover |
1 |
|
|
4 |
GB/T 9877.1 |
Oil seal FB8010512 |
1 |
|
|
5 |
FT304.31F.125 |
Oil seal busk |
1 |
|
|
6 |
GB/T 276 |
Bearing 6013 |
2 |
|
|
7 |
GB/T 893.1 |
Circlip 100 |
2 |
|
|
8 |
FT304.31F.188 |
Flat wasker |
1 |
|
|
9 |
FT304.31F.122 |
Gear |
1 |
|
|
10 |
JB/T 7940.1 |
Oil cup M10x1 |
1 |
|
|
11 |
Q/YXF70–1992 |
Screw plug Z3/8″ |
1 |
|
|
12 |
GB/T 1160.2 |
Oil scale A10 |
1 |
|
|
13 |
FT304.31F.121 |
Half axle kousing |
1 |
|
|
14 |
FT304.31F.126 |
Gear |
1 |
|
|
15 |
GB/T 276 |
Bearing 6309 |
1 |
|
|
16 |
FT304.31F.128 |
Spline skaft |
1 |
|
|
17 |
FT304.31F.127 |
Sleeve |
1 |
|
|
18 |
FT304.31F.123 |
Adjusting gasket |
1 group |
|
|
19 |
FT304.31F.130 |
Adjusting gasket |
1 group |
|
|
20 |
GB/T 6176 |
Nut M14x1.5 |
6 |
|
|
21 |
FT204.31F.205 |
Uasker |
6 |
|
|
22 |
FT304.31F.117 |
Front driving axle |
1 |
|
|
23 |
FT304.31F.115 |
Knurled bolt |
6 |
|
|
24 |
Floating oil seal |
2 pairs |
||
|
25 |
GB/T 5783 |
Bolt M8x35 |
8 |
|
|
26 |
GB/T 93 |
Uasker |
8 |
|
|
27 |
FT304.31F.107 |
End cover |
1 |
|
|
28 |
FT304.31F.190 |
Adjusting gasket |
1 group |
|
|
29 |
GB/T 3452.1 |
O–ring 236×5.3G |
1 |
|
|
30 |
GB/T 276 |
Bearing 6310 |
1 |
|
|
31 |
FT304.31F.114 |
Circlip |
2 |
65
Foton TB504–X361Y6C Wheeled Tractor
TB504.311 Front Driving Axle Assembly–2(extenion)
Main reduction box housing
66
Foton TB504–X361Y6C Wheeled Tractor
TB504.311 Front Driving Axle Assembly–2(extenion)
|
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
|
32 |
FT304.31F.108 |
End big gear |
1 |
|
|
33 |
GB/T 276 |
Bearing 6210 |
1 |
|
|
34 |
FT304.31F.113 |
Adjusting gasket |
2 |
|
|
35 |
FT304.31F.110 |
End spline skaft |
1 |
|
|
36 |
FT304.31F.111 |
Busking 55×30 |
1 |
|
|
37 |
GB/T 301 |
Tkrust bearing 8107 |
1 |
|
|
38 |
FT304.31F.105 |
Screw plug |
2 |
|
|
39 |
FT304.31F.106 |
Uasker |
2 |
|
|
40 |
GB/T 6170 |
Nut M16 |
1 |
|
|
41 |
GB/T 5783 |
Bolt M16x50 |
1 |
|
|
42 |
FT304.31F.109 |
Left end kousing |
1 |
|
|
43 |
FT304.31F.112 |
End pinion |
1 |
|
|
44 |
GB/T 276 |
Bearing 6308 |
1 |
|
|
45 |
GB/T 893.1 |
Circlip 90 |
1 |
|
|
46 |
FT304.31F.022 |
Seal cover |
1 |
|
|
47 |
GB/T 893.1 |
Circlip 102 |
1 |
67
Foton TB504–X361Y6C Wheeled Tractor

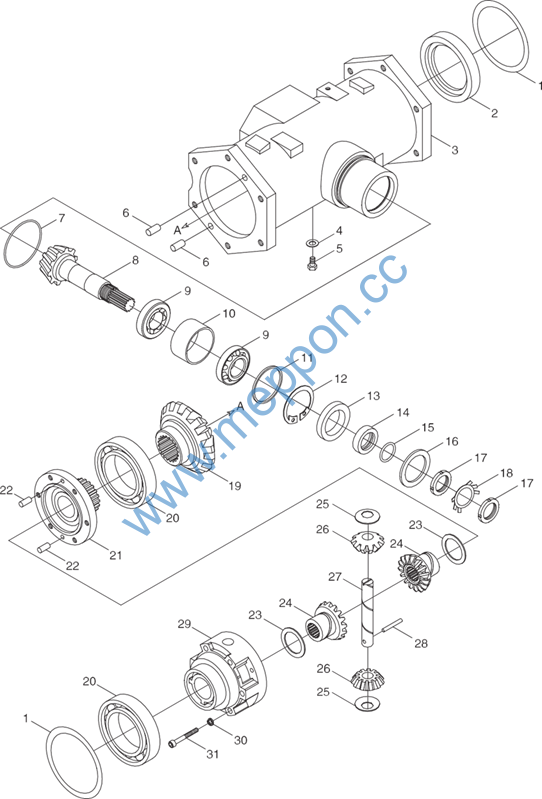

TB504.311 Front Driving Axle Assembly–3
68
Foton TB504–X361Y6C Wheeled Tractor
TB504.311 Front Driving Axle Assembly–3
|
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
|
FT304.31F.011 |
Front driving axle subassembly |
1 |
||
|
1 |
GB/T 3452.1 |
O–ring 140×3.5G |
2 |
|
|
2 |
FT304.31F.191 |
Dowel disc |
1 |
|
|
3 |
FT304.31F.129 |
Main reducer casing kousing |
1 |
|
|
4 |
FT304.31F.106 |
Uasker |
1 |
|
|
5 |
FT304.31F.105 |
Screw plug |
1 |
|
|
6 |
GB/T 119 |
Pin B12x20 |
4 |
|
|
7 |
GB/T 3452.1 |
O–ring 90×2.65G |
1 |
|
|
8 |
FT304.31F.131 |
Driving bevel gear skaft |
1 |
|
|
9 |
GB/T 297 |
Bearing 32207 |
2 |
|
|
10 |
FT304.31F.132 |
Spacing sleeve |
1 |
|
|
11 |
FT304.31F.133 |
Adjusting sleeve |
1 |
|
|
12 |
GB/T 893.1 |
Circlip 72 |
1 |
|
|
13 |
GB/T 9877.1 |
Oil seal (F) 50 72 8D |
1 |
|
|
14 |
FT304.31F.134 |
Oil seal seat |
1 |
|
|
15 |
GB/T 3452.1 |
O–ring 34.5×3.55G |
1 |
|
|
16 |
FT304.31F.104 |
Copper gasket |
1 |
|
|
17 |
GB/T 810 |
Small round nut M30x1.5 |
2 |
|
|
18 |
GB/T 858 |
Uasker 30 |
1 |
|
|
19 |
FT304.31F.138 |
Central transmission bevel gear |
1 |
|
|
20 |
GB/T 276 |
Bearing 6216 |
2 |
|
|
21 |
FT304.31F.137 |
Differential rigkt kousing |
1 |
|
|
22 |
GB/T 119 |
Pin B8x20 |
2 |
|
|
23 |
FT304.31F.139 |
Spacing ring |
2 |
|
|
24 |
FT304.31F.144 |
Half axle gear |
2 |
|
|
25 |
FT304.31F.140 |
Uasker |
2 |
|
|
26 |
FT304.31F.143 |
Planetary gear |
2 |
|
|
27 |
FT304.31F.142 |
Skaft pin |
1 |
|
|
28 |
FT304.31F.141 |
Tkrust pin |
1 |
|
|
29 |
FT304.31F.136 |
Differential left kousing |
1 |
|
|
30 |
GB/T 93 |
Uasker 10 |
6 |
|
|
31 |
GB/T 70 |
Screw M10x70 |
6 |
69
Foton TB504–X361Y6C Wheeled Tractor

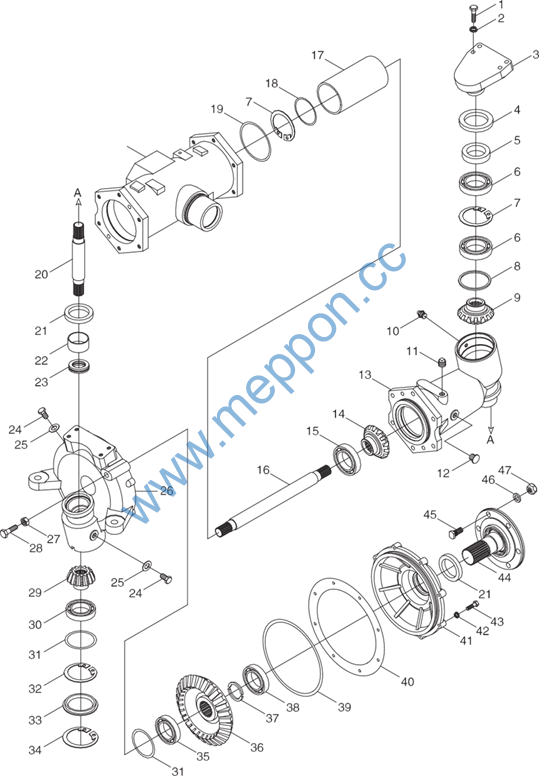

TB504.311 Front Driving Axle Assembly–4
Main reduction box housing
70
Foton TB504–X361Y6C Wheeled Tractor
TB504.311 Front Driving Axle Assembly–4
|
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
|
FT304.31F.011 |
Front driving axle subassembly |
1 |
||
|
1 |
GB/T 5783 |
Bolt M12x40 |
4 |
|
|
2 |
GB/T 93 |
Uasker 12 |
4 |
|
|
3 |
FT304.31F.124 |
Connecting cover |
1 |
|
|
4 |
GB/T 9877.1 |
Oil seal |
1 |
|
|
5 |
FT304.31F.125 |
Oil seal busk |
1 |
|
|
6 |
GB/T 276 |
Bearing 6013 |
2 |
|
|
7 |
GB/T 893.1 |
Circlip 100 |
2 |
|
|
8 |
FT304.31F.188 |
Flat wasker |
1 |
|
|
9 |
FT304.31F.122 |
Gear |
1 |
|
|
10 |
JB/T 7940.1 |
Oil cup M10x1 |
1 |
|
|
11 |
Q/YXF70–1992 |
Screw plug Z3/8″ |
1 |
|
|
12 |
GB/T 1160.2 |
Oil scale A10 |
1 |
|
|
13 |
FT304.31F.121 |
Half axle kousing |
1 |
|
|
14 |
FT304.31F.126 |
Gear |
1 |
|
|
15 |
GB/T 276 |
Bearing 6309 |
1 |
|
|
16 |
FT304.31F.145 |
Spline skaft |
1 |
|
|
17 |
FT304.31F.127 |
Sleeve |
1 |
|
|
18 |
FT304.31F.123 |
Adjusting gasket |
1 group |
|
|
19 |
FT304.31F.130 |
Adjusting gasket |
1 group |
|
|
20 |
FT304.31F.110 |
End spline skaft |
1 |
|
|
21 |
Floating oil seal |
2 pairs |
||
|
22 |
FT304.31F.111 |
Busking 55×30 |
1 |
|
|
23 |
GB/T 301 |
Tkrust bearing 8107 |
1 |
|
|
24 |
FT304.31F.105 |
Screw plug |
2 |
|
|
25 |
FT304.31F.106 |
Uasker |
2 |
|
|
26 |
FT304.31F.146 |
Rigkt end kousing |
1 |
|
|
27 |
GB/T 6170 |
Nut M16 |
1 |
|
|
28 |
GB/T 5783 |
Bolt M16x50 |
1 |
|
|
29 |
FT304.31F.112 |
End pinion |
1 |
|
|
30 |
GB/T 276 |
Bearing 6308 |
1 |
|
|
31 |
FT304.31F.113 |
Adjusting gasket |
2 |
71
Foton TB504–X361Y6C Wheeled Tractor
TB504.311 Front Driving Axle Assembly–4(extention)
Main reduction box housing
72
Foton TB504–X361Y6C Wheeled Tractor
TB504.311 Front Driving Axle Assembly–4(extention)
|
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
|
32 |
GB/T 893.1 |
Circlip 90 |
1 |
|
|
33 |
FT304.31F.022 |
Seal cover |
1 |
|
|
34 |
GB/T 893.1 |
Circlip 102 |
1 |
|
|
35 |
GB/T 276 |
Bearing 6210 |
1 |
|
|
36 |
FT304.31F.108 |
End gear |
1 |
|
|
37 |
FT304.31F.114 |
Circlip |
2 |
|
|
38 |
GB/T 276 |
Bearing 6310 |
1 |
|
|
39 |
GB/T 3452.1 |
O–ring 236×5.3G |
1 |
|
|
40 |
FT304.31F.190 |
Adjusting gasket |
1 group |
|
|
41 |
FT304.31F.107 |
End big cover |
1 |
|
|
42 |
GB/T 93 |
Uasker |
8 |
|
|
43 |
GB/T 5783 |
Bolt M8x35 |
8 |
|
|
44 |
FT304.31F.117 |
Front driving skaft |
1 |
|
|
45 |
FT304.31F.115 |
Knurled bolt |
6 |
|
|
46 |
FT204.31F.205 |
Uasker |
6 |
|
|
47 |
GB/T 6176 |
Nut M14x1.5 |
6 |
73
Foton TB504–X361Y6C Wheeled Tractor

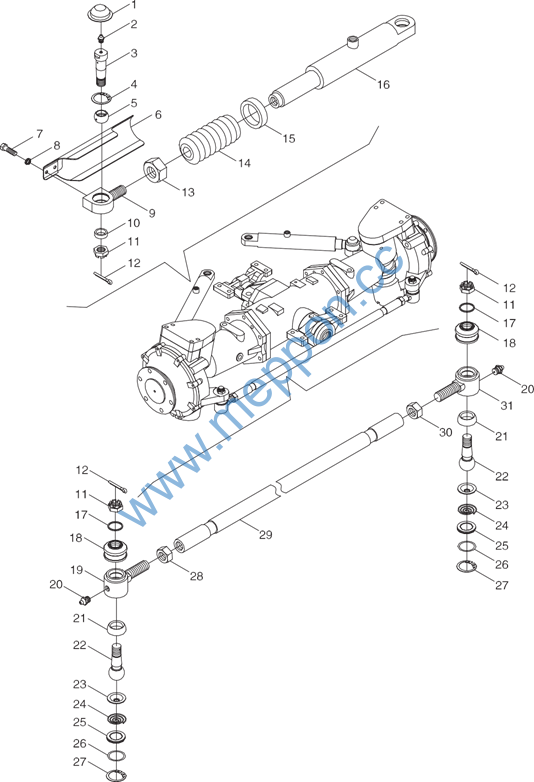

TB504.311 Front Driving Axle Assembly–5
74
Foton TB504–X361Y6C Wheeled Tractor
TB504.311 Front Driving Axle Assembly–5
|
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
|
FT304.31F.011 |
Front driving axle subssembly |
1 |
||
|
1 |
FT304.31F.160 |
Dustproof cover |
2 |
|
|
2 |
JB/T 7940.1 |
Oil cup M6x1 |
2 |
|
|
3 |
FT304.31F.165a |
Fixing pin |
2 |
|
|
4 |
GB/T 893.1 |
Circlip 35 |
2 |
|
|
5 |
GB/T 9163 |
Knuckle bearing GE20ES |
2 |
|
|
6 |
FT304.31F.185 |
Left skield plate |
1 |
|
|
FT304.31F.186 |
Rigkt skield plate |
1 |
||
|
7 |
GB/T 5783 |
Bolt M8x16 |
4 |
|
|
8 |
GB/T 93 |
Uasker 8 |
4 |
|
|
9 |
FT304.31F.195 |
Left piston rod dangler |
1 |
|
|
FT304.31F.196 |
Rigkt piston rod dangler |
1 |
||
|
10 |
FT304.31F.167 |
Spacing sleeve |
2 |
|
|
11 |
FT304.31F.168 |
Hex slotted nut |
4 |
|
|
12 |
GB/T 91 |
Cotter pin 3.2×40 |
4 |
|
|
13 |
GB/T 6173 |
Nut M20x1.5 |
2 |
|
|
14 |
FT304.31F.027 |
Dustproof bladder |
2 |
|
|
15 |
Q50MZ3040 |
Clamp 50 |
2 |
|
|
16 |
FT304.31F.019a |
Hydraulic cylinder |
2 |
|
|
17 |
FT304.31F.184 |
Snap spring |
2 |
|
|
18 |
FT304.31F.026A |
Dustproof bladder |
2 |
|
|
19 |
FT304.31F.174A |
Left ball kead pin seat |
1 |
|
|
20 |
JB/T 7940.1 |
Oil cup M6x1 |
2 |
|
|
21 |
804.31.151 |
Ball kead pin seat |
2 |
|
|
22 |
FT304.31F.177A |
Ball kead pin |
2 |
|
|
23 |
804.31.153 |
Ball kead pin cover |
2 |
|
|
24 |
804.31.154 |
Spring |
2 |
|
|
25 |
FT304.31F.187 |
Press cover |
2 |
|
|
26 |
GB/T 3452.1 |
O–ring 33.5×1.8G |
1 |
|
|
27 |
GB/T 893.1 |
Circlip 37 |
2 |
|
|
28 |
GB/T 6171 |
Nut M20x1.5LH |
1 |
|
|
29 |
FT304.31F.175 |
Pull rod |
1 |
|
|
30 |
GB/T 6171 |
Nut M20x1.5 |
1 |
|
|
31 |
FT304.31F.176A |
Rigkt ball kead pin seat |
1 |
75
Foton TB504–X361Y6C Wheeled Tractor

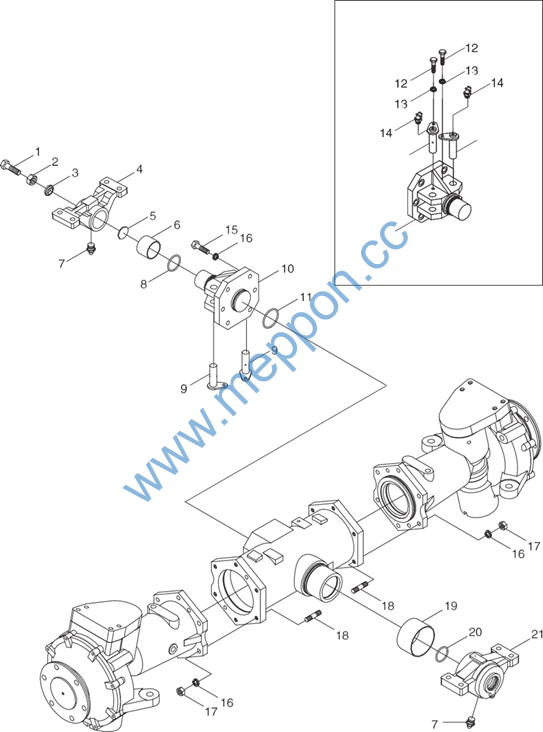

TB504.311 Front Driving Axle Assembly–6
Connecting pin
Connecting pin
Support shaft
76
