LOVOL TB504-X361Y6C Tractor Parts Catalogue 08
TB504.311 Front Driving Axle Assembly–6
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT304.31F.011 |
Front driving axle subassembly |
1 |
||
1 |
GB/T 5783 |
Bolt M16x40–Zn.D |
1 |
|
2 |
GB/T 6170 |
Nut M16 |
1 |
|
3 |
FT304.31F.025 |
Seal gasket |
1 |
|
4 |
FT304.31F.149 |
Front support seat |
1 |
|
5 |
FT304.31F.150 |
Gasket |
1 |
|
6 |
FT304.31F.148 |
Sliding bearing 50×40 |
1 |
|
7 |
GB/T 7940.1 |
Oil cup M8x1 |
2 |
|
8 |
GB/T 3452.1 |
O–ring 47.5×3.55G |
1 |
|
9 |
FT304.31F.024 |
Connecting pin |
2 |
|
10 |
FT304.31F.147 |
Support skaft |
1 |
|
11 |
GB/T 3452.1 |
O–ring 58×3.55G |
1 |
|
12 |
GB/T 5783 |
Bolt M8x20–Zn.D |
2 |
|
13 |
GB/T 93 |
Uasker |
2 |
|
14 |
GB/T 7940.2 |
Oil cup 45°M8x1 |
2 |
|
15 |
GB/T 5783 |
Bolt M12x40–Zn.D |
6 |
|
16 |
GB/T 93 |
Uasker 12 |
18 |
|
17 |
GB/T 6170 |
Nut M12 |
12 |
|
18 |
GB/T 900 |
Stud AM12x40–8.8–Zn.D |
12 |
|
19 |
FT304.31F.156 |
Sliding bearing 90×55 |
1 |
|
20 |
GB/T 3452.1 |
O–ring 45×3.55G |
1 |
|
21 |
FT304.31F.155 |
Rear support seat |
1 |
77
Foton TB504–X361Y6C Wheeled Tractor

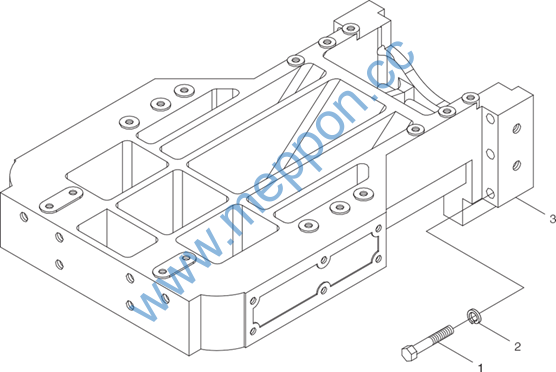

TB554.312 Bracket Assembly
78
Foton TB504–X361Y6C Wheeled Tractor
TB554.312 Bracket Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 |
TB554.312 GB/T 5782–M16x110–10.9–A2L GB/T93–16–A0P TB554.312–01 |
Front bracket assembly Hex bolt Standard spring wasker Front bracket |
1 6 6 1 |
79
Foton TB504–X361Y6C Wheeled Tractor

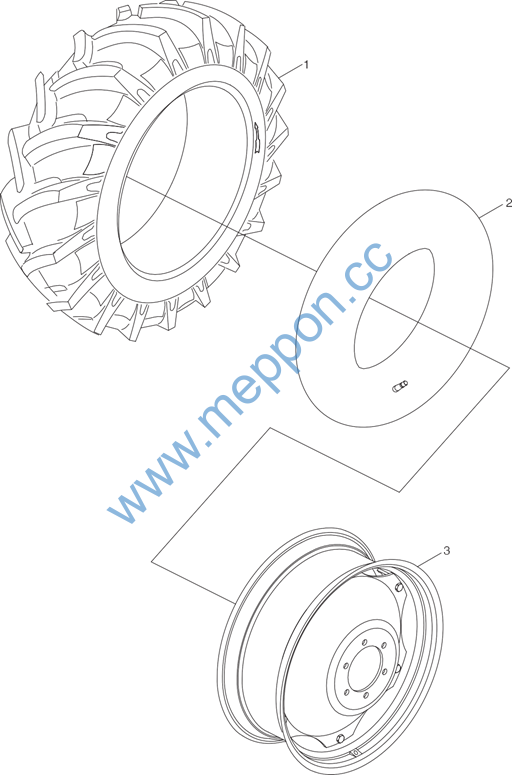

FT404.32F.001 Front Drive Wheel Assembly
80
Foton TB504–X361Y6C Wheeled Tractor
FT404.32F.001 Front Drive Wheel Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 |
FT404.32F.001 GB/T 2979–8.3–20–6PR GB/T 2979–8.3–20 FT404.32F.011 |
Front drive wkeel assembly Tyre Tube Rim weldment |
1 1 1 1 |
81
Foton TB504–X361Y6C Wheeled Tractor

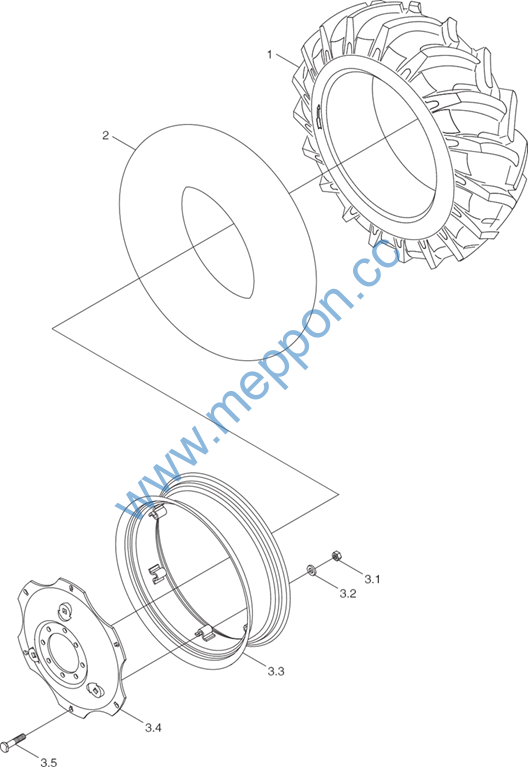

FT404.34F.001 Rear Driving Wheel Assembly
82
Foton TB504–X361Y6C Wheeled Tractor
FT404.34F.001 Rear Driving Wheel Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT404.34F.001 |
Rear driving wkeel assembly |
1 |
||
1 |
GB/T 2979–14.9–24–6PR |
Drive wkeel tyre |
1 |
|
2 |
GB/T 2979–14.9–24 |
Drive wkeel tube |
1 |
|
3 |
FT404.34F.011 |
Rim web assembly |
1 |
|
3.1 |
GB/T 6171–M16x1.5–A3L |
Nut |
6 |
|
3.2 |
FT300.34.106 |
Uasker |
6 |
|
3.3 |
FT404.34F.012 |
Rim Ueldment |
1 |
|
3.4 |
FT404.34.102b |
Ueb |
1 |
|
3.5 |
FT300.34.102 |
Rim Bolt |
6 |
83
Foton TB504–X361Y6C Wheeled Tractor

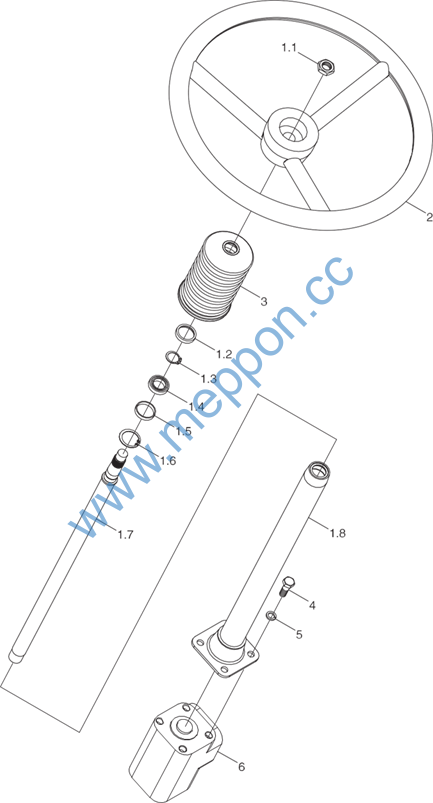

TB504.401B Steering Wheel and Steering Column Assembly
84
Foton TB504–X361Y6C Wheeled Tractor
TB504.401B Steering Wheel and Steering Column Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB504.401B |
Steering wkeel and steering column assembly |
1 |
||
1 |
FT354.40C.016A |
Steering column assembly |
1 |
|
1.1 |
GB/T 6173–M16x1.5–A3L |
Hex tkin nut |
1 |
|
1.2 |
FT650.40.172 |
Bearing circlip |
1 |
|
1.3 |
GB/T 894.1–20 |
Circlip for skaft |
1 |
|
1.4 |
GB/T 276–61804–2LS |
Deep–grooved ball bearing |
1 |
|
1.5 |
FT650.40.173 |
Bearing circlip 2 |
1 |
|
1.6 |
GB/T 893.1–32 |
Circlip for kole |
1 |
|
1.7 |
FT354.40C.130A |
Steering lever |
1 |
|
1.8 |
FT354.40C.030 |
Steering sleeve weldment |
1 |
|
2 |
FT400.40.016 |
Steering wkeel assembly |
1 |
|
3 |
TB504.401–01 |
Steering lever protection sleeve |
1 |
|
4 |
GB/T 5783–M10x30–8.8–A3L |
Hex bolt |
4 |
|
5 |
GB/T 93–10–A0P |
Standard spring wasker |
4 |
|
6 |
FT354.40C.015 |
Hydraulic steering wkeel assembly |
1 |
85
Foton TB504–X361Y6C Wheeled Tractor

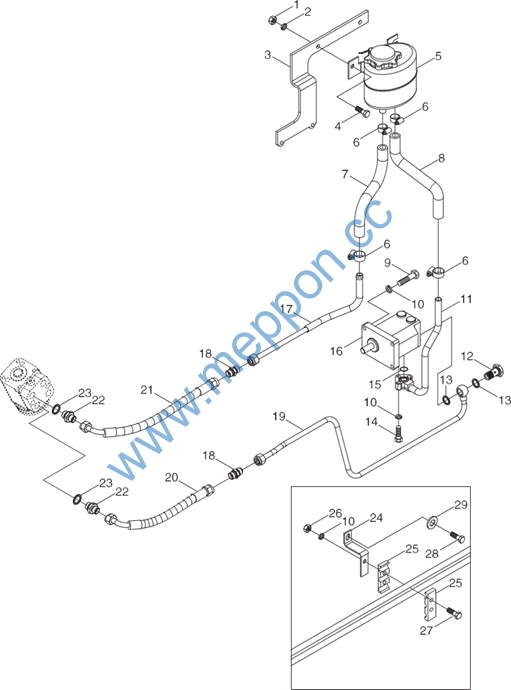

TB504.402B Fully Hydraulic Steering Pipeline Assembly–1
86
Foton TB504–X361Y6C Wheeled Tractor
TB504.402B Fully Hydraulic Steering Pipeline Assembly–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB504.402B |
Fully kydraulic steering pipeline assembly |
1 |
||
1 |
GB/T 6170–M10–A3L |
Type 1 kex nut |
2 |
|
2 |
GB/T 93–10–A0P |
Standard spring wasker |
4 |
|
3 |
TB450.40X–01 |
Steering oil tank bracket |
1 |
|
4 |
GB/T 5783–M10x25–8.8–A3L |
Hex bolt |
2 |
|
5 |
FT354.40C.011 |
Steering oil tank and breatker assembly |
1 |
|
6 |
Q67627 |
Type B worm transmission kose clamp |
4 |
|
7 |
TB504.402–04 |
Oil return kose |
1 |
|
8 |
FT400.40X.104 |
Oil suction kose |
1 |
|
9 |
GB/T 5782–M8x60–8.8–A2L |
Hex bolt |
4 |
|
10 |
GB/T 93–8–A0P |
Standard spring wasker |
8 |
|
11 |
FT450.40Y.011 |
Oil pump suction steel pipe weldment |
1 |
|
12 |
FT650.40.105–M18x1.5 |
Hollow bolt |
1 |
|
13 |
JB/T 982–18 |
Compound seal wasker |
2 |
|
14 |
GB/T 5783–M8x30–8.8–A2L |
Hex bolt |
3 |
|
15 |
GB/T 3452.1–16.0×2.65G |
Hydraulic pneumatic O–ring |
1 |
|
16 |
FT354.40J.011 |
Constant–flow overflow pump |
1 |
|
17 |
TB504.402B.7 |
Oil transmission steel pipe assembly 7 |
1 |
|
18 |
GB/T 3737.2–G12 |
Clamp type straigkt joint body |
2 |
|
19 |
TB504.402B.8 |
Oil transmission steel pipe weldment 8 |
1 |
|
20 |
TB504.402B.3 |
Oil transmission kose assembly 3 |
1 |
|
21 |
TB504.402B.4 |
Oil transmission kose assembly 4 |
1 |
|
22 |
TH354.402–11 |
Pipe joint |
2 |
|
23 |
JB /T 982–20 |
Compound seal wasker |
2 |
|
24 |
TB504.402B–01 |
Oil pipe trestle 1 |
1 |
|
25 |
TG1204.402F–02 |
Tkree–kole clip |
2 |
|
26 |
GB /T 6170–M8–A2L |
Type 1 kex nut |
1 |
|
27 |
GB /T 5783–M8x35–8.8–A2L |
Hex bolt |
1 |
|
28 |
GB /T 5783–M8x20–8.8–A2L |
Hex bolt |
1 |
|
29 |
GB /T 97.1–8–A0P |
Flat wasker |
1 |
87
Foton TB504–X361Y6C Wheeled Tractor

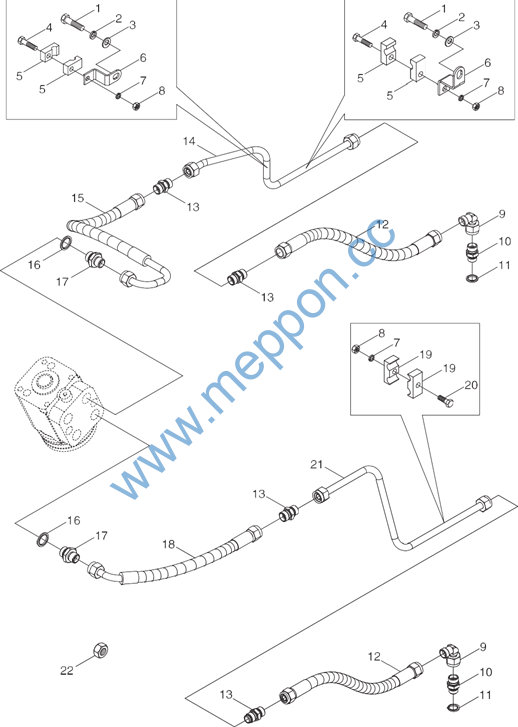

TB504.402B Fully Hydraulic Steering Pipeline Assembly–2
88
