LOVOL TB504-X161Y6K Tractor Parts Catalogue 13

Meppon Parts Posted on by

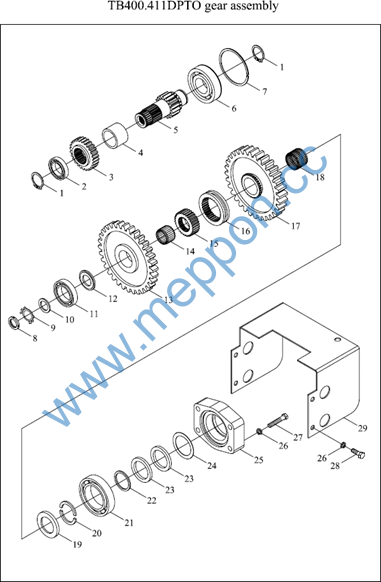

TB400.411D 41.1-动力输出齿轮总成 41.1-PTO GEAR ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT894.1-40

挡圈40

WASHER 40

2

2011-11_

10

FT300.41.122

垫圈

WASHER

1

2011-11_

11

GBT276-6306

深沟球轴承

BEARING

1

2011-11_

12

FT300.41C.118

输出轴前挡环

OUTPUT SHAFT FRONT RETAINER RING

1

2011-11_

13

FT300.41E.105

动力输出被动小齿轮

PTO DRIVEN SMALL GEAR

1

2011-11_

14

JBT7918-K35X40X27

向心滚针和保持架组件

NEEDLE AND CARRIER UNIT

1

2011-11_

15

FT300.41C.117

动力输出啮合座

PTO MESHING SEAT

1

2011-11_

15

FT300.41C.117

动力输出啮合座

PTO MESHING SEAT

1

2011-11_

16

FT300.41C.116

动力输出啮合套

PTO SHIFT COLLAR

1

2011-11_

17

FT300.41E.103

动力输出被动大齿轮

PTO DRIVEN BIG GEAR

1

2011-11_

19

FT300.41E.114

后挡环

REAR RETAINER RING

1

2011-11_

2

GBT276-6208

深沟球轴承

BEARING

1

2011-11_

20

FT300.41E.119

输出轴半挡环

OUTPUT SHAFT HALF RETAINER RING

2

2011-04_

21

GBT276-6309

深沟球轴承

BEARING

1

2011-11_

22

FT300.41E.113

输出轴轴承垫圈

OUTPUT SHAFT BEARING WASHER

1

2011-11_

23

GBT9877.1-FB50X72X8D

内包骨架旋转轴唇形密封

O RING

2

2011-11_

24

FT300.41E.115

油封挡圈

OIL SEAL RETAINER RING

1

2011-11_

25

FT300.41E.101

后端盖Ⅰ

REAR END COVER I

1

2011-11_

26

GBT93-12-AOP

垫圈

WASHER

8

2011-11_

27

GBT5782-M12X55

六角头螺栓

BOLT

4

2004-01_

28

GBT5781-M12X25-A3L

六角头螺栓

BOLT

4

2011-11_

29

FT300.41.131a

安全防护罩

SAFTY BONNET

1

2011-11_

3

FT300.41E.120

动力输出高档主动齿轮

PTO HIGH GEAR DRIVING GEAR

1

2011-11_

3

FT300.41E.120

动力输出高档主动齿轮

PTO HIGH GEAR DRIVING GEAR

1

2011-11_

4

FT300.41E.121

隔套

SPACER BUSH

1

2011-11_








TB400.411D 41.1-动力输出齿轮总成(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

5

5

6

7

8



9

FT300.41E.106 FT300.41E.106 GBT276-6308N GBT305-90-96.5 GBT812-M25X1.5



GBT858-25

动力输出低档主动齿轮动力输出低档主动齿轮深沟球轴承

止动环圆螺母



止退垫圈

PTO LOW GEAR DRIVING GEAR PTO LOW GEAR DRIVING GEAR BEARING

THRUST RING ROUND NUT



WASHER LOCK

1

1

1

1

1



1

2011-11_

2011-11_

2011-11_

2011-11_

2011-11_



2011-11_

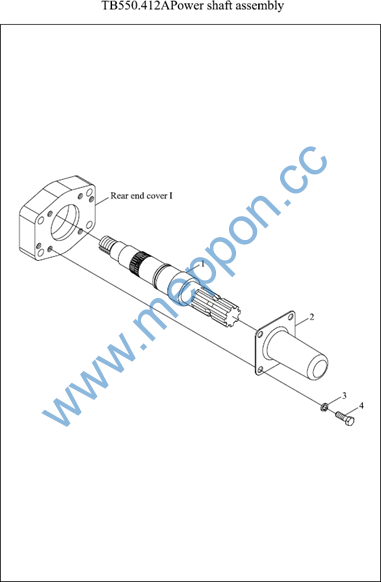

TB550.412A 41.2-动力输出轴总成 41.2-PTO SHAFT ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

1

2

2

3



4

TB550.412A-01 TB550.412A-01 TE250.411C-02 FT300.41E.102 GBT93-10



GBT5783-10X20-A3L

Ⅰ35型动力输出轴 Ⅰ35型动力输出轴动力输出轴护罩 动力输出轴盖

垫圈10



六角头螺栓

TYPE-I 35 PTO SHAFT TYPE-I 35 PTO SHAFT PTO SHAFT HOOD PTO SHAFT COVER WASHER 10



BOLT

1

1

1

1

4



4

2011-11_

2011-11_

2008-11_

2004-01_

2011-11_



2011-11_

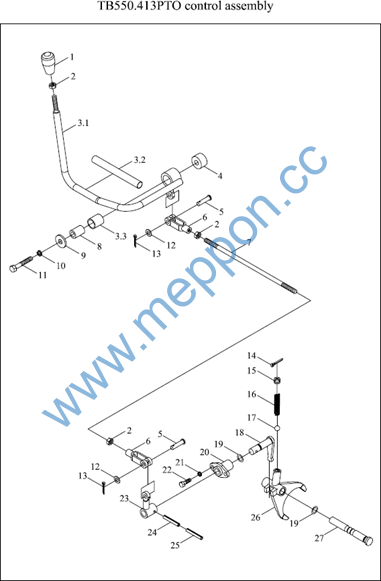

TB550.413 41.3-动力输出操纵总成 41.3-PTO CONTROL ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT300.41.015

动力输出操纵手柄总成

PTO CONTROL HANDLE ASSEMBLY

1

2011-11_

10

GBT93-12

垫圈

WASHER

1

2011-11_

11

TB550.413-02

螺栓

BOLT

1

2011-11_

12

GBT97.1-10-A0P

平垫圈

WASHER

2

2011-11_

13

GBT91-3.2X16-A0P

开口销

PIN

2

2011-11_

14

GBT91-2.5X32-A0P

开口销

PIN

1

2011-11_

15

TB550.413-03

螺钉

SCREW

1

2011-11_

16

FT704.42B.163

拨叉轴定位弹簧

FORK SHAFT LOCATING SPRING

1

2007-01_

16

FT300.41.123

拨叉轴定位弹簧

FORK SHAFT LOCATING SPRING

1

2004-01_

17

GBT308-9.5-G100-b

钢球

BALL

1

2011-11_

18

FT300.41E.011

指形拨杆焊合件

FINGER LEVER WELDMENT

1

2004-01_

18

TB550.413-04

指形拨杆焊合件

FINGER LEVER WELDMENT

1

2012-05_

19

GBT3452.1-16.0X2.65G

液压气动用O形橡胶密封圈

O-SEAL RING

1

2012-08_

19

GBT3452.1-11.2X2.65G

液压气动用O形橡胶密封圈

O-SEAL RING

1

2012-08_

2

GBT6170-M10-A3L

螺母

NUT

3

2011-11_

20

FT300.41E.109

拨杆轴套

LEVER SHAFT SLEEVE

1

2011-11_

21

GBT93-8-AOP

弹簧垫圈

SPRING WASHER

2

2011-11_

22

GBT5783-M8X20-A2L

螺栓

BOLT

2

2011-11_

23

FT300.41.012

动力输出变速杆焊合件

PTO GEARSHIFT LEVER WELDMENT

1

2011-11_

24

GBT879.1-6X26

弹性圆柱销

PIN

1

2011-11_

25

GBT879.1-3.5X26

弹性圆柱销

PIN

1

2011-11_

26

TB550.413-01a

动力输出变速拨叉

PTO GEARSHIFT FORK

1

2007-01_

27

FT300.41C.107a

动力输出拨叉轴

PTO FORK SHAFT

1

2007-01_

3

FT300.41.013

动力输出操纵杆总成

PTO CONTROL ROD ASSEMBLY

1

2011-11_

3.1

FT300.41.014

动力输出操纵杆焊合

PTO CONTROL ROD WELDMENT

1

2011-11_








TB550.413 41.3-动力输出操纵总成(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

3.2

3.3

4

5

6



7

8

9

FT300.41.145 FT300.41.127 FT300.41.128 GBT882-B10X30 FT300.43.108



FT300.41E.112 FT300.41.130 FT300.41.129

操纵杆减震套管衬套

隔套销轴

拉杆前叉



操纵杆轴套 垫圈

CONTROL ROD DAMPING PIPE SLEEVE

SPACER BUSH PIN

PULL ROD FRONT FORK



CONTROL ROD SHAFT SLEEVE WASHER

1

1

1

2

2



1

1

1

2011-11_

2011-11_

2011-11_

2011-11_

2011-11_



2011-11_

2011-11_

2011-11_

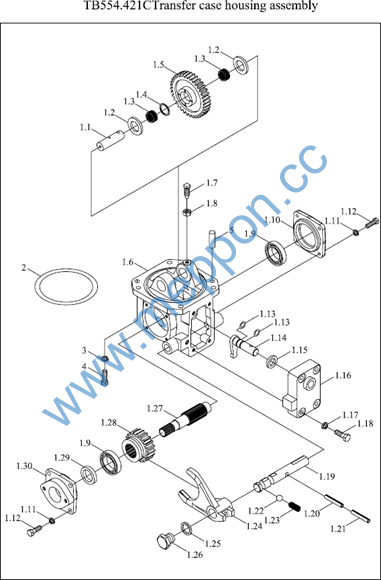

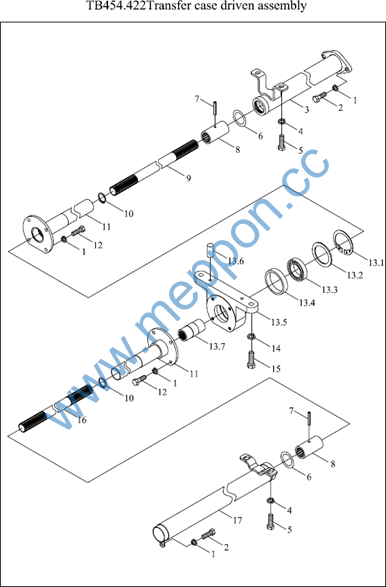

TB554.421C 42.1-分动箱箱体总成 42.1-TRANSFER CASE HOUSING ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TB554.421C.1

分动箱装配总成

TRANSFER CASE INSTALLATION ASSEMBLY

1

2011-11_

1

TB554.421C.1

分动箱装配总成

TRANSFER CASE INSTALLATION ASSEMBLY

1

2011-11_

1.1

FT304.42.117

轴承盖

BEARING COVER

1

2011-11_

1.1

FT304.42.117

轴承盖

BEARING COVER

1

2011-11_

1.1

FT304.42.102

惰轮轴

IDLER SHAFT

1

2011-11_

1.11

GBT93-8-AOP

弹簧垫圈

SPRING WASHER

8

2011-11_

1.12

GBT5783-M8X20-A2L

螺栓

BOLT

8

2011-11_

1.13

GBT3452.1-17.0X1.80G

液压气动用O形橡胶密封圈

O-SEAL RING

2

2011-11_

1.14

TB554.421E.1.1

转轴焊合

ROTARY SHAFT WELDMENT

1

2011-11_

1.15

TB554.423B-02

转轴隔套

ROTARY SHAFT SPACER BUSH

1

2011-11_

1.16

TB554.421E.1-05

侧盖

SIDE COVER

1

2011-11_

1.17

GBT93-10-A0P

标准型弹簧垫圈

WASHER

4

2011-11_

1.18

GBT5782-M10X45-A3L

六角头螺栓

BOLT

4

2011-11_

1.19

FT304.42F.119

分动箱拨叉轴

TRANSFER CASE FORK SHAFT

1



1.19

TB554.421E.1-04

拨叉轴

FORK SHAFT

1

2007-03_

1.2

FT304.42F.103

止推环

PLATE;THRUST

2

2011-11_

1.2

GBT879.1-6X30

弹性圆柱销

PIN

1

2011-11_

1.21

GBT879.1-3.5X30

弹性圆柱销

PIN

1

2011-11_

1.22

GBT308-10-G100-b

钢球

BALL

1

2011-11_

1.23

FT800.37.139

弹簧

SPRING

1

2009-12_

1.23

FT804.42.151

弹簧

SPRING

1

2004-01_

1.24

TB554.421E.1-06

分离拨叉

RELEASE SHIFT FORK

1

2011-11_

1.25

JBT982-18

组合密封垫圈

COMBINED SEAL GASKET

2

2011-11_

1.25

JBT982-18

组合密封垫圈

COMBINED SEAL GASKET

2

2011-11_

1.26

FT804.42.110

螺堵

SCREW PLUG

2

2011-11_








TB554.421C 42.1-分动箱箱体总成(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1.27

FT304.42F.105

分动箱输出轴

TRANSFER CASE OUTPUT SHAFT

1

2011-11_

1.28

TB554.421C.1-01

分动箱被动齿轮

TRANSFER CASE DRIVEN GEAR

1

2011-11_

1.29

GBT9877.1-FB30X52X7D

内包骨架旋转轴唇形密封

O RING

1

2011-11_

1.3

FT304.42F.106

轴承座

BEARING SEAT

1

2011-11_

1.3

JBT7918-K25X31X20

向心滚针和保持架组件

NEEDLE AND CARRIER UNIT

2

2011-11_

1.4

FT304.42.126

滚针内隔套

NEEDLE INNER SPACER SLEEVE

1

2011-11_

1.5

FT304.42F.125

分动箱惰轮

TRANSFER CASE IDLER

1

2011-11_

1.6

FT304.42F.101

分动箱箱体

TRANSFER CASE BODY

1



1.6

FT304.42F.101a

分动箱箱体

TRANSFER CASE BODY

1

2007-03_

1.7

FT304.42.112

止动螺钉

THRUST SCREW

1

2011-11_

1.8

GBT6173-M10X1-A2L

六角薄螺母

NUT

1

2011-11_

1.9

GBT276-6306

深沟球轴承

BEARING

2

2011-11_

2

GBT3452.1-132X3.55G

液压气动用O形橡胶密封圈

O-SEAL RING

1

2011-11_

3

GBT93-10-A0P

标准型弹簧垫圈

WASHER

4

2011-11_

4

GBT5783-M10X30-8.8-A3L

六角头螺栓

BOLT

4

2009-05_

4

GBT5783-M10X25-A3L

螺栓

BOLT

4

2004-01_
