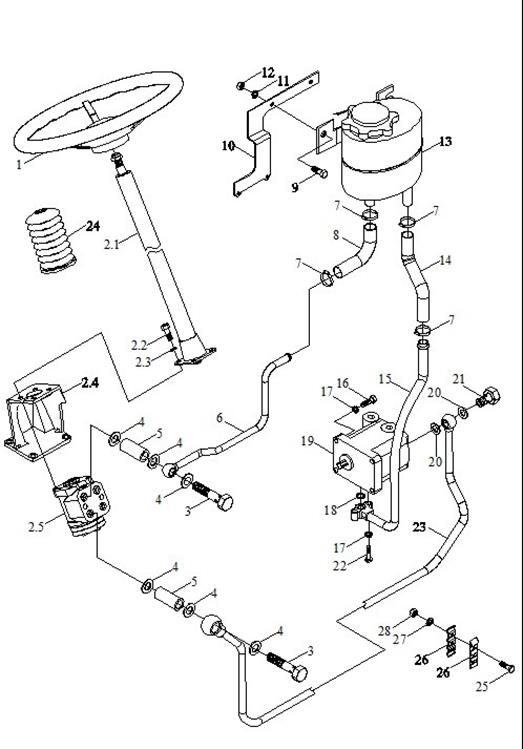

LOVOL TB504-X161Y6K Tractor Parts Catalogue 11
TB454.38J-4 38.4-后桥总成-4 38REAR AXLE ASSEMBLY-4
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 |
FT300.38.190 |
差速锁拨块 |
DIFFERENTIAL LOCK DIAL BLOCK |
1 |
2011-11_ |
|
10 |
GBT879.1-6X35 |
弹性圆柱销 |
PIN |
1 |
2011-11_ |
|
11 |
GBT879.2-3.5X35 |
弹性圆柱销 |
PIN |
1 |
2011-11_ |
|
12 |
FT300.38.015 |
差速锁踏板焊合件 |
DIFFERENTIAL LOCK PEDAL WELDMENT |
1 |
2011-11_ |
|
13 |
Q722-20 |
碗形塞片 |
PLUG PIECE |
1 |
2011-11_ |
|
13 |
Q72220 |
碗形塞片 |
PLUG PIECE |
1 |
2004-01_ |
|
2 |
FT300.38.159a |
差速锁拨叉 |
DIFFERENTIAL LOCK FORK |
1 |
2011-11_ |
|
3 |
FT300.38.160 |
差速锁回位弹簧 |
DIFFERENTIAL LOCK RETURN SPRING |
1 |
2011-11_ |
|
4 |
FT300.38.158a |
差速锁拨叉轴 |
DIFFERENTIAL LOCK FORK SHAFT |
1 |
2011-11_ |
|
5 |
GBT3452.1-15.0X2.65G |
液压气动用O形橡胶密封圈 |
O-SEAL RING |
1 |
2011-11_ |
|
6 |
GBT879.2-3.5X40 |
弹性圆柱销 |
PIN |
1 |
2011-11_ |
|
7 |
GBT879.1-6X40 |
弹簧圆柱销 |
SPRING COLUMN PIN |
1 |
2011-11_ |
|
8 |
GBT5781-M8X65-A2L |
六角头螺栓 |
BOLT |
1 |
2011-11_ |
|
9 |
GBT6170-M8-A2L |
螺母 |
NUT |
2 |
2011-11_ |

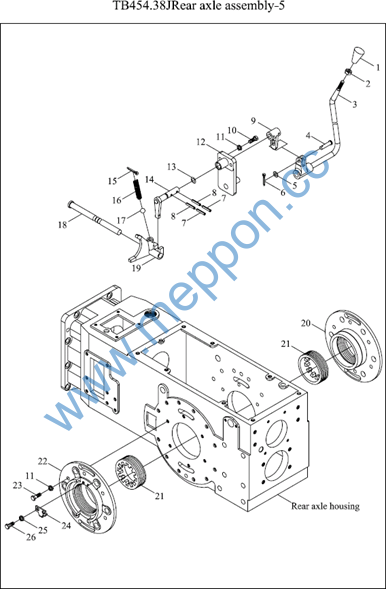

TB454.38J-5 38.5-后桥总成-5 38REAR AXLE ASSEMBLY-5
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 |
FT300.41.015 |
动力输出操纵手柄总成 |
PTO CONTROL HANDLE ASSEMBLY |
1 |
2011-11_ |
|
10 |
TB400.385-09 |
螺栓 |
BOLT |
2 |
2011-11_ |
|
11 |
GBT93-10-A0P |
标准型弹簧垫圈 |
WASHER |
14 |
2011-11_ |
|
12 |
TB554.385.3a |
拨杆轴套焊合 |
LEVER BUSH WELDMENT |
1 |
2010-01_ |
|
12 |
TB554.385.3 |
拨杆轴套焊合 |
LEVER BUSH WELDMENT |
1 |
2008-07_ |
|
12 |
FT300.38J.030a |
拨杆轴套焊合 |
LEVER BUSH WELDMENT |
1 |
2006-06_ |
|
13 |
GBT3452.1-11.2X2.65 |
液压气动用O形橡胶密封圈 |
O-SEAL RING |
1 |
2011-11_ |
|
14 |
FT300.38J.023b |
指形拨杆焊合件 |
FINGER LEVER WELDMENT |
1 |
2004-01_ |
|
14 |
FT300.38J.023c |
指形拨杆焊合件 |
FINGER LEVER WELDMENT |
1 |
2007-10_ |
|
14 |
TB554.385.2 |
指形拨杆焊合件 |
FINGER LEVER WELDMENT |
1 |
2008-09_ |
|
15 |
GBT91-4X32-A0P |
开口销 |
PIN |
1 |
2011-11_ |
|
16 |
FT704.42B.163 |
拨叉轴定位弹簧 |
FORK SHAFT LOCATING SPRING |
1 |
2011-11_ |
|
17 |
GBT308-9.5-G100-b |
钢球 |
BALL |
1 |
2011-11_ |
|
18 |
FT300.38J.203 |
倒档拨叉轴 |
REVERSE FORK SHAFT |
1 |
|
|
18 |
FT300.38.195 |
限位支座 |
LIMITING SEAT |
1 |
2006-05_ |
|
19 |
FT300.38J.218 |
倒挡拨叉 |
REVERSE GEAR FORK |
1 |
2011-11_ |
|
2 |
GBT6170-M10-A3L |
螺母 |
NUT |
1 |
2011-11_ |
|
20 |
FT300.38.177 |
右差速器轴承座 |
RIGHT DIFFERENTIAL BEARING SEAT |
1 |
2011-11_ |
|
21 |
FT300.38.151 |
调整螺母 |
ADJUSTING NUT |
2 |
2011-11_ |
|
22 |
FT300.38.142 |
左差速器轴承座 |
LEFT DIFFERENTIAL BEARING SEAT |
1 |
2011-11_ |
|
23 |
GBT5783-M10X25-A2L |
六角头螺栓 |
BOLT |
12 |
2011-11_ |
|
24 |
FT300.38.161 |
锁片 |
LOCK SHIM |
2 |
2011-11_ |
|
25 |
GBT93-8-A0P |
垫圈 |
WASHER |
4 |
2011-11_ |
|
3 |
FT300.38J.022a |
倒档操纵杆总成 |
REVERSE CONTROL LEVER ASSEMBLY |
1 |
2011-11_ |
|
4 |
GBT882-B10X30-A0P |
销轴 |
PIN |
1 |
2011-11_ |
TB454.38J-5 38.5-后桥总成-5(续)
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
5 6 7 8 8
9 9 9 9 |
GBT848-10-A0P GBT91-3.2X40-A0P GBT879.2-3.5X28 GBT879.1-6X28 GBT879.1-6X28
FT300.38J.231b FT300.38J.231b FT300.38J.216 FT300.38J.231a |
小垫圈开口销 弹性圆柱销弹性圆柱销弹性圆柱销
摇臂摇臂摇臂摇臂 |
WASHER PIN PIN PIN PIN
ROCKER ROCKER ROCKER ROCKER |
1 1 2 2 2
1 1 1 1 |
2011-11_ 2011-11_ 2011-11_ 2011-11_ 2011-11_
2007-10_ 2007-10_ 2010-08_ 2004-01_ |

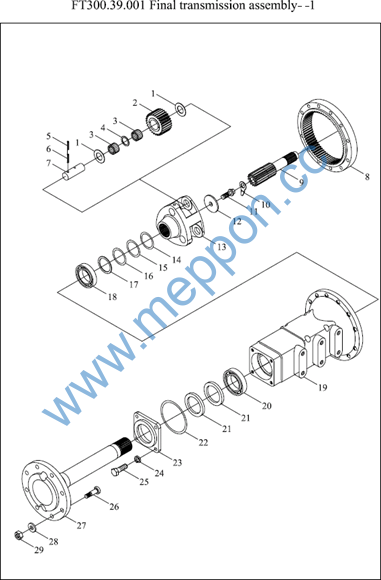

FT300.39.001-1 39.1-最终传动总成-1 39FINAL TRANSMISSION ASSEMBLY -1
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 |
FT300.39.109 |
滚针外隔圈 |
NEEDLE OUTER SPACER RING |
6 |
2011-11_ |
|
10 |
FT300.39.110 |
驱动轴锁片 |
DRIVING SHAFT LOCK PIECE |
1 |
2011-11_ |
|
11 |
FT300.39.112 |
驱动轴锁紧螺栓 |
DRIVING SHAFT LOCK BOLT |
1 |
2011-11_ |
|
12 |
FT300.39.111 |
挡块 |
RETAINER BLOCK |
1 |
2011-11_ |
|
13 |
FT300.39.104 |
行星架 |
PLANET CARRIER |
1 |
2011-11_ |
|
14 |
FT300.39.123 |
调整垫片 |
ADJUSTING WASHER |
999 |
2011-11_ |
|
15 |
FT300.39.122 |
调整垫片 |
ADJUSTING WASHER |
999 |
2011-11_ |
|
16 |
FT300.39.121 |
调整垫片 |
ADJUSTING WASHER |
999 |
2011-11_ |
|
16 |
FT300.39.121 |
调整垫片 |
ADJUSTING WASHER |
999 |
2011-11_ |
|
17 |
FT300.39.113 |
隔套 |
SPACER BUSH |
1 |
2011-11_ |
|
18 |
GBT276-6211 |
深沟球轴承 |
BEARING |
1 |
2011-11_ |
|
19 |
FT300.39.115 |
左驱动轴壳体 |
LEFT DRIVING SHAFT HOUSING |
1 |
2011-11_ |
|
2 |
FT300.39.103 |
行星轮 |
PLANET GEAR |
3 |
2011-11_ |
|
20 |
GBT276-6212 |
球轴承 |
BALL BEARING |
1 |
2011-11_ |
|
21 |
GBT9877.1-FB70X95X10D |
内包骨架旋转轴唇形密封 |
O RING |
2 |
2011-11_ |
|
22 |
GBT3452.1-115X3.55G |
液压气动用O形橡胶密封圈 |
O-SEAL RING |
1 |
2004-01_ |
|
23 |
FT300.39.116 |
油封座 |
OIL SEAL CAGE |
1 |
2011-11_ |
|
24 |
GBT93-12-AOP |
垫圈 |
WASHER |
4 |
2011-11_ |
|
25 |
GBT5783-M12X30-8.8-A3L |
六角头螺栓 |
BOLT |
4 |
|
|
26 |
FT300.39.136 |
后轮毂螺栓（左） |
REAR HUB BOLT (LEFT) |
8 |
2011-11_ |
|
27 |
FT300.39.118 |
驱动轴 |
DRIVING SHAFT |
1 |
2011-11_ |
|
28 |
FT300.39.137 |
垫圈 |
WASHER |
8 |
2011-11_ |
|
29 |
GBT6176-M16X1.5-LH-10-A3L |
2型六角螺母 |
HEXAGON NUT, TYPE-2 |
8 |
2004-01_ |
|
3 |
GBT309-P5X23.8-G2 |
滚针 |
NEEDLE |
132 |
2011-11_ |
|
4 |
FT300.39.105 |
滚针内隔圈 |
NEEDLE INNER SPACER RING |
3 |
2011-11_ |
FT300.39.001-1 39.1-最终传动总成-1(续)
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
5 6 7 8 9 |
GBT879.1-5X24 GBT879.1-8X24 FT300.39.106 FT300.39.107 FT300.39.101 |
弹性圆柱销弹性圆柱销行星轮轴 齿圈 左半轴 |
PIN PIN PLANET GEAR SHAFT GEAR RING LEFT HALF SHAFT |
3 3 3 1 1 |
2011-11_ 2011-11_ 2011-11_ 2011-11_ 2011-11_ |

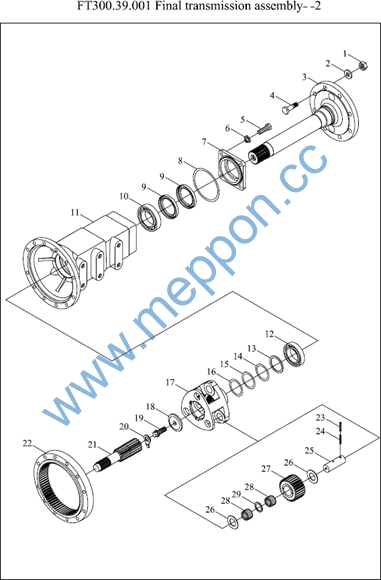

FT300.39.001-2 39.2-最终传动总成-2 39FINAL TRANSMISSION ASSEMBLY -2
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 |
GBT6176-M16X1.5-LH-10-A3L |
2型六角螺母 |
HEXAGON NUT, TYPE-2 |
8 |
2011-11_ |
|
10 |
GBT276-6212 |
球轴承 |
BALL BEARING |
1 |
2011-11_ |
|
11 |
FT300.39.114 |
右驱动轴壳体 |
RIGHT DRIVING SHAFT HOUSING |
1 |
2011-11_ |
|
12 |
GBT276-6211 |
深沟球轴承 |
BEARING |
1 |
2011-11_ |
|
13 |
FT300.39.113 |
隔套 |
SPACER BUSH |
1 |
2011-11_ |
|
14 |
FT300.39.121 |
调整垫片 |
ADJUSTING WASHER |
9999 |
2011-11_ |
|
14 |
FT300.39.121 |
调整垫片 |
ADJUSTING WASHER |
9999 |
2011-11_ |
|
15 |
FT300.39.122 |
调整垫片 |
ADJUSTING WASHER |
9999 |
2011-11_ |
|
16 |
FT300.39.123 |
调整垫片 |
ADJUSTING WASHER |
9999 |
2011-11_ |
|
17 |
FT300.39.104 |
行星架 |
PLANET CARRIER |
1 |
2011-11_ |
|
18 |
FT300.39.111 |
挡块 |
RETAINER BLOCK |
1 |
2011-11_ |
|
19 |
FT300.39.112 |
驱动轴锁紧螺栓 |
DRIVING SHAFT LOCK BOLT |
1 |
2011-11_ |
|
2 |
FT300.39.137 |
垫圈 |
WASHER |
8 |
2011-11_ |
|
20 |
FT300.39.110 |
驱动轴锁片 |
DRIVING SHAFT LOCK PIECE |
1 |
2011-11_ |
|
21 |
FT300.39.102 |
右半轴 |
RIGHT HALF SHAFT |
1 |
2011-11_ |
|
21 |
FT300.39.102 |
右半轴 |
RIGHT HALF SHAFT |
1 |
2011-11_ |
|
22 |
FT300.39.107 |
齿圈 |
GEAR RING |
1 |
2011-11_ |
|
23 |
GBT879.1-5X24 |
弹性圆柱销 |
PIN |
3 |
2011-11_ |
|
24 |
GBT879.1-8X24 |
弹性圆柱销 |
PIN |
3 |
2011-11_ |
|
25 |
FT300.39.106 |
行星轮轴 |
PLANET GEAR SHAFT |
3 |
2011-11_ |
|
26 |
FT300.39.109 |
滚针外隔圈 |
NEEDLE OUTER SPACER RING |
6 |
2011-11_ |
|
27 |
FT300.39.103 |
行星轮 |
PLANET GEAR |
3 |
2011-11_ |
|
28 |
GBT309-P5X23.8-G2 |
滚针 |
NEEDLE |
132 |
2011-11_ |
|
29 |
FT300.39.105 |
滚针内隔圈 |
NEEDLE INNER SPACER RING |
3 |
2011-11_ |
|
3 |
FT300.39.118 |
驱动轴 |
DRIVING SHAFT |
1 |
2011-11_ |
FT300.39.001-2 39.2-最终传动总成-2(续)
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
4 5 6 7 8
9 |
FT300.39.135 GBT5783-M12X30-8.8-A3L GBT93-12-AOP FT300.39.116 GBT3452.1-115X3.55G GBT9877.1-FB70X95X10D |
后轮毂螺栓六角头螺栓垫圈 油封座 液压气动用O形橡胶密封圈内包骨架旋转轴唇形密封 |
REAR HUB BOLT BOLT WASHER OIL SEAL CAGE O-SEAL RING
O RING |
8 4 4 1 1
2 |
2011-11_ 2011-11_ 2011-11_ 2011-11_ 2011-11_
2011-11_ |
